Plan 710122BTZ

Attractive House Plan with Fieldstone, Brick and Siding Exterior

Name: Plan 710122BTZ: Attractive House Plan with Fieldstone, Brick and Siding Exterior
Brand: Architectural Designs
SKU: 710122BTZ
Price: 1665.36 USD
Availability: InStock

Heated S.F.

2,677

Beds

3 - 5

Baths

Stories

Cars

Client Photos

Floor Plan

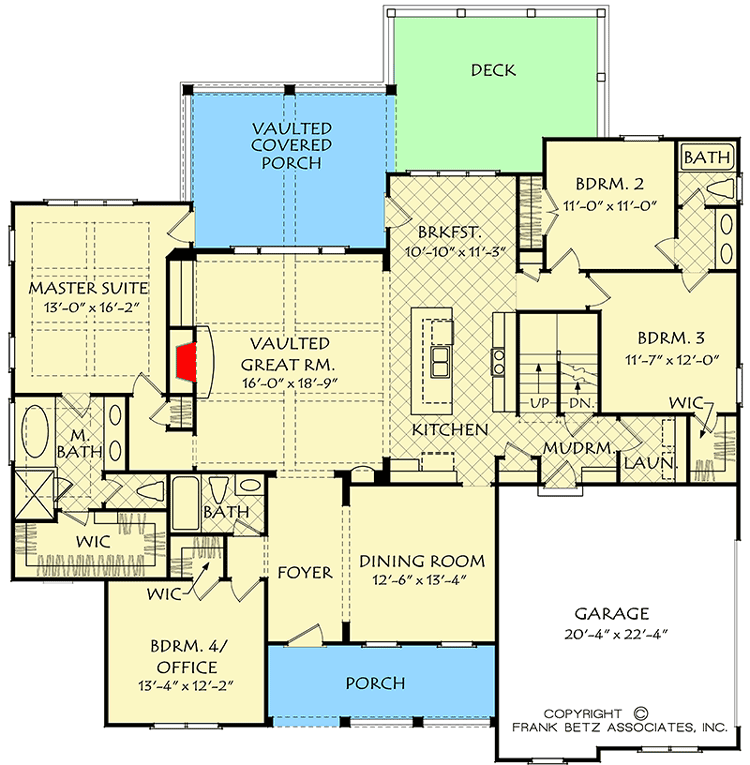

Main Level

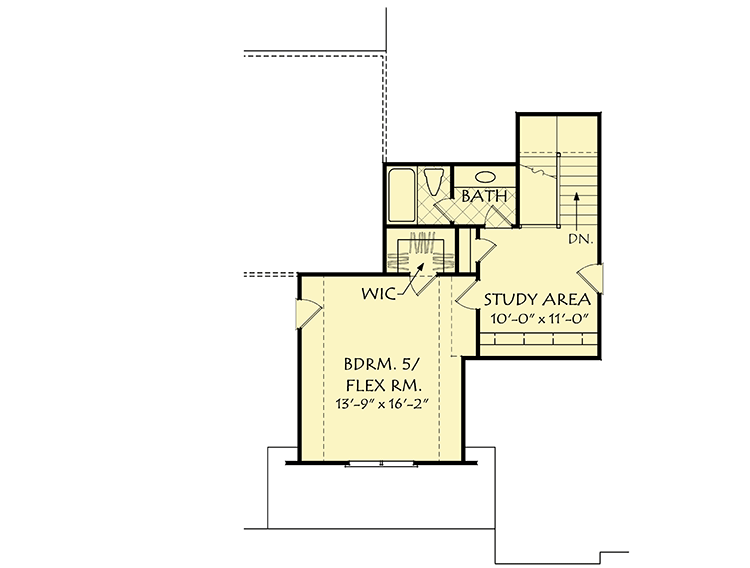

2nd Floor

Plan Details

Multiple exterior materials blend to create an attractive façade on this house plan. Fieldstone, traditional brick and siding combine with multiple gables and bracketed trim to put the finishing touches on the winning exterior.

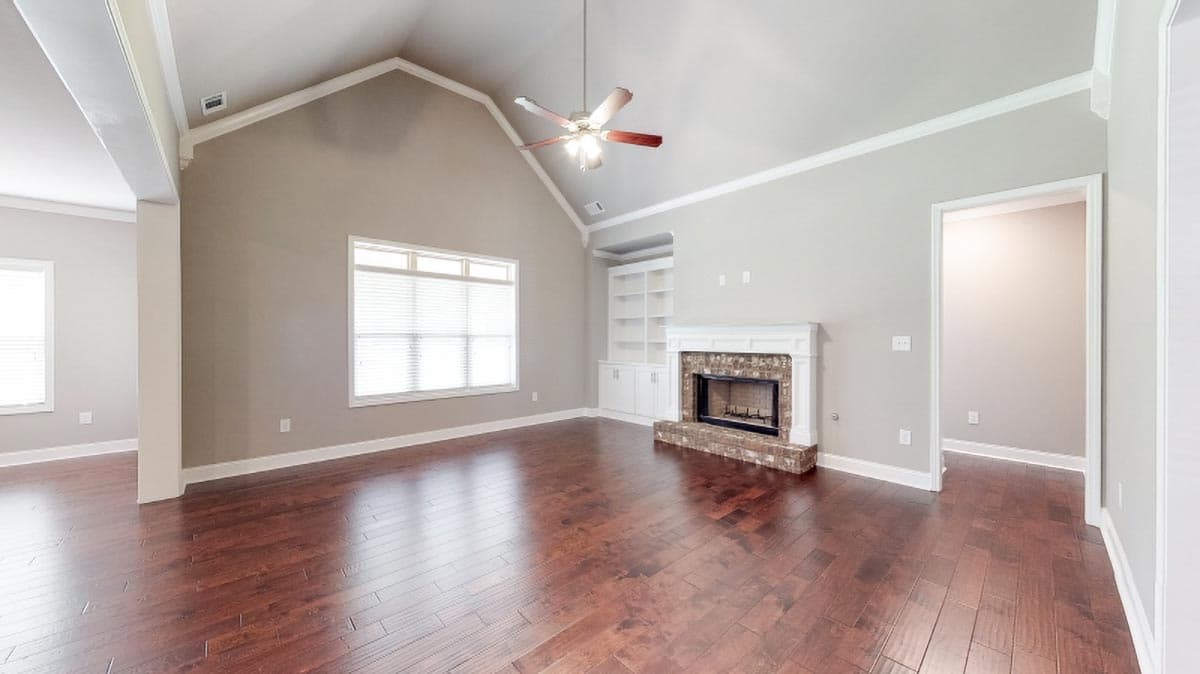

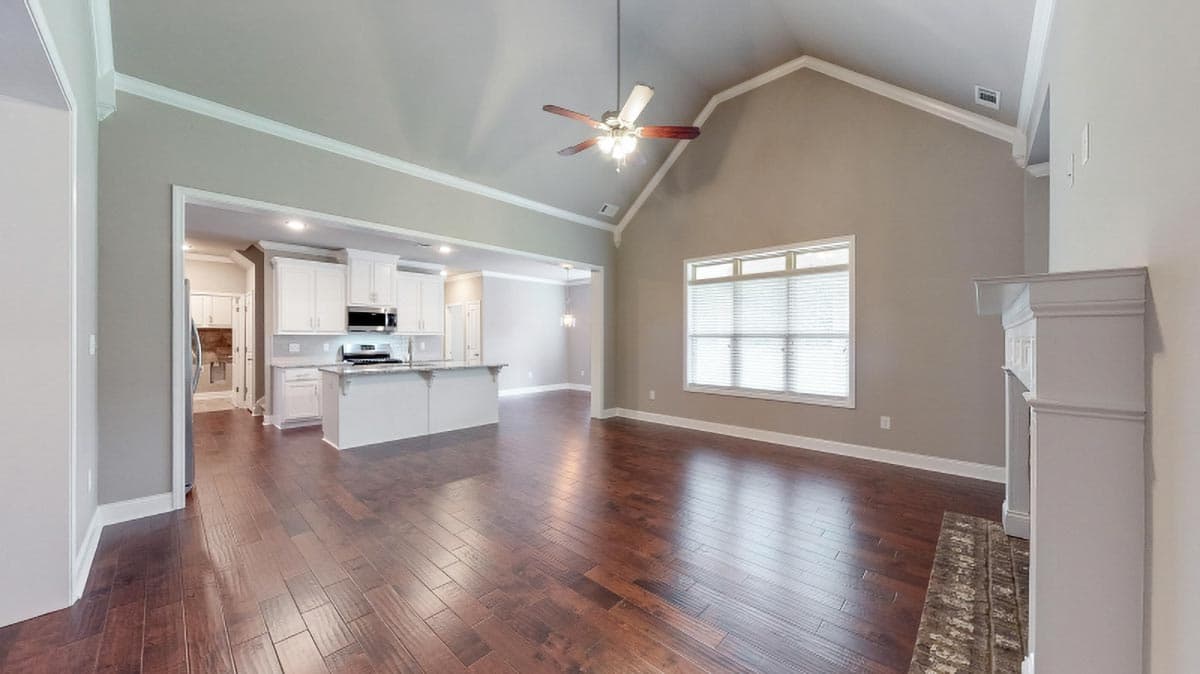

The main level is anchored by the centrally located great room and family sized kitchen. The great room features a vaulted ceiling, fireplace and built-in cabinetry. The kitchen has a large island with seating space.

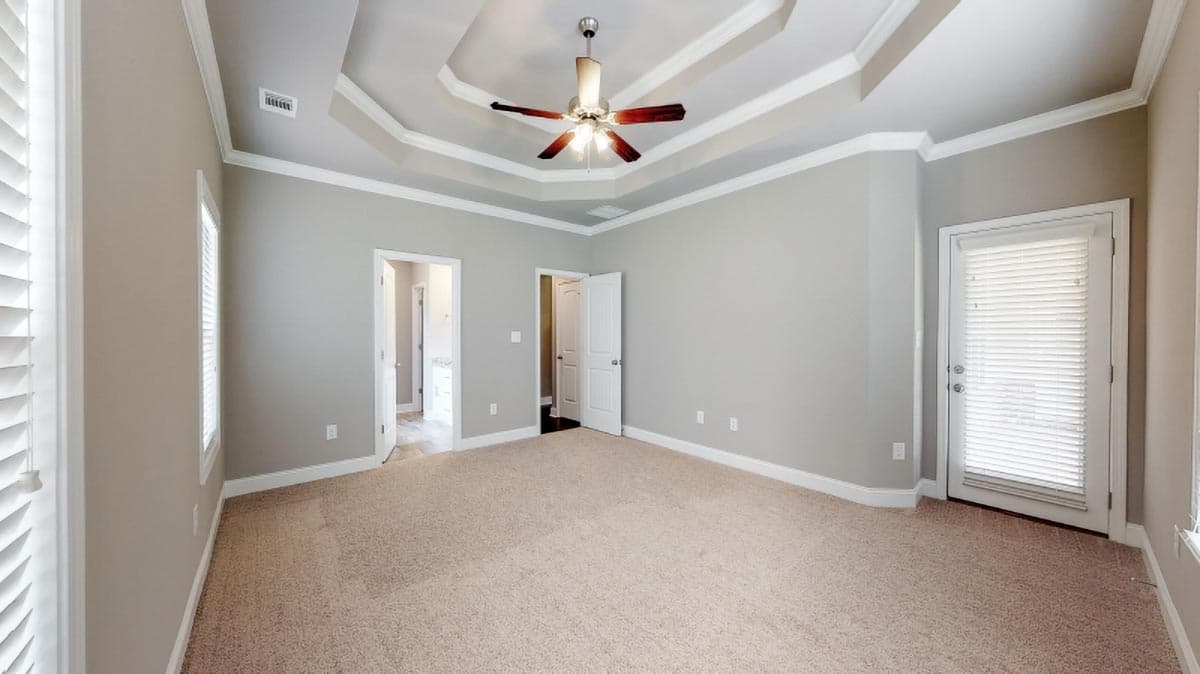

The master suite with a coffered ceiling has access to the covered rear porch to bring the outdoors inside. Bedroom four is flexible and can be used has a home office for the telecommuter. Bedrooms two and three are separate from the master suite and share a bath.
The upper level features a study area with built-in cabinetry and bedroom five or recreation room.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

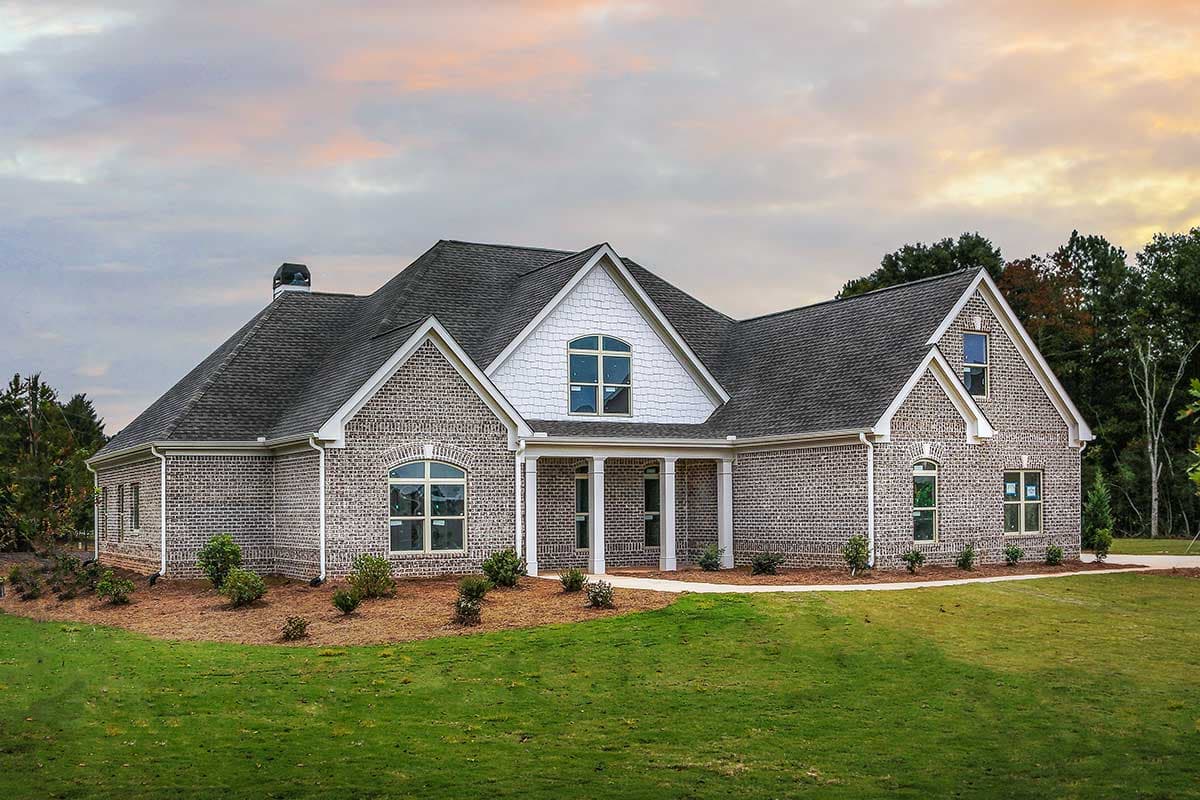

Country House Plan 710122BTZ Comes to Life in Tennessee

Photos

What's Included

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
