Attractive Southern House Plan

Plan 83894JW

  • 2,031

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • An attractive hip roof sits atop this Southern house plan.
  • Live all on one floor with a delightful open floor plan to give you views from room to room.
  • Brick arches add a custom touch while still preserving the sight lines.
  • Both the foyer and the living room boast 12' high ceilings.
  • The spacious kitchen gets both an island and a big walk-in pantry.
  • Keep the computer out of the living room by using the desk area near the master bedroom.
  • Homeowners get a lovely tray ceiling and a big walk-in closet that opens directly into the laundry room.
  • Three family bedrooms are grouped on the other side of the home.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

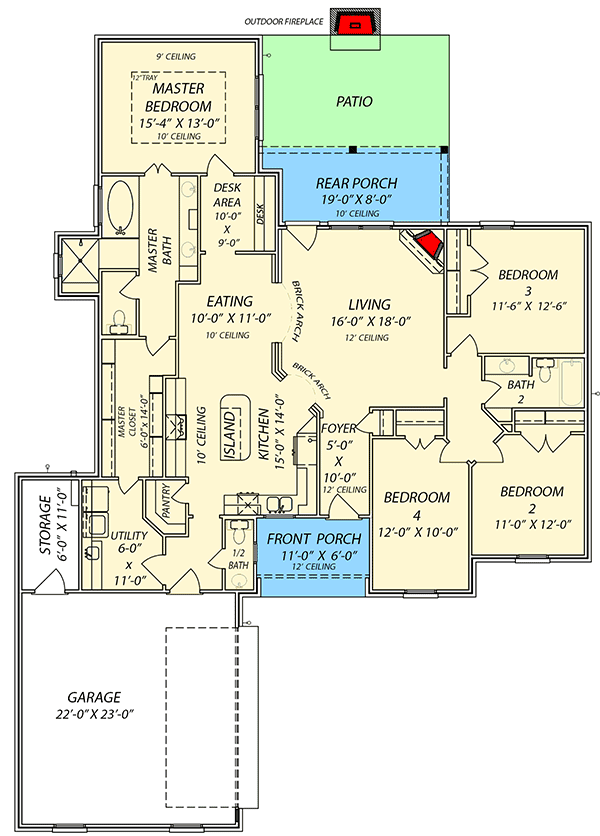

Attractive Southern House Plan - 83894JW floor plan - Main Level

Attractive Southern House Plan

  • 2,031

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,031 sq. ft.
  • 1st Floor: 2,031 sq. ft.

Dimensions

  • Width: 57' 10"
  • Depth: 80' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 588 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
