Plan 59913ND Attractive Stone and Glass Rotunda

2,889 4 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Attractive Stone and Glass Rotunda

Plan 59913ND

  • 2,889

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

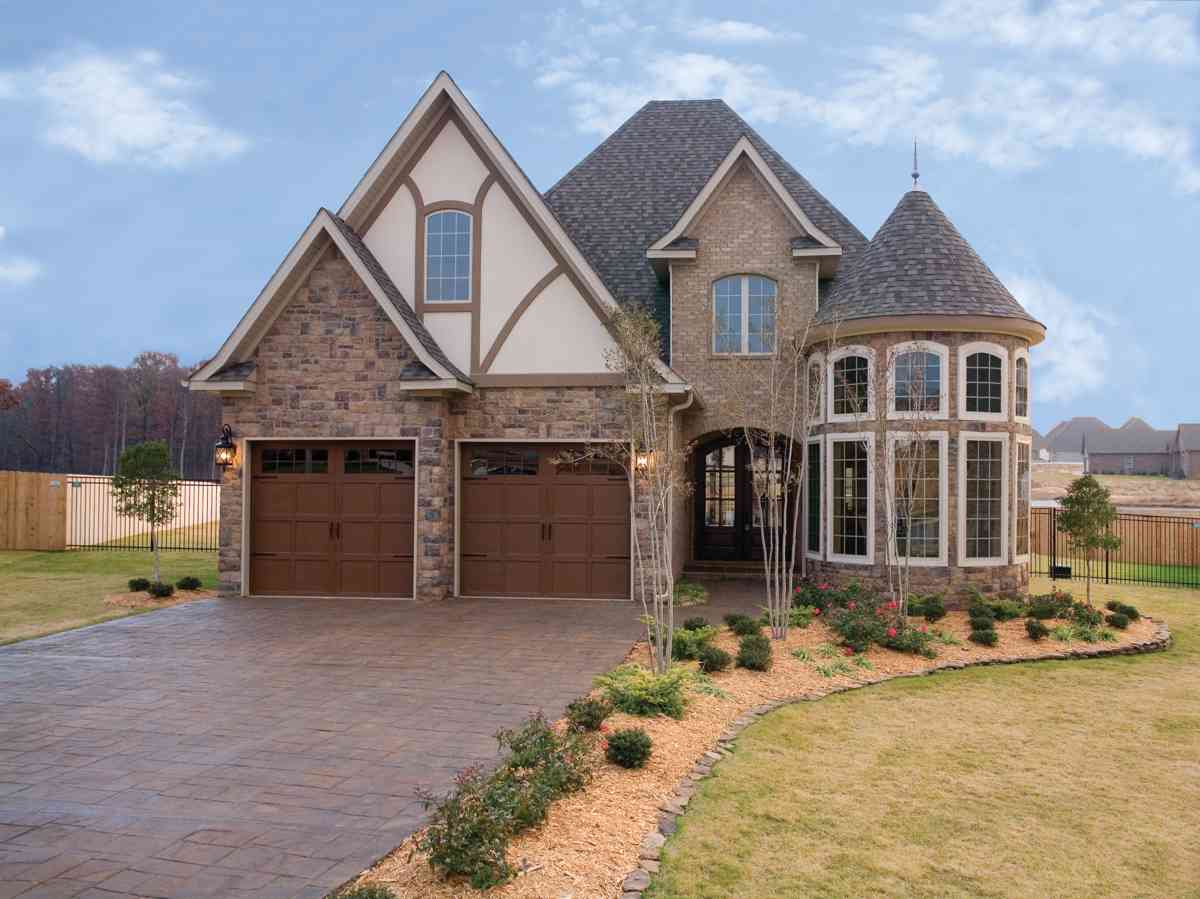

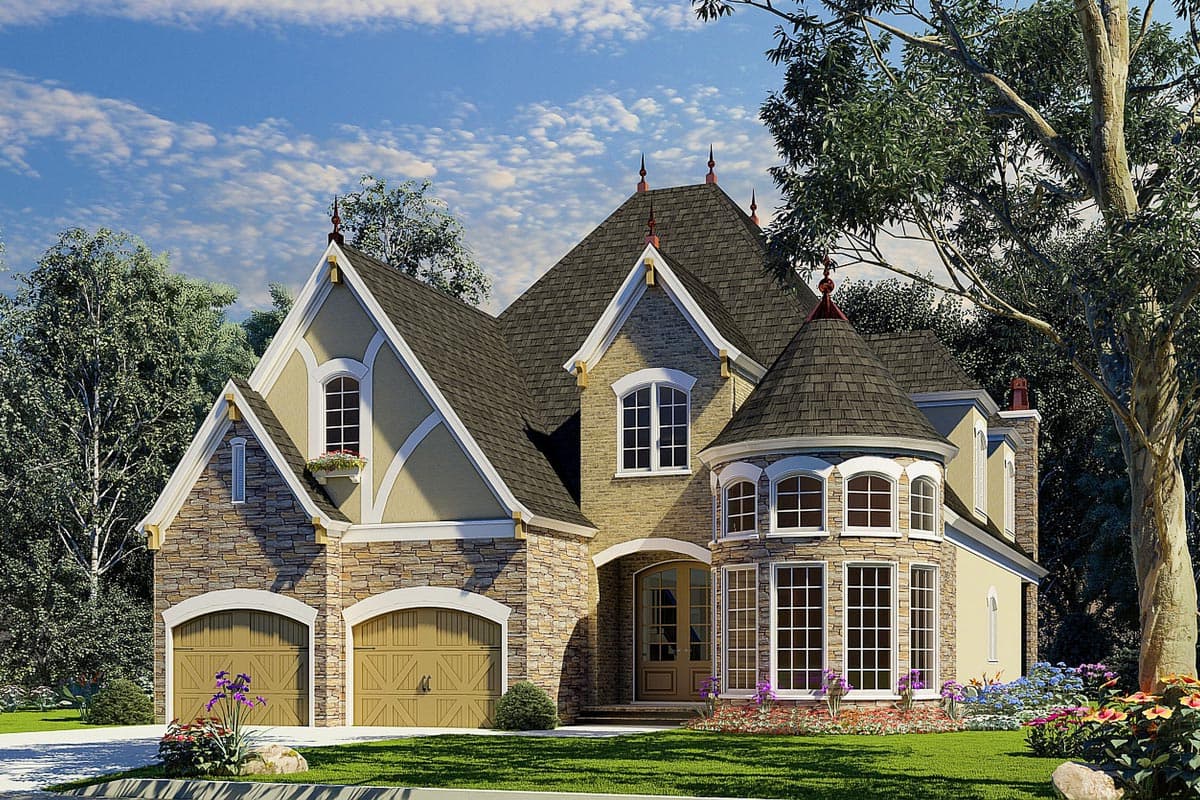

  • A mixture of exterior materials coupled with finials and a rotunda give this home plan a unique look.
  • You'll appreciate the open feel of the great room and the arched openings that lead into the adjoining rooms. The well equipped kitchen is located centrally between the breakfast room and the dining room for the ultimate in convenience.

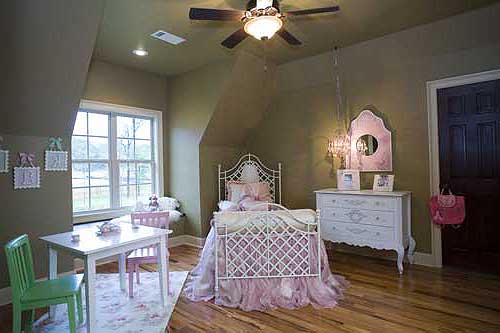

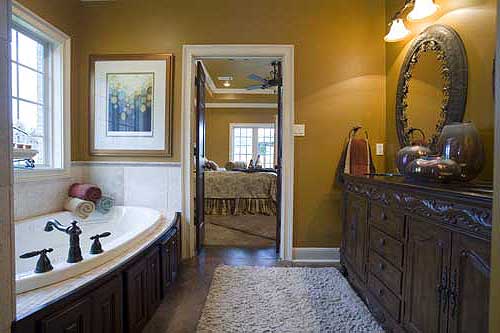

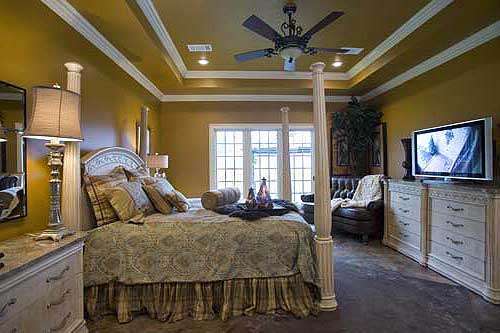

  • Your private master suite can be found on the main floor as well. Upstairs, three comfortable bedrooms with large walk in closets await the children or guests.

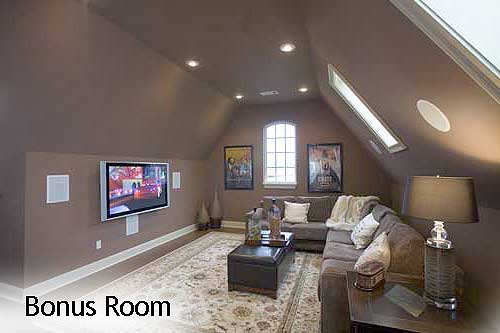

  • A computer center and large bonus room complete the upper level of this charming home.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

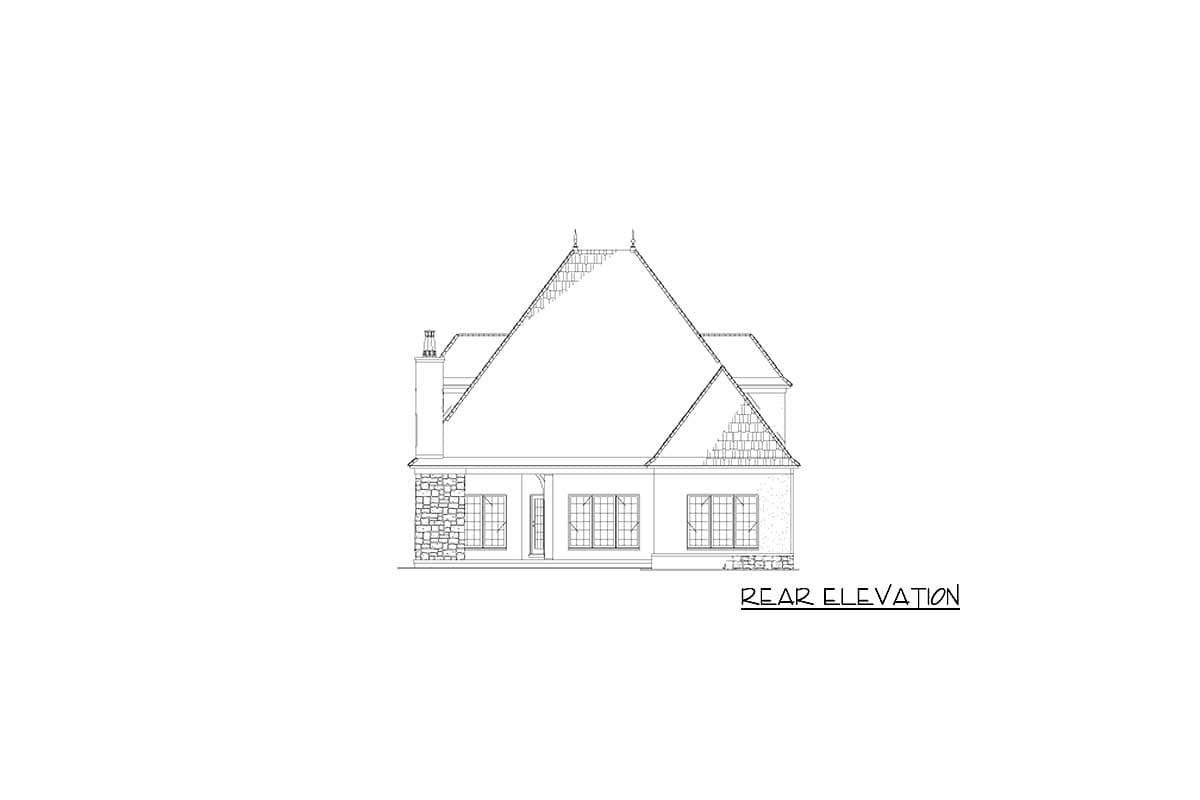

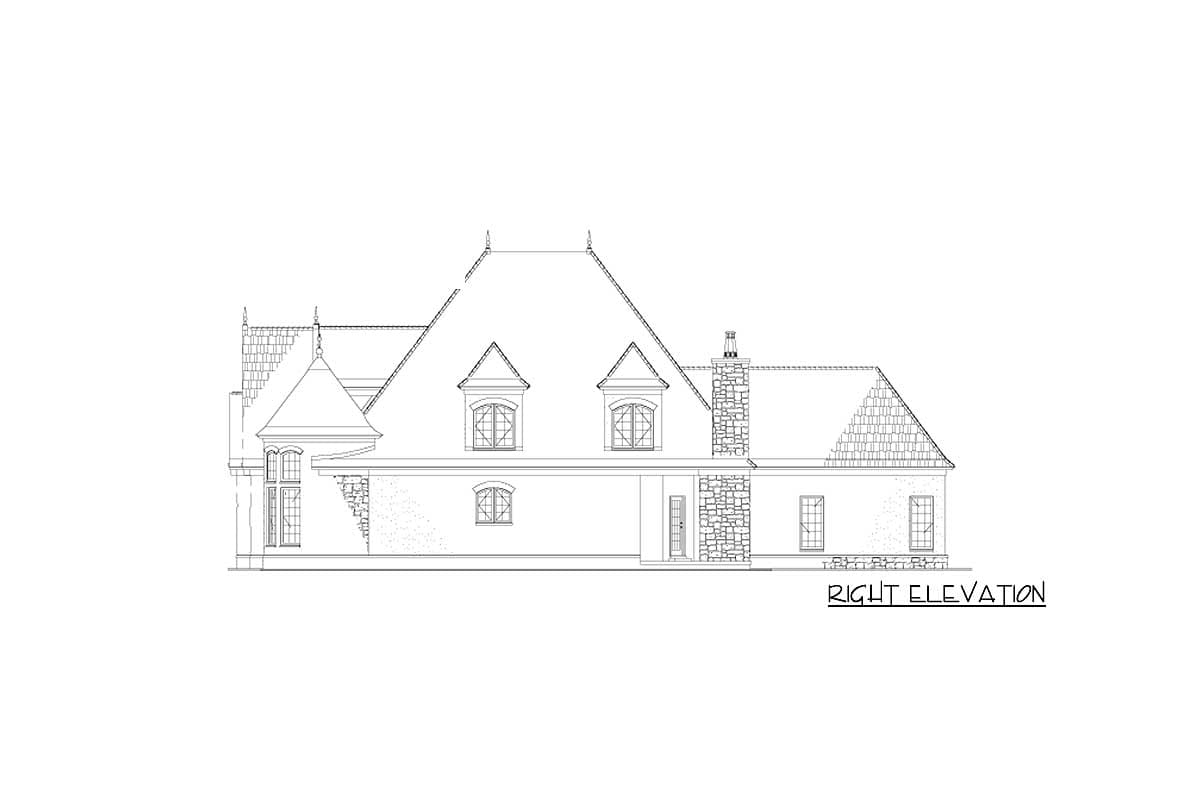

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

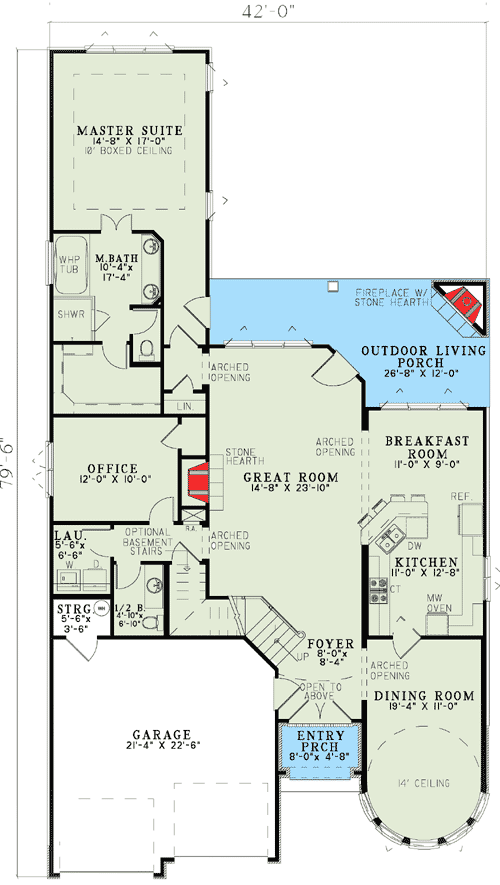

Attractive Stone and Glass Rotunda - 59913ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

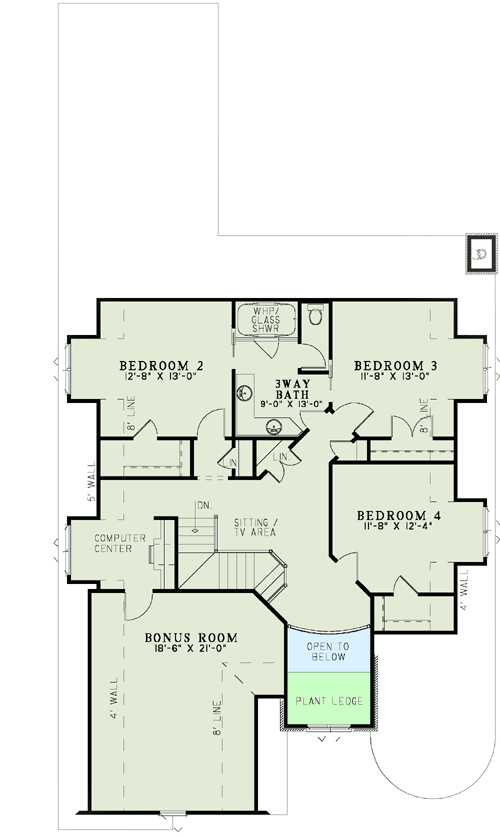

Attractive Stone and Glass Rotunda - 59913ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,889 sq. ft.
  • 1st Floor: 1,819 sq. ft.
  • 2nd Floor: 1,070 sq. ft.
  • Bonus: 378 sq. ft.
  • Porch, Rear: 241 sq. ft.
  • Entry: 37 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 79' 6"
  • Max ridge height: 34' 7"

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Attractive Stone and Glass Rotunda

  • 2,889

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,800
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • A mixture of exterior materials coupled with finials and a rotunda give this home plan a unique look.
  • You'll appreciate the open feel of the great room and the arched openings that lead into the adjoining rooms. The well equipped kitchen is located centrally between the breakfast room and the dining room for the ultimate in convenience.
  • Your private master suite can be found on the main floor as well. Upstairs, three comfortable bedrooms with large walk in closets await the children or guests.
  • A computer center and large bonus room complete the upper level of this charming home.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,889 sq. ft.
  • 1st Floor: 1,819 sq. ft.
  • 2nd Floor: 1,070 sq. ft.
  • Bonus: 378 sq. ft.
  • Porch, Rear: 241 sq. ft.
  • Entry: 37 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 79' 6"
  • Max ridge height: 34' 7"

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
Plan 59913ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59913ND
|
