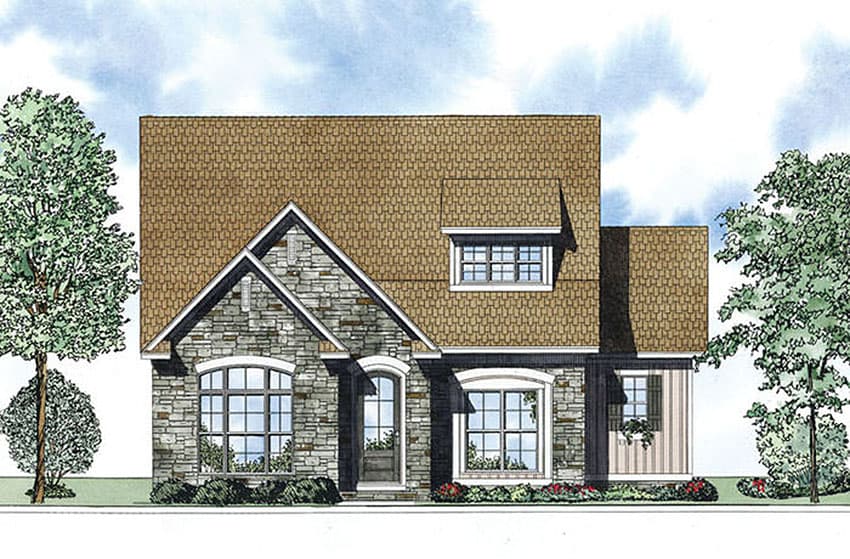

Available in 2 Exteriors

Plan 60525ND

  • 1,927

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Derived from the country tradition, this house plan is suitable for a narrow lot that affords rear access to the garage. A covered porch provides shelter as you enter your home while the grilling porch is ideal for outdoor barbeques and dining.
  • The kitchen with its pass-through to the great room also has easy access to the breakfast room and formal dining room. A gas fireplace highlights the great room.
  • 10' ceilings are standard on the main floor with an 11' boxed ceiling in the master bedroom. A whirlpool tub, a glassed-in shower and a walk-in closet are found in the master bath. The two family bedrooms share the second full bath.
  • Expand with a large bonus room with 9' ceilings.
  • Related Plans: For an alernate exterior, see house plan 60524ND and 5903ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

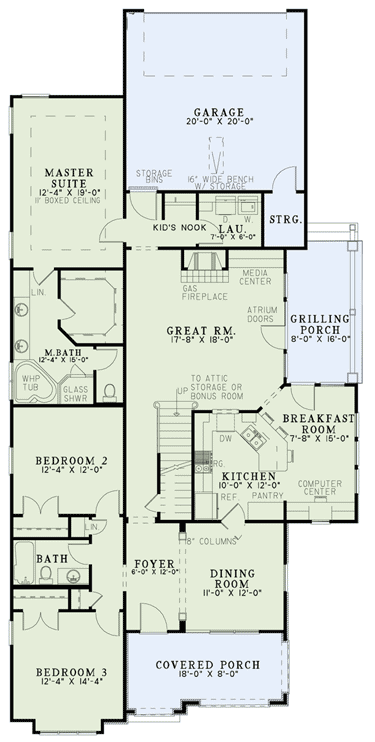

Available in 2 Exteriors - 60525ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

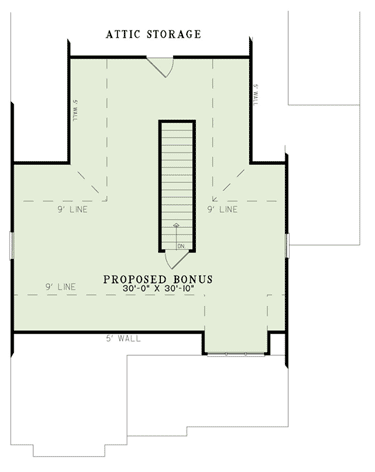

Available in 2 Exteriors - 60525ND floor plan - Bonus

Available in 2 Exteriors

  • 1,927

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,927 sq. ft.
  • 1st Floor: 1,927 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 81' 4"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 448 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
