Plan 59523ND

Back to the Future

Heated S.F.
6,239
Beds
3 - 4
Baths
2.5+
Stories
2
Cars
2

Floor Plan

Plan 59523ND

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 59523ND

M-F 9am-5pm EST |

1-203-761-8500

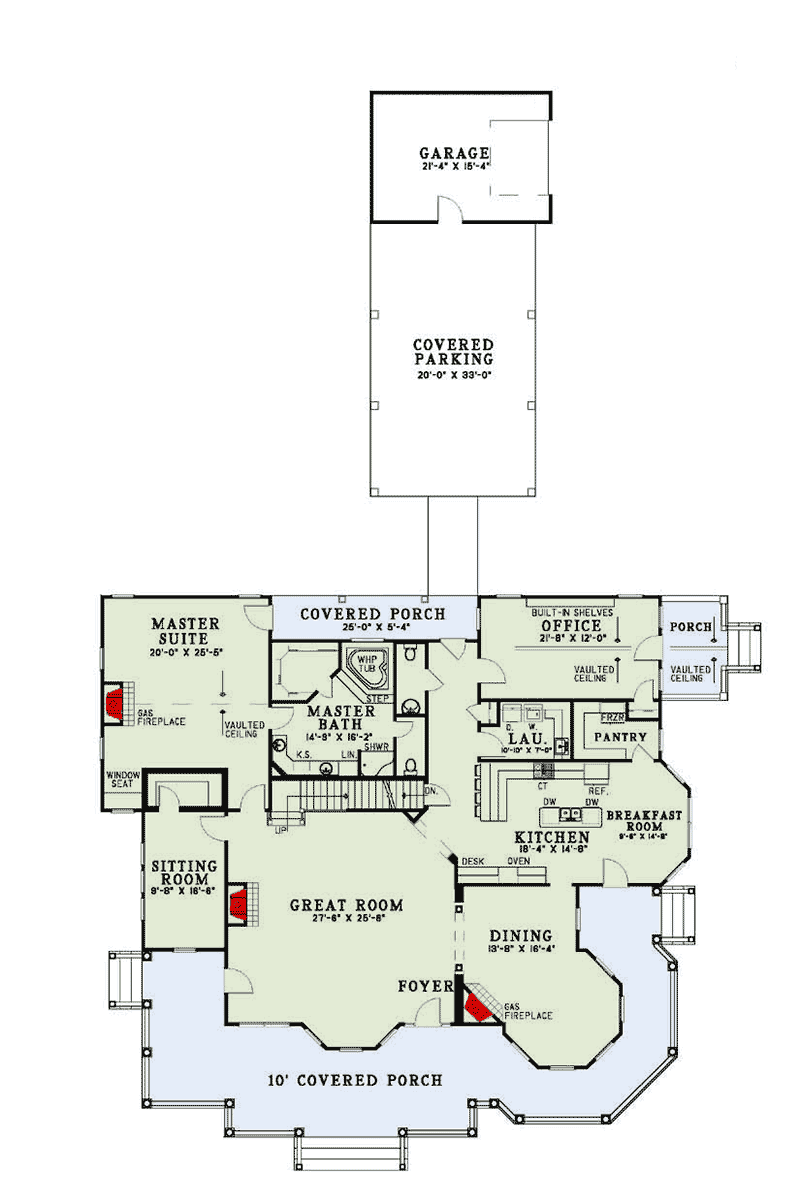

Main Level

Plan 59523ND: Back to the Future - Floor Plan - Main Level - Victorian

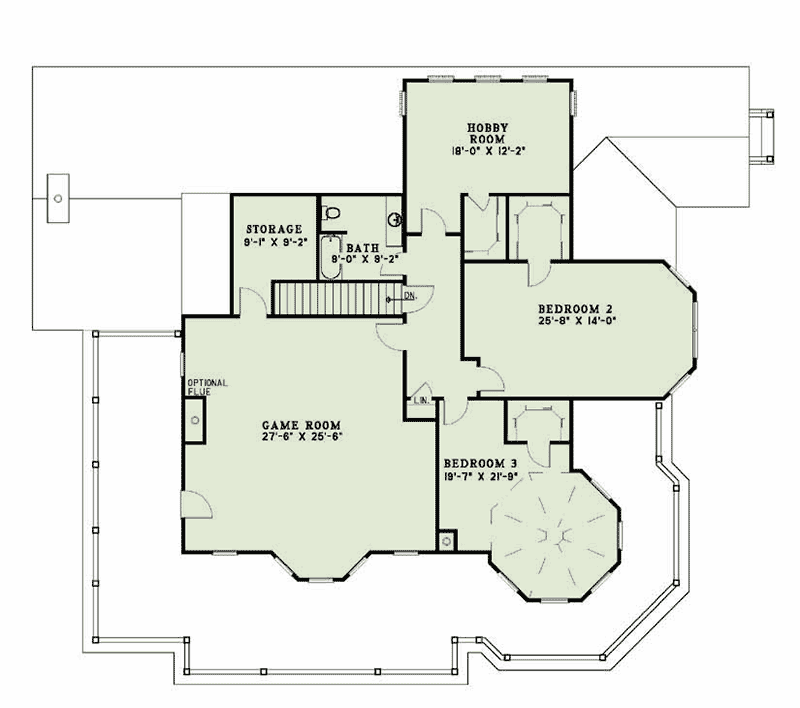

2nd Floor

Plan 59523ND: Back to the Future - Floor Plan - 2nd Floor - Victorian

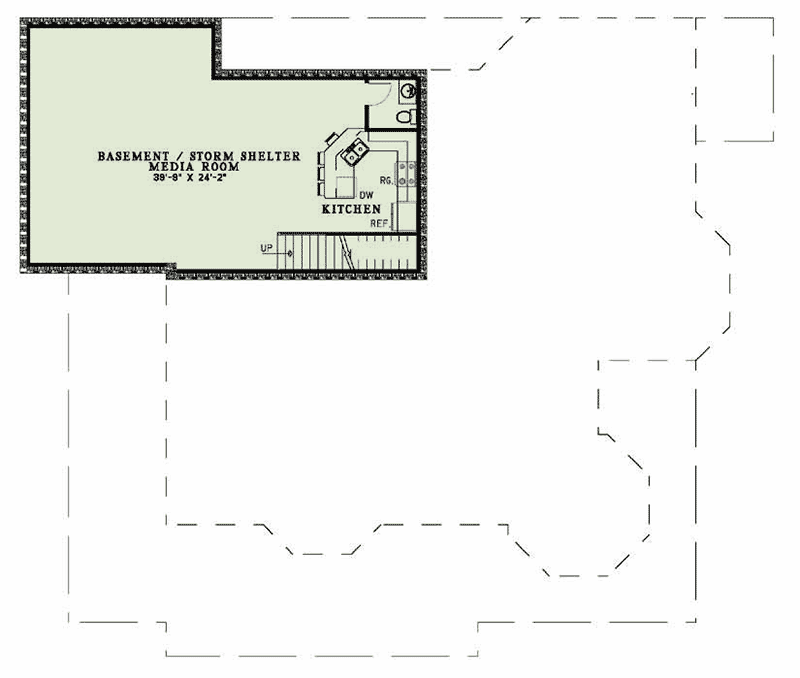

Basement

Plan 59523ND: Back to the Future - Floor Plan - Basement - Victorian

Plan Details

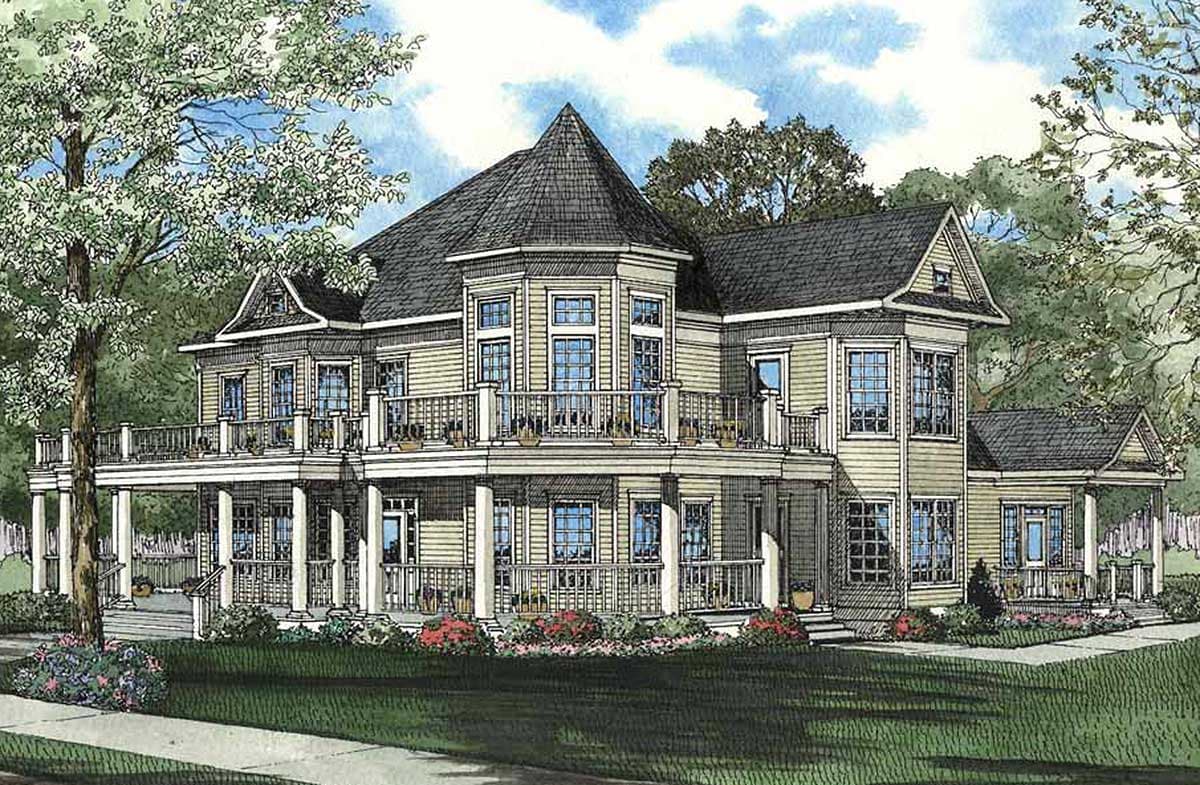

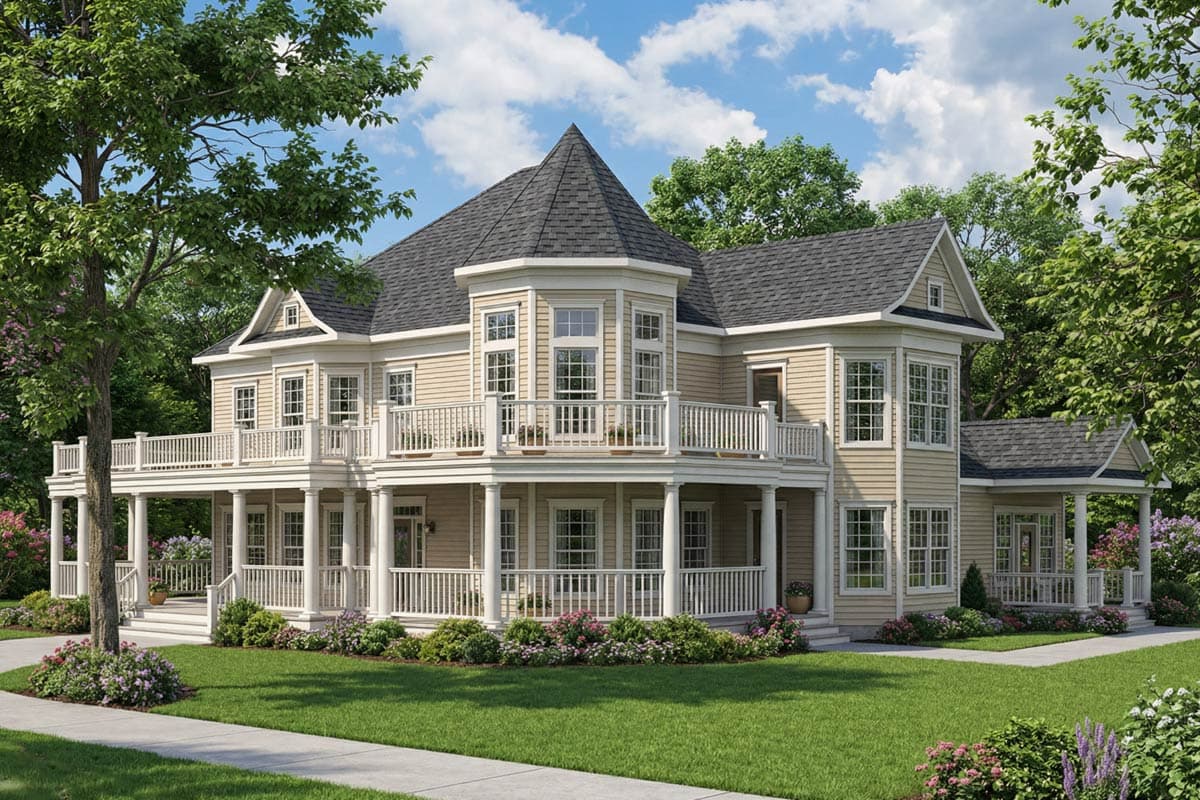

  • This home plan is literally 'back to the future,' with traditional clapboard siding, deep wraparound porch, tall windows and historic turret on the outside, and modern amenities galore on the inside.
  • Designed for living, the 3-bedroom home includes six 20-foot rooms, including large great room with fireplace, huge game room and unique basement media room, which doubles as a well-equipped-with kitchen and bath-storm shelter.
  • The octagonal turret enhances the formal dining room as well as the third bedroom.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

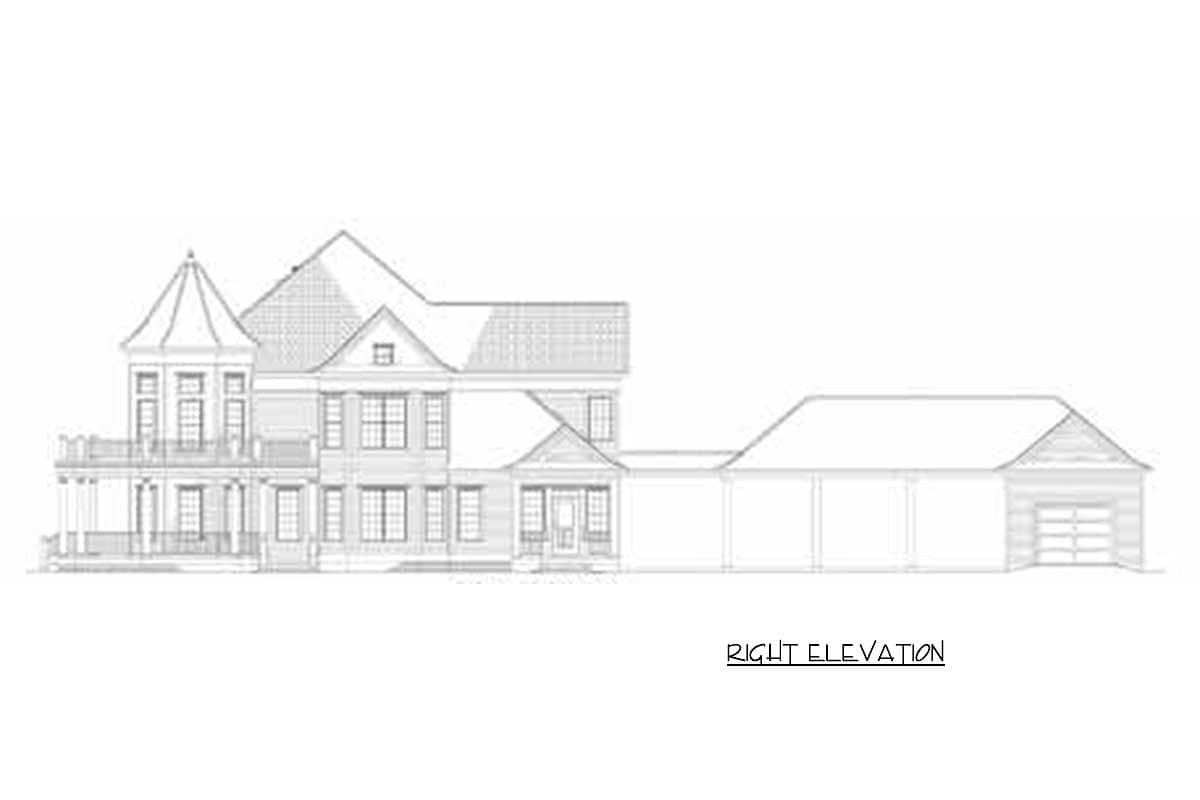

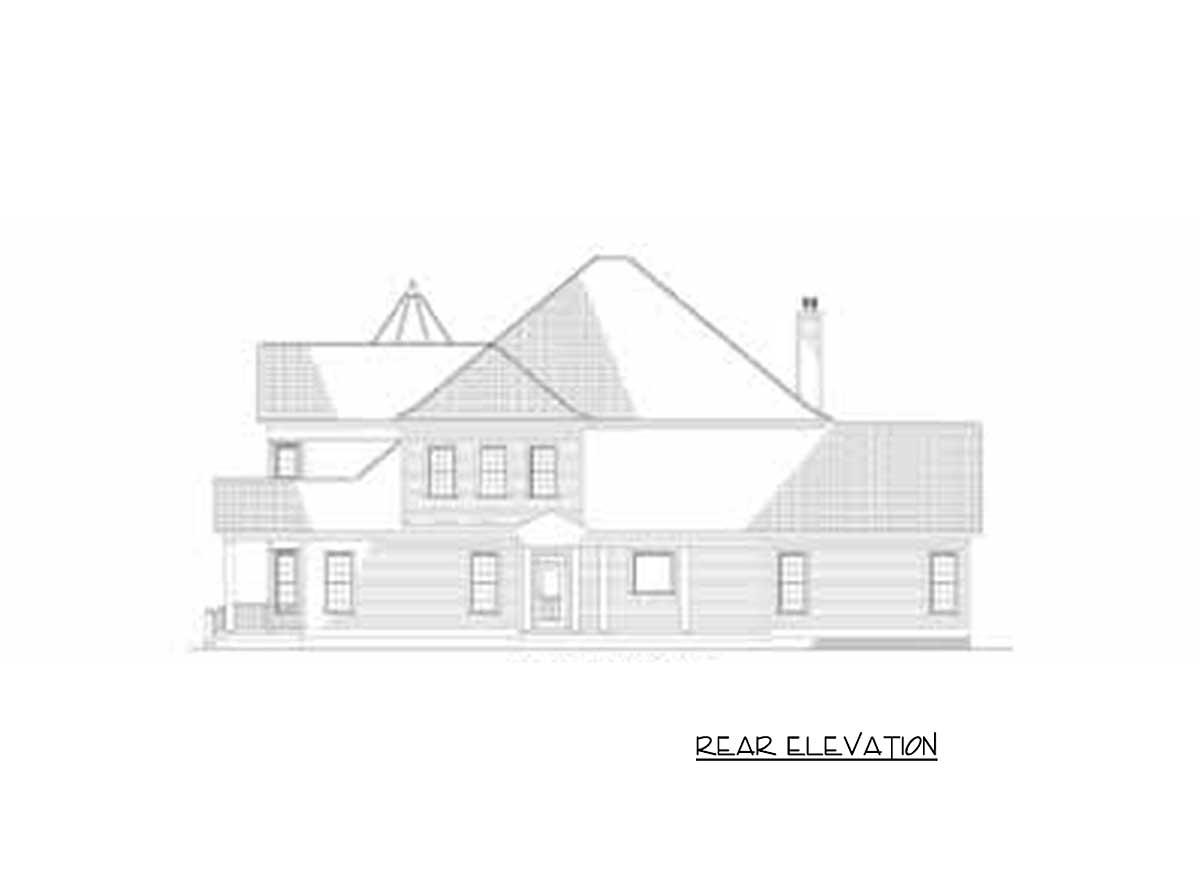

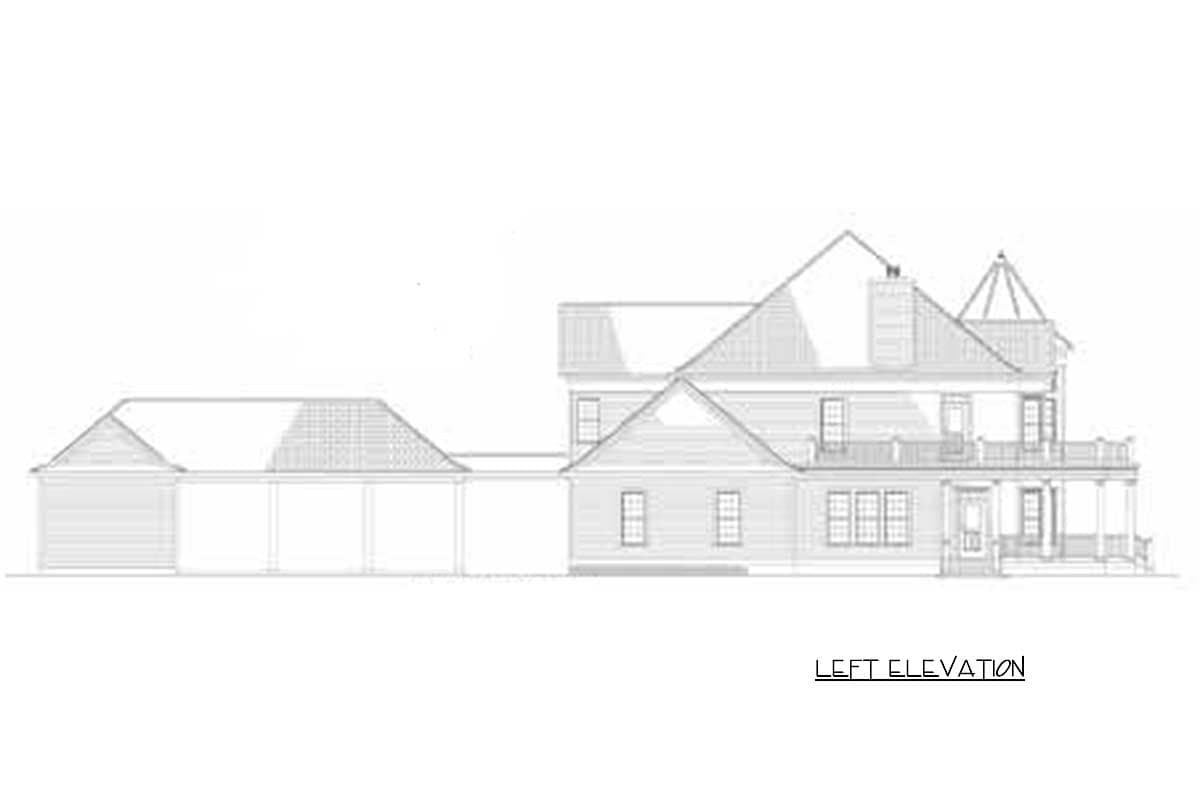

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

6,239 sq. ft.

Lower Level

946 sq. ft.

1st Floor

3,173 sq. ft.

2nd Floor

2,120 sq. ft.

Porch, Combined

1,217 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 10"

Depth

126' 6"

Max Ridge Height

38' 2"

Garage

Type

Detached

Area

1012 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Victorian

Special Features

Formal Dining

Game/Rec Room

In-Law Suite

Master Suite - 1st Floor

Media Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Luxury

Sloping Lot
