Plan 871008NST

Exclusive

Backyard ADU Cottage Studio or Home Office Escape - 298 Square Feet

Heated S.F.
298
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 871008NST

Main Level
Main Level
Main Level - Wheelchair Maneuvering Plan
Main Level - Wheelchair Maneuvering Plan

Plan 871008NST

M-F 9am-5pm EST |

1-203-761-8500

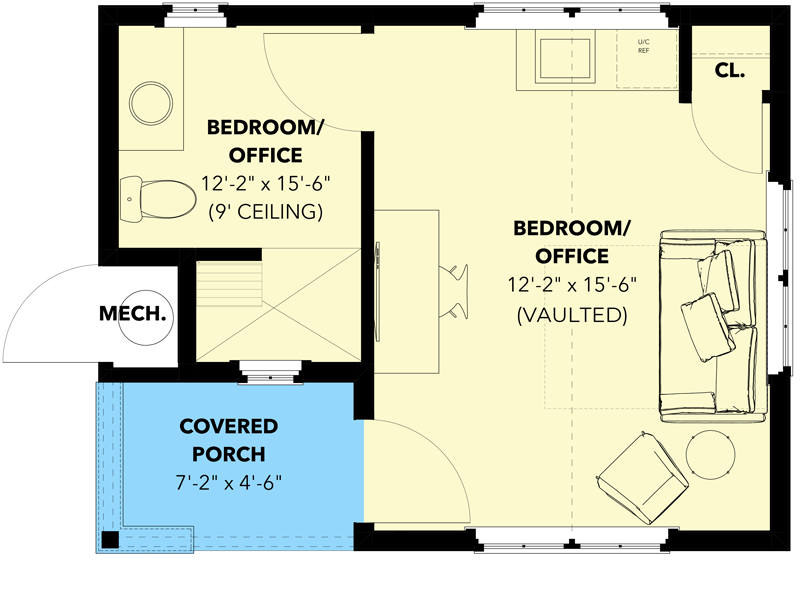

Main Level

Plan 871008NST: Backyard ADU Cottage Studio or Home Office Escape - 298 Square Feet - Floor Plan - Main Level - Cabin, Cottage, Rustic, Shingle, Traditional, Vacation

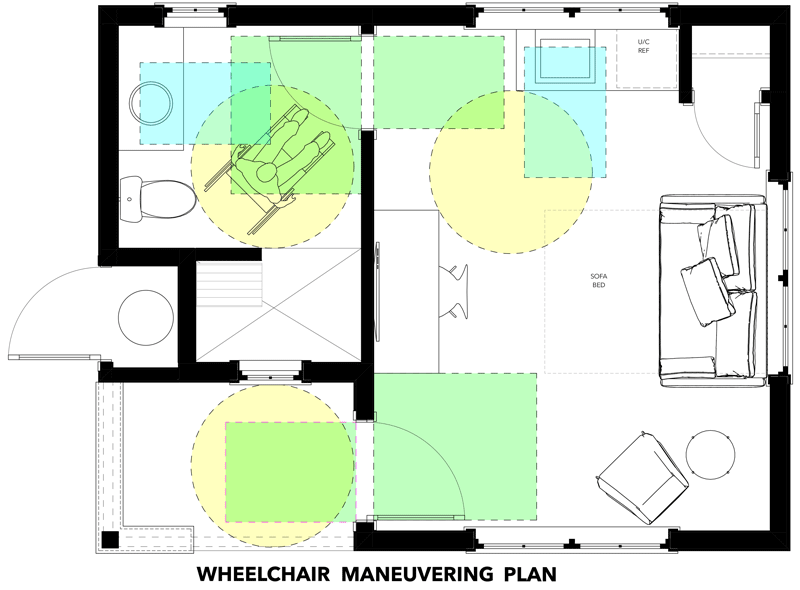

Main Level - Wheelchair Maneuvering Plan

Plan 871008NST: Backyard ADU Cottage Studio or Home Office Escape - 298 Square Feet - Floor Plan - Main Level - Wheelchair Maneuvering Plan - Cabin, Cottage, Rustic, Shingle, Traditional, Vacation

Plan Details

  • This cottage house plan was designed as part of the Universal Access movement (a zero-step entry and a wheelchair-accessible main floor bathroom).
  • A flexible design, it can be used as an ADU, an in-law suite, a tiny home or as a backyard home office escape.

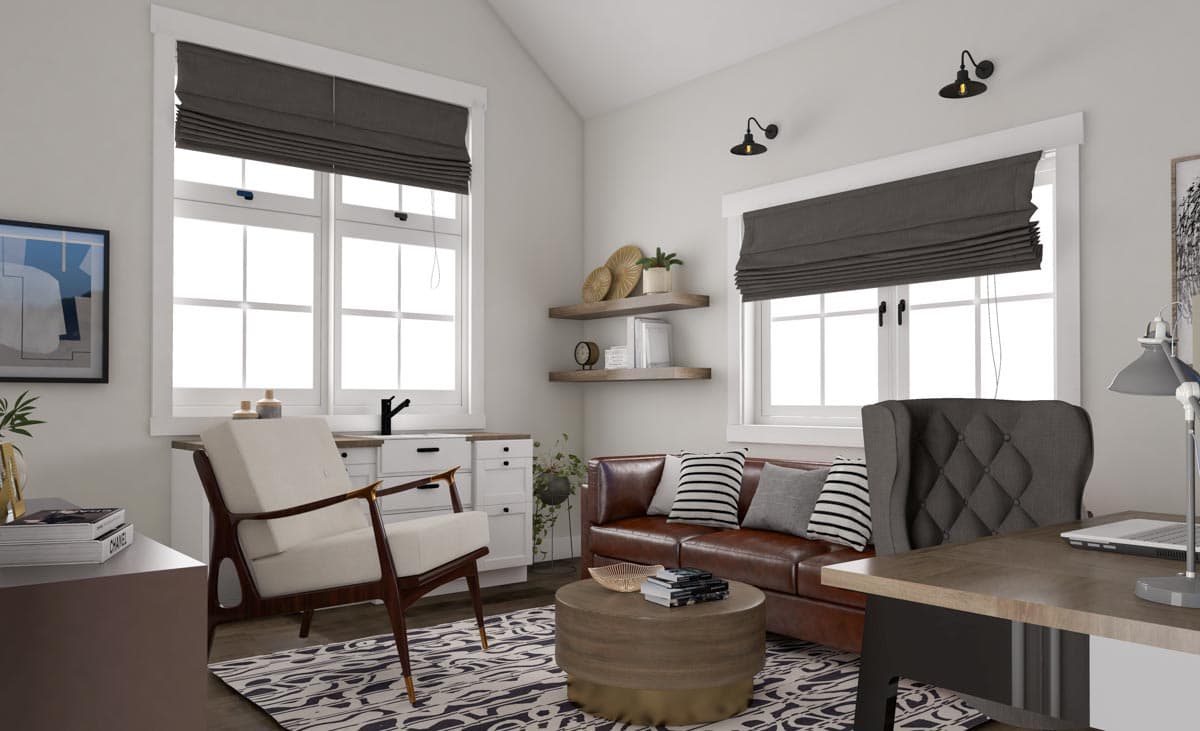

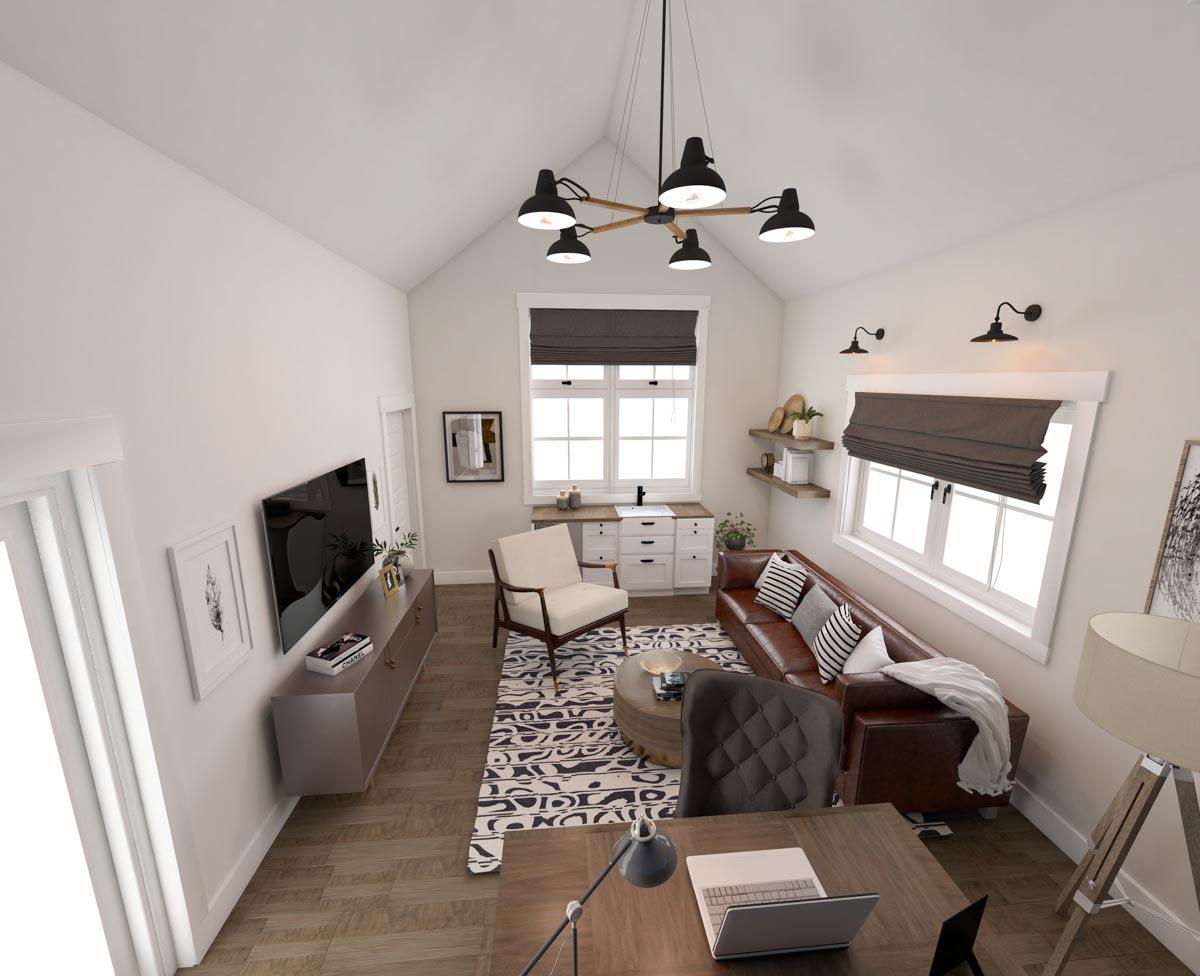

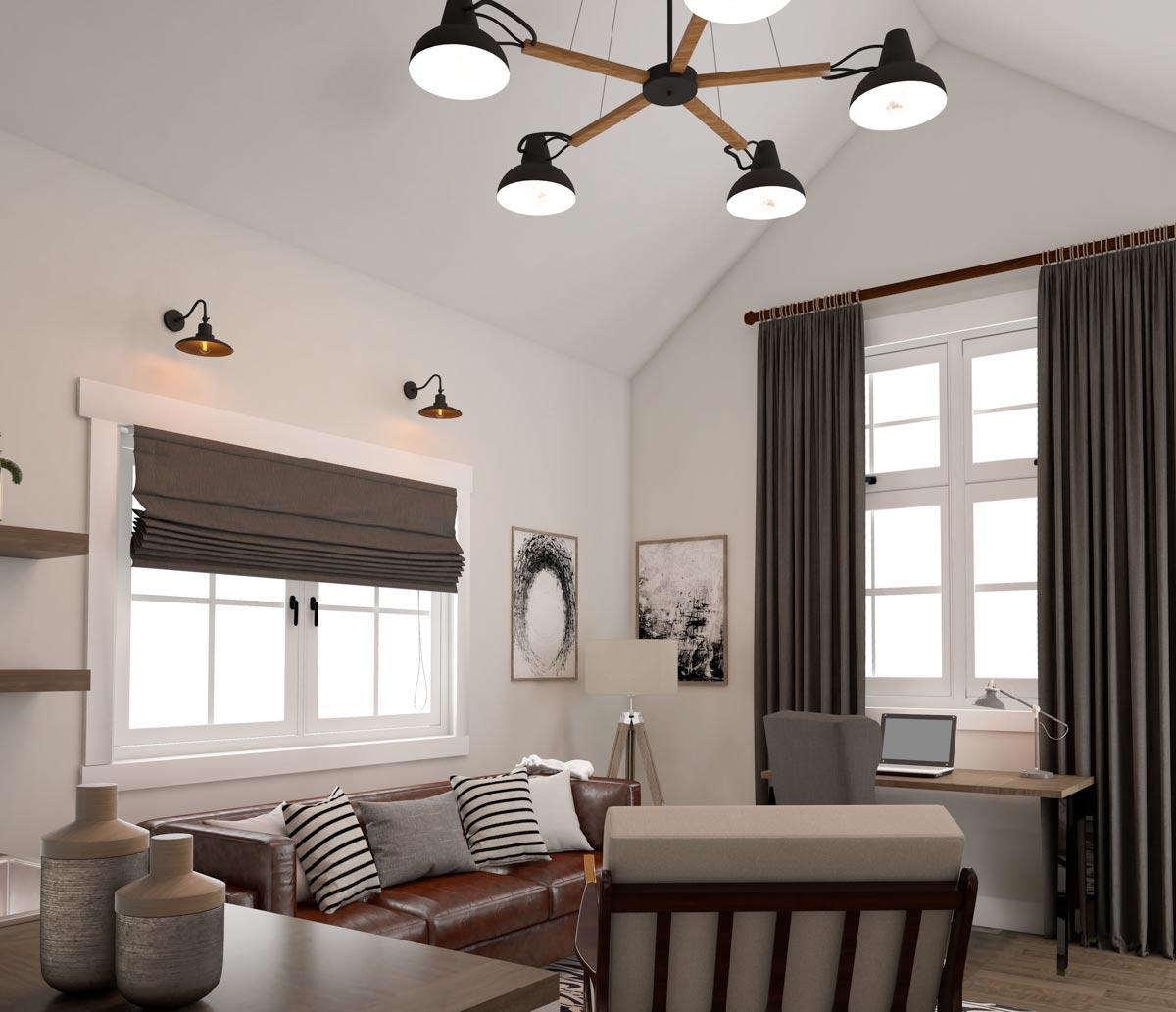

  • The main living space has a vaulted ceiling and has windows on three sides making the cozy space bright and open. The full bathroom has a curbless shower design, making it easy to walk or roll into with ease.

What's Included

  • General Notes
  • Elevations
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Section(s)
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Sizing of Structural members and Structural Details - handled locally
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

298 sq. ft.

1st Floor

298 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

21' 0"

Depth

16' 6"

Max Ridge Height

15' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Rustic

Shingle

Traditional

Vacation

Special Features

Accessible Design

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Home Office Studio

Square Footage Breakdown

Total Heated Area

298 sq. ft.

1st Floor

298 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

21' 0"

Depth

16' 6"

Max Ridge Height

15' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Rustic

Shingle

Traditional

Vacation

Special Features

Accessible Design

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Home Office Studio
