Plan 720057DA Backyard Rec Room or Home Office with Kitchen and Screened Porch

676 0 1
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Backyard Rec Room or Home Office with Kitchen and Screened Porch

Plan 720057DA

  • 676

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • This charming outbuilding exudes country charm. A barn door slides to reveal a storage room with pass-through access to the recreation room beyond. To the right, a pair of doors opens to a a large screened porch.
  • The recreation room that makes up the core of this outbuilding offers a kichenette complete with island and eating bar. For those working from home, the corner work area and be set up as a home office.
  • Storage is plentiful with pull down attic access from the recreation room plus two additional storage closets accessed from the outside.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

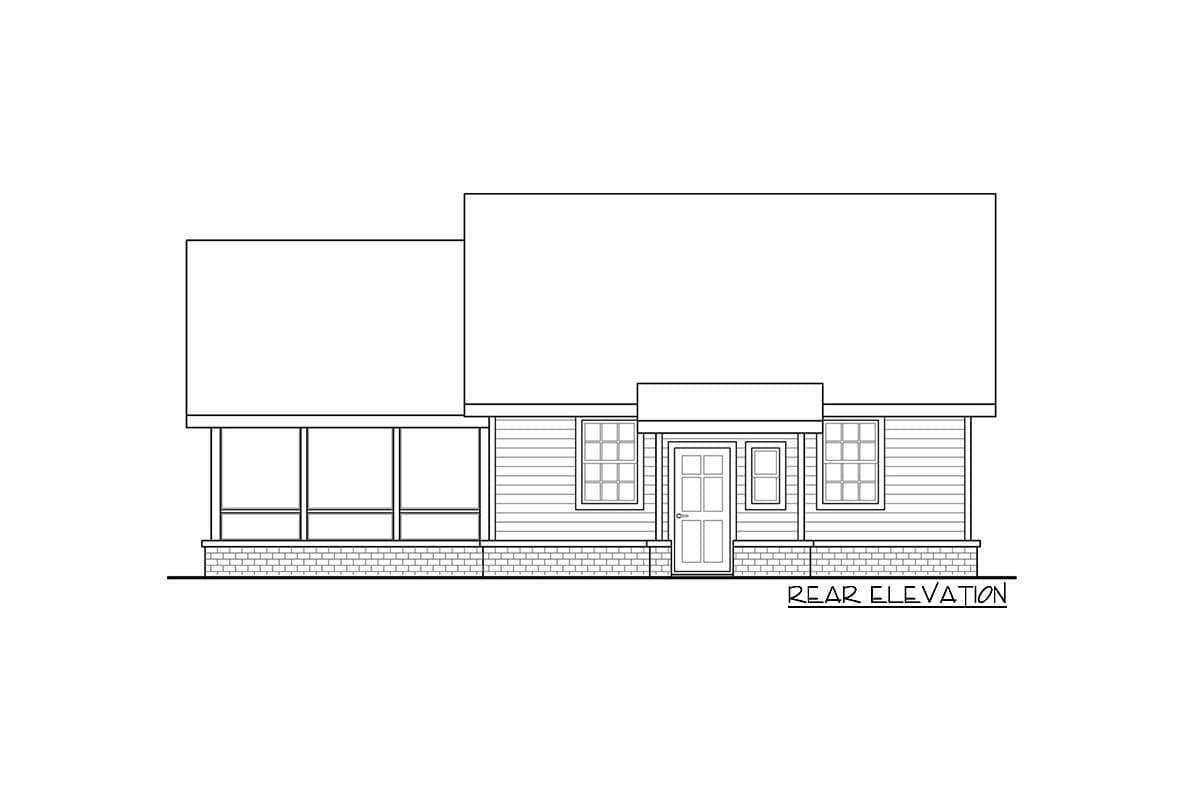

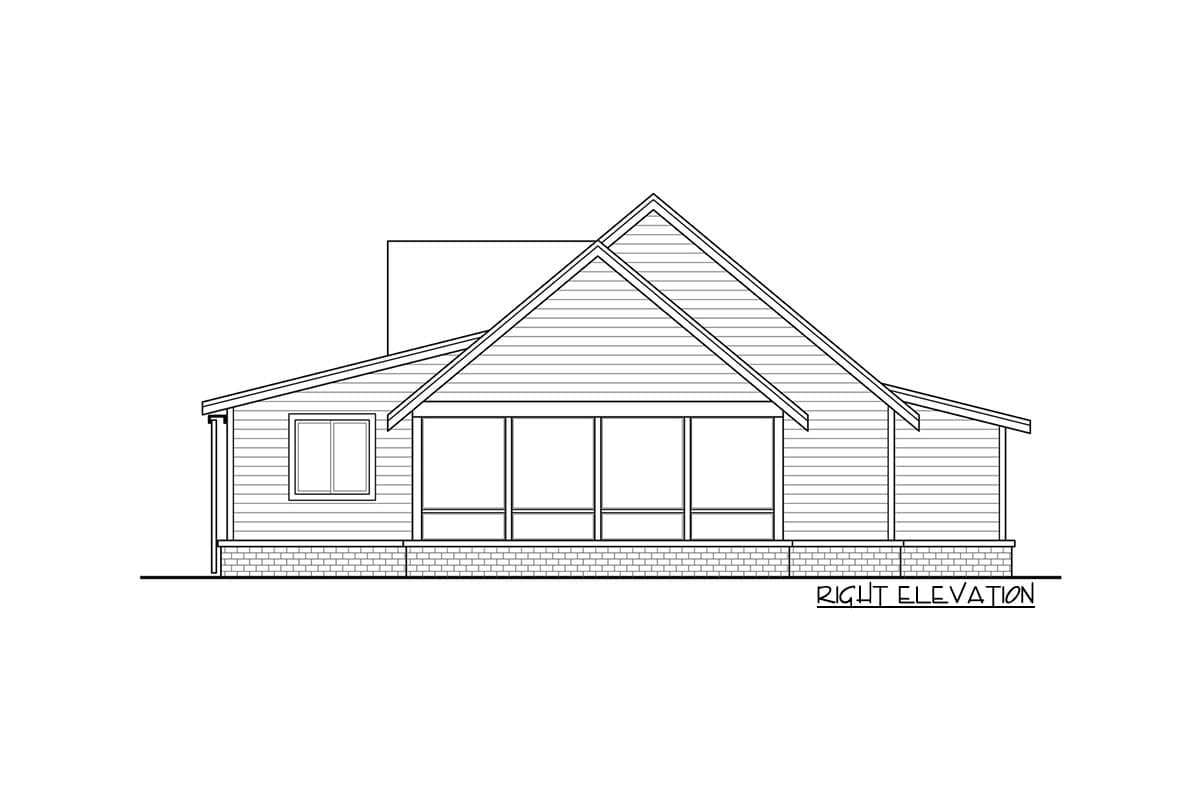

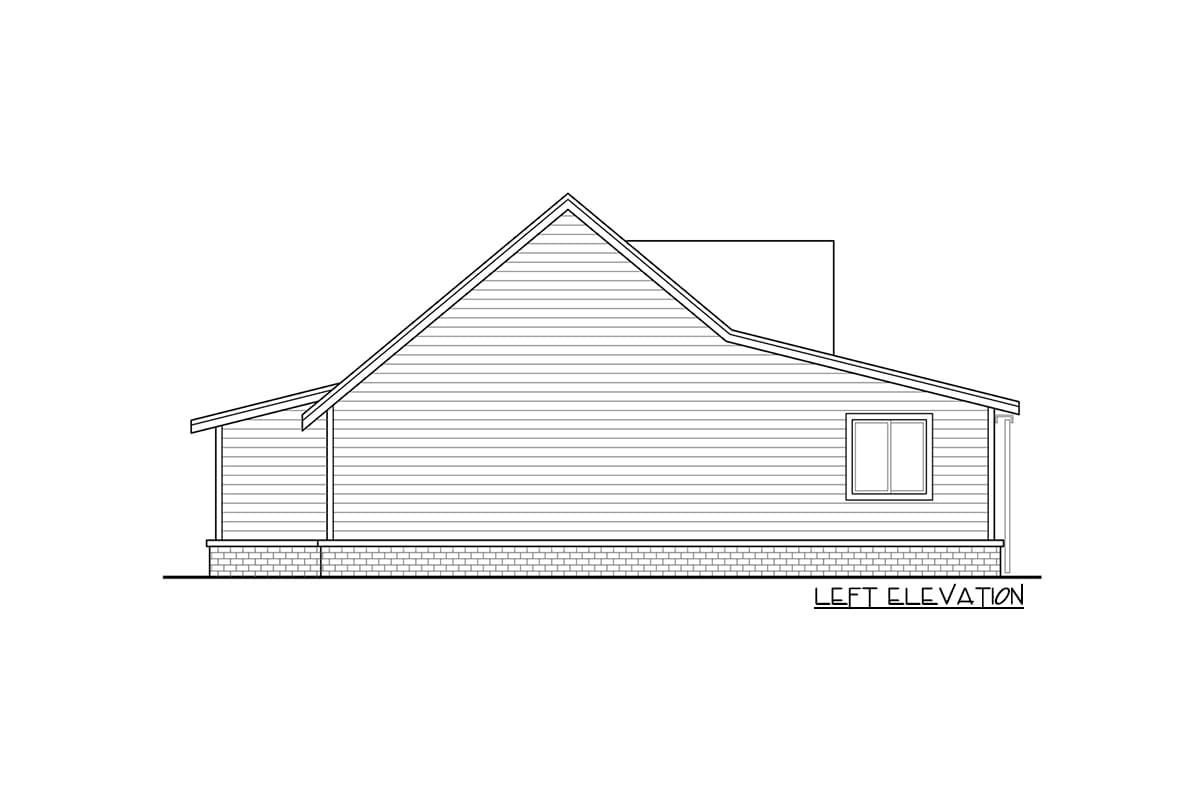

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

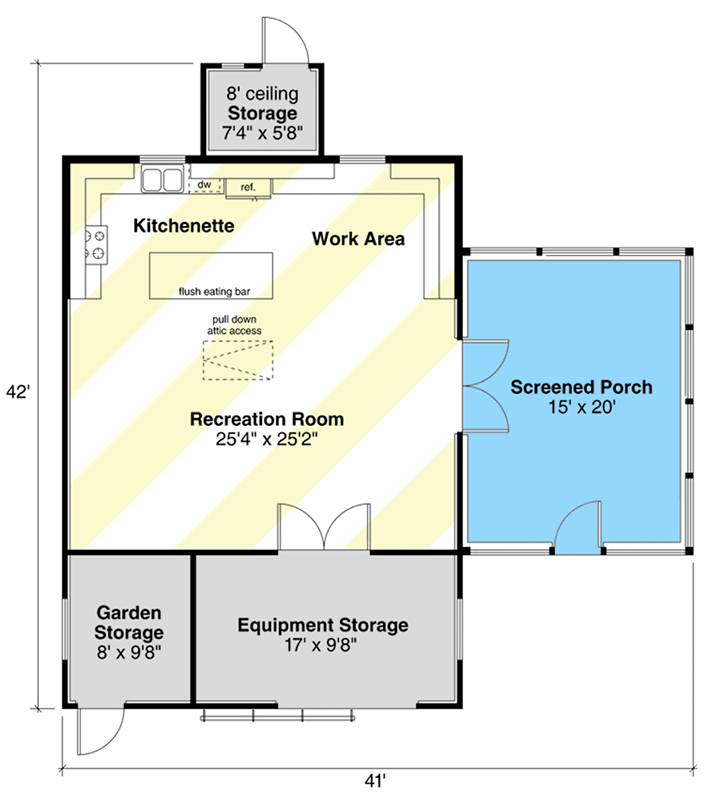

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Backyard Rec Room or Home Office with Kitchen and Screened Porch - 720057DA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 676 sq. ft.
  • 1st Floor: 676 sq. ft.
  • Storage: 308 sq. ft.
  • Screened Porch: 300 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 41' 0"
  • Depth: 42' 0"
  • Max ridge height: 20' 9"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Backyard Rec Room or Home Office with Kitchen and Screened Porch

  • 676

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • PDF Light $435
  • 5 Sets + PDF Light $525
  • PDF - Single-Build $820
  • CAD - Single-Build $900
  • CAD - Unlimited Build $990
  • View all purchase option online

About This Plan

  • This charming outbuilding exudes country charm. A barn door slides to reveal a storage room with pass-through access to the recreation room beyond. To the right, a pair of doors opens to a a large screened porch.
  • The recreation room that makes up the core of this outbuilding offers a kichenette complete with island and eating bar. For those working from home, the corner work area and be set up as a home office.
  • Storage is plentiful with pull down attic access from the recreation room plus two additional storage closets accessed from the outside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 676 sq. ft.
  • 1st Floor: 676 sq. ft.
  • Storage: 308 sq. ft.
  • Screened Porch: 300 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 41' 0"
  • Depth: 42' 0"
  • Max ridge height: 20' 9"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
Plan 720057DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/720057DA
|
Need Help? 800-854-7852
|
Plan 720057DA
