Barn-like 2 Car Workshop Plan
Heated S.F.
0
Stories
1
Cars
2
What's Included
Plan Details
  • This 2-car workshop is evocative of a barn with clerestory windows and false barn doors above the car and man doors.
  • This simpe-to-build structure is a square with two shed storage areas flanking the car bay areas.
  • From the shop floor you can see the widnows above looking through the trusses.
  • The roof is stick framed with a 10:12 pitch with 4:12 pitch over the shed storage areas.
What's Included

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barn-like 2 Car Workshop Plan

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

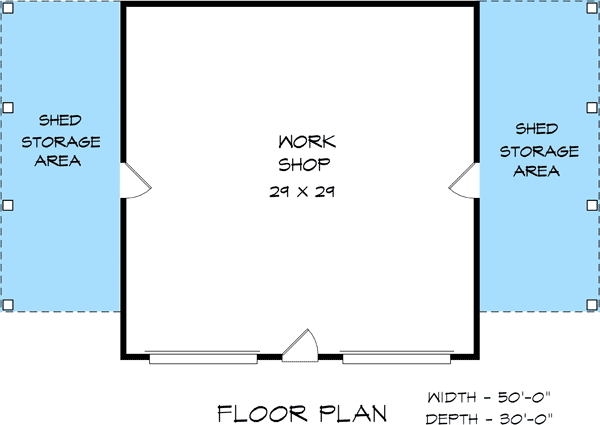

Floor Plan
