Barn-like Drive-Through Garage

Plan 62469DJ

0
Heated s.f.
1
Stories
2-3
Cars

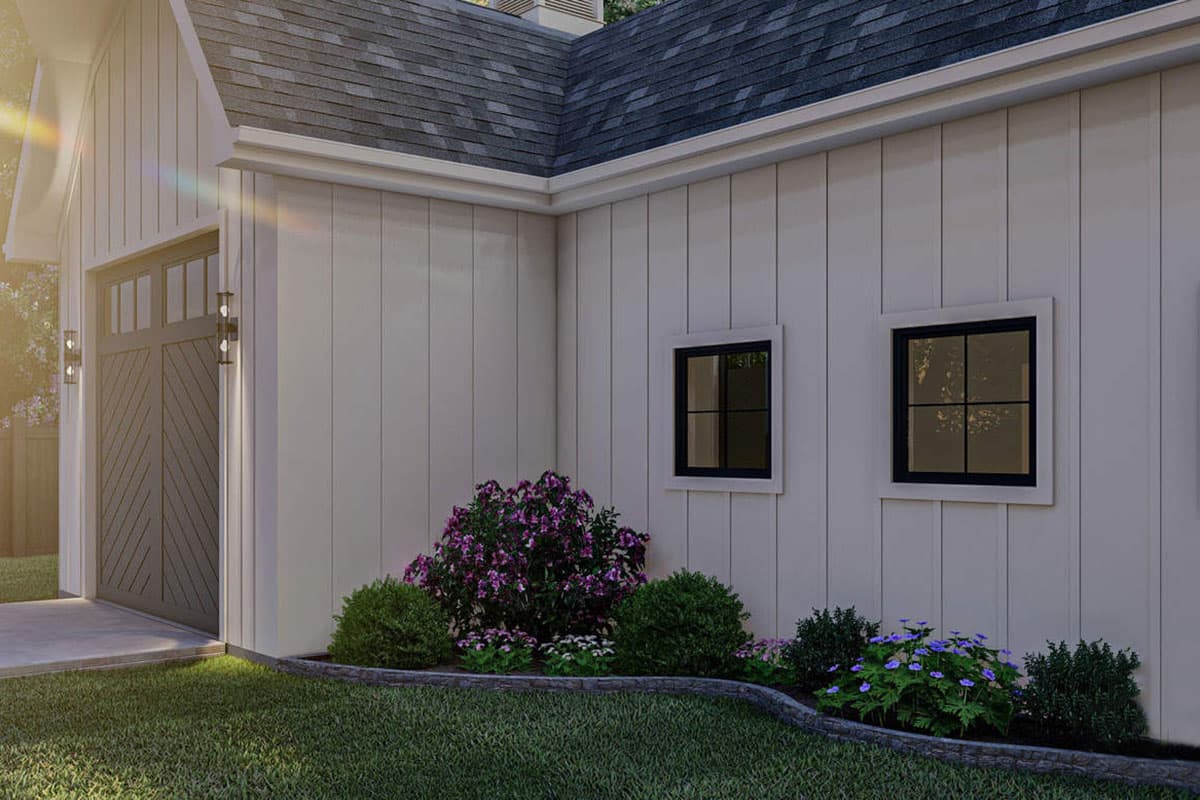

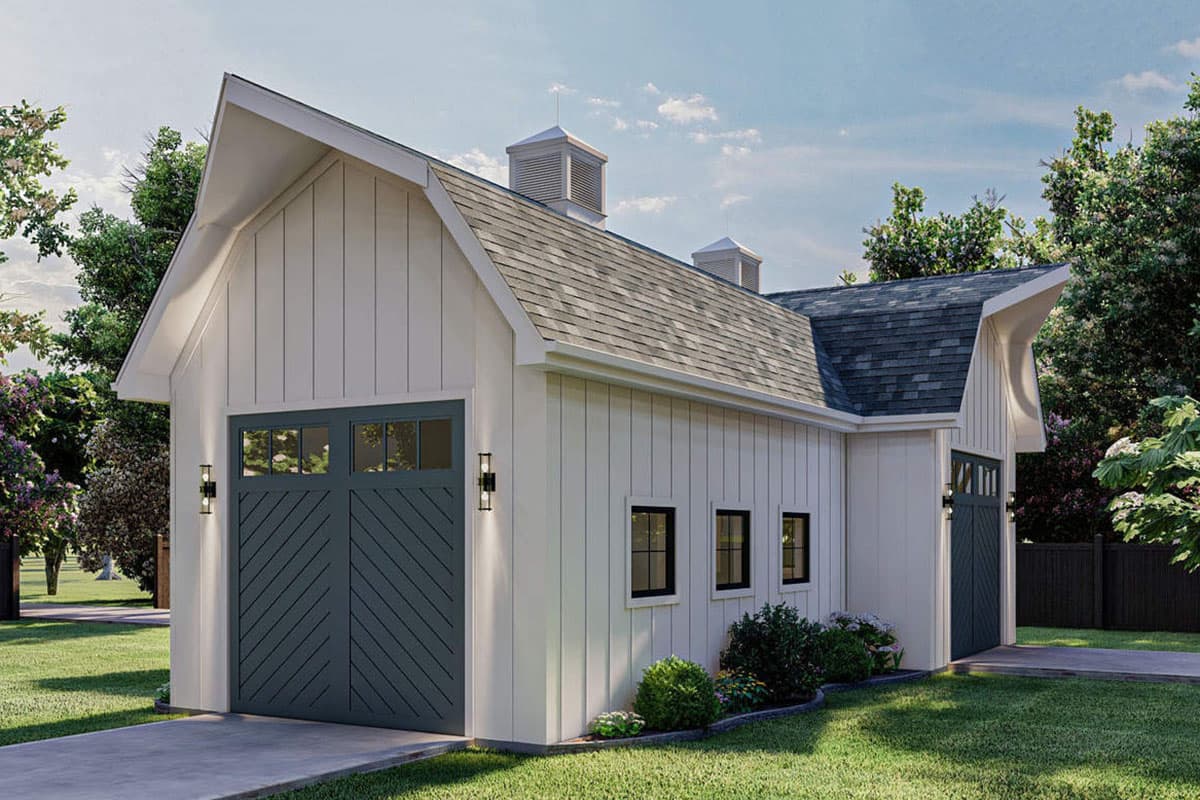

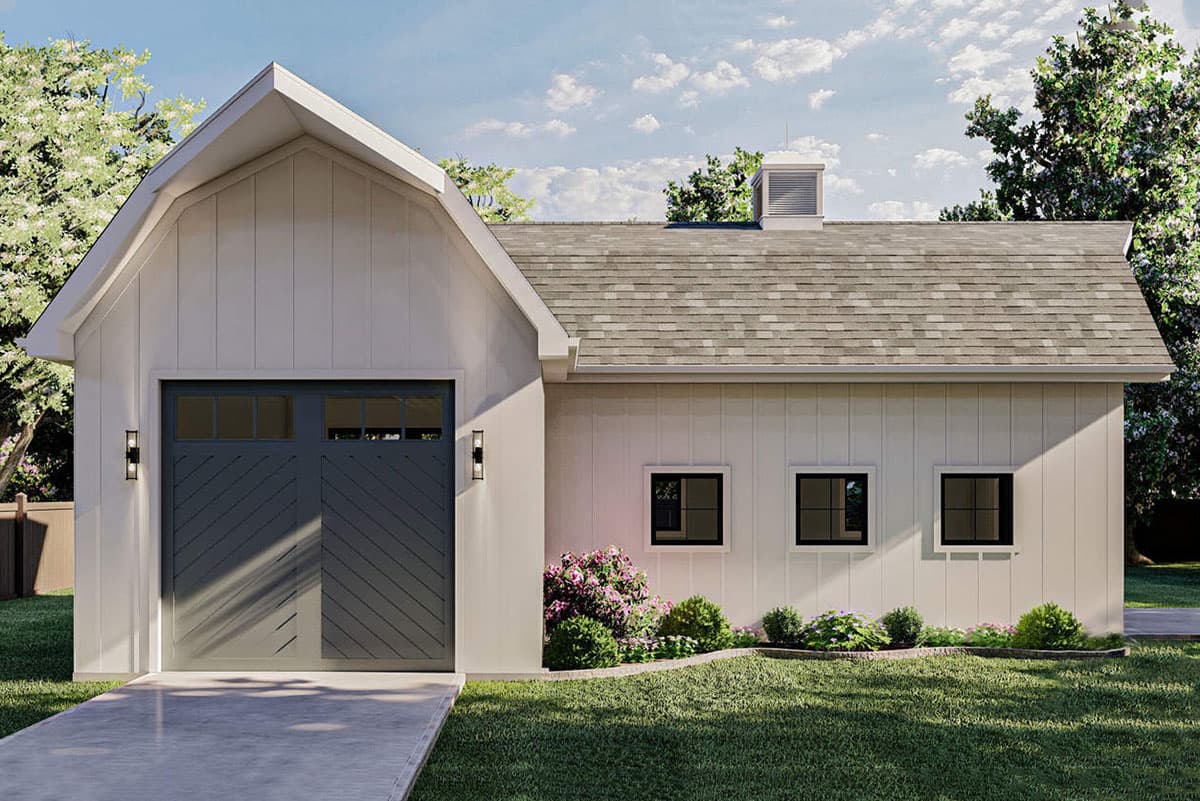

This is a barn-like drive-through garage has a side-entry for a larger vehicle or RV.
With room for three vehicles including a small RV in the side entry, it has a drive-through door alignment making this a great garage for certain lots.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.

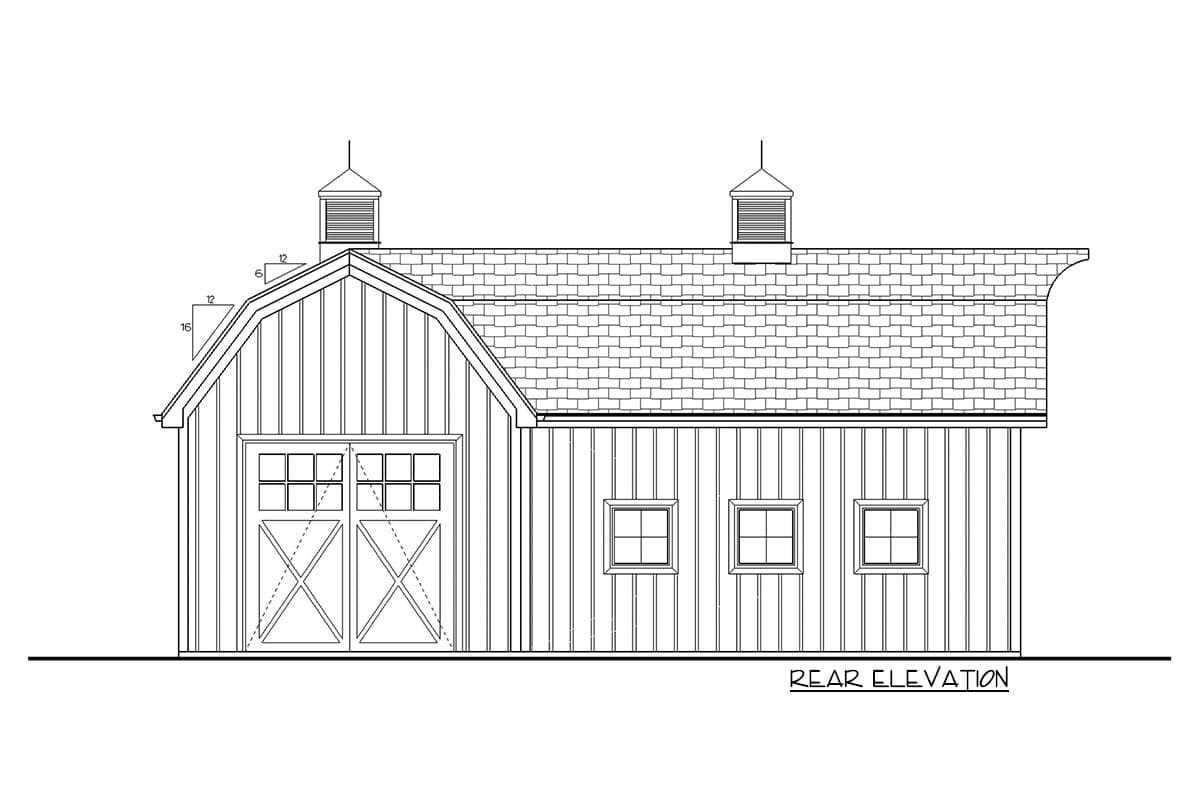

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Barn-like Drive-Through Garage - 62469DJ floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 0 sq. ft.

Beds/Baths

Bedrooms:

Full bathrooms:

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 28' 0"
Max ridge height: 19' 8"

Garage

Type: RV Garage, Detached
Area: 832 sq. ft.
Count: 2 or 3 Cars
Entry Location: Rear, Side, Front

Ceiling Heights

Floor / Height: First Floor / 12' 0"

Roof Details

Primary Pitch: 7 on 12

Framing Type: Stick
