Plan 52060HZ

Barndominium Farmhouse House Plan Featuring Three Bedrooms and Covered Porches

Heated S.F.
1,680
Beds
3
Baths
2
Stories
1
Cars
2

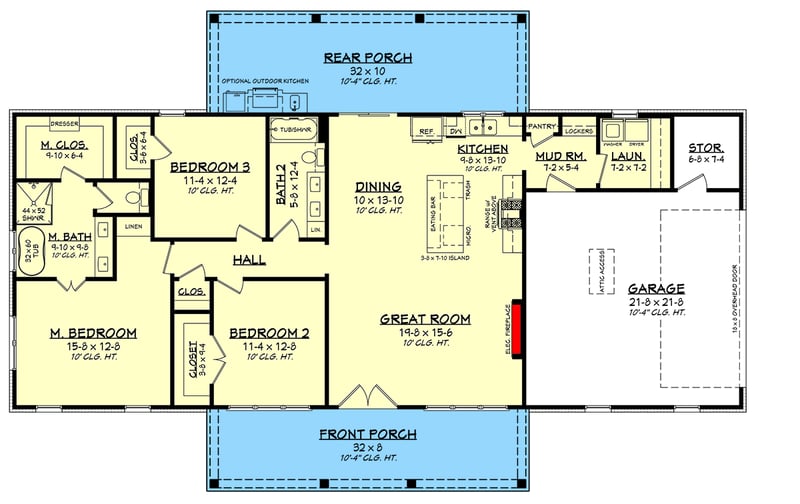

Floor Plan

Plan 52060HZ

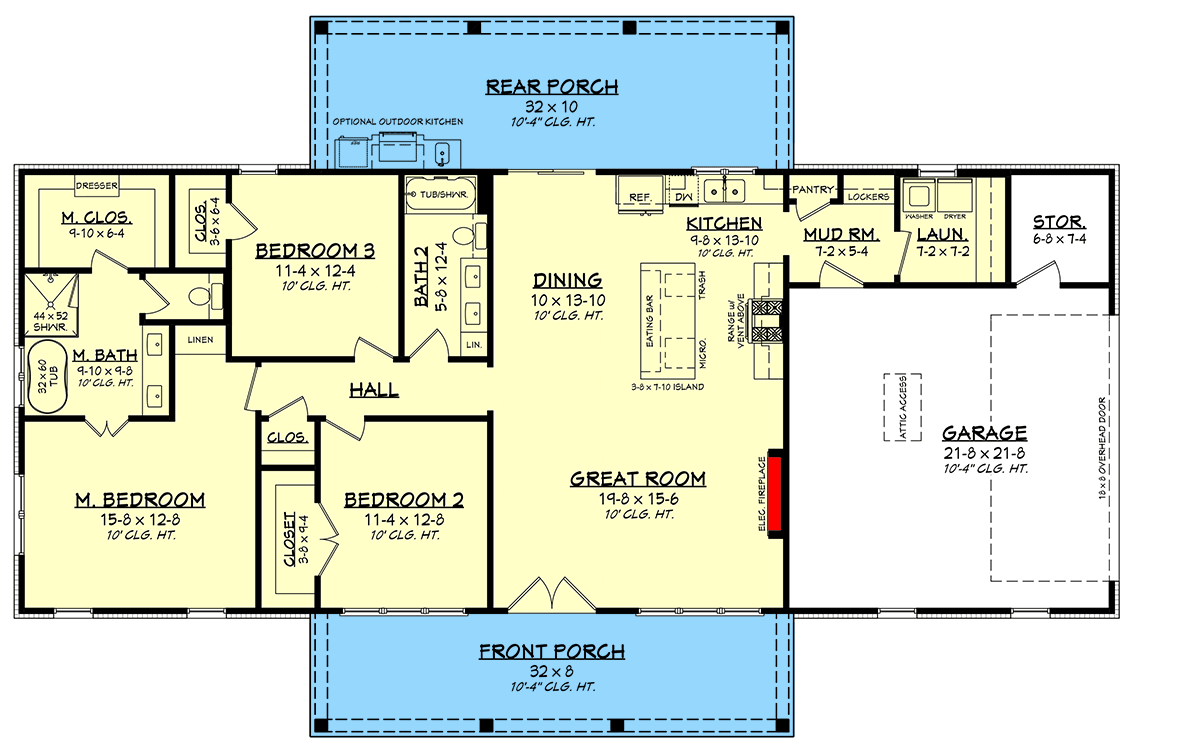

Floor Plan 1

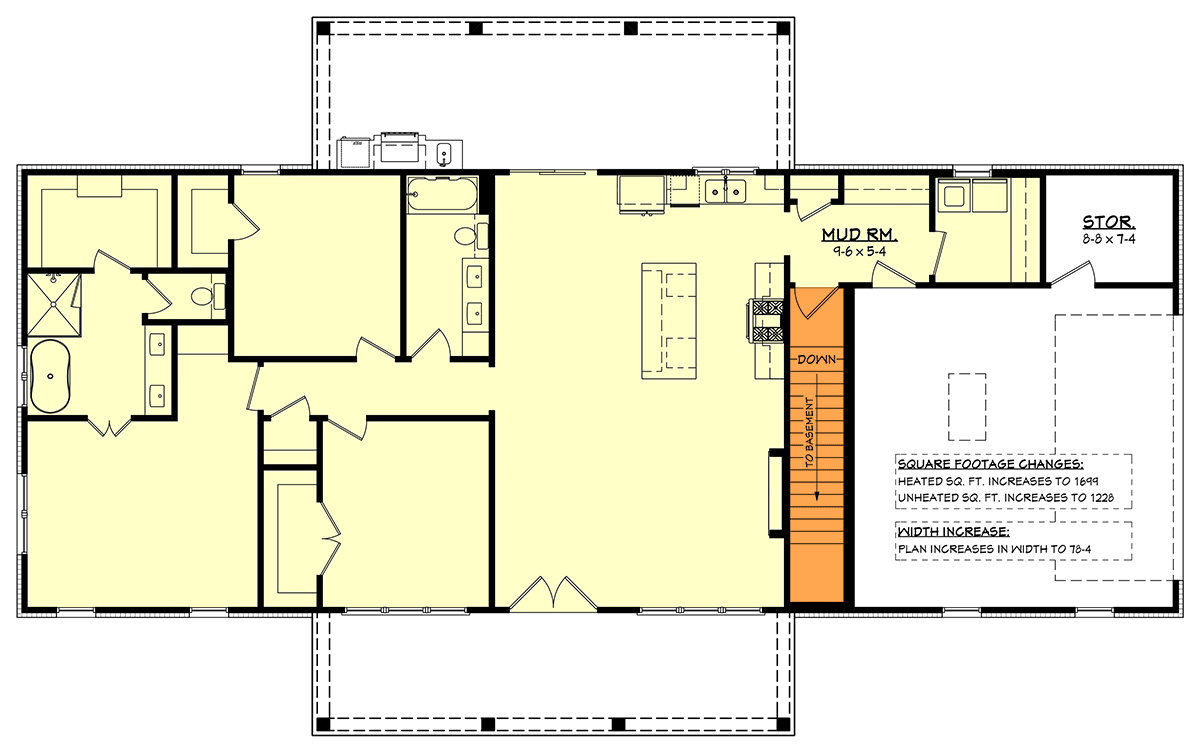

Basement Stairs Location
Basement Stairs Location

Plan 52060HZ

M-F 9am-5pm EST |

1-203-761-8500

Plan 52060HZ: Barndominium Farmhouse House Plan Featuring Three Bedrooms and Covered Porches - Floor Plan - - Barndominium, Country, Farmhouse, Traditional

Basement Stairs Location

Plan 52060HZ: Barndominium Farmhouse House Plan Featuring Three Bedrooms and Covered Porches - Floor Plan - Basement Stairs Location - Barndominium, Country, Farmhouse, Traditional

Plan Details

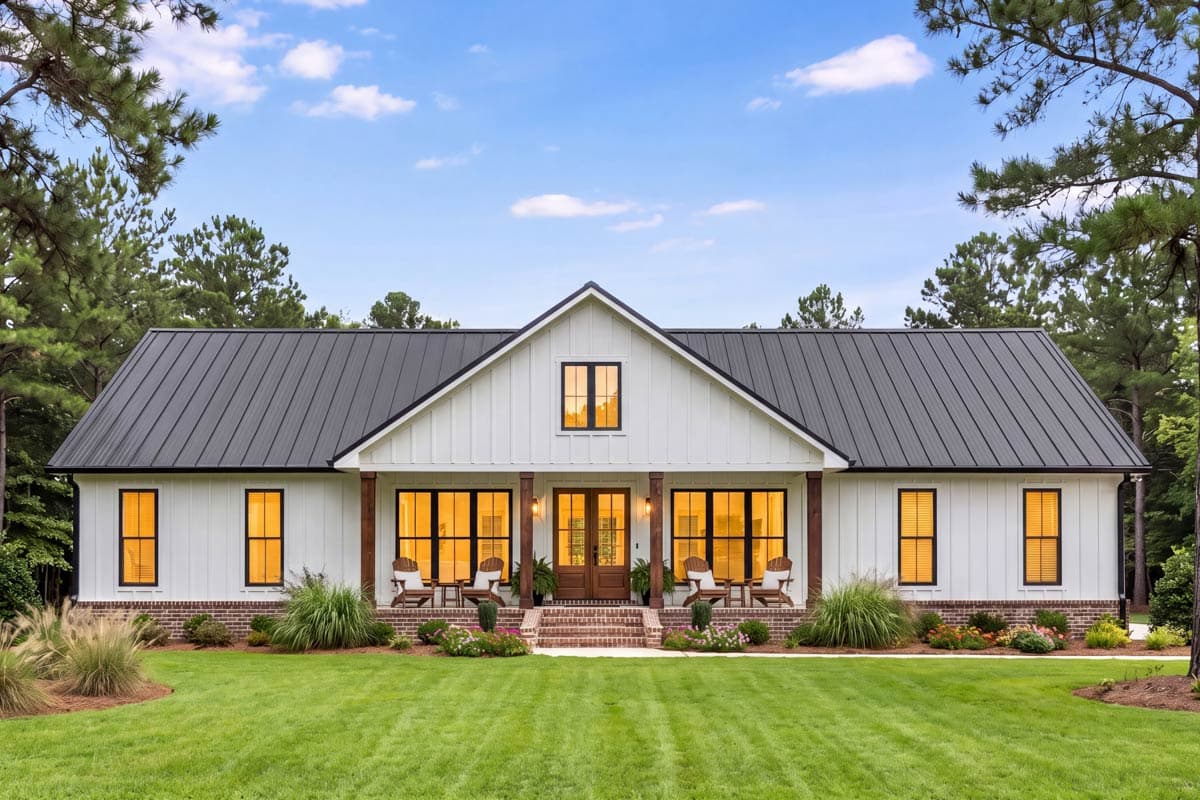

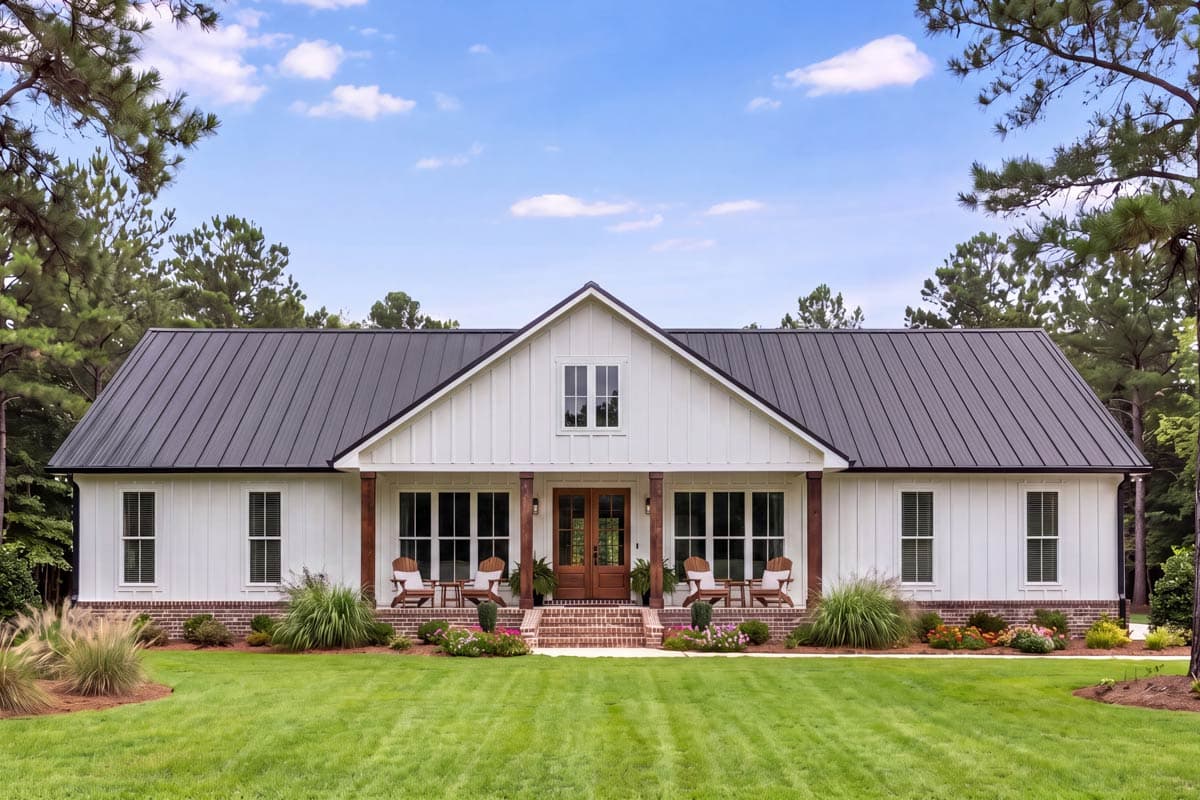

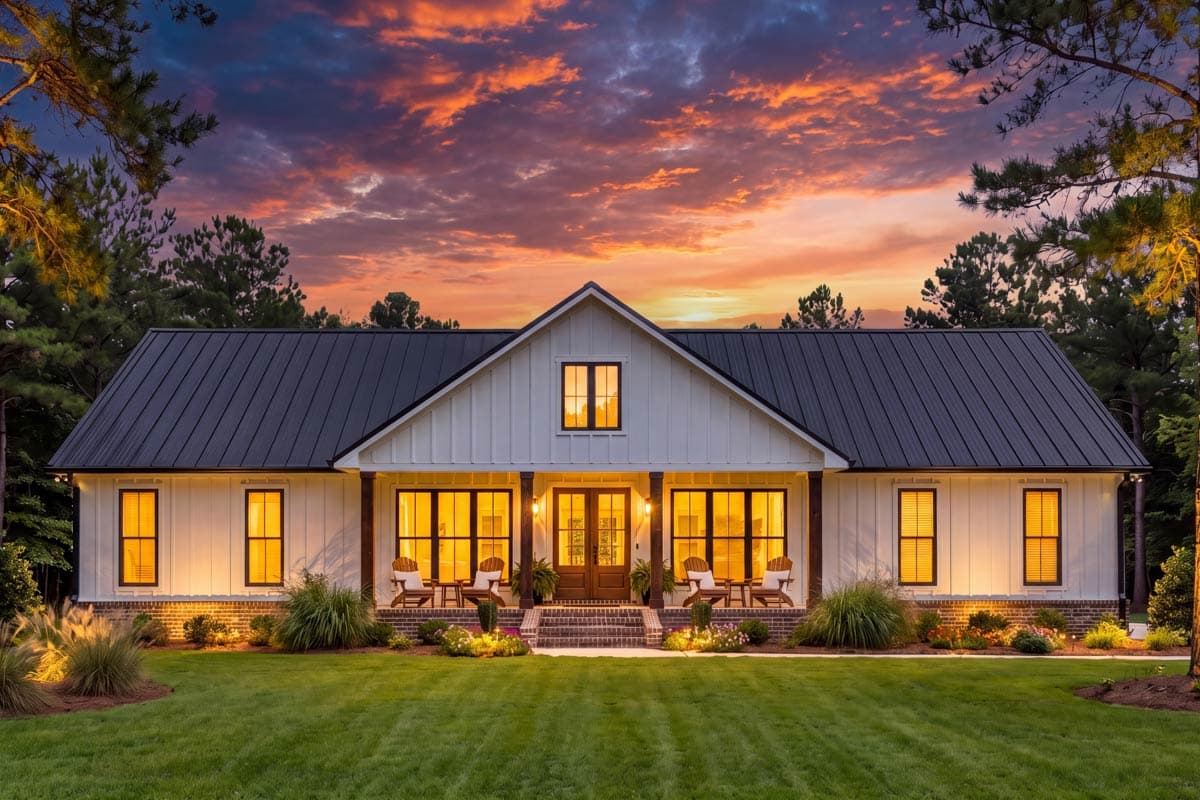

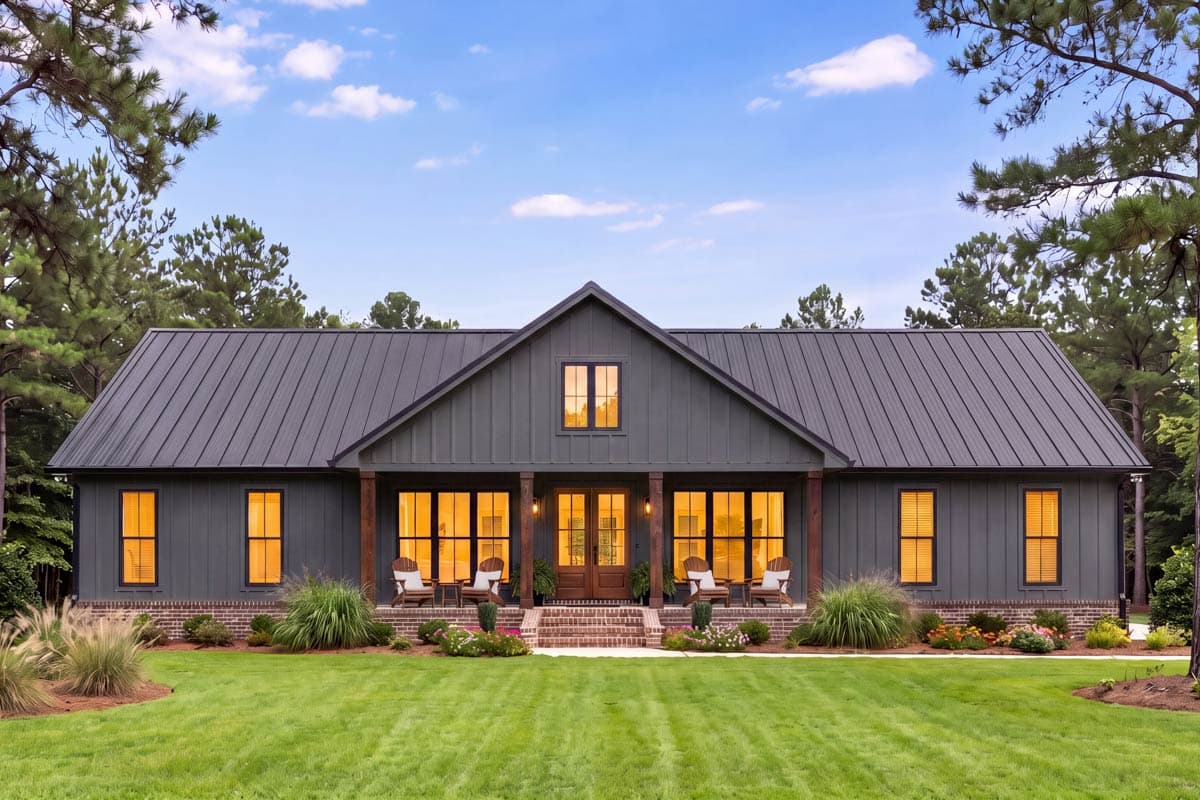

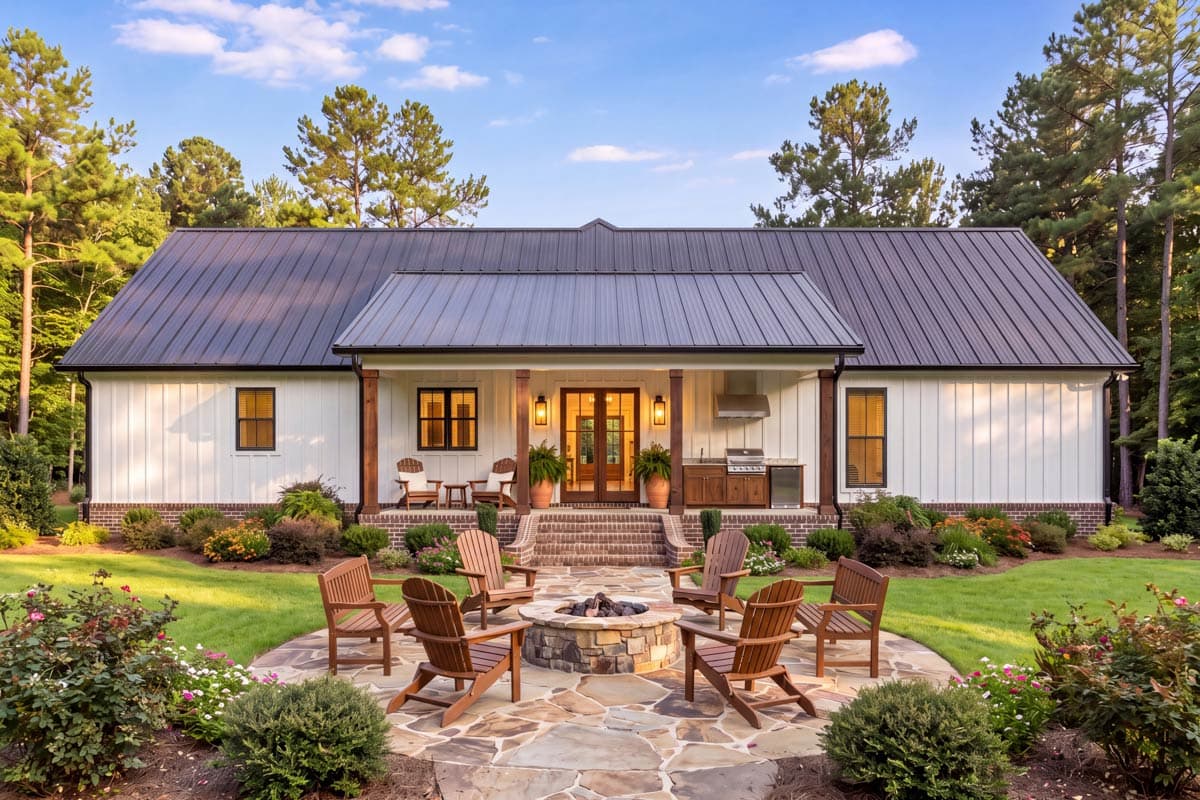

  • Boasting 1,680 finished sq ft, 3 bedrooms, 2 baths, and an attached 484 sq ft 2-car garage, this farmhouse design features a classic board-and-batten exterior.

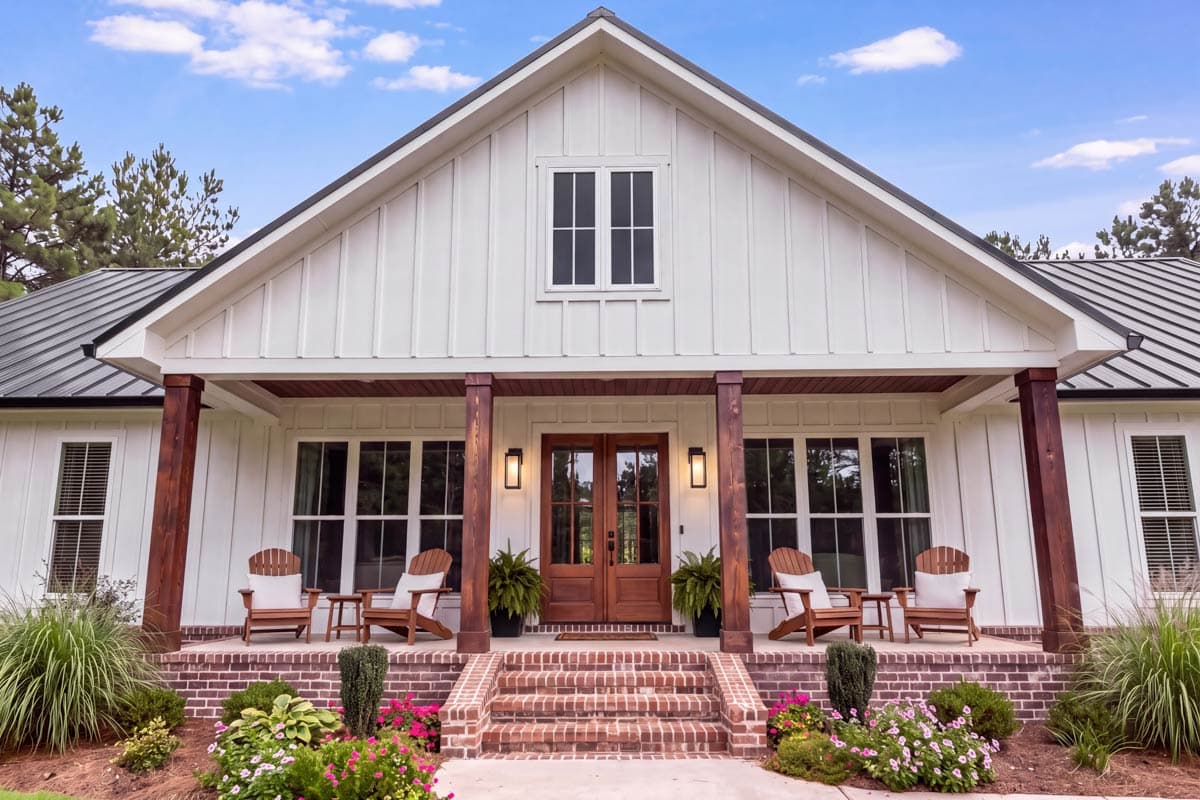

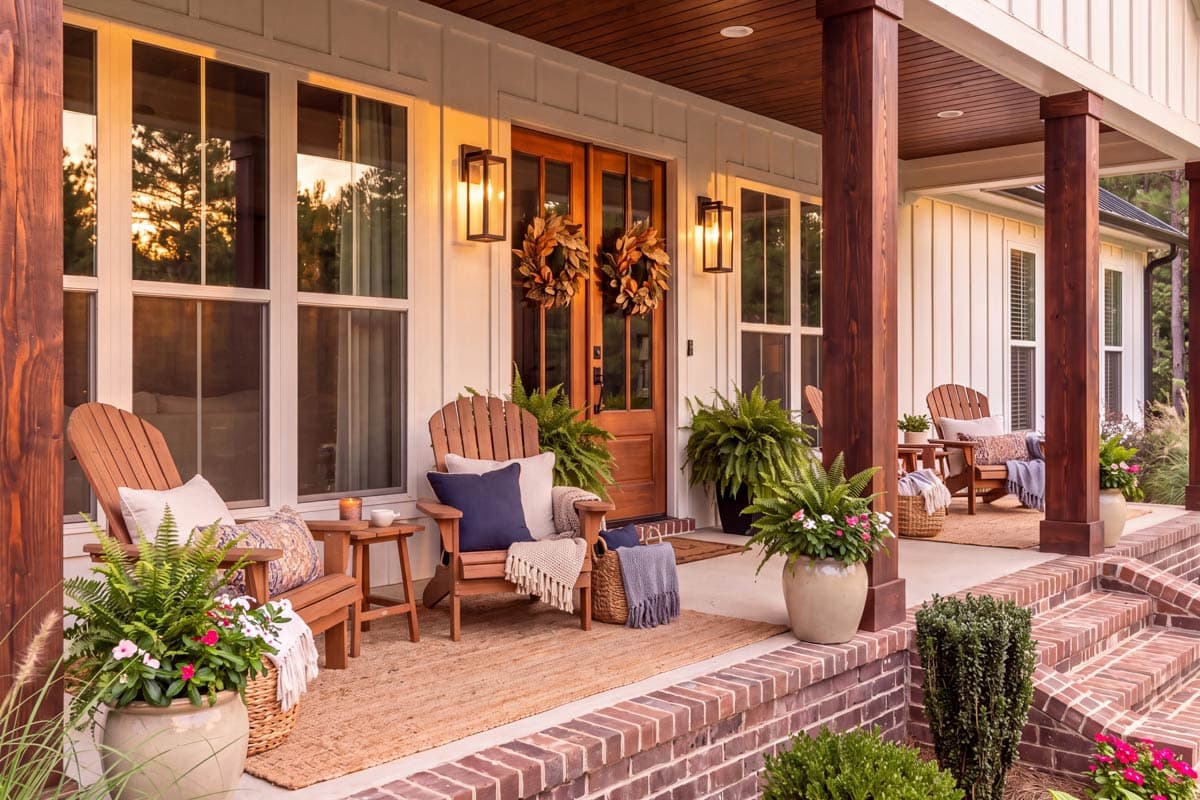

  • The entry opens from a deep front porch directly into a generous great room, creating a seamless and welcoming arrival experience.
  • An open-concept layout flows from the central great room into a spacious kitchen and dining area, highlighted by a large island for casual meals and gathering.
  • The primary suite is privately situated at the rear of the home, featuring a spa-inspired bath and walk-in closet, while two secondary bedrooms occupy the opposite side of the floor plan.
  • A functional mudroom with lockers and a dedicated laundry room provide a streamlined transition from the garage into the main living space.

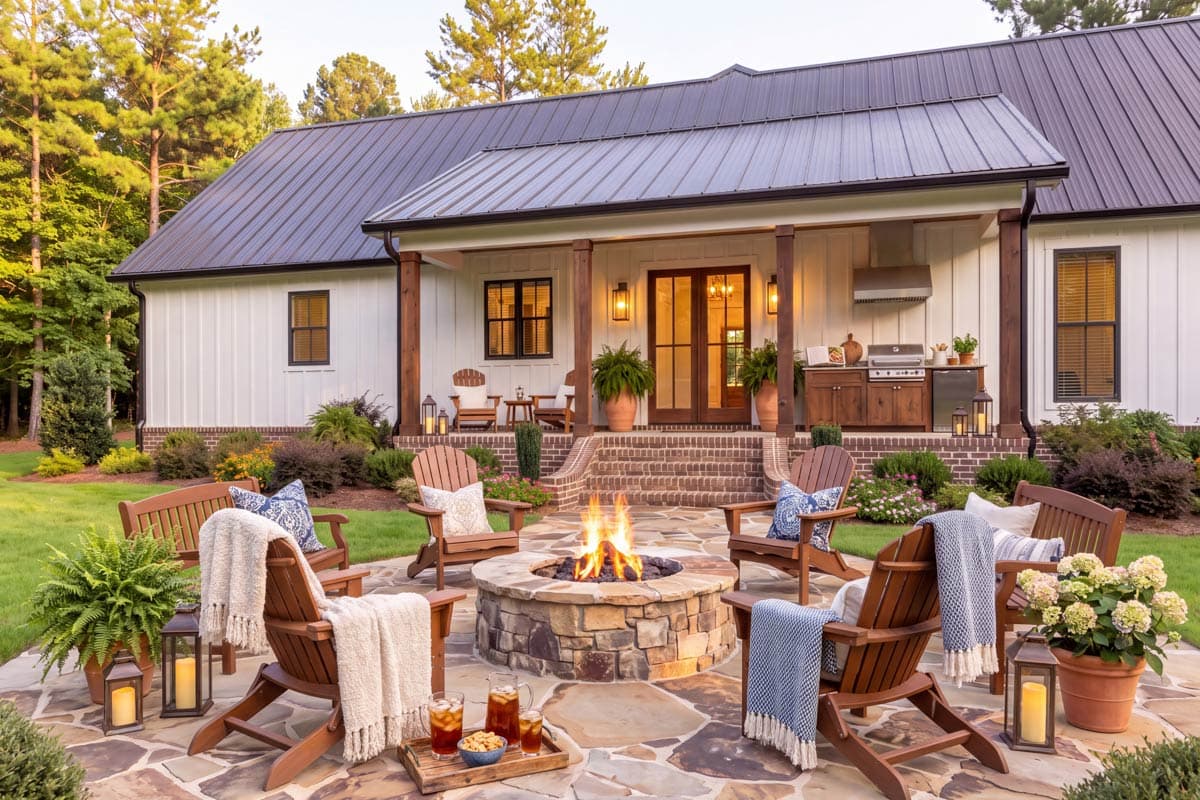

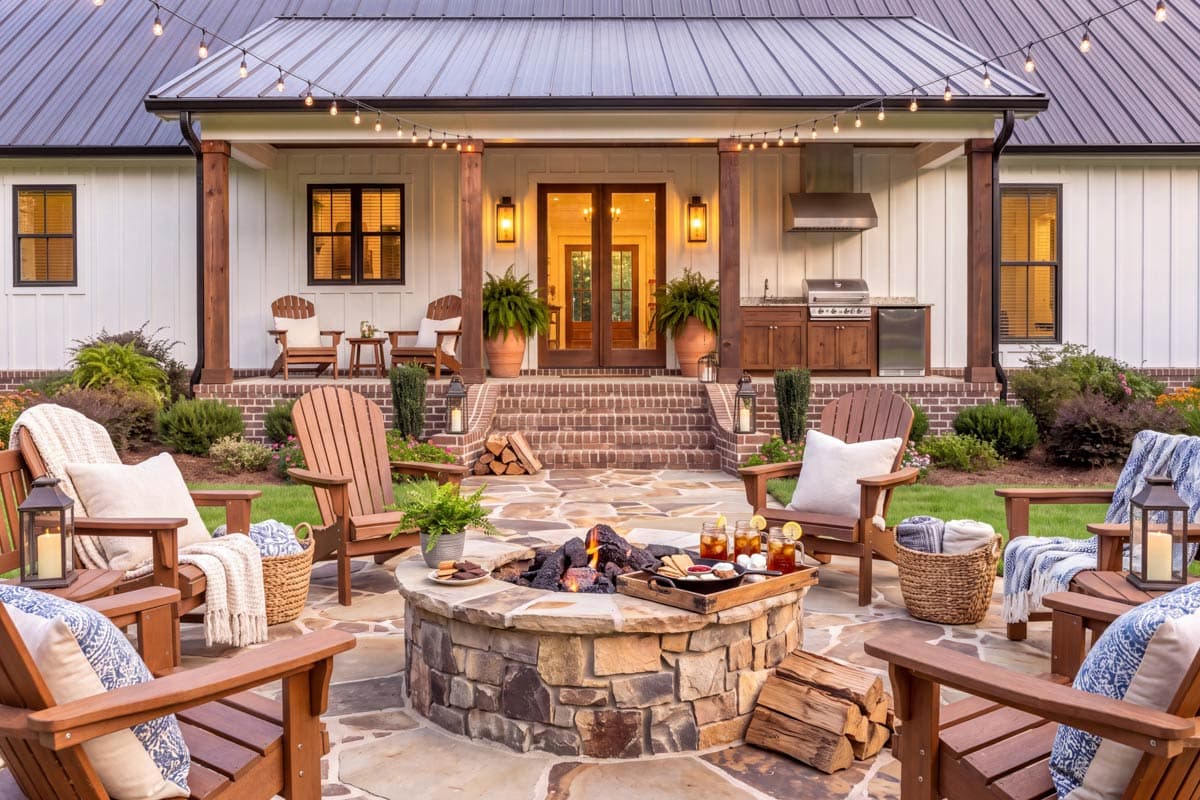

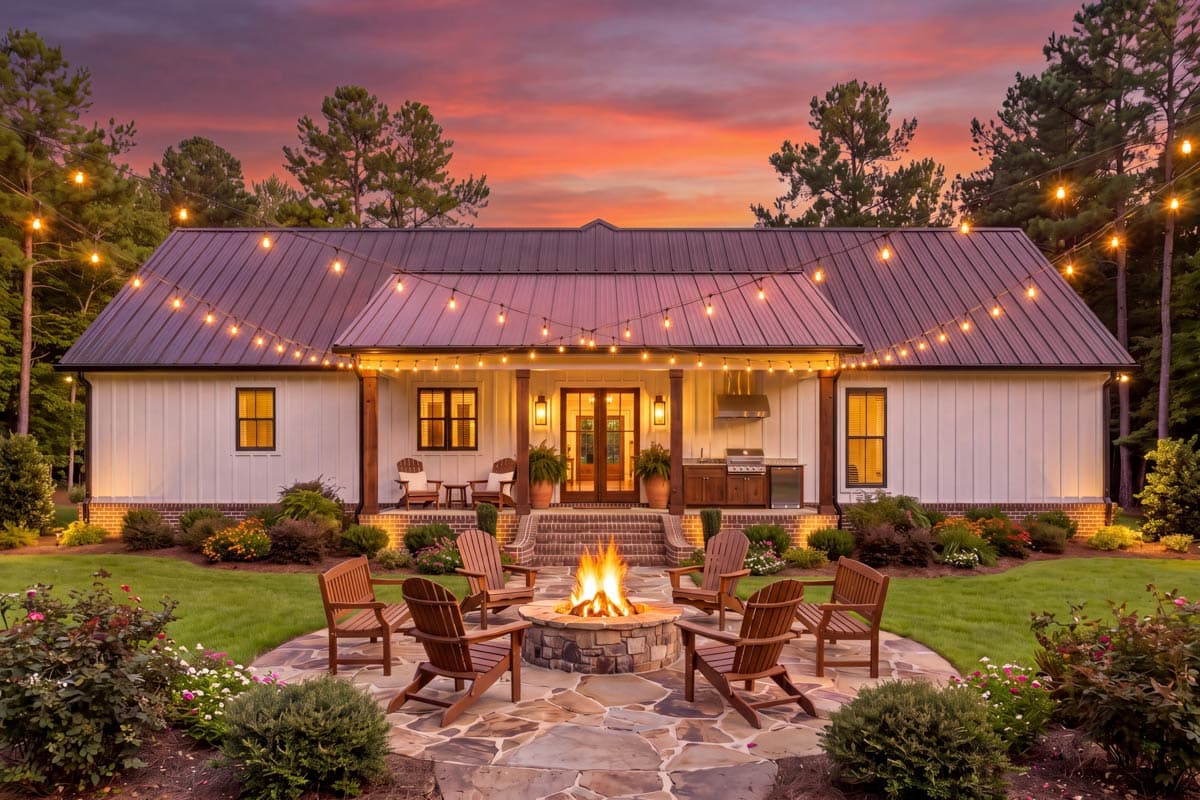

  • Expansive front and rear porches offer generous outdoor living areas, with the back porch including space for an optional outdoor kitchen for al fresco dining.
  • A convenient storage area is integrated into the garage footprint, providing extra room for tools or recreational gear.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

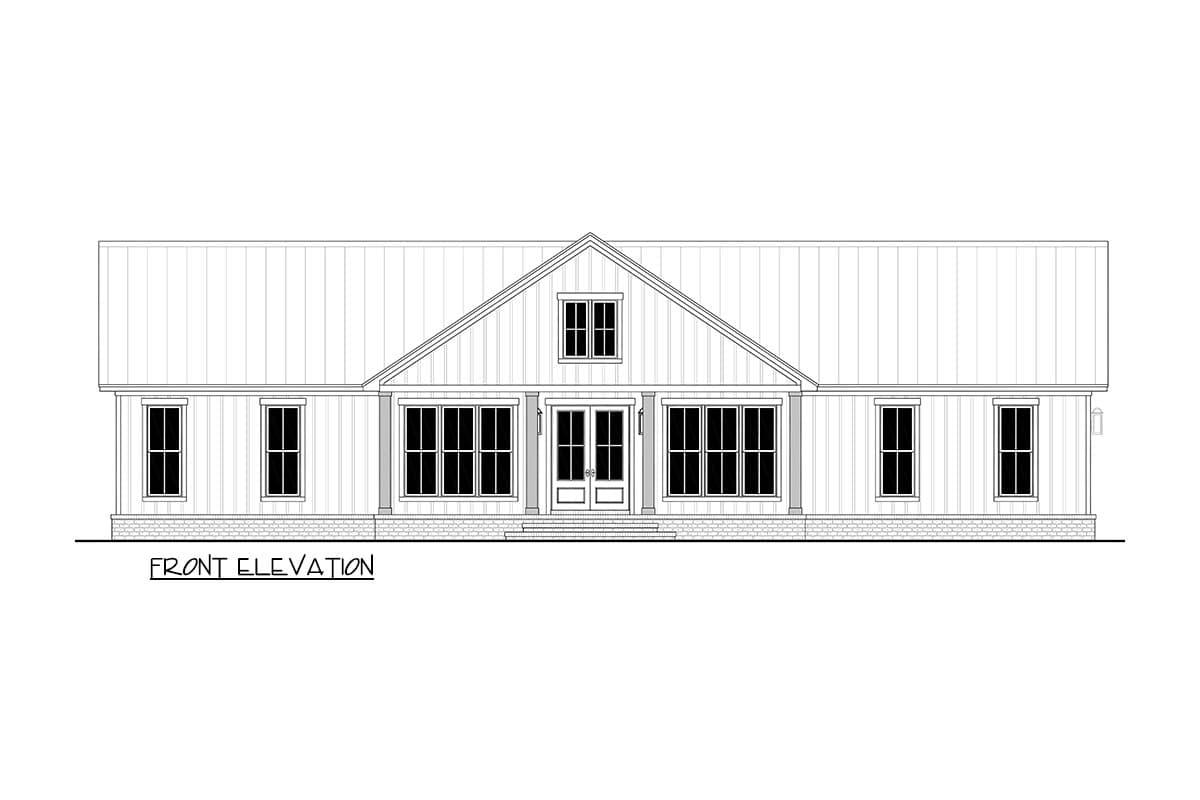

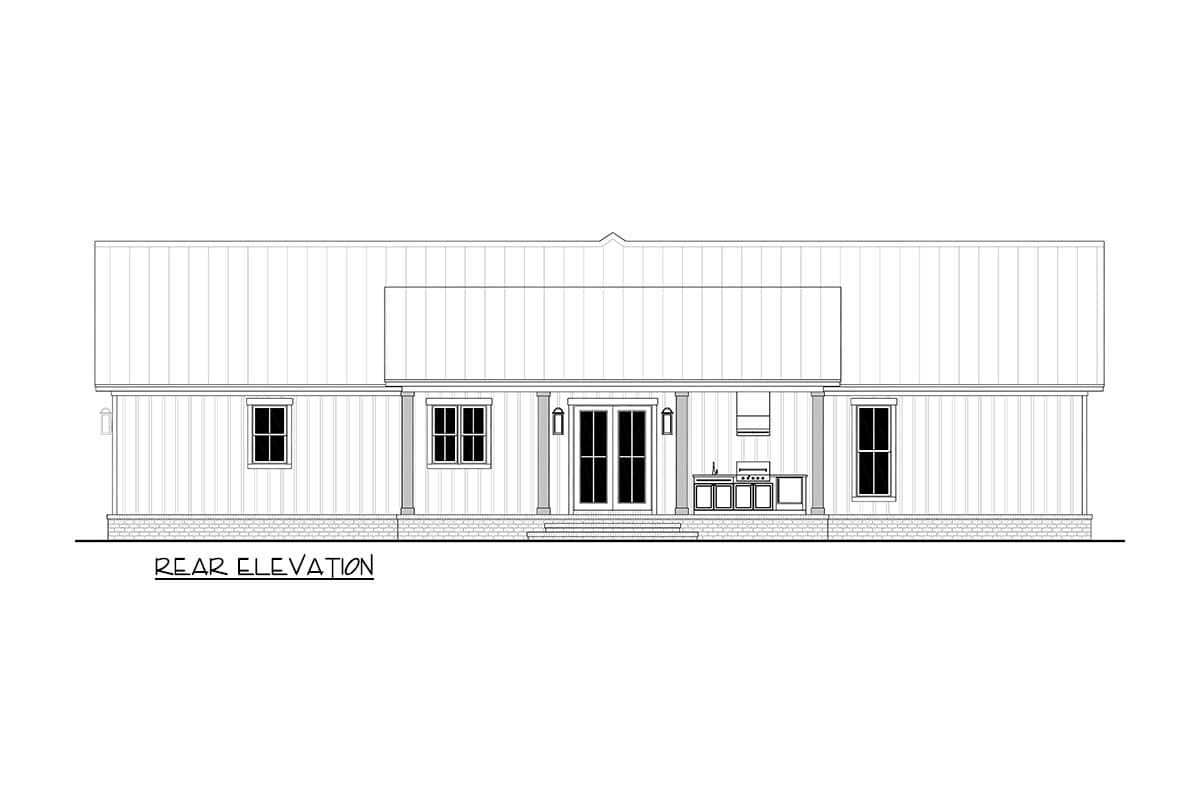

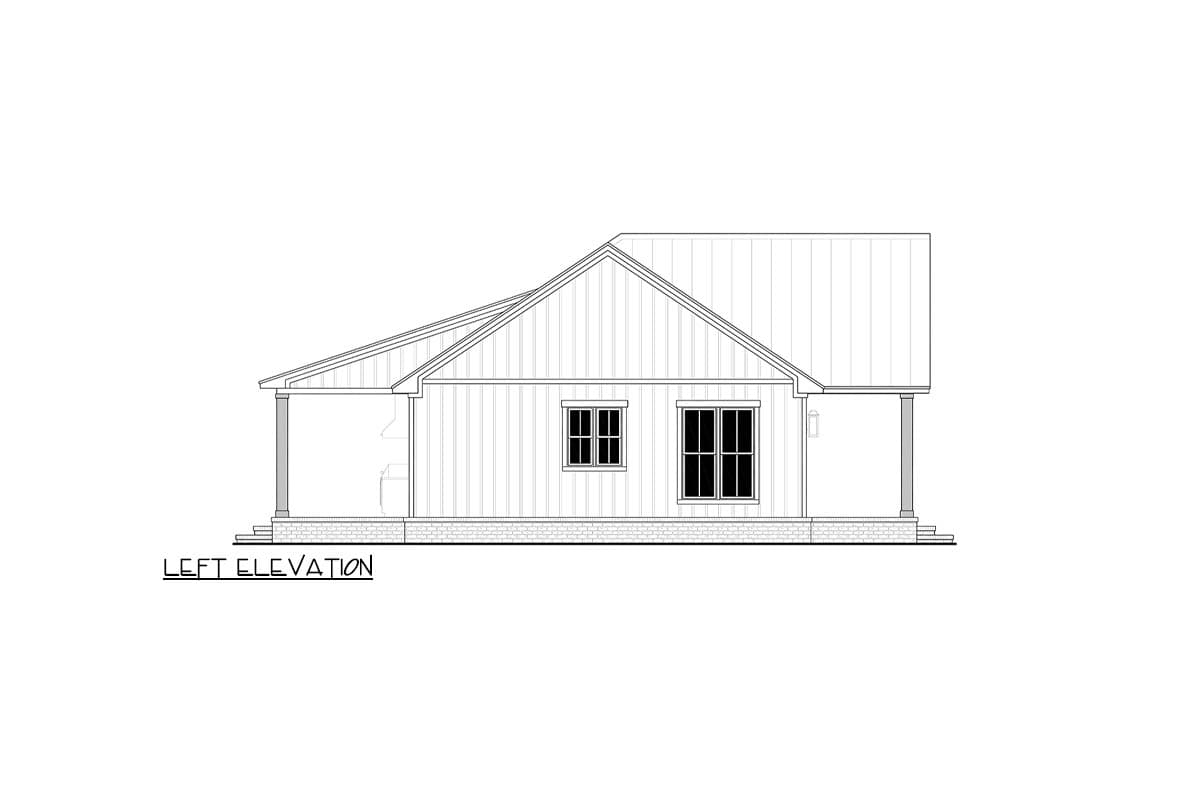

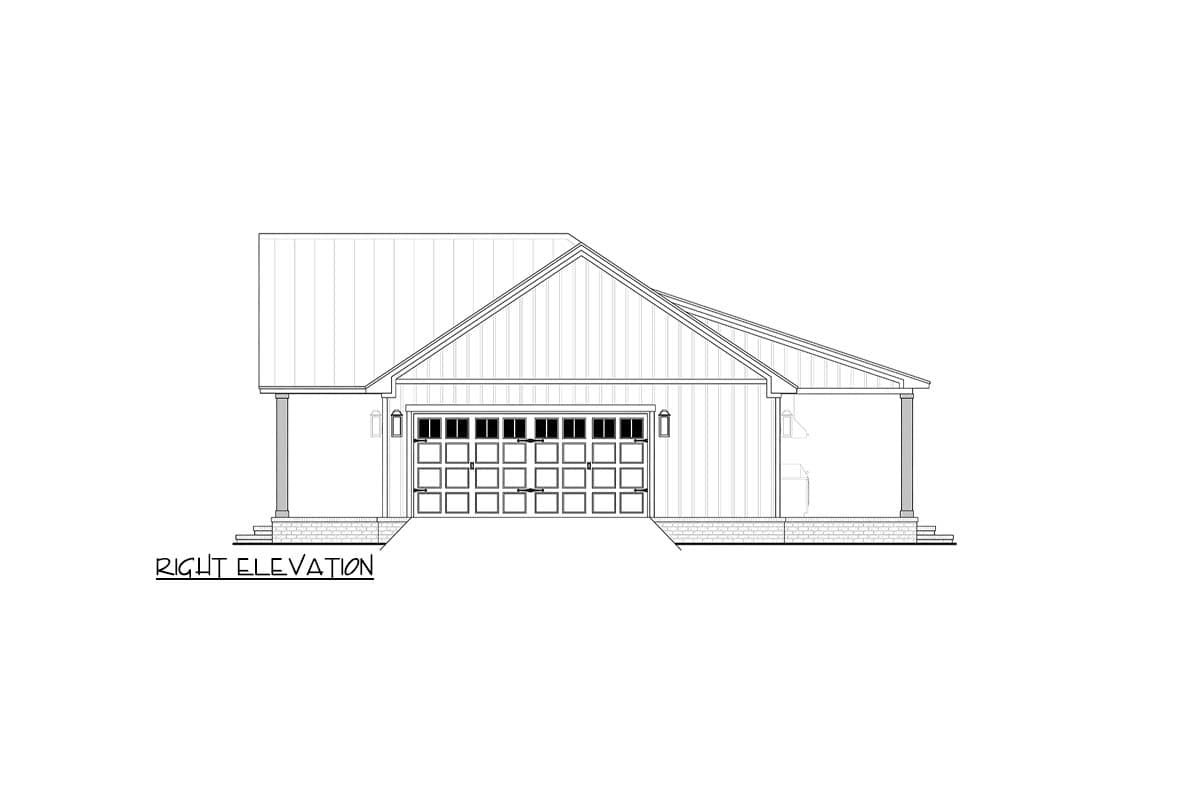

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,680 sq. ft.

1st Floor

1,680 sq. ft.

Porch, Front

256 sq. ft.

Porch, Rear

320 sq. ft.

Storage

56 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

80' 0"

Max Ridge Height

21' 1"

Garage

Type

Standard, Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Farmhouse

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Unlimited Build License
