Plan 490071NAH

Barndominium-Style House Plan with Two Kitchens and Upstairs Game and Bunk Rooms

Heated S.F.
4,106
Beds
3 - 5
Baths
3 - 6
Stories
2
Cars
2

Floor Plan

Plan 490071NAH

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Walkout Foundation
Optionally Finished Walkout Foundation
Optionally Finished Basement Foundation
Optionally Finished Basement Foundation

Plan 490071NAH

M-F 9am-5pm EST |

1-203-761-8500

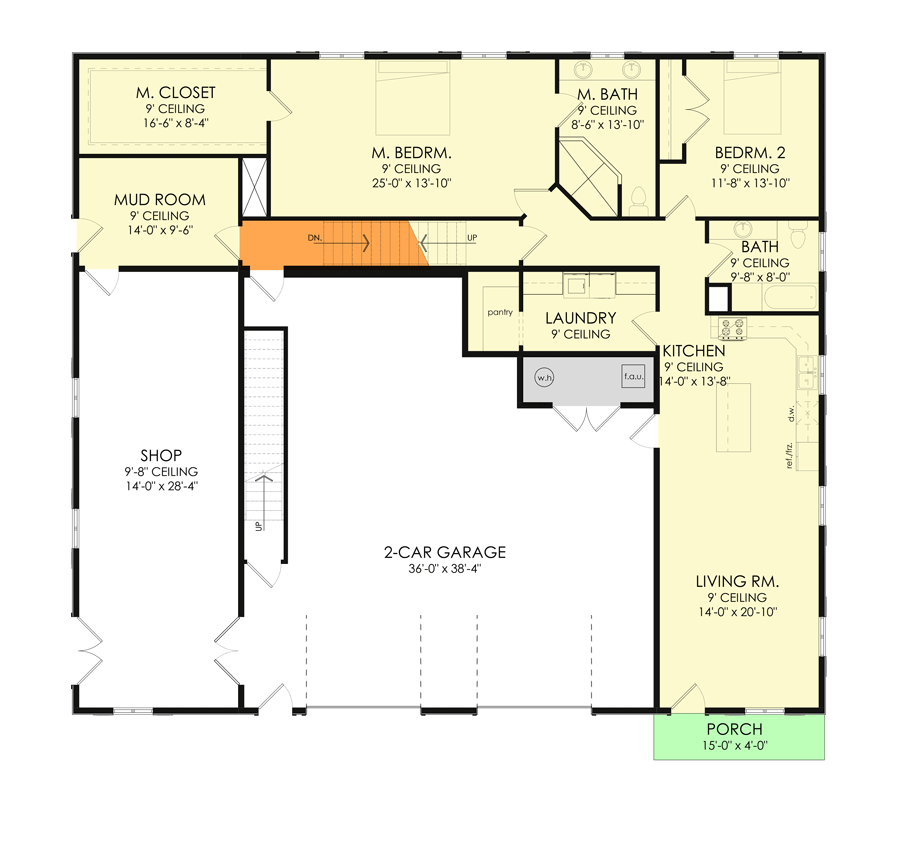

Main Level

Plan 490071NAH: Barndominium-Style House Plan with Two Kitchens and Upstairs Game and Bunk Rooms - Floor Plan - Main Level - Barndominium, Country, Rustic, Vacation

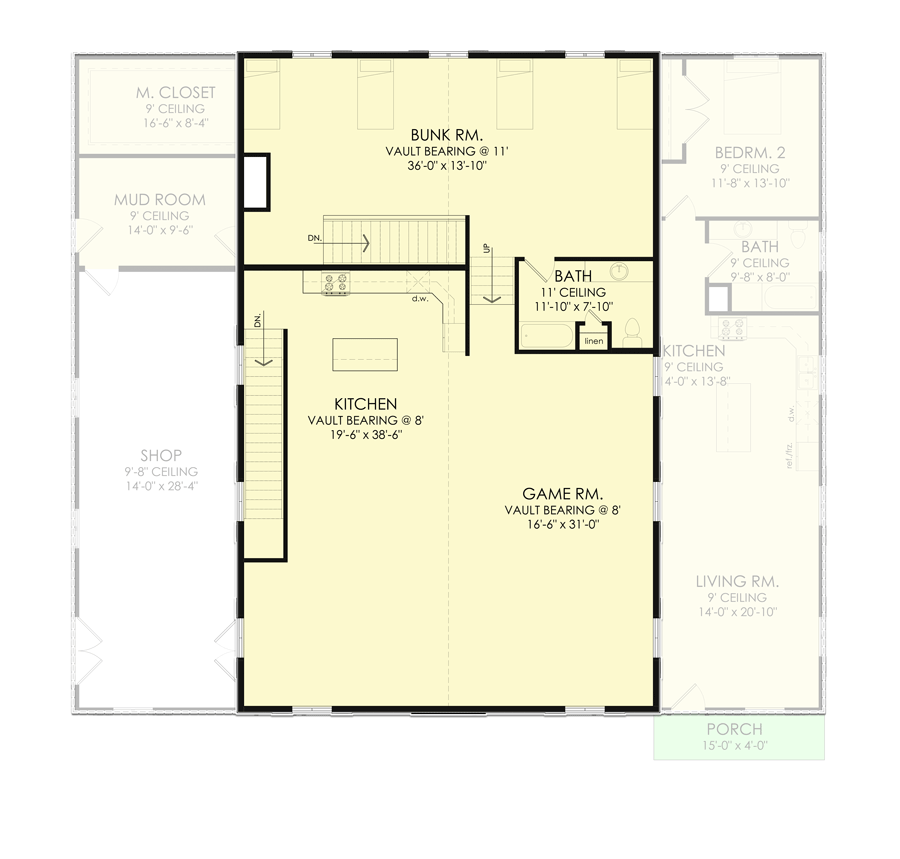

2nd Floor

Plan 490071NAH: Barndominium-Style House Plan with Two Kitchens and Upstairs Game and Bunk Rooms - Floor Plan - 2nd Floor - Barndominium, Country, Rustic, Vacation

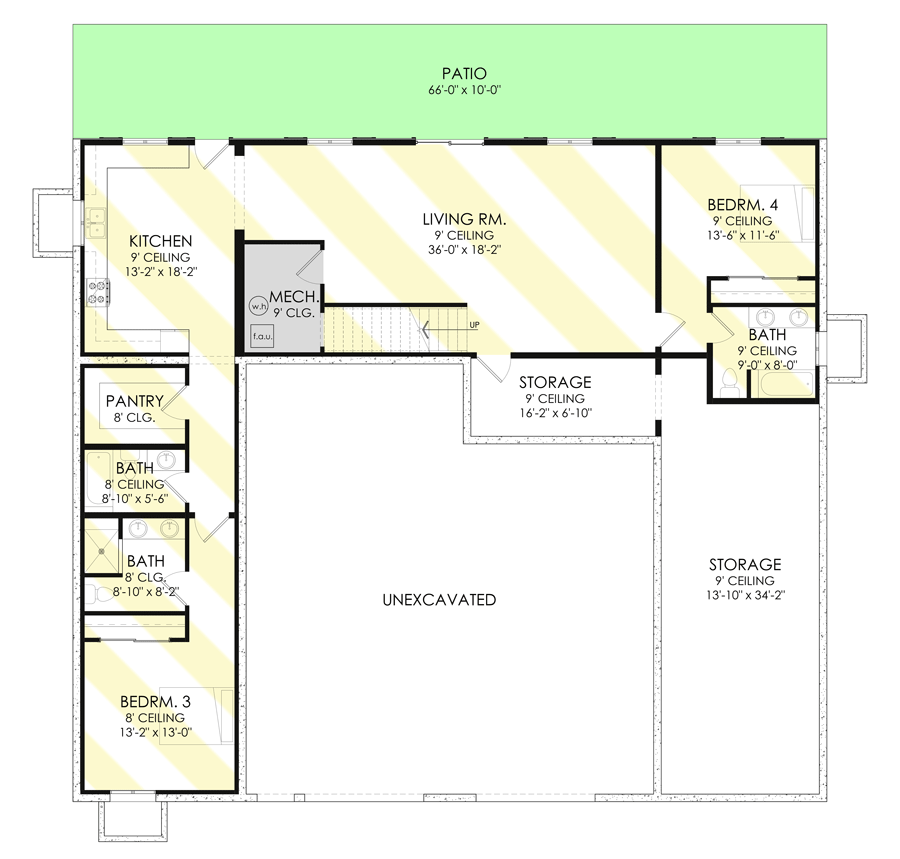

Optionally Finished Walkout Foundation

Plan 490071NAH: Barndominium-Style House Plan with Two Kitchens and Upstairs Game and Bunk Rooms - Floor Plan - Optionally Finished Walkout Foundation - Barndominium, Country, Rustic, Vacation

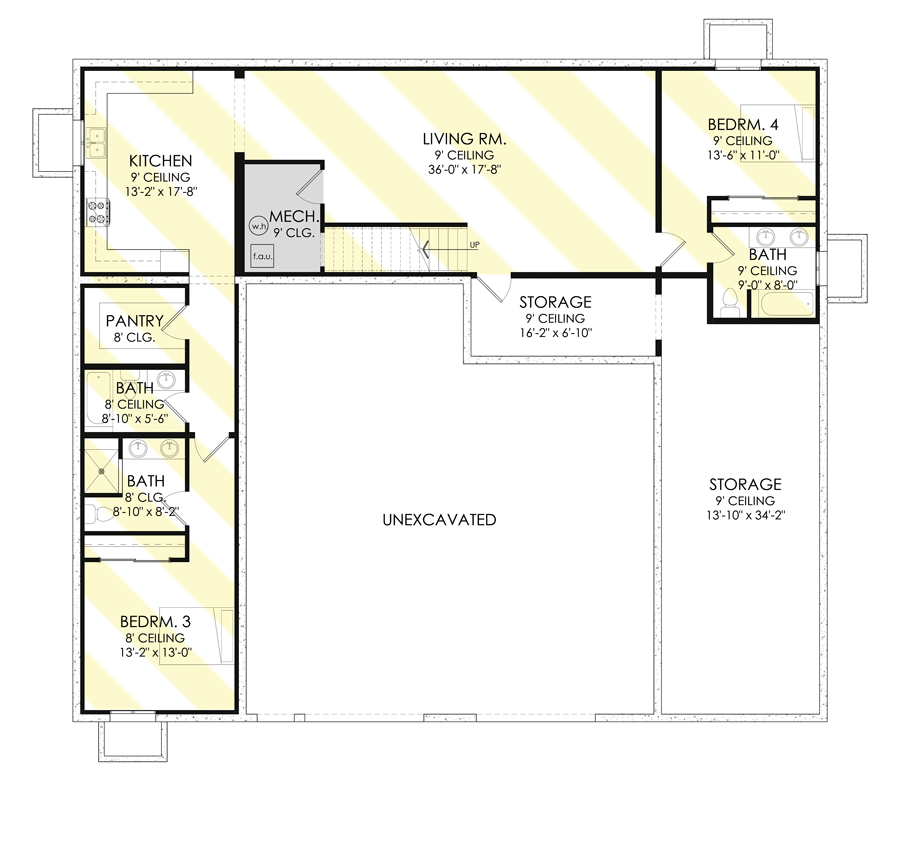

Optionally Finished Basement Foundation

Plan 490071NAH: Barndominium-Style House Plan with Two Kitchens and Upstairs Game and Bunk Rooms - Floor Plan - Optionally Finished Basement Foundation - Barndominium, Country, Rustic, Vacation

Plan Details

  • This barndominium house plan offers a classic barn look with wood trim and shutters to help make this house stand out.
  • Upon entering, you'll be welcomed with the living room that blends into the kitchen. Hallways lead off from the kitchen to the bedrooms and stairs leading upstairs.
  • You'll find the master bedroom has lots of room with it's accompanying bathroom and walk-in closet, with standing shower, and double vanities.
  • Upstairs, you'll find the bunk room, with a kitchen and game room that's set above the garage.
  • This home offers basement expansion with an in-law/basement apartment (when finished as shown, you get an additional 1,646 square feet of heated living area for the apartment) with a living room, kitchen, 2 bedrooms with accompanying bathrooms, another bathroom, and plenty of storage.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,106 sq. ft.

1st Floor

1,969 sq. ft.

2nd Floor

2,137 sq. ft.

Optional Lower Level

1,646 sq. ft.

Porch, Front

61 sq. ft.

Workshop

582 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3, 4, 5, or 6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

58' 0"

Garage

Type

Attached

Area

1110 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Architectural Style

Barndominium

Country

Rustic

Vacation

Special Features

Bedrooms - Clustered

Bunk Room

Master Suite - 1st Floor

Multiple Stairs

Two Master Suites

Wet Bar

Plan Collections

Multi-Generational

Square Footage Breakdown

Total Heated Area

4,106 sq. ft.

1st Floor

1,969 sq. ft.

2nd Floor

2,137 sq. ft.

Optional Lower Level

1,646 sq. ft.

Porch, Front

61 sq. ft.

Workshop

582 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3, 4, 5, or 6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

58' 0"

Garage

Type

Attached

Area

1110 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Architectural Style

Barndominium

Country

Rustic

Vacation

Special Features

Bedrooms - Clustered

Bunk Room

Master Suite - 1st Floor

Multiple Stairs

Two Master Suites

Wet Bar

Plan Collections

Multi-Generational
