Plan 3955ST

Basement with Bar, Billiards and Theater

Heated S.F.
2,198
Beds
3 - 5
Baths
2 - 3
Stories
1
Cars
2

Floor Plan

Plan 3955ST

Main Level
Main Level
Basement
Basement

Plan 3955ST

M-F 9am-5pm EST |

1-203-761-8500

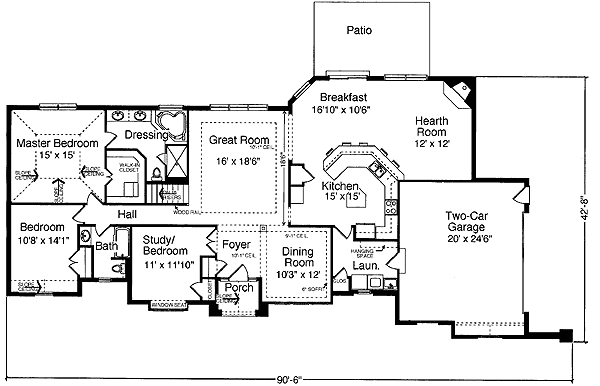

Main Level

Plan 3955ST: Basement with Bar, Billiards and Theater - Floor Plan - Main Level - Traditional

Basement

Plan 3955ST: Basement with Bar, Billiards and Theater - Floor Plan - Basement - Traditional

Plan Details

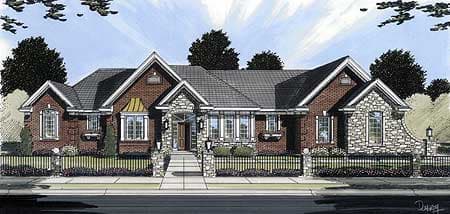

  • Brick and stone, multiple windows and a boxed window decorate the exterior of this one-level home plan.
  • Various ceiling treatments, a wood burning fireplace, an angled kitchen counter with seating, angled walls at the breakfast area and a formal dining room decorate the interior living space; while a screened porch and deck invite you outdoors.
  • The finished lower level offers a fourth bedroom, media area, wet bar, and billiards for added enjoyment.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,198 sq. ft.

1st Floor

2,198 sq. ft.

Basement Unfinished

1,555 sq. ft.

Entry

37 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

90' 6"

Depth

42' 8"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

2,198 sq. ft.

1st Floor

2,198 sq. ft.

Basement Unfinished

1,555 sq. ft.

Entry

37 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

90' 6"

Depth

42' 8"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar
