Plan 39070ST Beautiful Ceilings

3,595 4 3.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Beautiful Ceilings

Plan 39070ST

  • 3,595

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • Ceilings that slope to 12'6' adorn the foyer, the great room and the master suite in this country style home plan with decks and porches for outdoor living.
  • The kitchen opens up to the breakfast nook with sliding glass doors to the porch. Built-in shelves in the library add an elegant look as well as provide storage.
  • Located by itself off to one side, the master suite is a quiet oasis. A huge walk-in closet will hold all your clothes.
  • Each of the second floor bedrooms has a walk-in closet and one even has its own private bath.

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

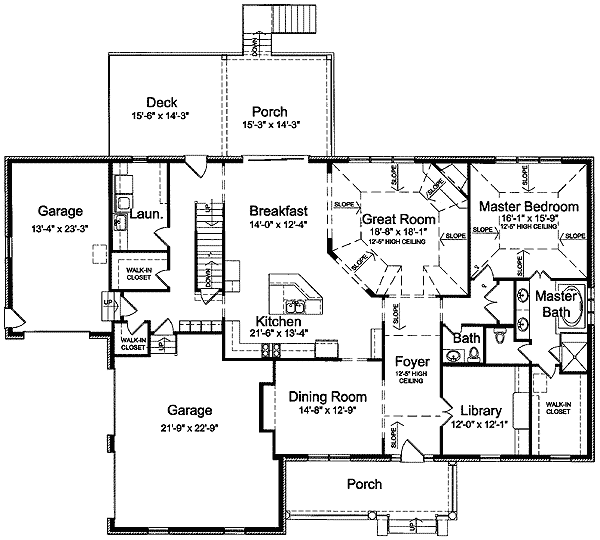

Beautiful Ceilings - 39070ST floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

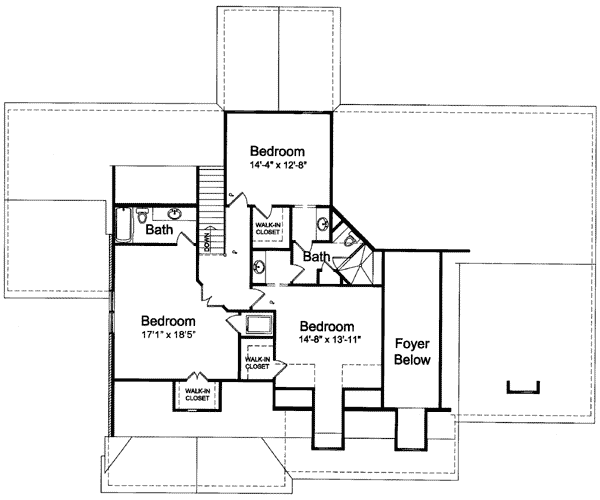

Beautiful Ceilings - 39070ST floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,595 sq. ft.
  • 1st Floor: 2,430 sq. ft.
  • 2nd Floor: 1,165 sq. ft.
  • Deck: 221 sq. ft.
  • Porch, Rear: 213 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 8"
  • Depth: 51' 8"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 526 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Vaulted 12' 6"
Foyer 12' 6"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Beautiful Ceilings

  • 3,595

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $950
  • PDF - Single-Build $1,175
  • 5 Sets + PDF $1,200
  • PDF - Unlimited Build $1,525
  • CAD - Unlimited Build $1,790
  • View all purchase option online

About This Plan

  • Ceilings that slope to 12'6' adorn the foyer, the great room and the master suite in this country style home plan with decks and porches for outdoor living.
  • The kitchen opens up to the breakfast nook with sliding glass doors to the porch. Built-in shelves in the library add an elegant look as well as provide storage.
  • Located by itself off to one side, the master suite is a quiet oasis. A huge walk-in closet will hold all your clothes.
  • Each of the second floor bedrooms has a walk-in closet and one even has its own private bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,595 sq. ft.
  • 1st Floor: 2,430 sq. ft.
  • 2nd Floor: 1,165 sq. ft.
  • Deck: 221 sq. ft.
  • Porch, Rear: 213 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 8"
  • Depth: 51' 8"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 526 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 39070ST
View this and more for this plan by visiting www.architechtecturaldesigns.com/39070ST
|
Need Help? 800-854-7852
|
