Plan 61218UT
Bi-level Detached Garage with Bonus Room Upstairs
Heated S.F.
491
Beds
0
Stories
1
Cars
4
What's Included
Plan Details
  • This detached garage plan not only offers parking for two cars on the ground level through a single 18' by 8' garage door but also parking on the lower level through a 12' by 8' garage door on the side.
  • Stairs in back of the main level take you up to a large unfinished bonus area as well as down to the lower level garage.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Bi-level Detached Garage with Bonus Room Upstairs

  • 491

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

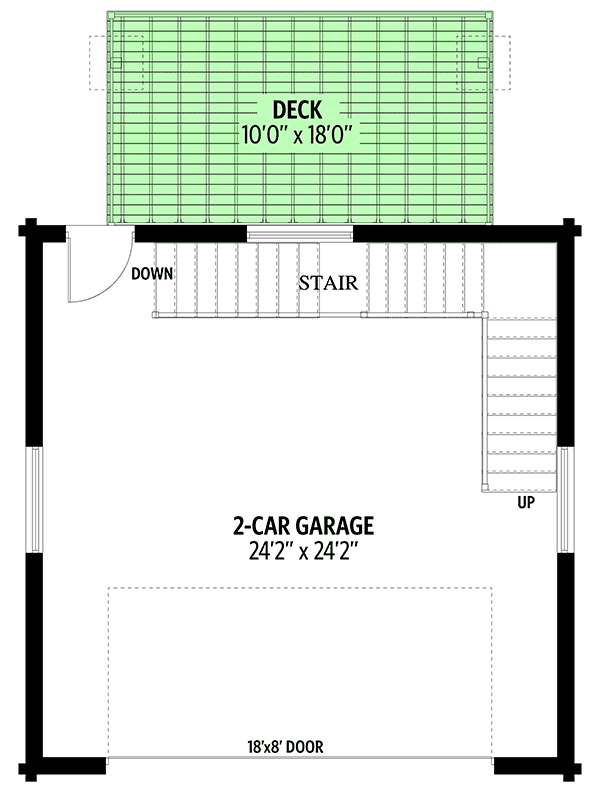

  • Main Level

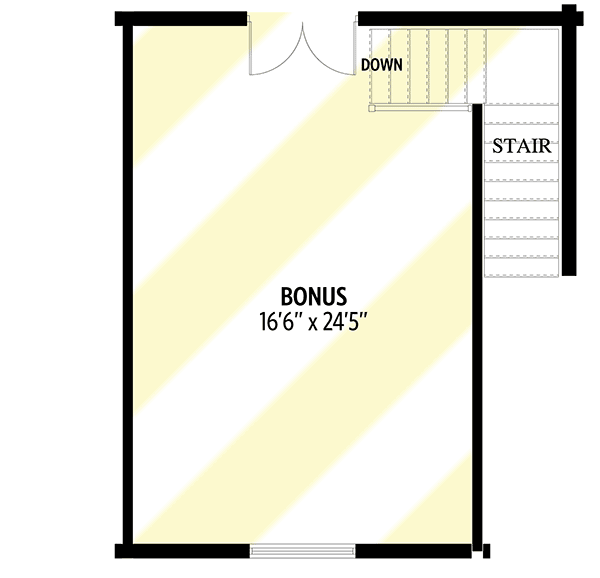

  • Bonus

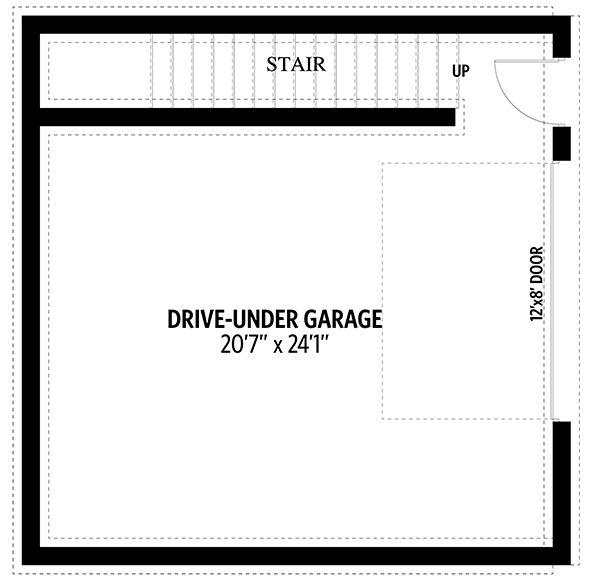

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 491 sq. ft.
  • 2nd Floor: 491 sq. ft.

Dimensions

  • Width: 25' 9"
  • Depth: 25' 9"
  • Max ridge height: 30' 10"

Beds/Baths

  • Bedrooms: 0

Garage

  • Area: 663 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
