Plan 666023RAF

Bold and Beautiful

Heated S.F.
5,451
Beds
4 - 5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 666023RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666023RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

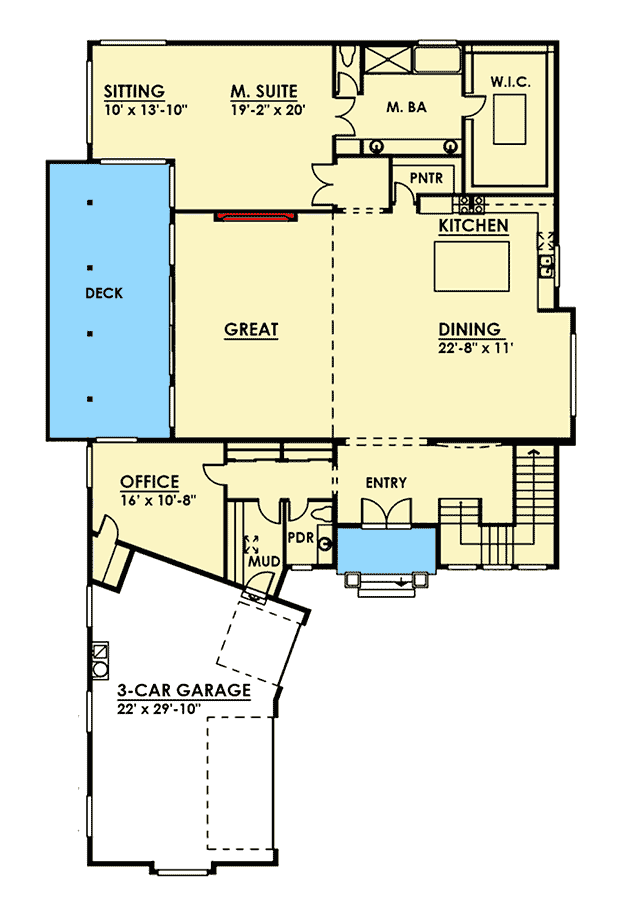

Plan 666023RAF: Bold and Beautiful - Floor Plan - Main Level - Northwest

2nd Floor

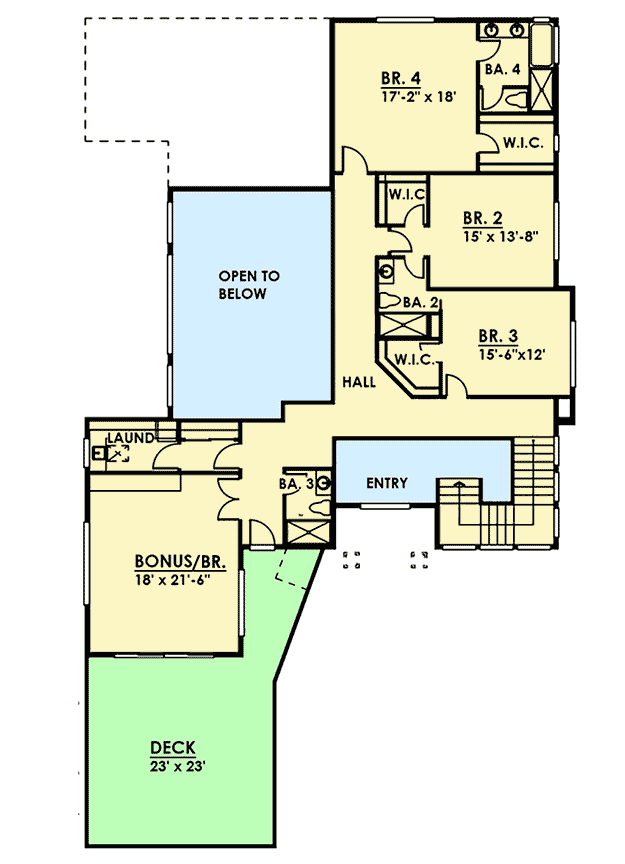

Plan 666023RAF: Bold and Beautiful - Floor Plan - 2nd Floor - Northwest

Plan Details

  • Bold and beautiful, this Northwest house plan has lots of glass to take advantage to your views.
  • A key design feature is the open layout that is so popularly requested.
  • You can cook, eat and watch TV all in the same large space.
  • Both the foyer and the great room have two-story ceilings.
  • The master suite is the only bedroom on the main floor and it comes with a large sitting area and giant walk-in closet with an island in the middle.
  • The home also comes with a bonus room on the second floor with a big covered porch to step out on.
  • A second floor laundry room is a handy feature and this home has one.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,451 sq. ft.

1st Floor

3,315 sq. ft.

2nd Floor

2,136 sq. ft.

Deck

1,115 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

100' 0"

Garage

Type

Attached

Area

788 sq. ft.

Count

3 Cars

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

5,451 sq. ft.

1st Floor

3,315 sq. ft.

2nd Floor

2,136 sq. ft.

Deck

1,115 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

100' 0"

Garage

Type

Attached

Area

788 sq. ft.

Count

3 Cars

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery
