Plan 5977ND
Bonus Room Options
Heated S.F.
2,716
Beds
3-5
Baths
3
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan
Bonus Room Options - 5977ND floor plan - Main Level
Bonus Level - Option B
Reverse Floor Plan
Bonus Room Options - 5977ND floor plan - Bonus Level - Option B

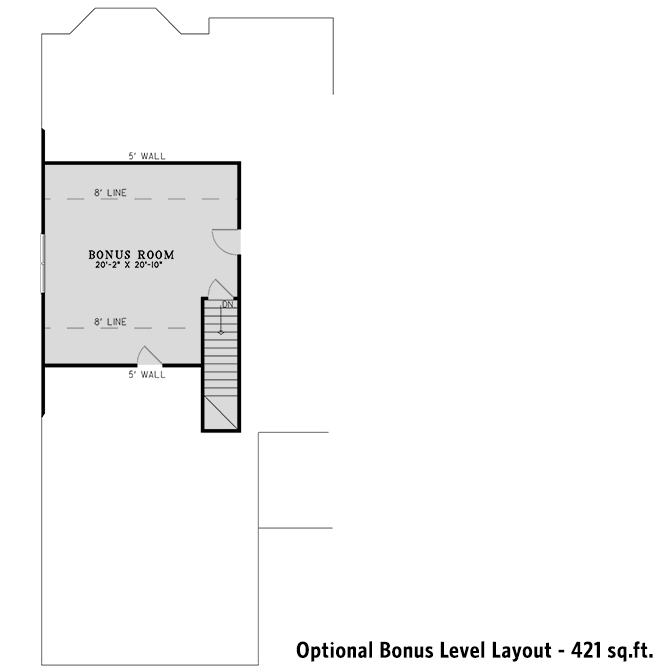

Bonus Level - Option A
Reverse Floor Plan
Bonus Room Options - 5977ND floor plan - Bonus Level - Option A
Plan Details
  • This pleasant gabled house plan offers two options for the second floor: a bonus room or a fifth bedroom and fourth bath.
  • On the main floor off the foyer with a 12' ceiling, an archway framed by columns announces the formal dining room. On the other side of the foyer, the guest room or study has its own bath and a walk-in closet.
  • The great room, with its fireplace, has a view to the rear kitchen separated by an angled snack bar.
  • In the master suite, a bayed sitting area and a 10' boxed ceiling grace the bedroom while a large walk-in closet, whirlpool tub and separate glass shower grace the bath.
  • A covered grilling deck completes the design.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

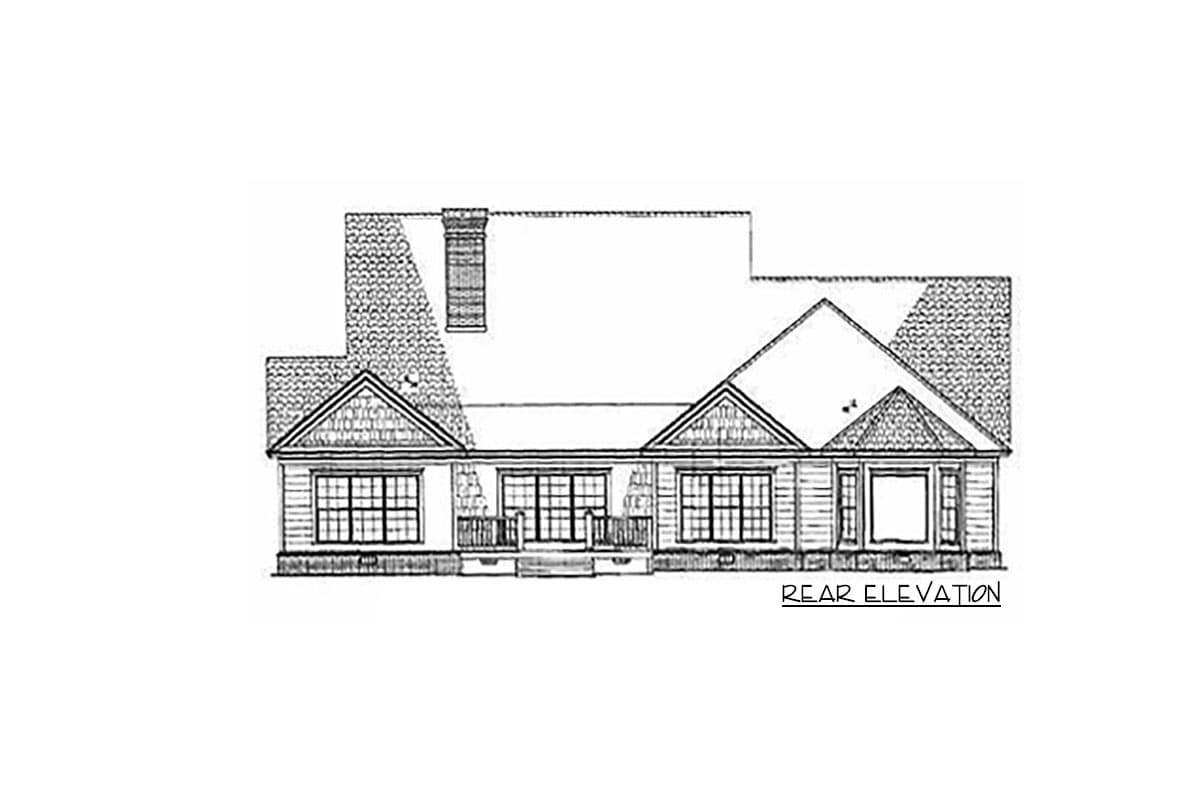

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Bonus Room Options

  • 2,716

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus Level - Option B

  • Bonus Level - Option A

Plan Details

Square Footage Breakdown

  • Total: 2,716 sq. ft.
  • 1st Floor: 2,716 sq. ft.

Dimensions

  • Width: 63' 10"
  • Depth: 79' 10"
  • Max ridge height: 30' 1"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Bonus Room Options

  • 2,716

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Bonus Room Options

  • 2,716

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,716 sq. ft.
  • 1st Floor: 2,716 sq. ft.

Dimensions

  • Width: 63' 10"
  • Depth: 79' 10"
  • Max ridge height: 30' 1"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
