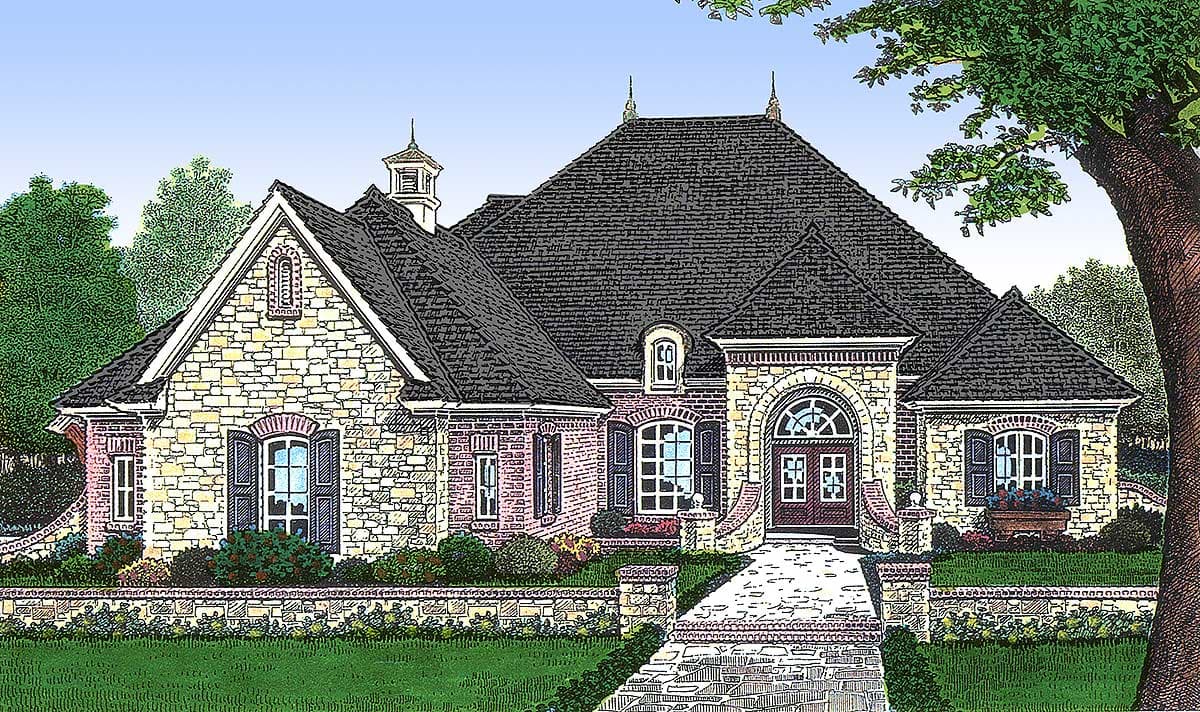

Bonus Space

Plan 48057FM

  • 2,640

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Bonus space combined with a half bath on the second floor of this European style home plan provides options for your family.
  • On the first floor, double doors open to a large entry with a private study on the right. The formal dining room and great room are open to each other, creating a feeling of spaciousness.
  • The dinette and kitchen are also open to the great room allowing the family chef to be part of the activities.
  • The kitchen measures approximately 12 1/2' wide by 13' deep.
  • Two bedrooms, each with a walk-in closet, share a Jack and Jill bath while the master suite enjoys privacy on the opposite side of the house plan.
  • The garage is approximately 21'8" wide by 30' deep

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

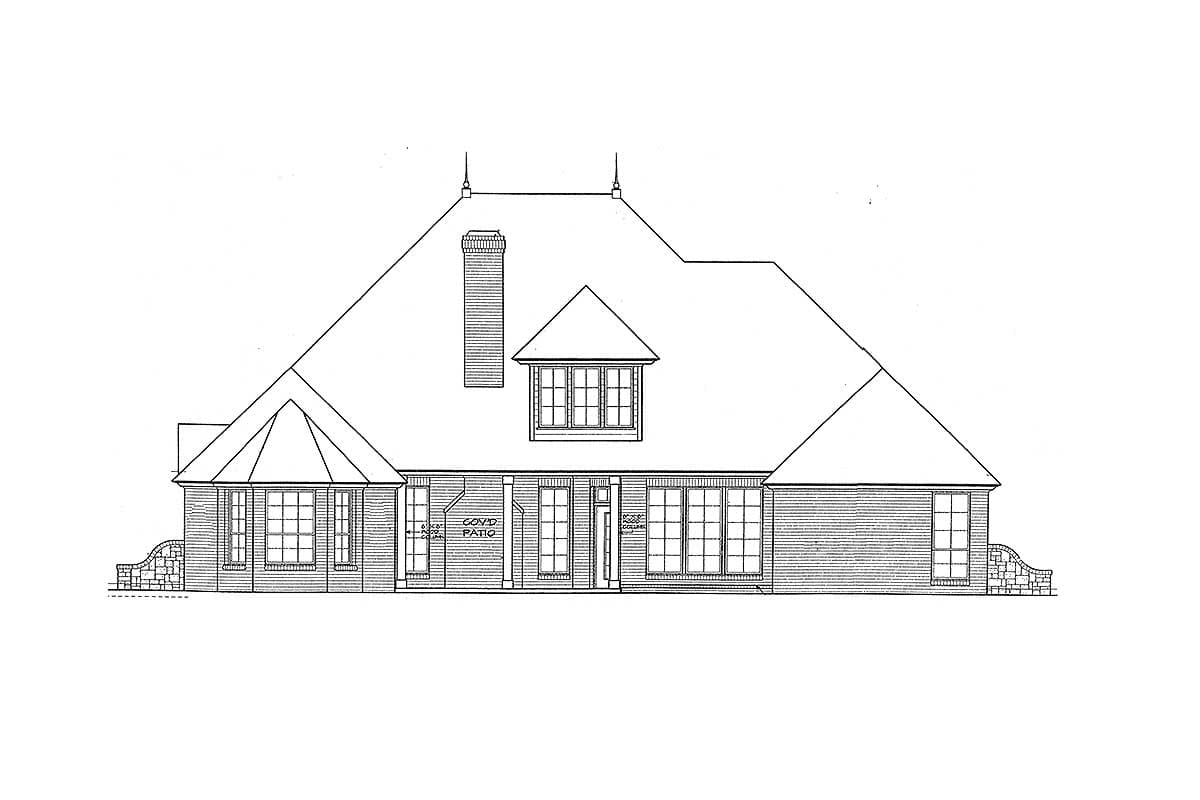

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

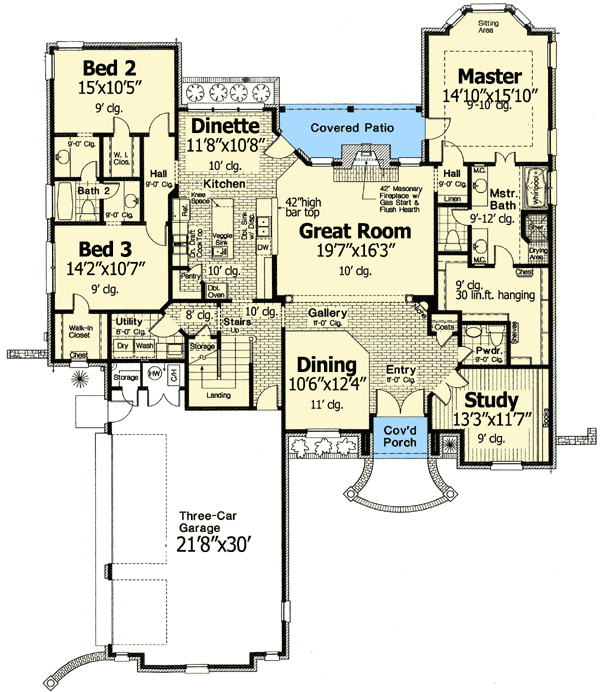

Bonus Space - 48057FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

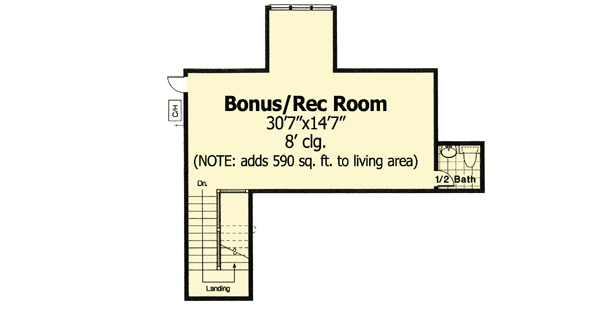

Bonus Space - 48057FM floor plan - Bonus

Bonus Space

  • 2,640

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,640 sq. ft.
  • 1st Floor: 2,640 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 82' 10"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 748 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
