Plan 710141BTZ Brick and Wood House Plan with Upstairs Flex Room

Brick and Wood House Plan with Upstairs Flex Room

Plan 710141BTZ

  • 2,281

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A brick arch, rocking chair porch and arched entry door greet you to this comfortable house plan. Brick and cedar shake siding create a casual and stable exterior.
  • The great room has a vaulted ceiling with beams and shares space with the kitchen and dining room. The kitchen has a large island with seating.
  • The dining room features a beamed ceiling and wide openings.
  • The master suite features a beamed ceiling as well and is attached to a spa bath and large closet.
  • The secondary bedrooms are separated from the master suite and share a bathroom.
  • The upper level houses a flex room which could be used as a fourth bedroom or whatever use you choose.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details



Brick and Wood House Plan with Upstairs Flex Room

  • 2,281

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,235
  • 8 Sets $1,290
  • PDF - Unlimited Build $1,380
  • Reproducible Set $1,445
  • CAD - Unlimited Build $2,630
  • View all purchase option online

About This Plan

  • A brick arch, rocking chair porch and arched entry door greet you to this comfortable house plan. Brick and cedar shake siding create a casual and stable exterior.
  • The great room has a vaulted ceiling with beams and shares space with the kitchen and dining room. The kitchen has a large island with seating.
  • The dining room features a beamed ceiling and wide openings.
  • The master suite features a beamed ceiling as well and is attached to a spa bath and large closet.
  • The secondary bedrooms are separated from the master suite and share a bathroom.
  • The upper level houses a flex room which could be used as a fourth bedroom or whatever use you choose.

Floor Plans

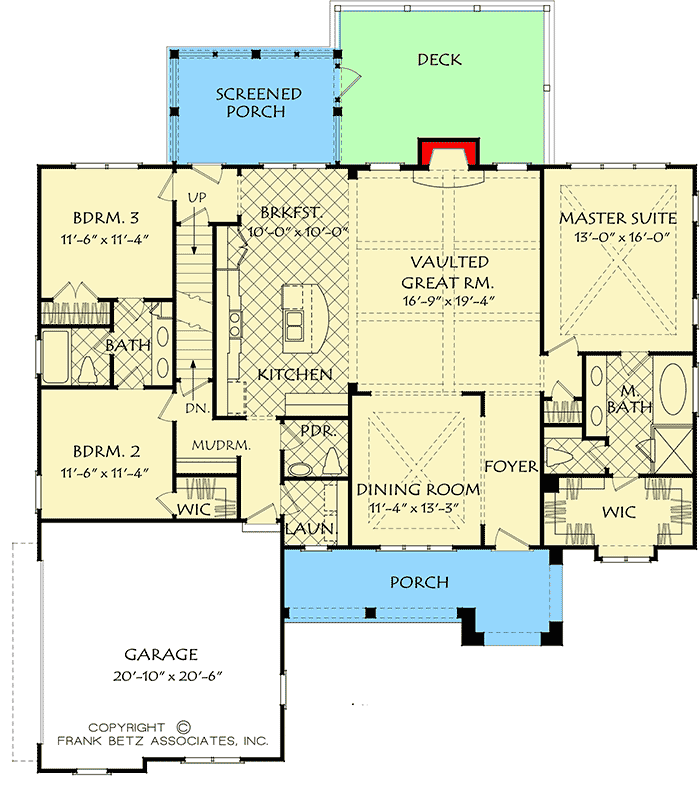

  • Main Level

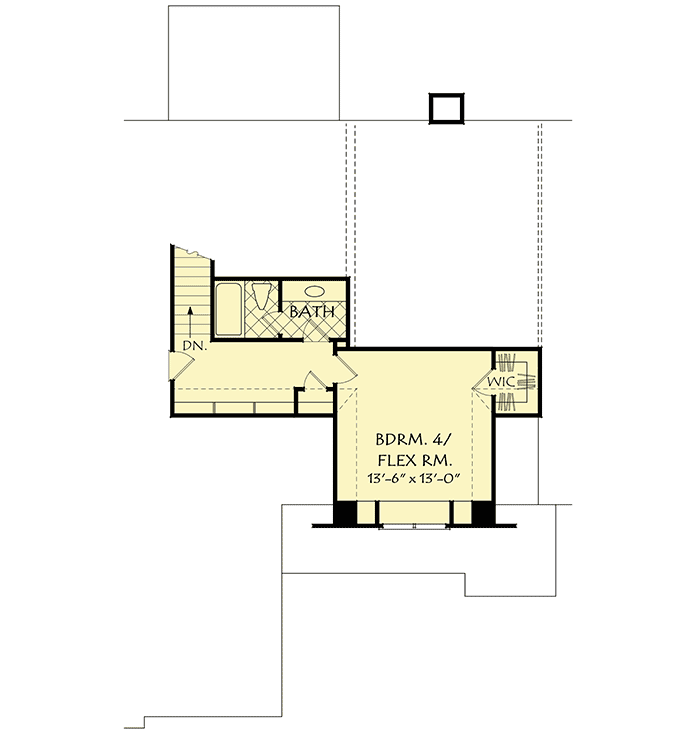

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,281 sq. ft.
  • 1st Floor: 1,882 sq. ft.
  • 2nd Floor: 411 sq. ft.
  • Porch, Combined: 180 sq. ft.
  • Basement Unfinished: 1,882 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 57' 6"
  • Depth: 63' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 456 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
