Brick-clad Southern House Plan with Optional Bonus Room

Name: Plan 83831JW: Brick-clad Southern House Plan with Optional Bonus Room
Brand: Architectural Designs
SKU: 83831JW
Price: 1045.0 USD
Availability: InStock

Heated S.F.

3,329

Beds

3 - 5

Baths

3.5 - 4.5

Stories

Cars

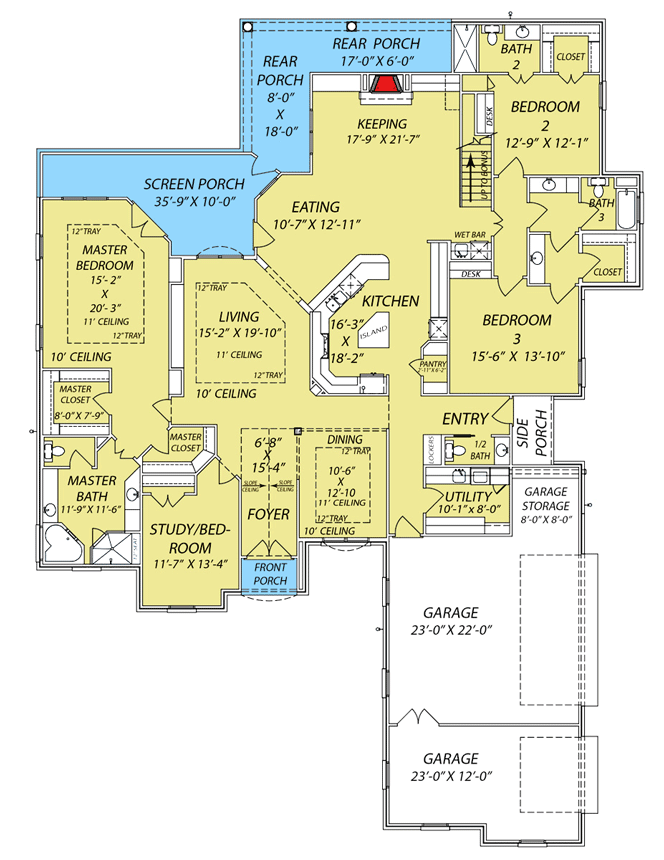

Floor Plan

Main Level

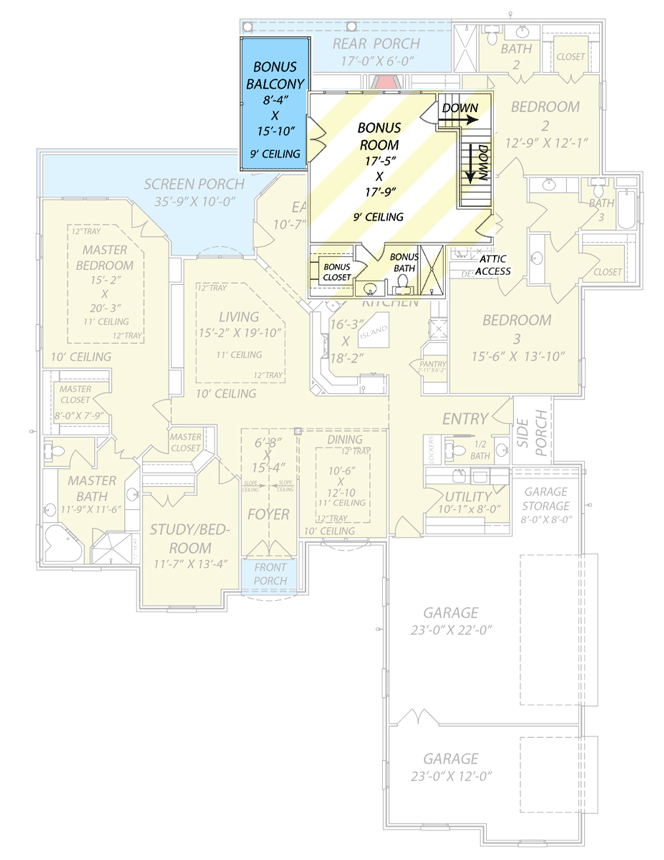

Optional Bonus Room

Plan Details

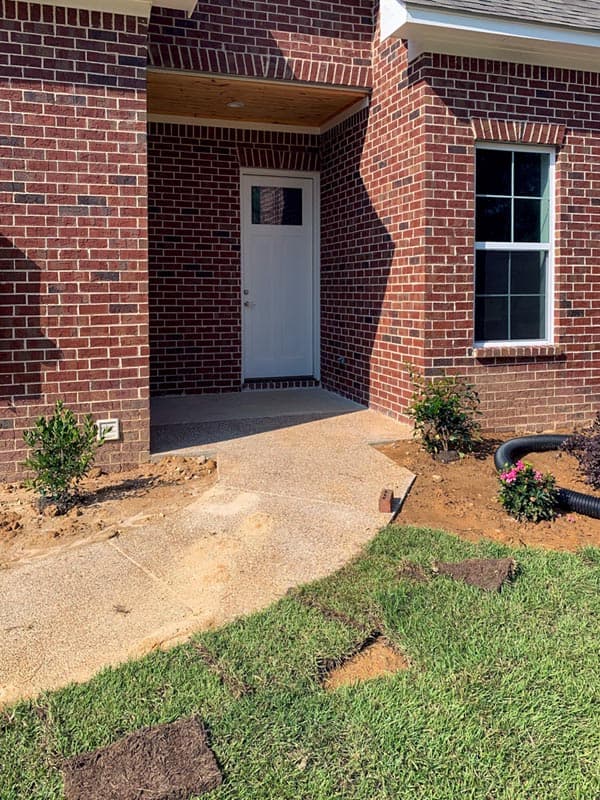

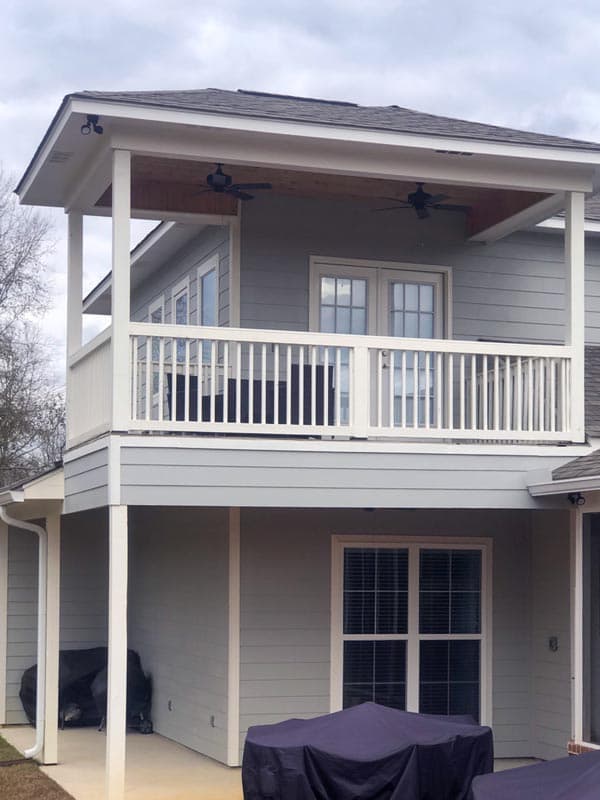

This brick-clad, Southern house plan features up to 5 bedrooms, a partially-screened porch, and an optional bonus room upstairs with a balcony.

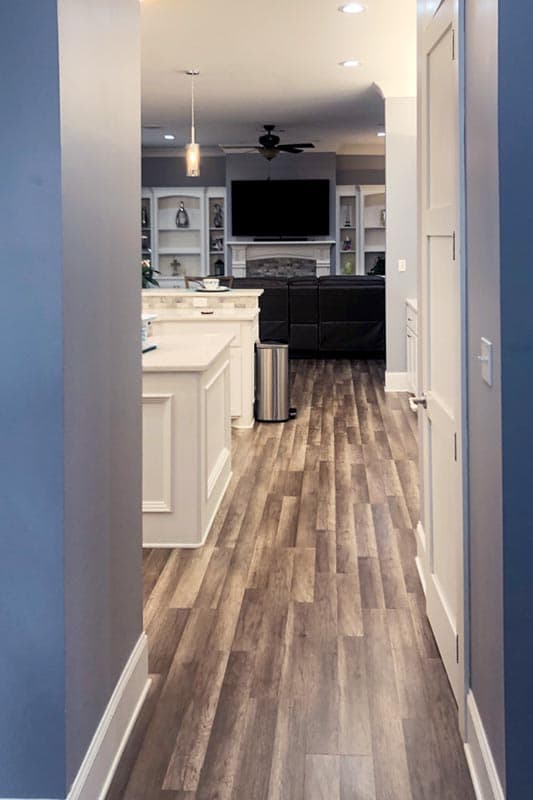

A living room and keeping room off the kitchen provide plenty of space to gather with friends and family, or enjoy the outdoors on the rear porch.
The master bedroom is crowned by a tray ceiling and joined by two closets and a 5-fixture bathroom.
The 3-car garage offers additional space for storage with a laundry room and powder bath just inside.

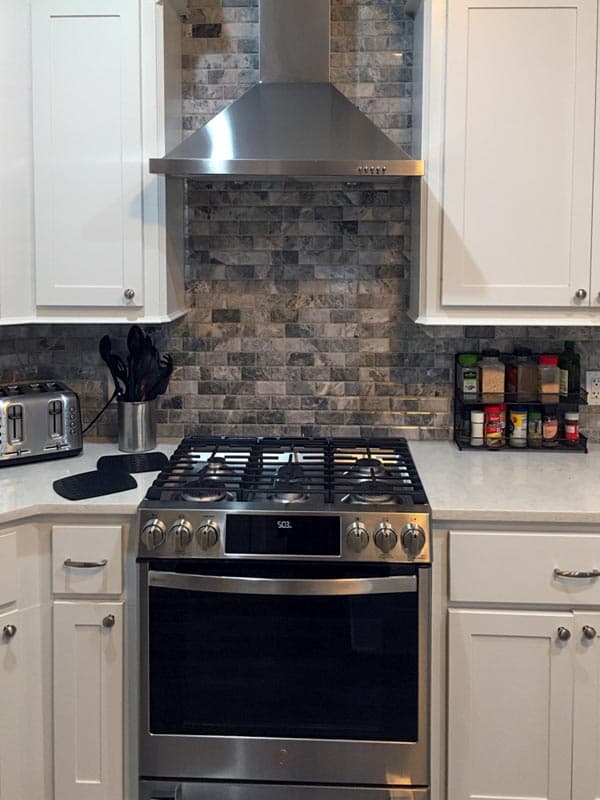

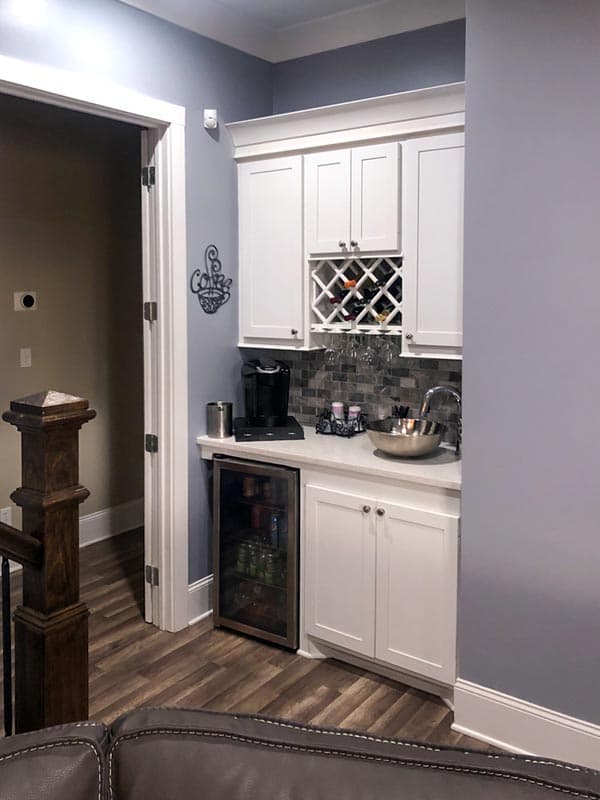

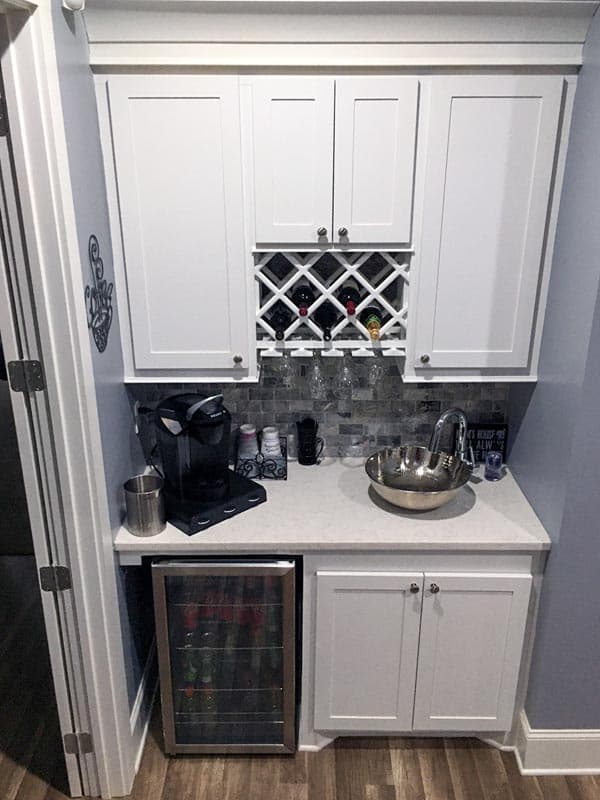

Additional amenities include an island kitchen with a walk-in pantry, large closets, and a wet bar near the keeping room.

What's Included

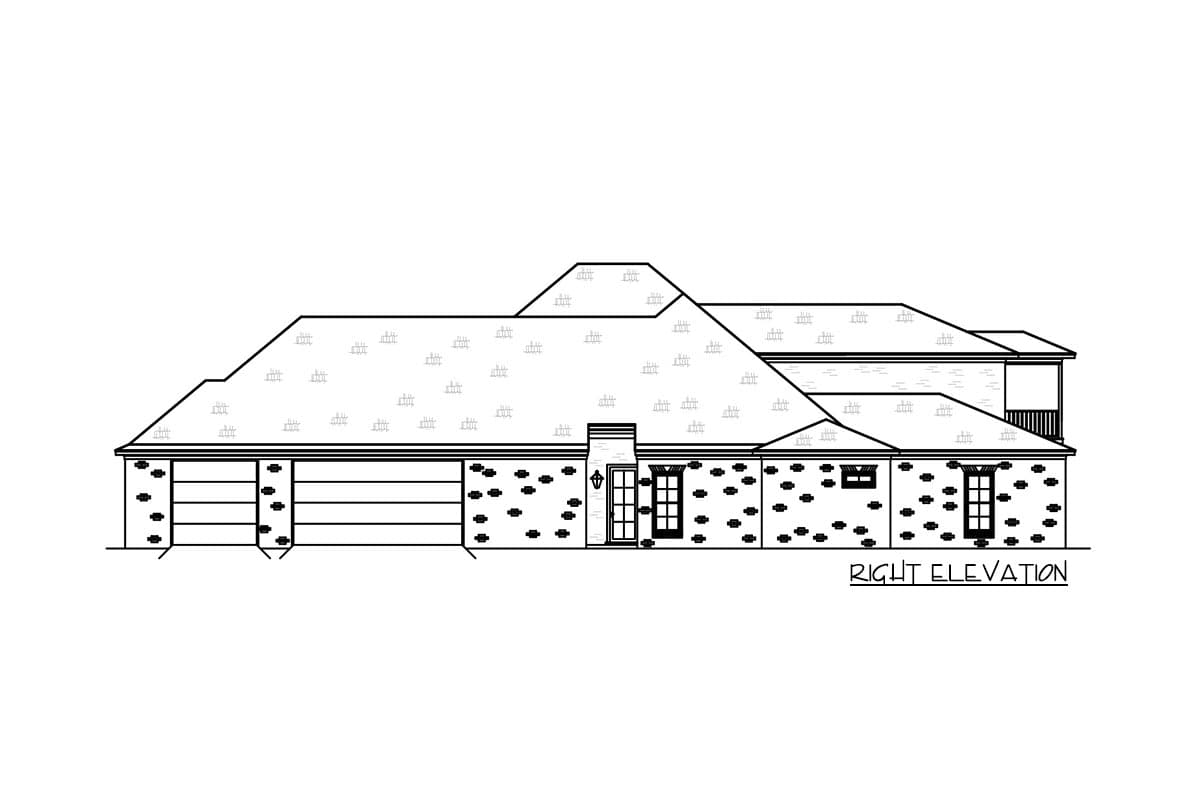

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
