Plan 765003TWN

Bright and Airy Cottage House Plan - 1815 Sq Ft

Heated S.F.
1,815
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 765003TWN

Main Level
Main Level
2nd Floor
2nd Floor

Plan 765003TWN

M-F 9am-5pm EST |

1-203-761-8500

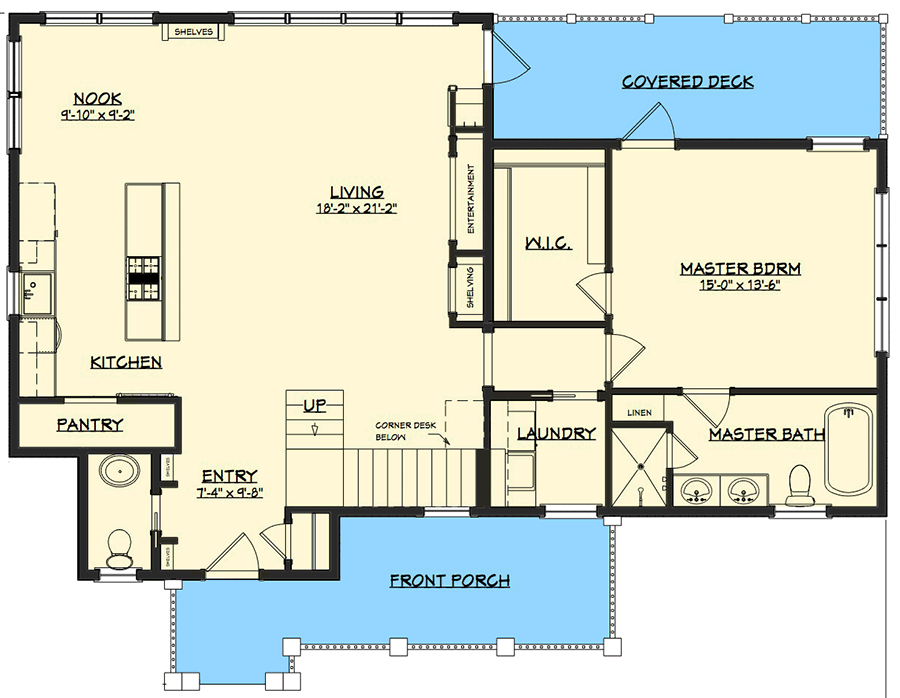

Main Level

Plan 765003TWN: Bright and Airy Cottage House Plan - 1815 Sq Ft - Floor Plan - Main Level - Cape Cod, Cottage, New American, Traditional, Vacation

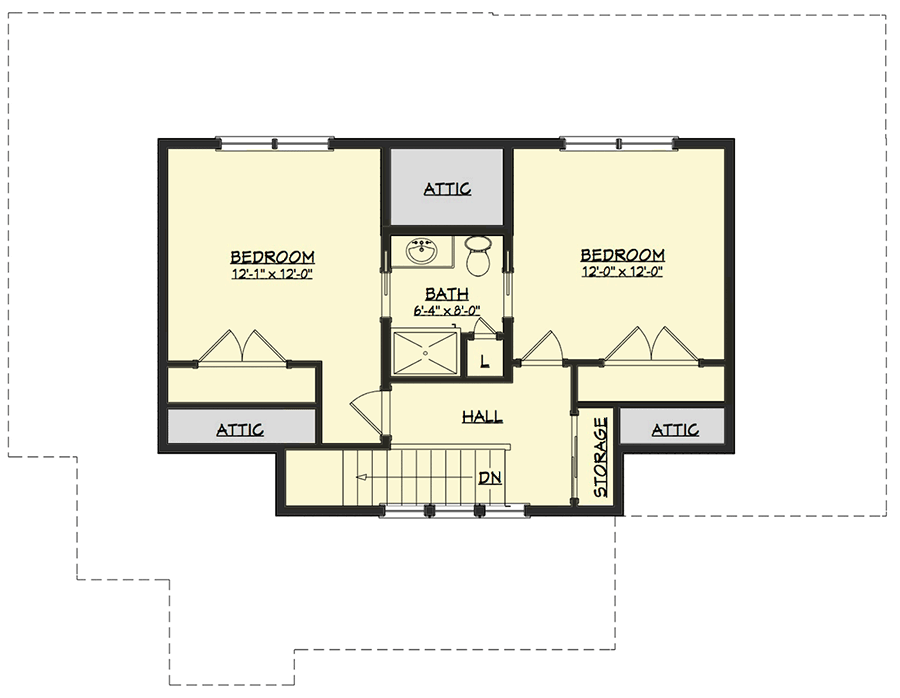

2nd Floor

Plan 765003TWN: Bright and Airy Cottage House Plan - 1815 Sq Ft - Floor Plan - 2nd Floor - Cape Cod, Cottage, New American, Traditional, Vacation

Plan Details

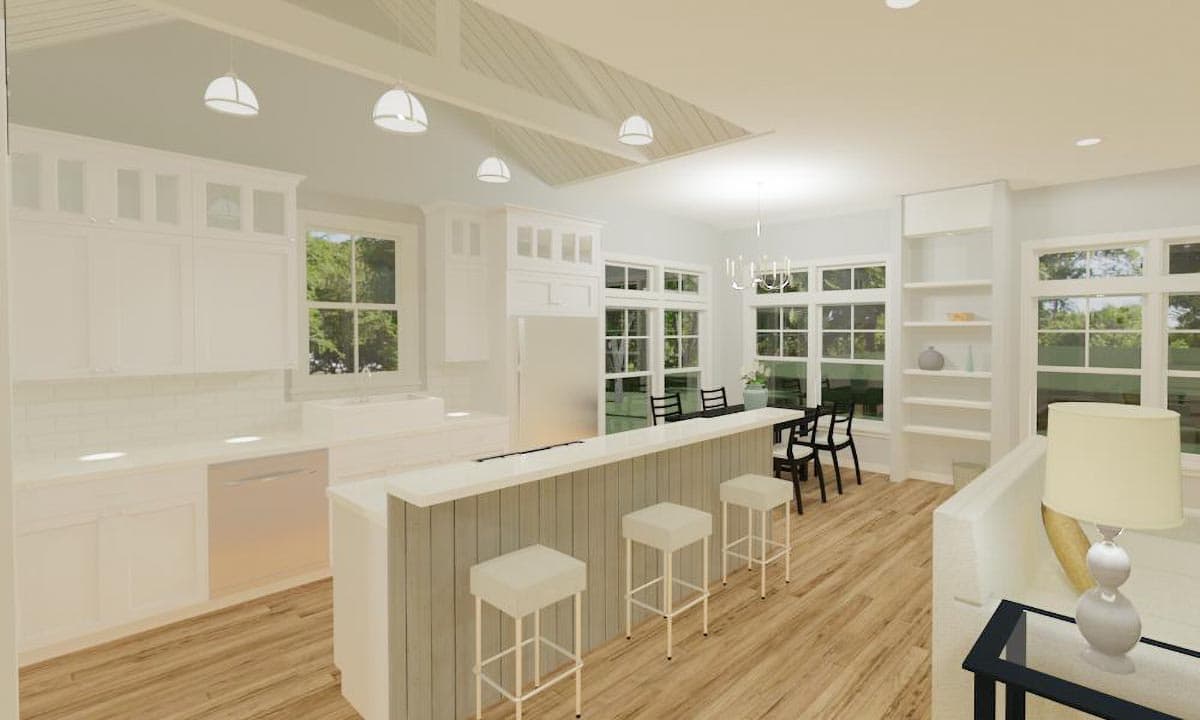

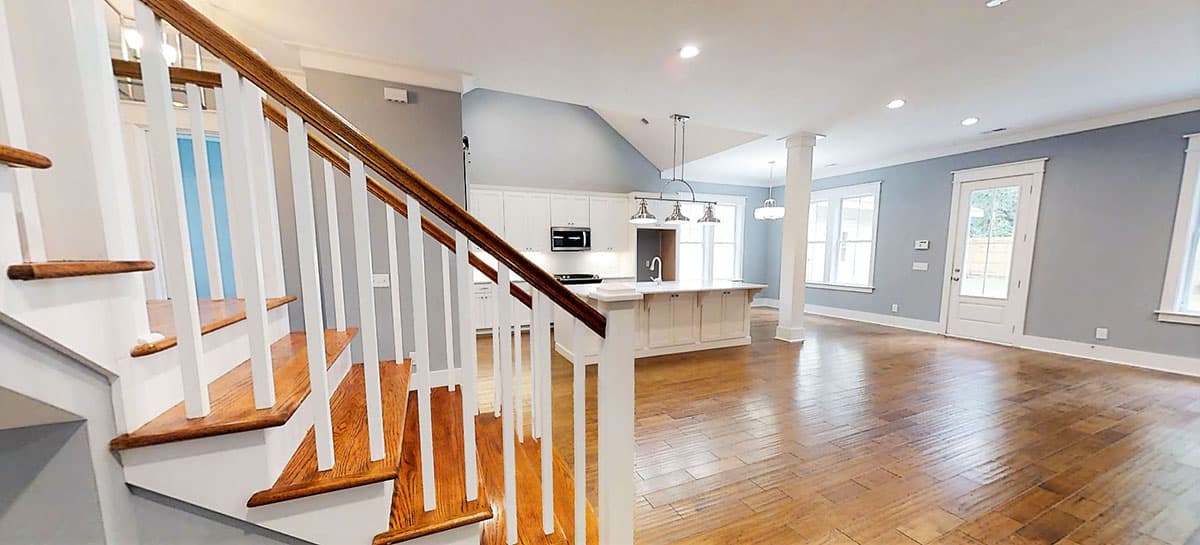

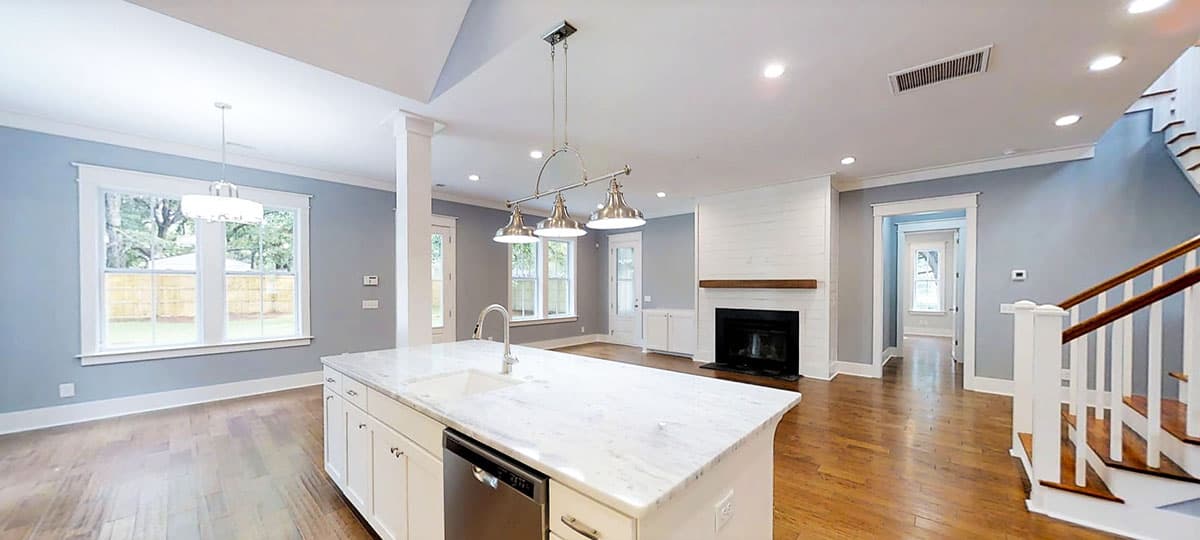

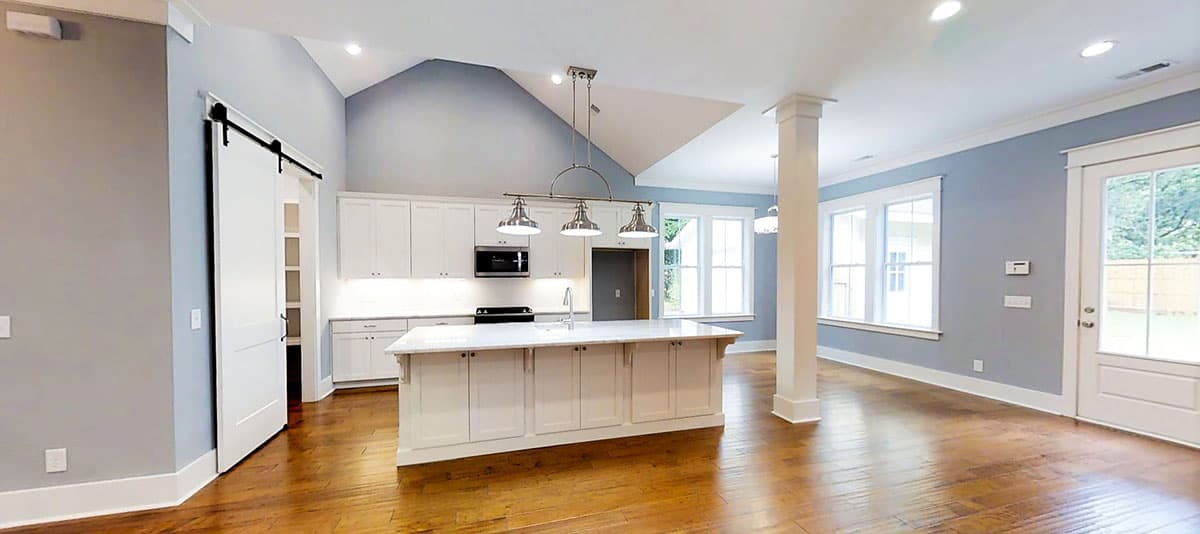

  • Bright and airy, this Cottage house plan has a huge open living area to maximize the views from all those windows.
  • Both the large front porch and back porch offers lots of space for enjoying the outdoors.

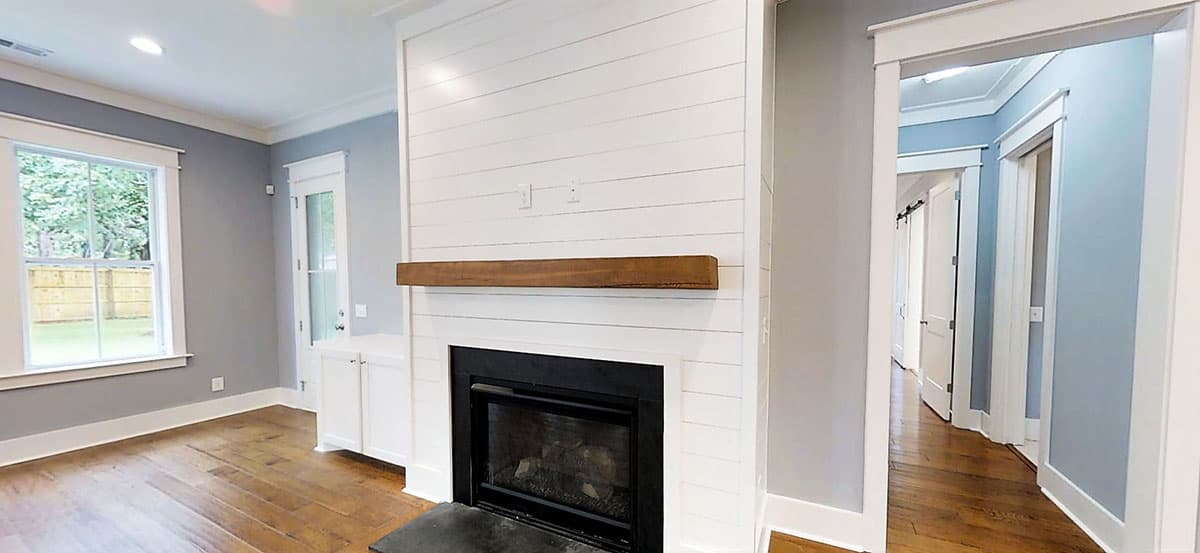

  • There are built-in shelves and display niches that add a custom feel to the home.
  • Located on the first floor, the master bedroom becomes a quiet oasis and has a door to the rear porch.

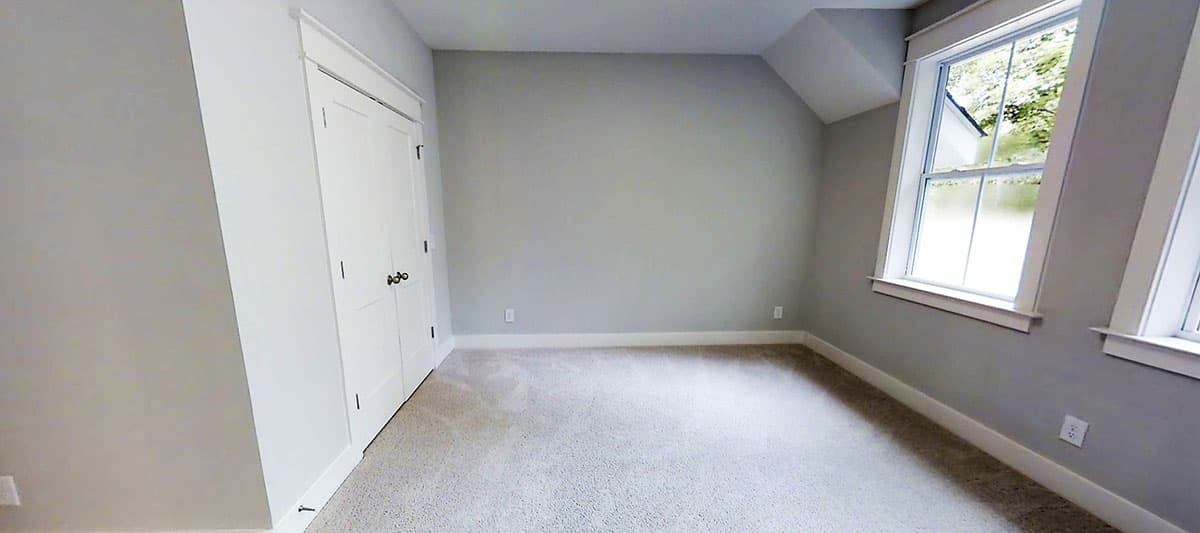

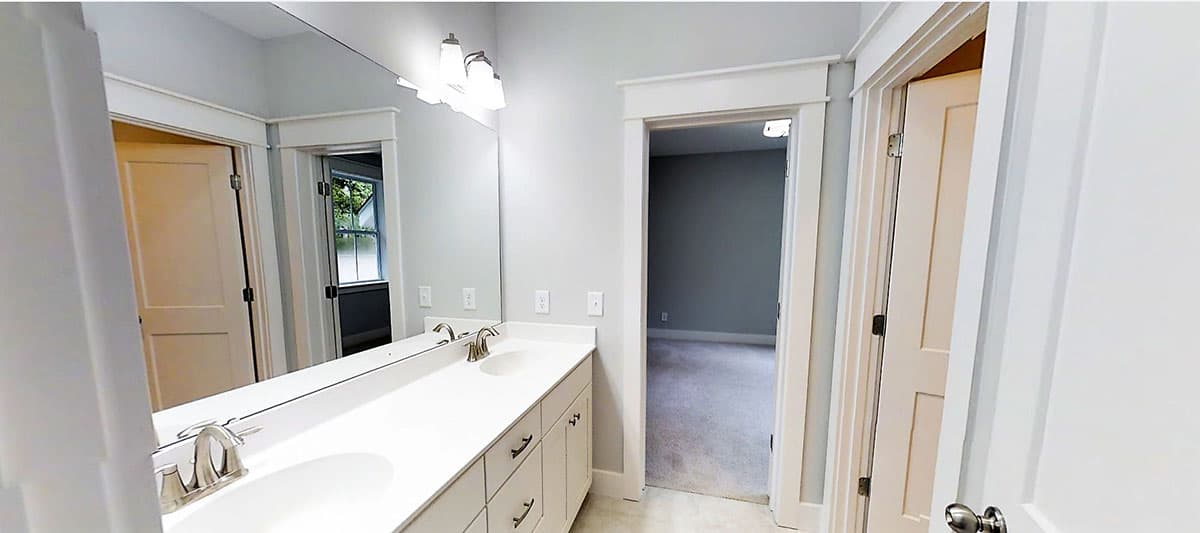

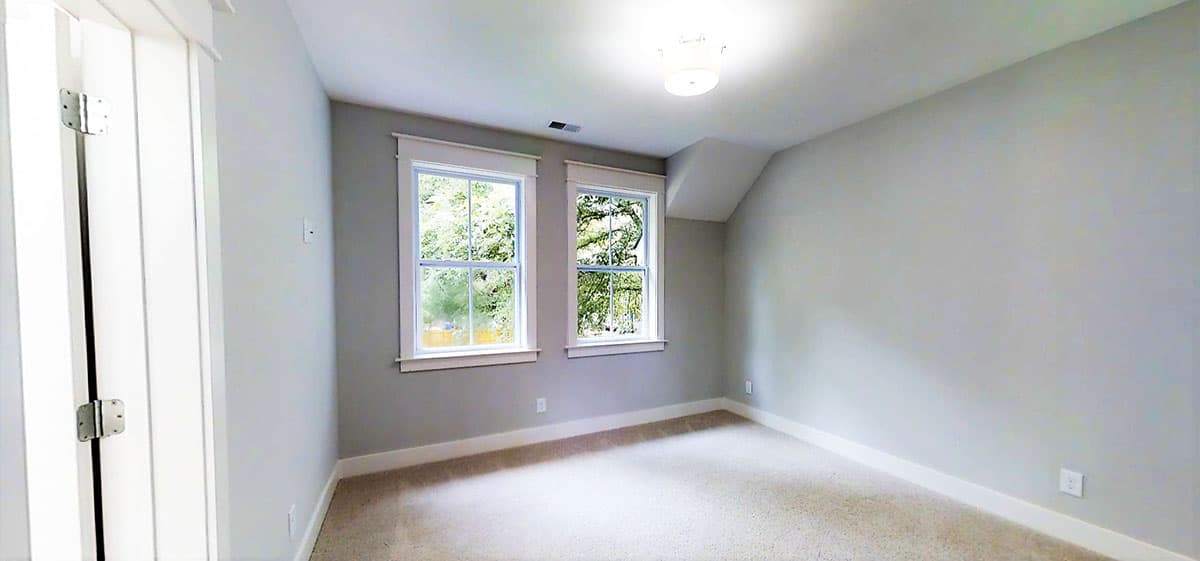

  • Two more bedrooms are upstairs and they share a connected bathroom.
  • DELIVERY NOTE: Please allow 10 to 15 days for delivery if it includes readable reverse.

What's Included

This designer's plans include the following:
  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions

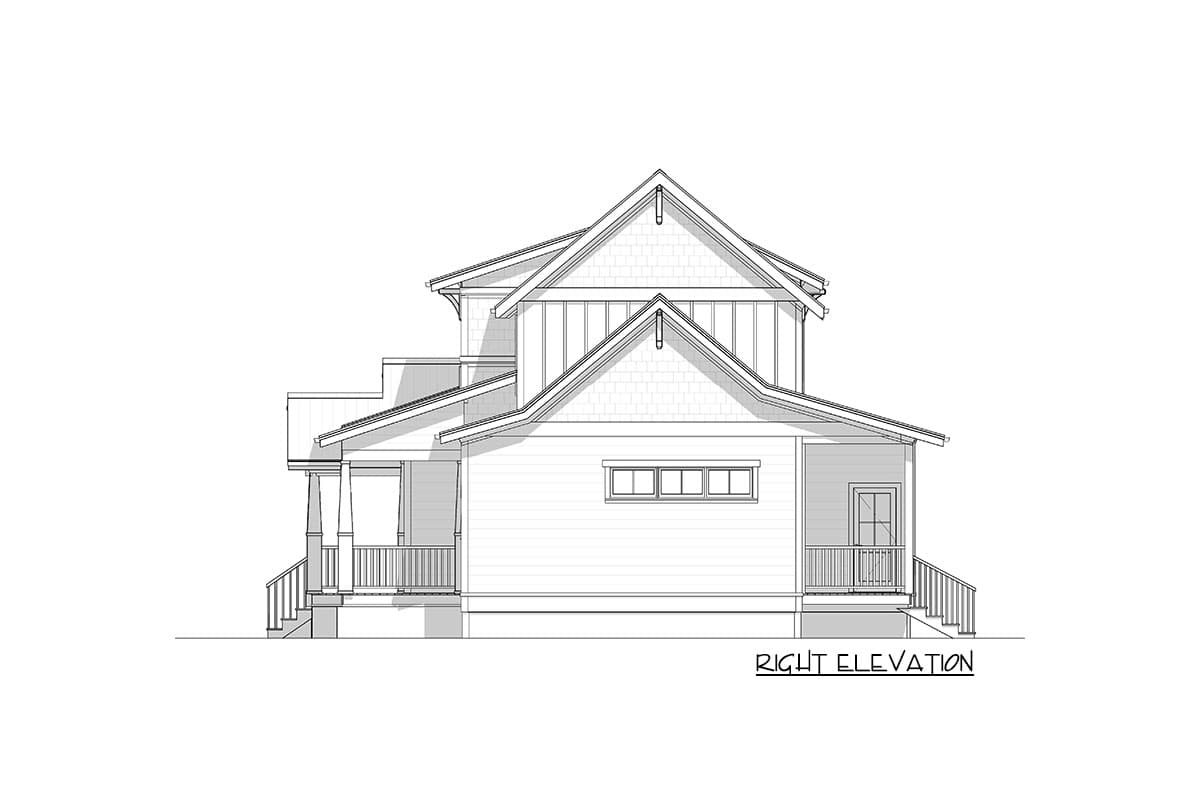

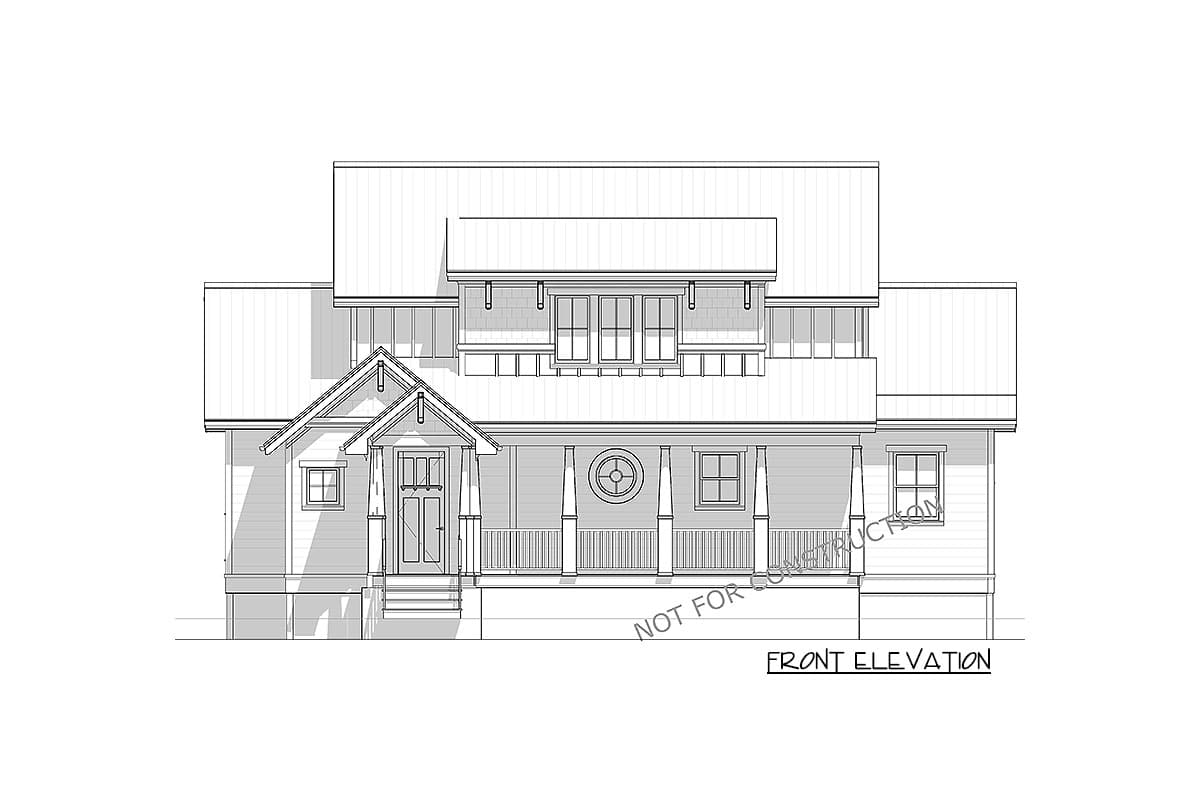

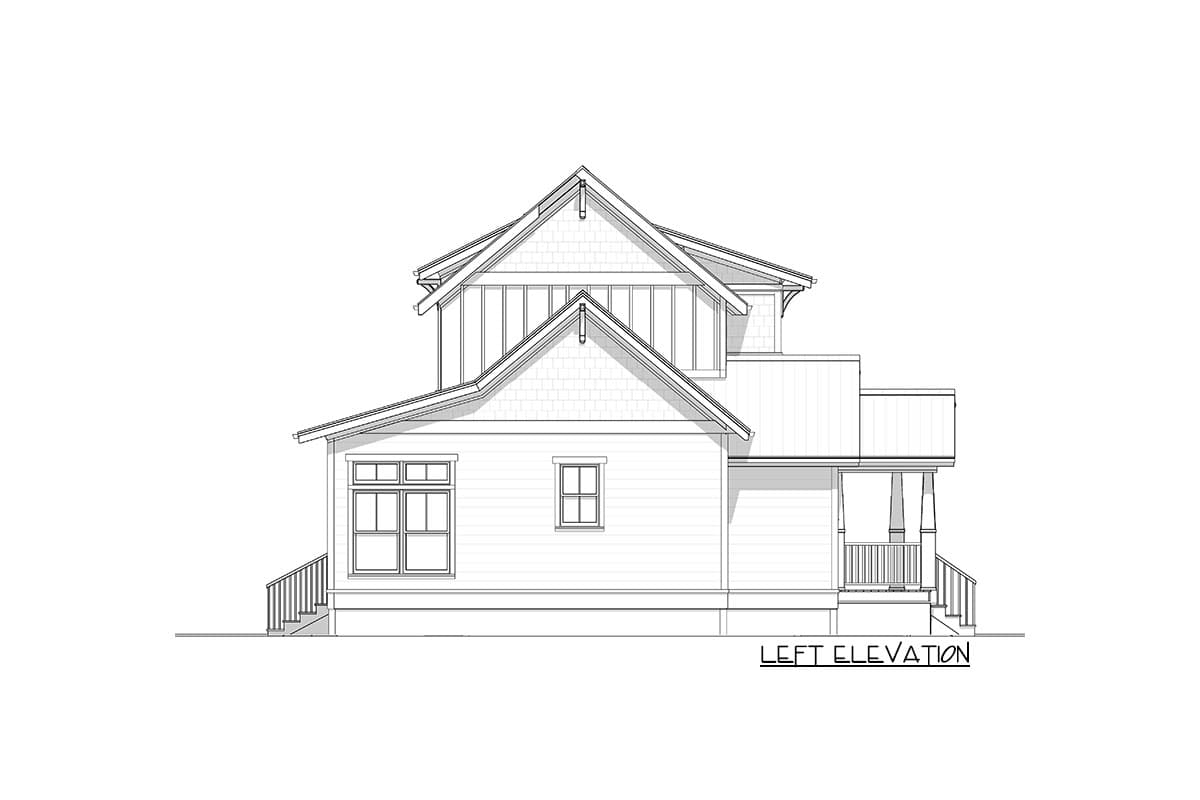

  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,815 sq. ft.

1st Floor

1,287 sq. ft.

2nd Floor

528 sq. ft.

Porch, Combined

275 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 8"

Depth

38' 0"

Max Ridge Height

30' 6"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cape Cod

Cottage

New American

Traditional

Vacation

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

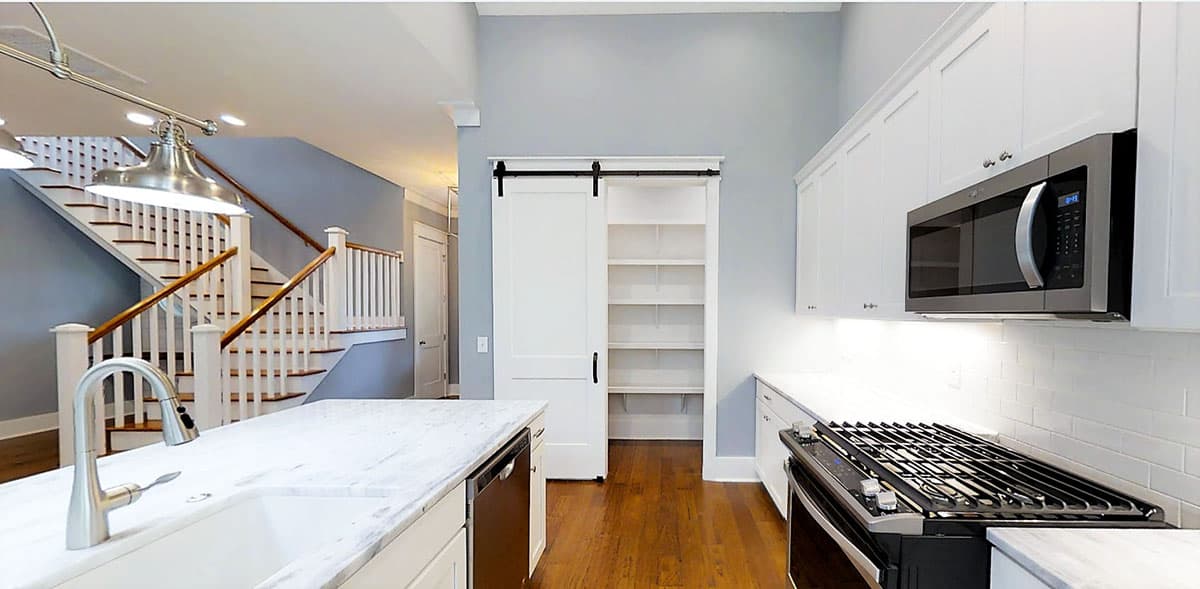

Walk-in Pantry

Plan Collections

Photo Gallery
