Bright And Open Cottage

Plan 72724DA

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

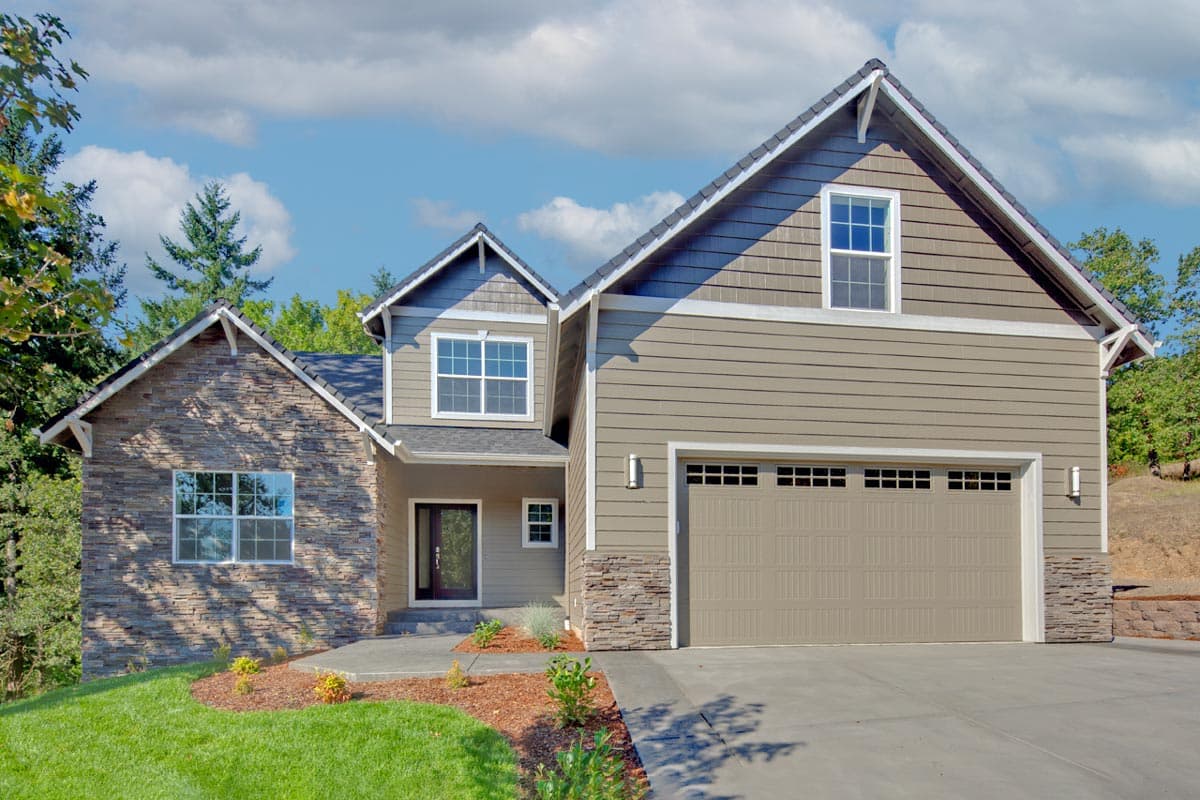

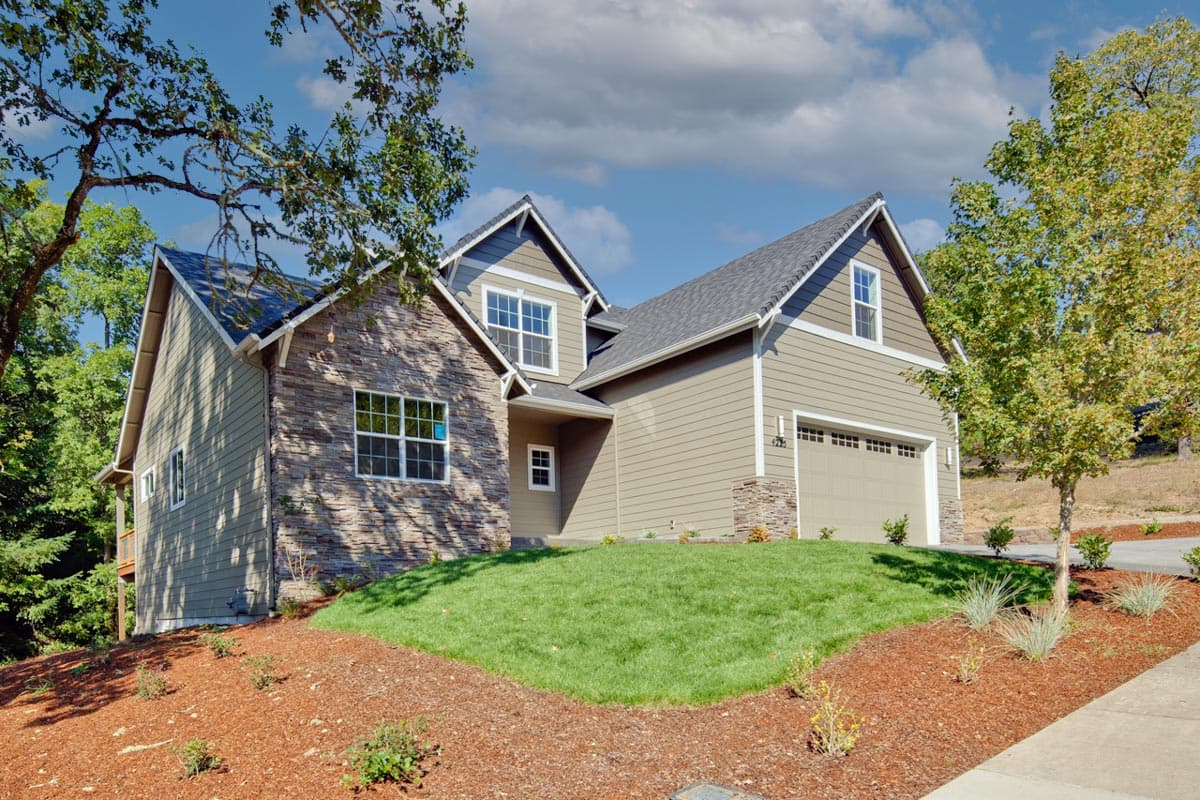

  • Shake and lap siding combine with cultured stone veneer to make the this house plan a treat for the eyes. This country cottage is designed for a lot that slopes down at the rear.

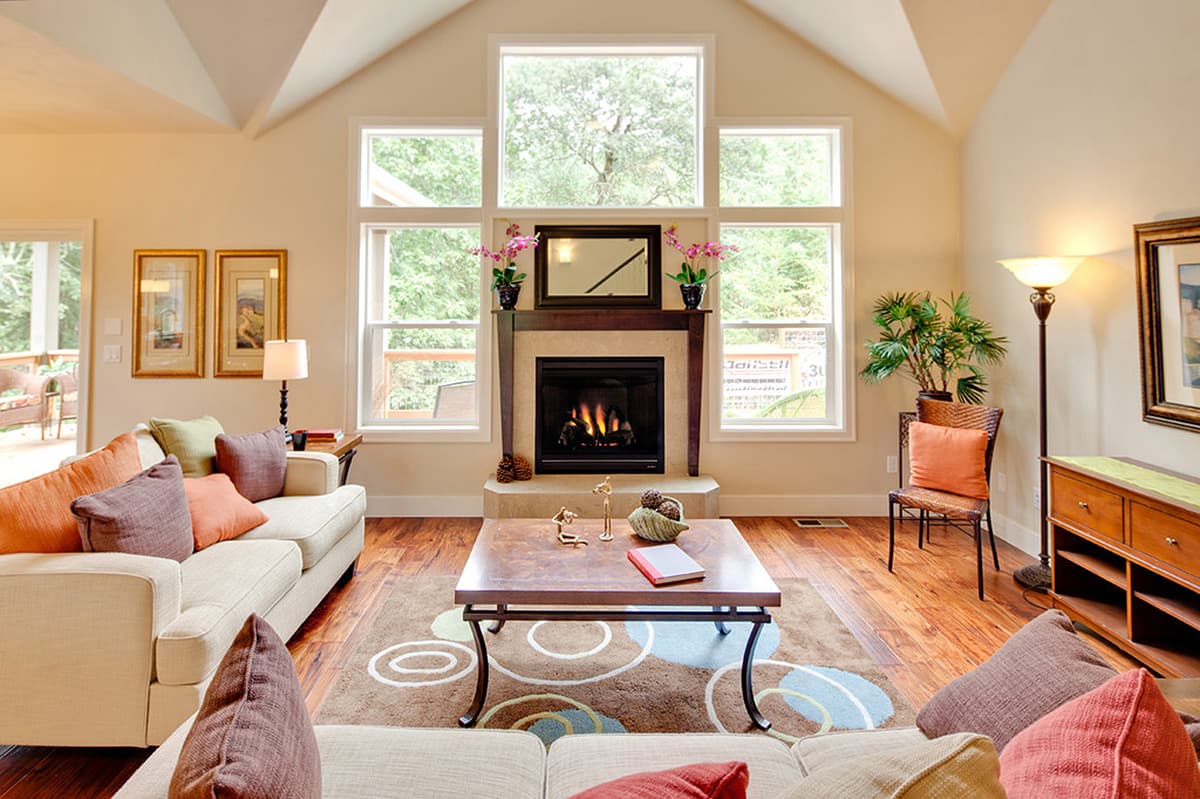

  • Inside, windows frame and crown a gas fireplace that serves as a focal point in the vaulted great room. This lofty space segues seamlessly into the dining room. Only a drop in ceiling height marks the transition.

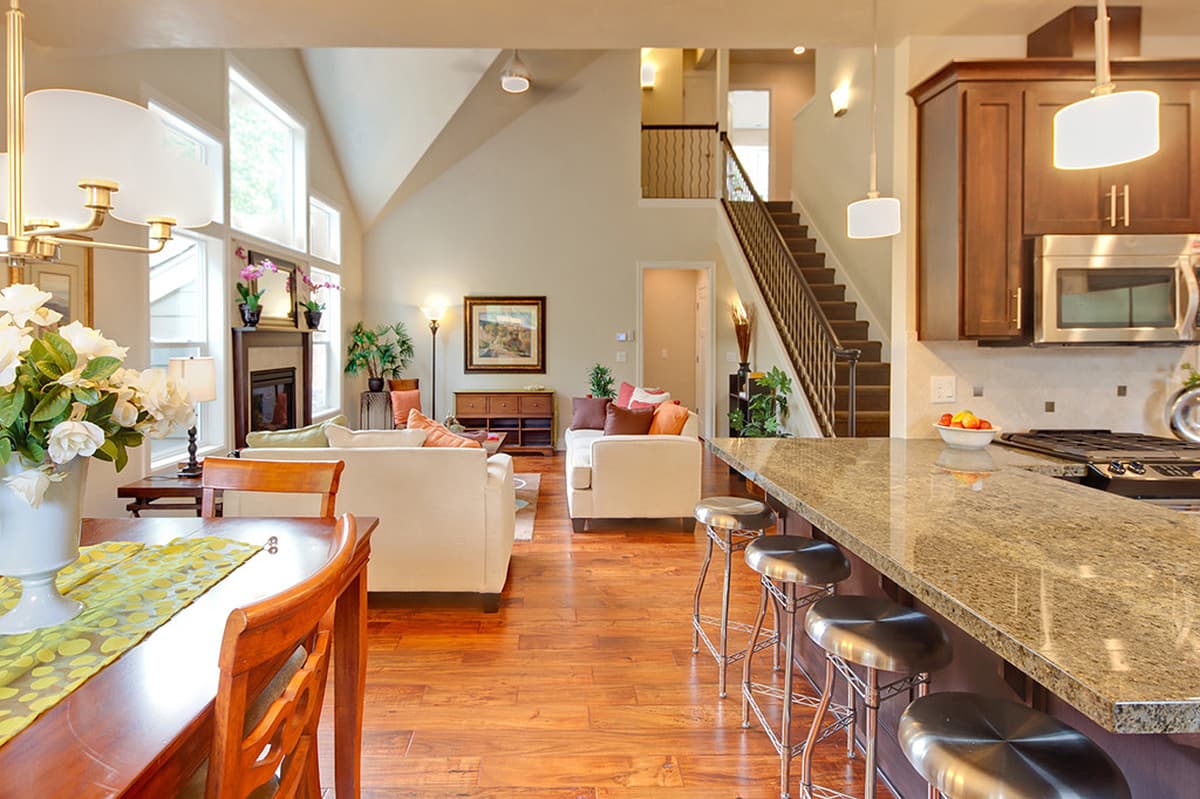

  • Sliding doors in the dining room allow easy access to a wide, partially covered railed deck that spans much of the rear. From the kitchen you can gaze out across the raised eating bar to watch fireplace flames, or keep tabs on activities in the dining room and on the deck. Counters, cabinets and appliances wrap around four sides of the kitchen, and a roomy pantry nestles into one corner.

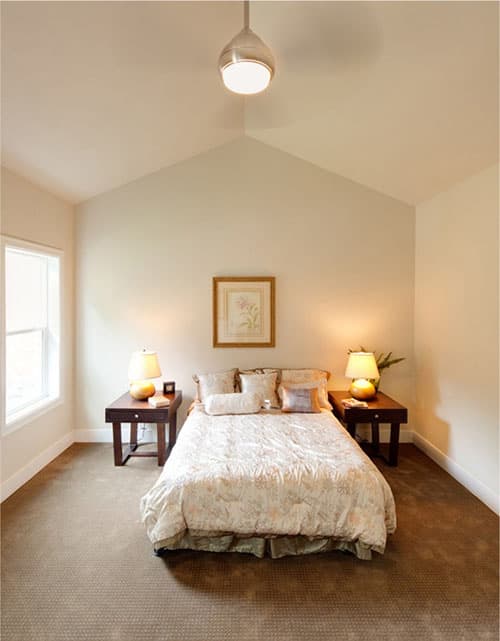

  • Another vaulted ceiling expands the sense of spaciousness in the owners' suite, the only ground floor bedroom. Amenities here include a deep walk-in closet and a two-section bathroom with an oversized shower.
  • You can overlook the vaulted great room while ascending the stairway to the upper level. Two more bedrooms, a bathroom, and a large bonus room are upstairs. One bedroom has a wider closet; the other bedroom is slightly larger overall.
  • The bonus room has windows looking out the front. Ceilings slope down on the left and right.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

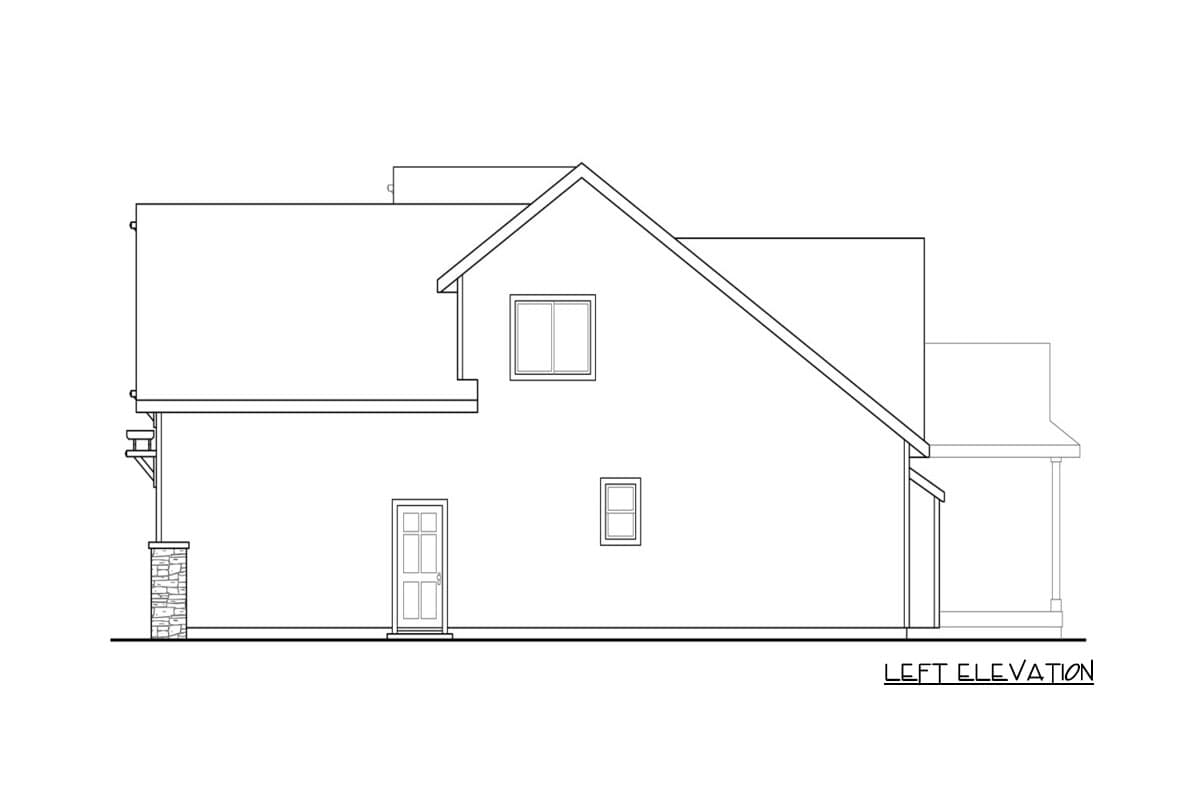

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Bright And Open Cottage - 72724DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

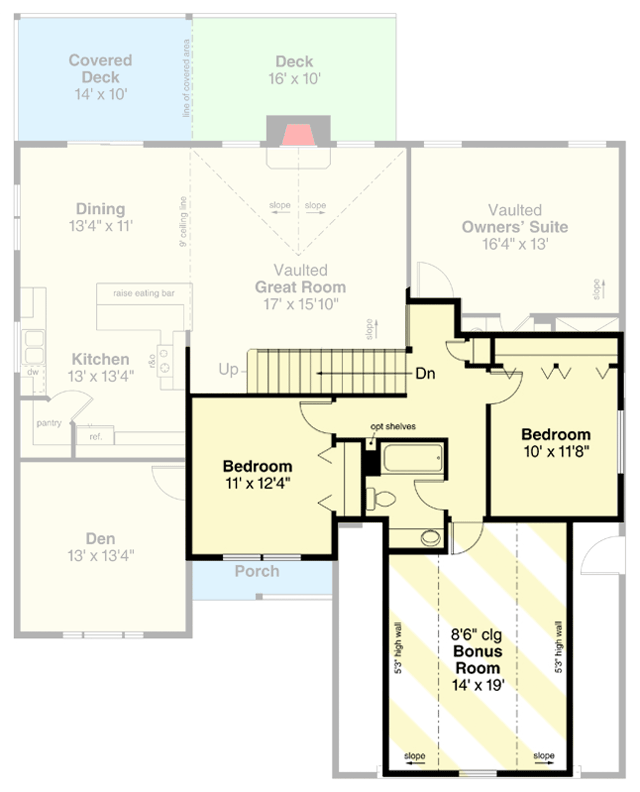

Bright And Open Cottage - 72724DA floor plan - 2nd Floor

Main Level with 2x4 Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Bright And Open Cottage - 72724DA floor plan - Main Level with 2x4 Option

Second Level with 2x4 Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Bright And Open Cottage - 72724DA floor plan - Second Level with 2x4 Option

Architectural Style

Plan Collections

Bright And Open Cottage

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

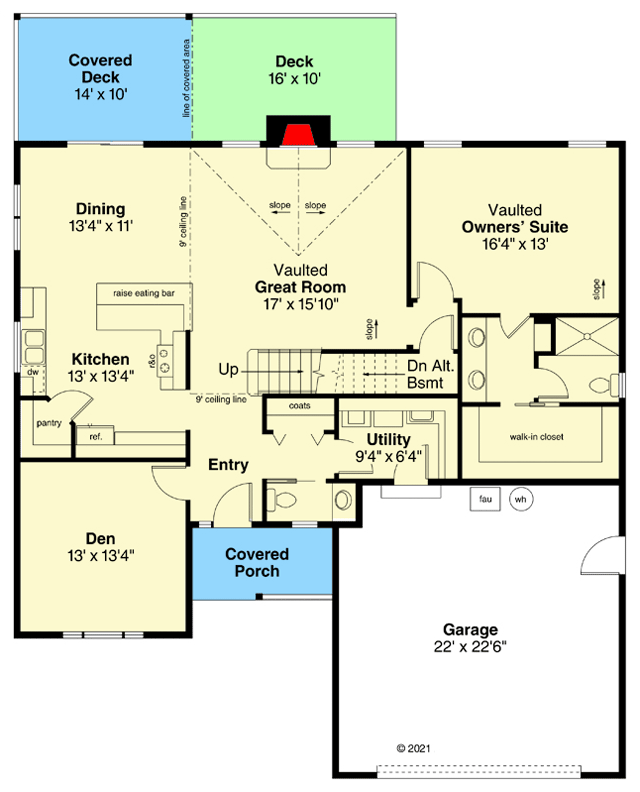

  • Main Level

  • 2nd Floor

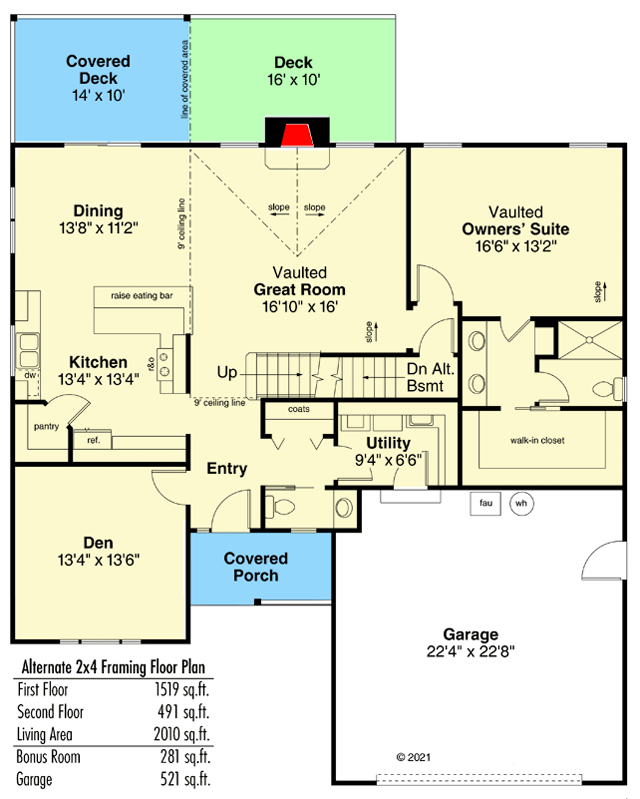

  • Main Level with 2x4 Option

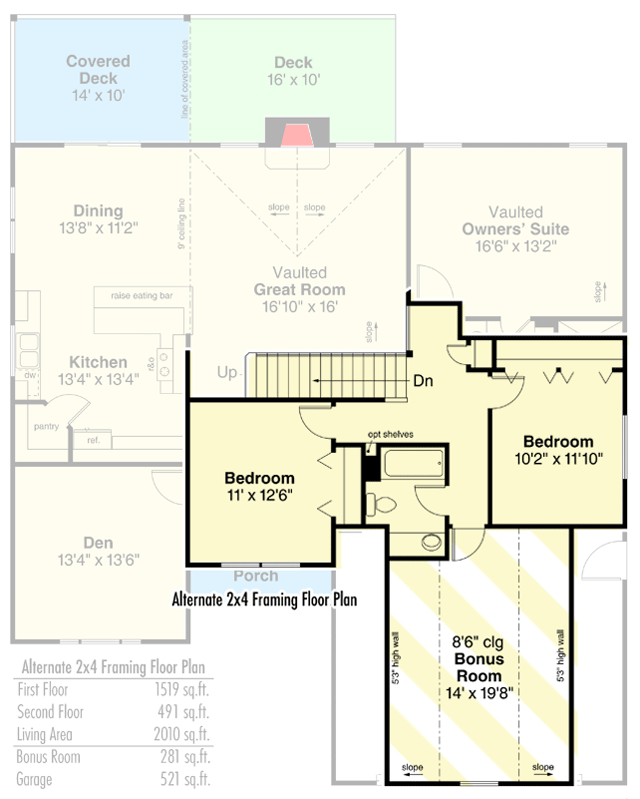

  • Second Level with 2x4 Option

Plan Details

Square Footage Breakdown

  • Total: 2,013 sq. ft.
  • 1st Floor: 1,519 sq. ft.
  • 2nd Floor: 494 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 521 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
