Plan 280007JWD
Budget-Friendly 3-Bed Craftsman with Bonus Over Garage
Heated S.F.
2,082
Beds
3
Baths
2
Stories
1-2
Cars
2
What's Included
Plan Details
  • A 2-car garage sits proud of the covered entry and has a dormer above bringing in light and adding head room to the bonus room.
  • The center portion of the home has an open floor plan with the kitchen at the hub of both the dining room and great room.
  • The bedrooms are split with the kids' bedrooms to the left sharing a bath and the master on the right with a walk-in closet and bath with dual vanities.
  • Stairs by the laundry go up to the bonus room over the garage.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Budget-Friendly 3-Bed Craftsman with Bonus Over Garage

  • 2,082

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

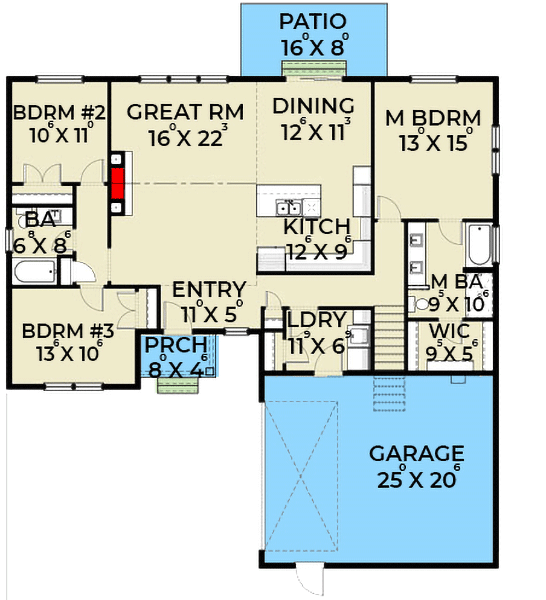

Floor Plan

  • Main Level

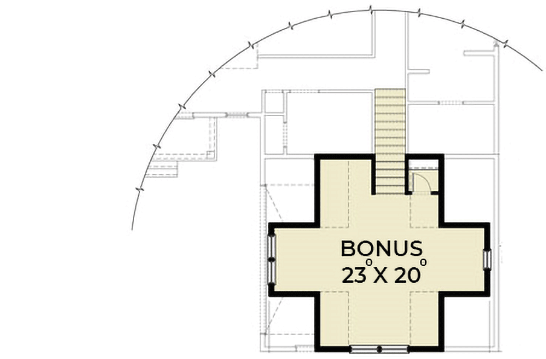

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,082 sq. ft.
  • 1st Floor: 1,702 sq. ft.

Dimensions

  • Width: 53' 0"
  • Depth: 53' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 546 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
