Plan 55175BR

Budget Friendly

Heated S.F.
1,734
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 55175BR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 55175BR

M-F 9am-5pm EST |

1-203-761-8500

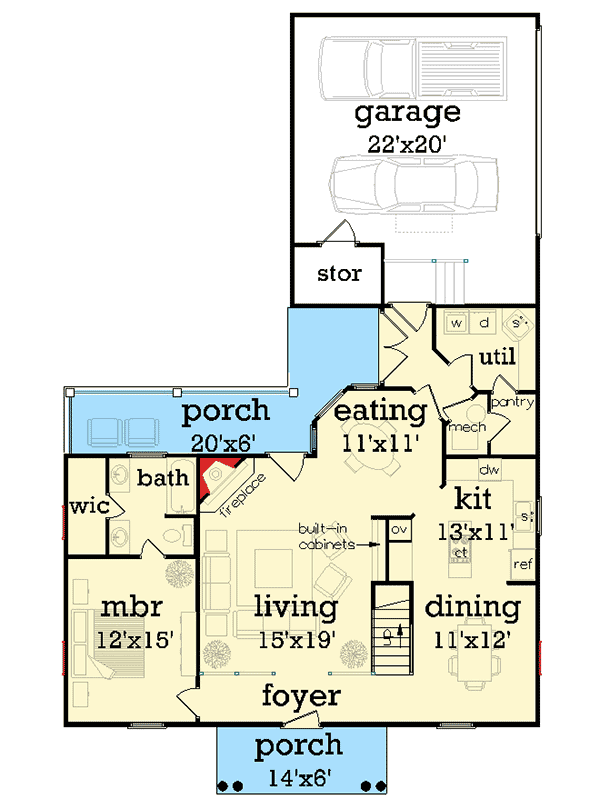

Main Level

Plan 55175BR: Budget Friendly - Floor Plan - Main Level - Cottage, Southern

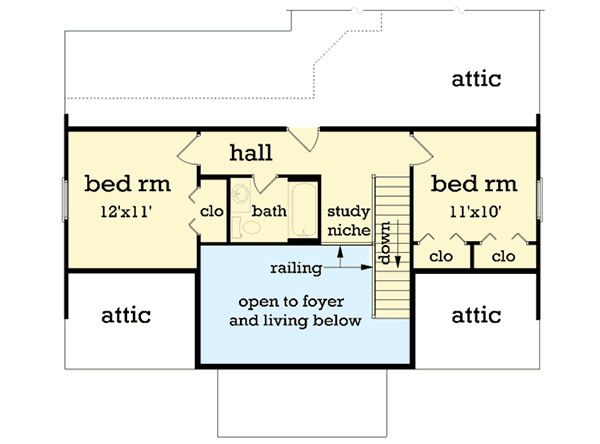

2nd Floor

Plan 55175BR: Budget Friendly - Floor Plan - 2nd Floor - Cottage, Southern

Plan Details

  • Designed for easy, low cost construction, this 3 bedroom, 2 bath cottage is perfect for budget-minded buyers.
  • The master suite is located on the ground level and features a full bath and large walk-in closet.
  • A fully appointed gourmet kitchen has an island cook top.
  • Meals can be served in the formal dining or the quaint and uniquely shaped eating area.
  • A large utility room features a laundry sink and a huge walk-in butler's pantry.
  • The upper level has two nice size bed rooms and a darling study niche overlooking the main level.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,734 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

490 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

69' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

532 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,734 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

490 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

69' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

532 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
