Plan 72549DA

Bungalow House Plan with Three Bedrooms and Porte Cochere

Name: Plan 72549DA: Bungalow House Plan with Three Bedrooms and Porte Cochere
Brand: Architectural Designs
SKU: 72549DA
Price: 2360.0 USD
Availability: InStock

Heated S.F.

2,222

Beds

Baths

2.5

Stories

Cars

Floor Plan

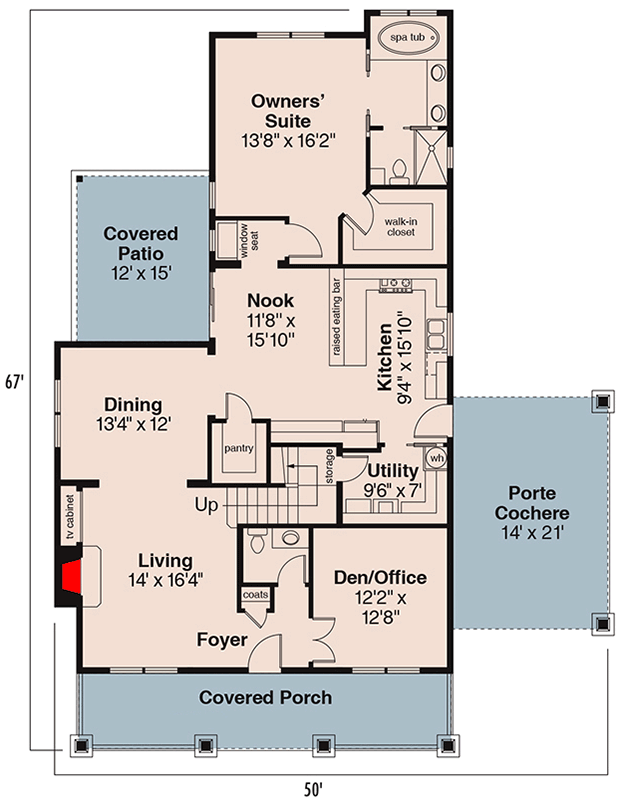

Main Level

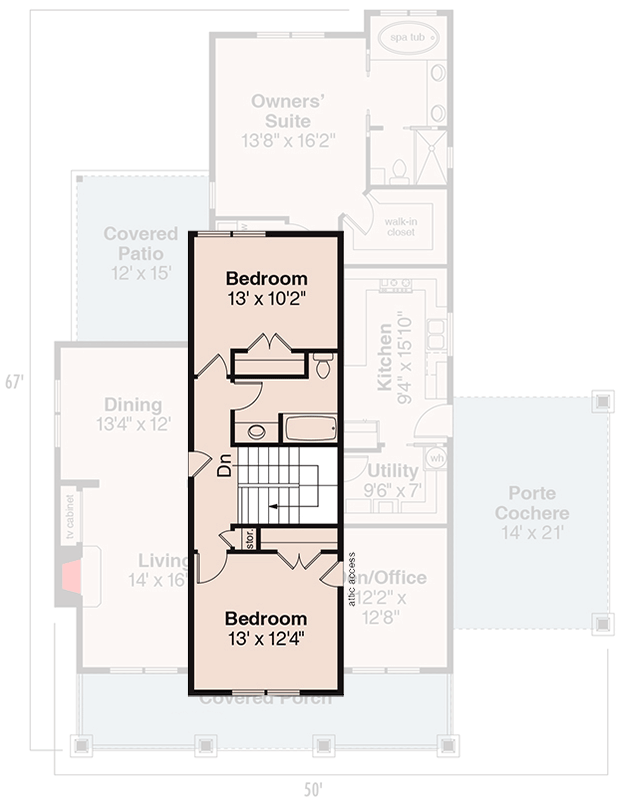

2nd Floor

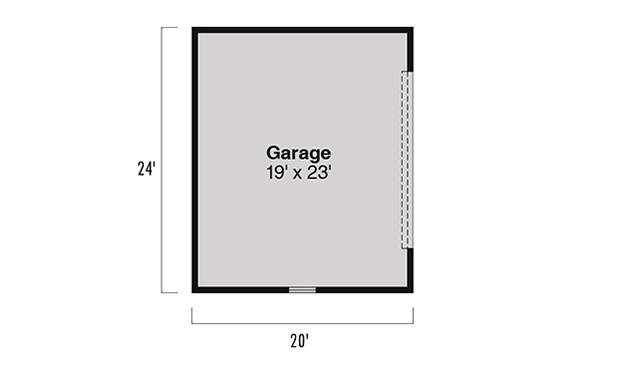

Detached Garage

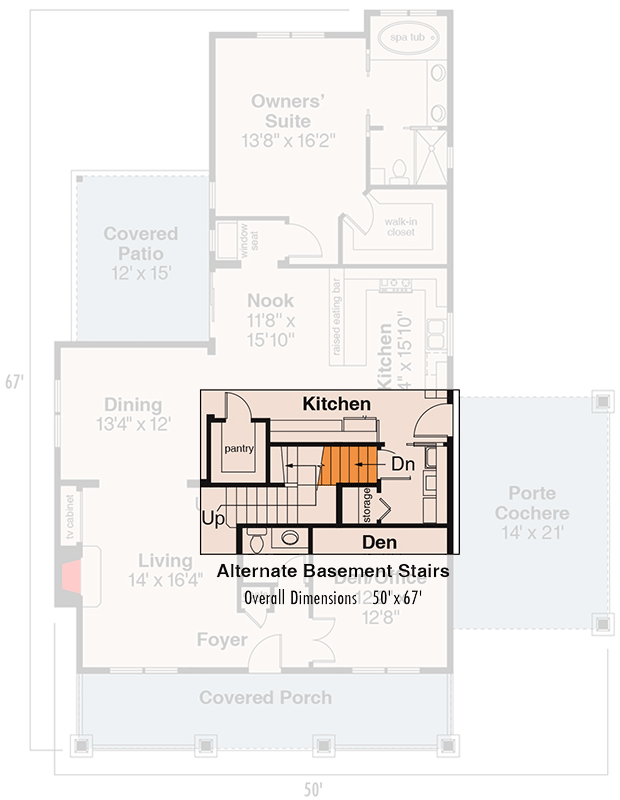

Basement Stairs Location

Plan Details

This charming 2,222 square foot Craftsman-style bungalow features three bedrooms, two and a half bathrooms, and a detached two-car garage with a convenient porte cochere.
The exterior highlights classic Northwest architectural details, including decorative rafter tails, tapered stone-based columns, and warm shake siding.
Upon entry, the layout reveals a thoughtful design that balances formal and functional living spaces, including a dedicated den or home office near the front of the home.
The main level is anchored by a kitchen equipped with a walk-in pantry and an adjacent breakfast nook, transitioning naturally into formal dining and living areas.
The primary suite is located on the first floor for added convenience, providing a private retreat away from the secondary bedrooms situated upstairs.
A covered front porch welcomes residents home, while the detached garage provides sheltered parking and seamless access through the attached porte cochere.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

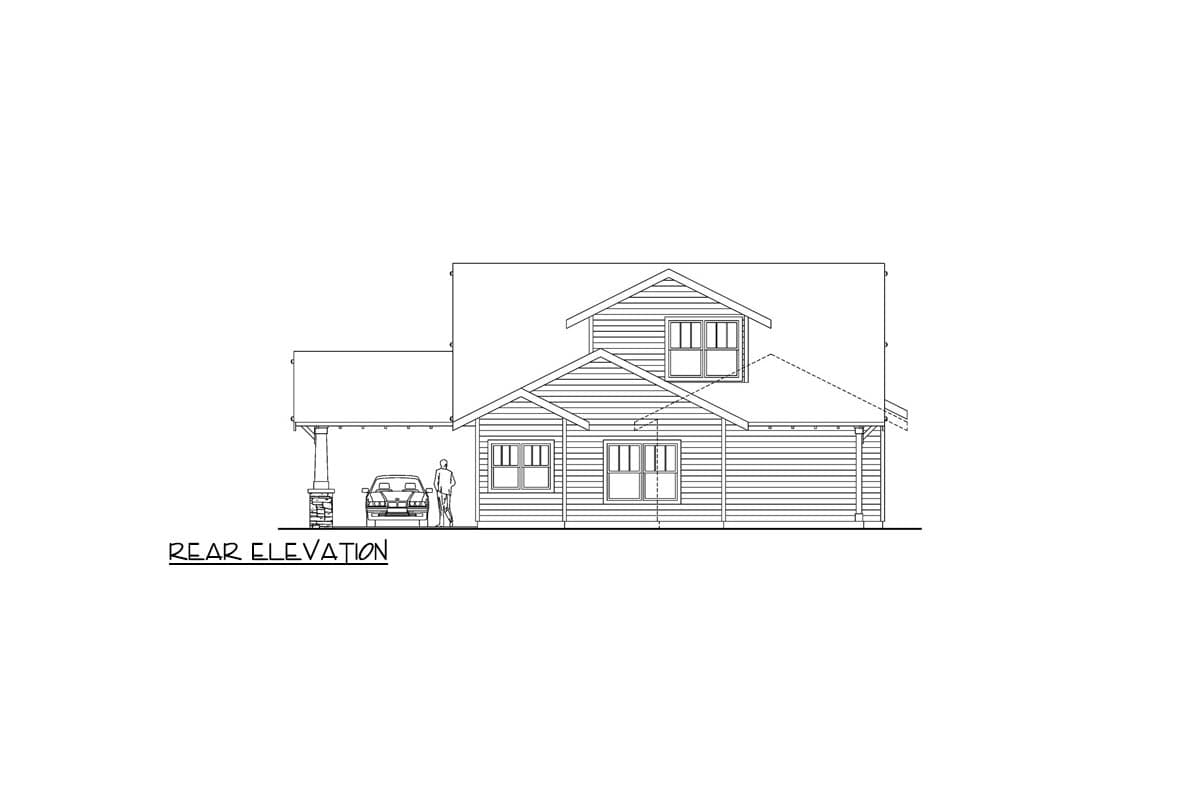

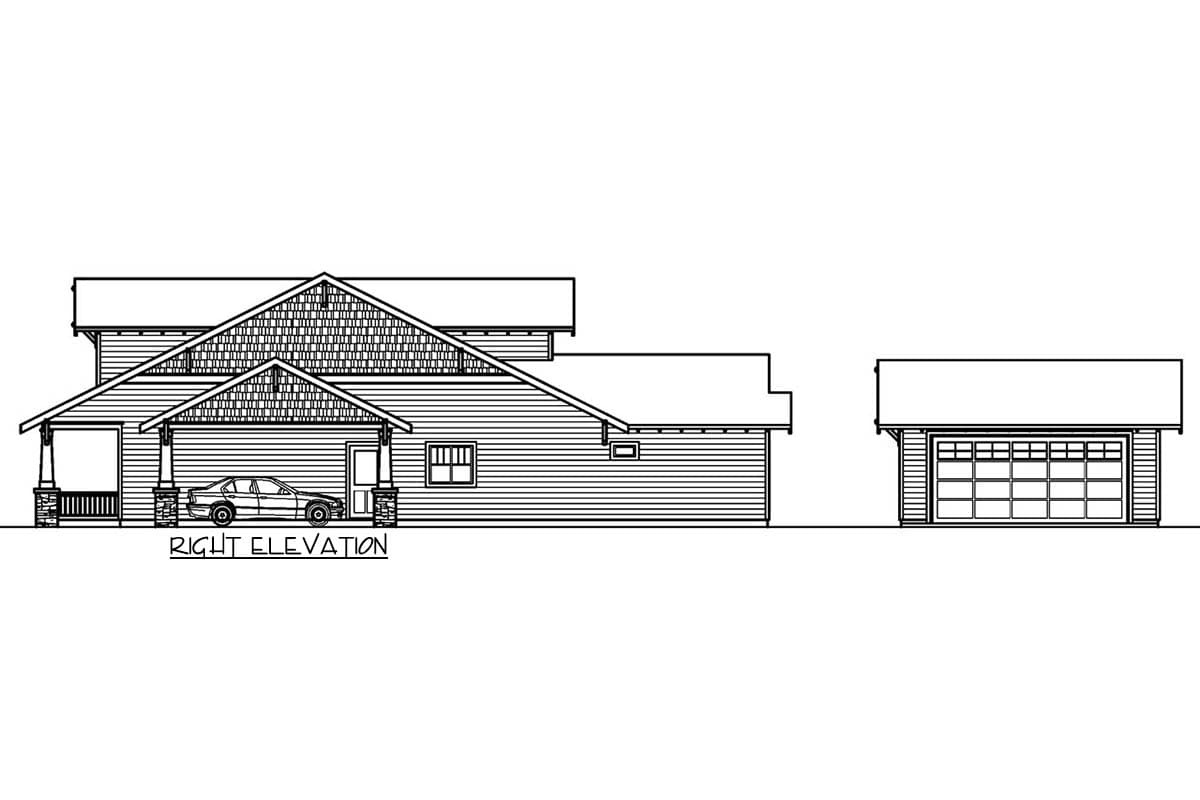

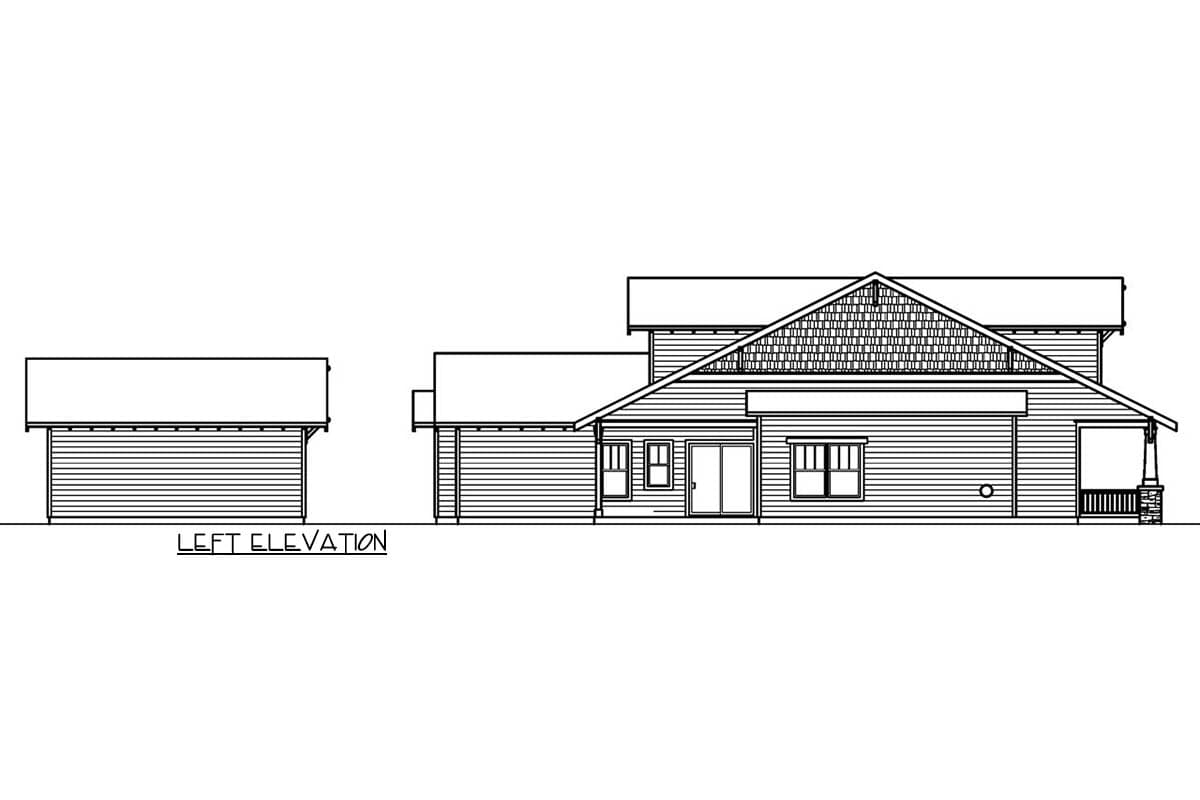

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
