Bunkhouse with Wraparound Porch

Plan 11524KN

  • 1,031

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • This simple bunkhouse features a spacious wraparound porch giving you space to enjoy the outdoors on three sides.
  • The front of the home is wide open and has a fireplace on one end. The kitchen has seating at the counter.
  • Bedrooms are split on either side of this vacation escape and each feature full baths and walk-in closets.
  • Rustic log siding paired with 2x6 exterior walls gives you great looks and energy-efficiency.
  • Related Plans: Get alternate layouts with house plans 12947KN and 12912KN.

Floor plans at ¼" scale

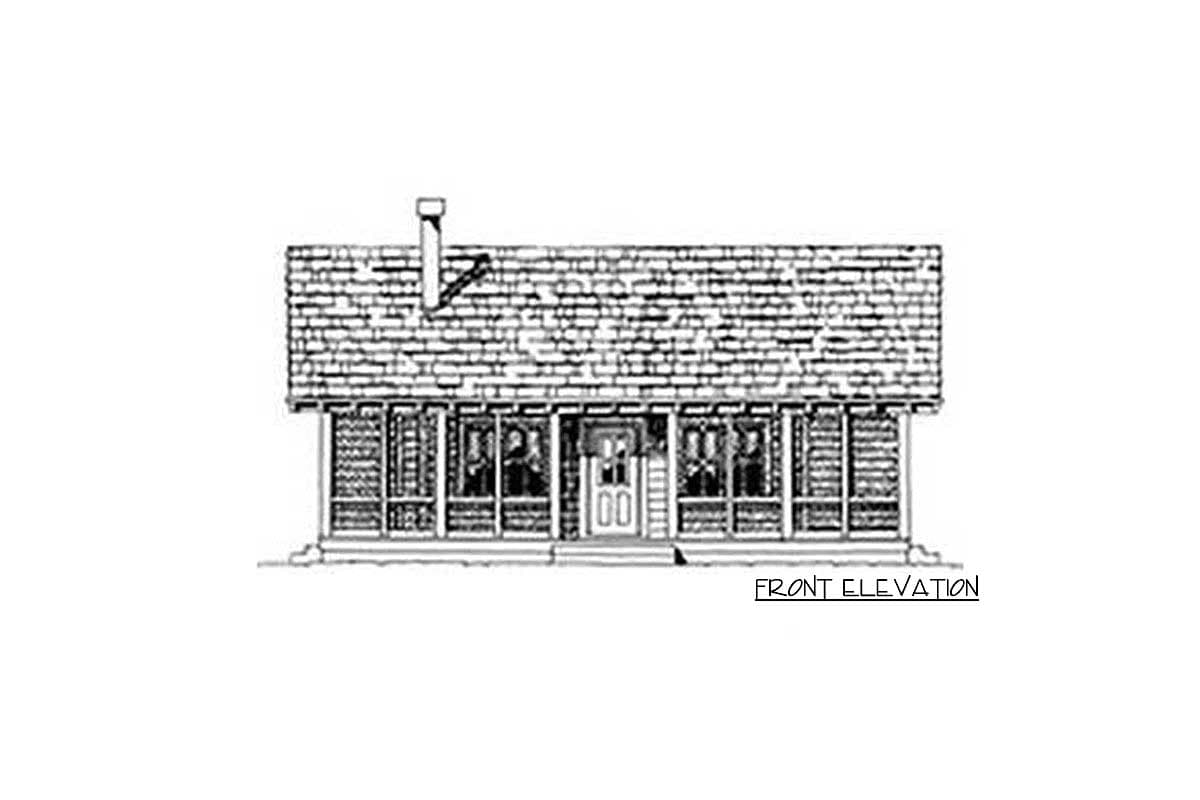

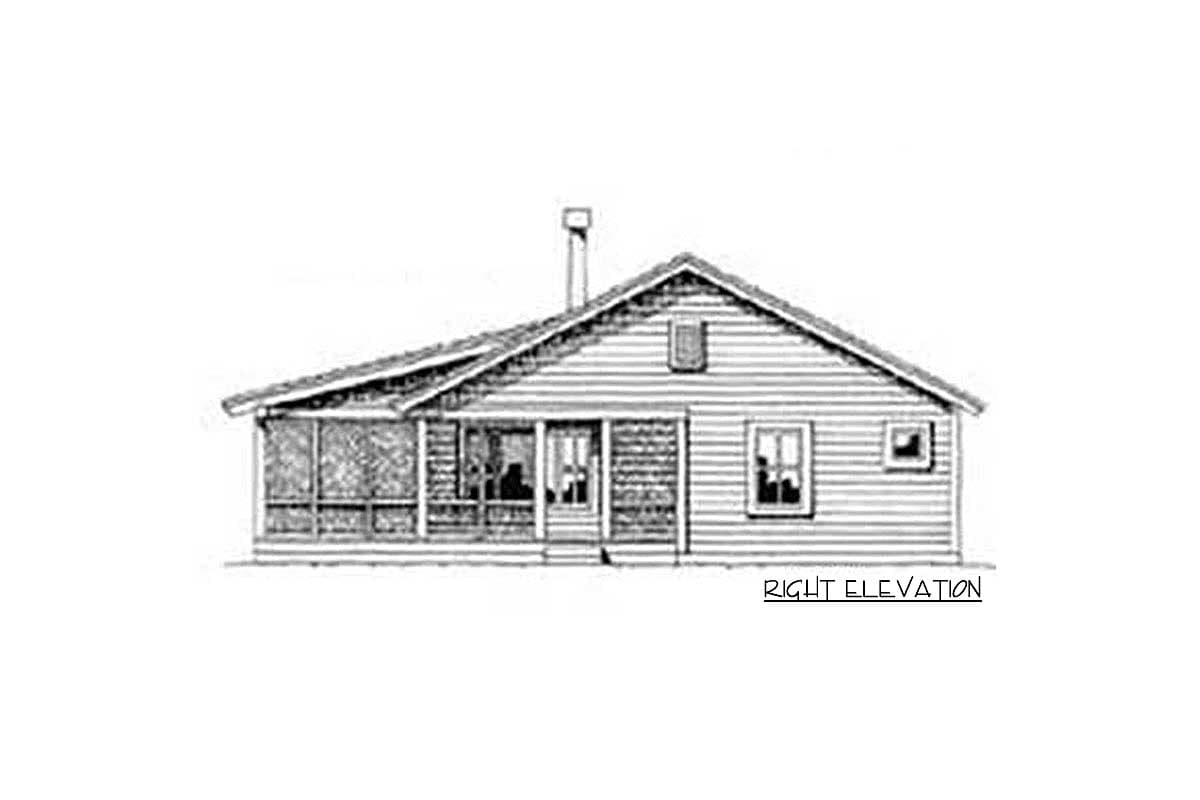

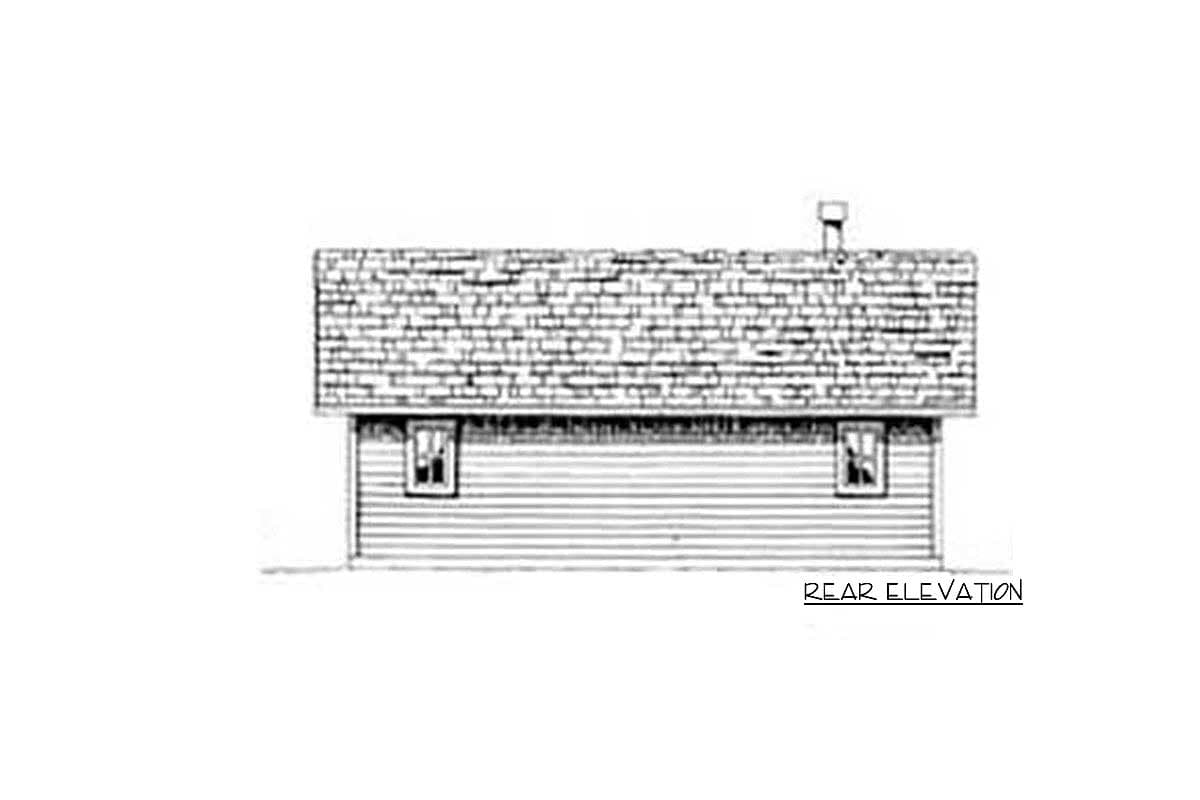

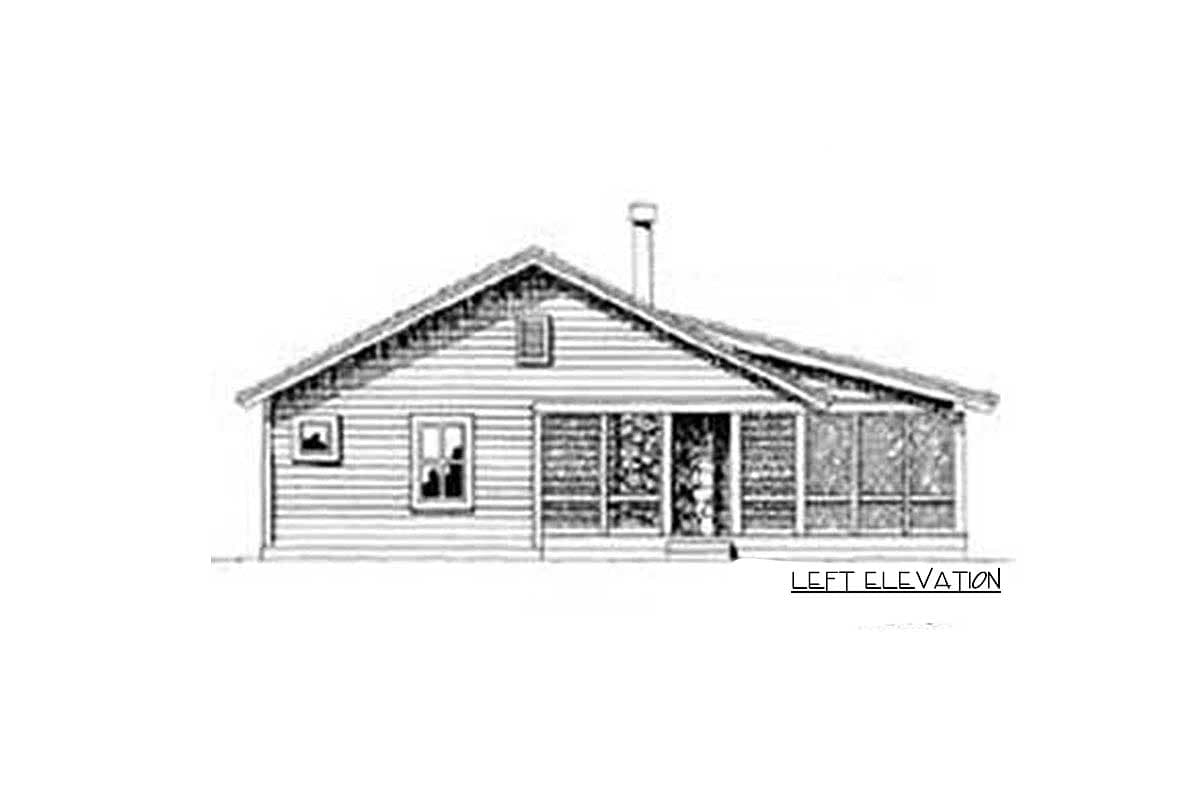

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

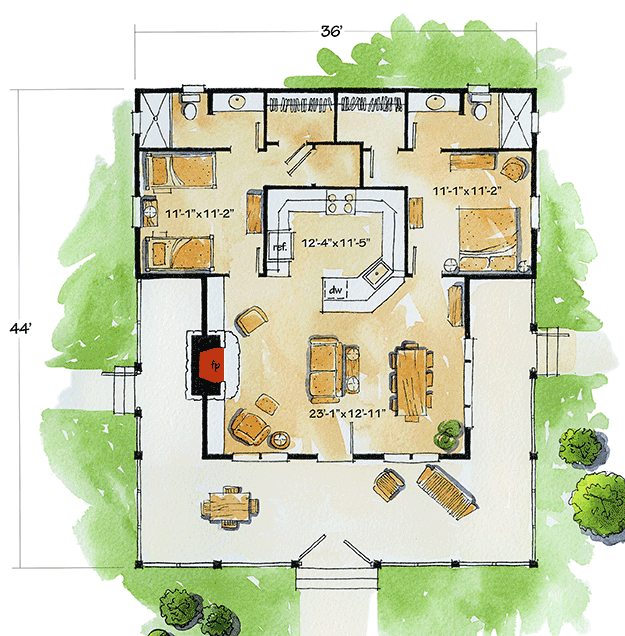

Bunkhouse with Wraparound Porch - 11524KN floor plan - Main Level

Plan details

Bunkhouse with Wraparound Porch

  • 1,031

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • CAD - Single-Build $1,550
  • View all purchase option online

About This Plan

  • This simple bunkhouse features a spacious wraparound porch giving you space to enjoy the outdoors on three sides.
  • The front of the home is wide open and has a fireplace on one end. The kitchen has seating at the counter.
  • Bedrooms are split on either side of this vacation escape and each feature full baths and walk-in closets.
  • Rustic log siding paired with 2x6 exterior walls gives you great looks and energy-efficiency.
  • Related Plans: Get alternate layouts with house plans 12947KN and 12912KN.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,031 sq. ft.
  • 1st Floor: 1,031 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 44' 0"
  • Max ridge height: 19' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
