Plan 710270BTZ Cape Cod Cottage with Side-Entry Garage

1,814 3-4 2 - 3 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Cape Cod Cottage with Side-Entry Garage

Plan 710270BTZ

  • 1,814

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Perfect in the suburbs or by the sea, this Cape Cod cottage has a brick exterior with tasteful shutters.
  • The vaulted foyer (18' ceiling) progresses naturally into the vaulted family room, punctuated by a warming hearth. Expansive counter space, a built-in desk and a handy serving bar in the kitchen make meal preparations a breeze. The bayed breakfast nook and columned dining room allow you to be as formal or casual as you like.
  • The sleeping quarters begin with two secondary bedrooms and a full bath. The master suite is enhanced by a tray ceiling, an ample walk-in closet and a vaulted bath with a radius window.
  • Optional second-level space includes a bedroom and full bath.
  • A side-loading two-car garage makes this plan great on a corner lot.

The plans include the following:

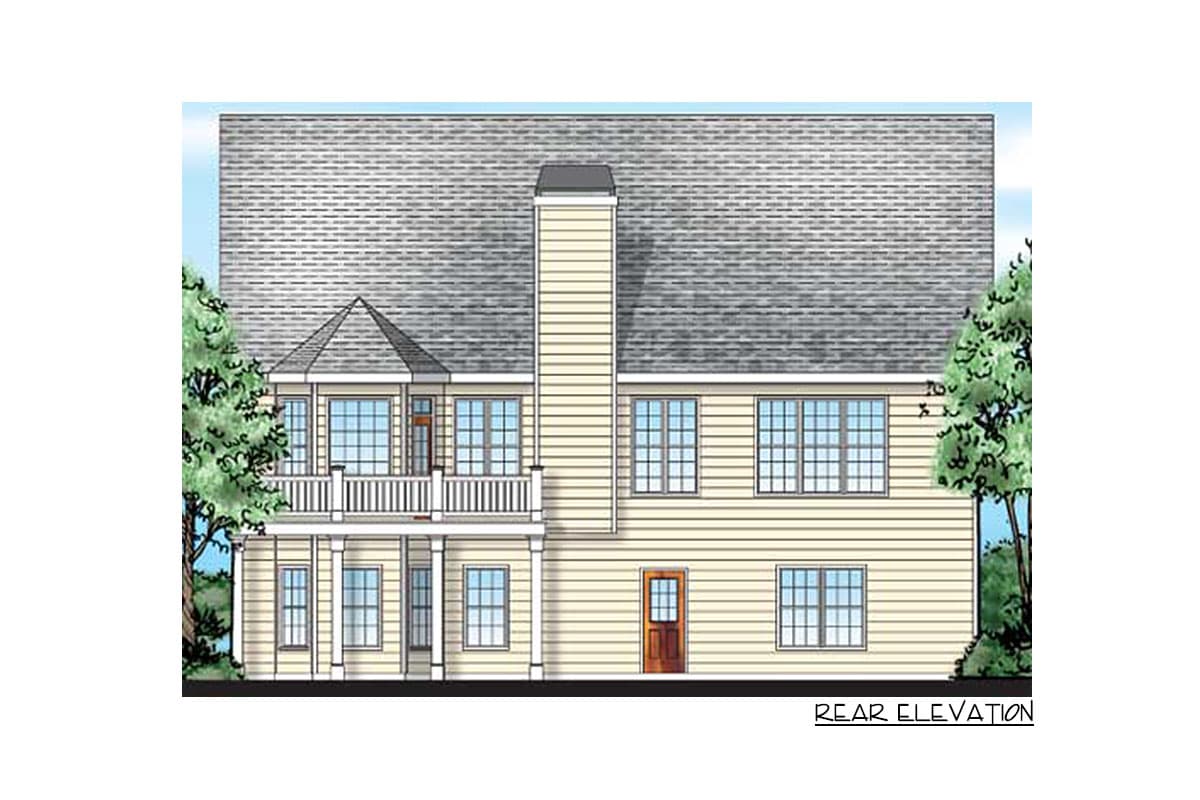

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

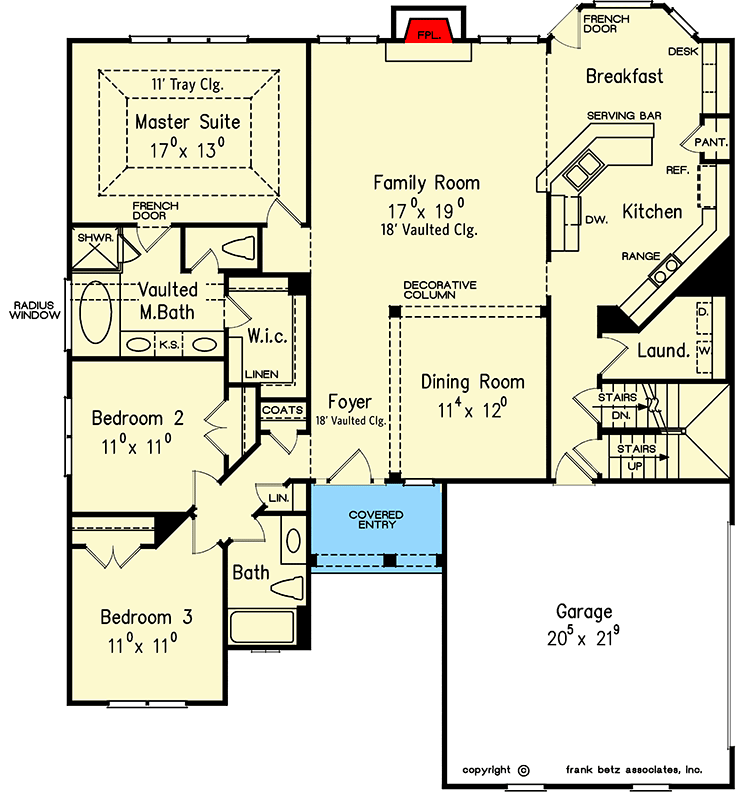

Cape Cod Cottage with Side-Entry Garage - 710270BTZ floor plan - Main Level

Bonus Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

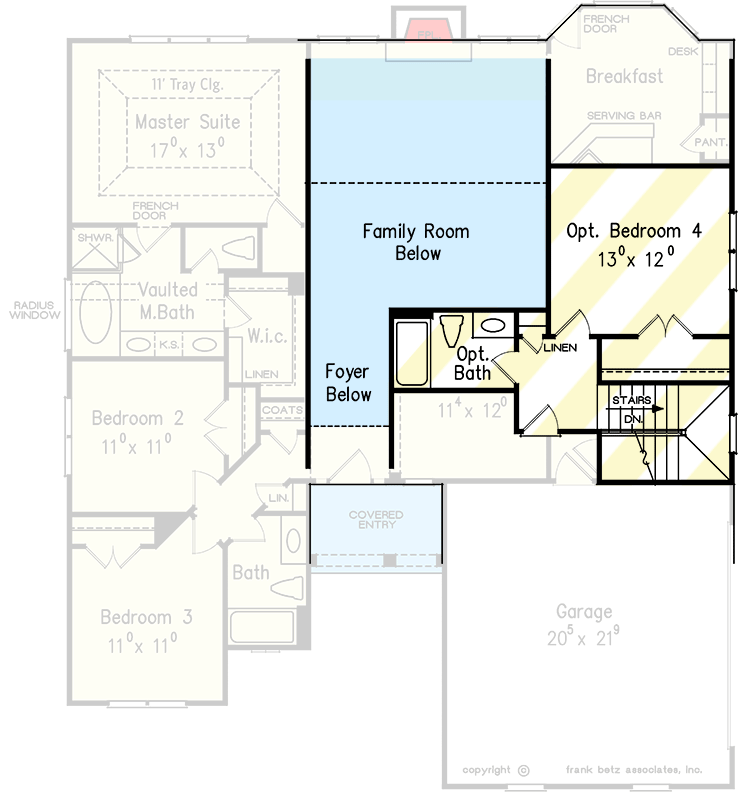

Cape Cod Cottage with Side-Entry Garage - 710270BTZ floor plan - Bonus Second Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,814 sq. ft.
  • 1st Floor: 1,814 sq. ft.
  • Bonus: 310 sq. ft.
  • Basement Unfinished: 1,814 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 0"
  • Depth: 56' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Cape Cod Cottage with Side-Entry Garage

  • 1,814

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,575
  • PDF - Unlimited Build $1,595
  • PDF - Unlimited Build + 5-Sets $1,875
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • Perfect in the suburbs or by the sea, this Cape Cod cottage has a brick exterior with tasteful shutters.
  • The vaulted foyer (18' ceiling) progresses naturally into the vaulted family room, punctuated by a warming hearth. Expansive counter space, a built-in desk and a handy serving bar in the kitchen make meal preparations a breeze. The bayed breakfast nook and columned dining room allow you to be as formal or casual as you like.
  • The sleeping quarters begin with two secondary bedrooms and a full bath. The master suite is enhanced by a tray ceiling, an ample walk-in closet and a vaulted bath with a radius window.
  • Optional second-level space includes a bedroom and full bath.
  • A side-loading two-car garage makes this plan great on a corner lot.

Floor Plans

  • Main Level

  • Bonus Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,814 sq. ft.
  • 1st Floor: 1,814 sq. ft.
  • Bonus: 310 sq. ft.
  • Basement Unfinished: 1,814 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 0"
  • Depth: 56' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
