Captivating Country Cottage

Plan 17736LV

  • 1,676

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A metal roof with a shed dormer makes this Country cottage home plan a standout.
  • Designed for a narrow lot, the home is less than 28' wide.
  • The wide foyer leads back to the main living area that is all open concept.
  • Built-ins are on either side of the big fireplace that can be seen from the kitchen.
  • The vaulted ceiling extends into the outdoor covered terrace in back.
  • A first floor master suite is joined by two additional bedrooms on the second floor.
  • The jack and jill bathroom has two sinks to keep things moving in the morning.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

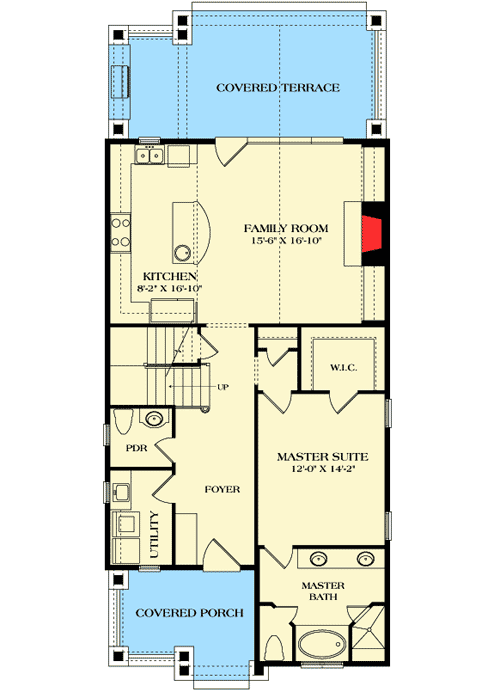

Captivating Country Cottage - 17736LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

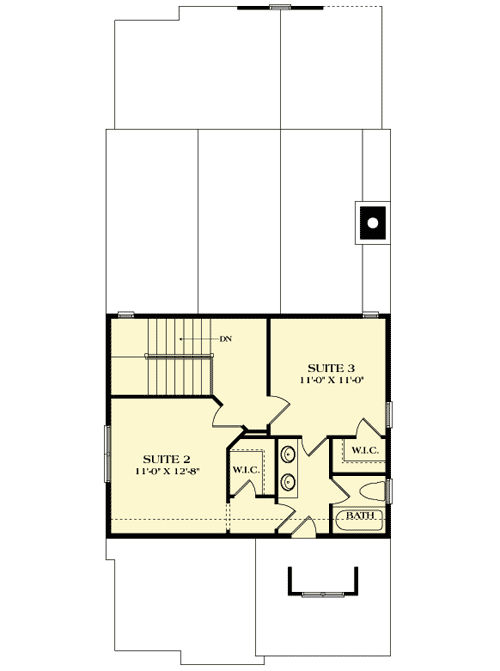

Captivating Country Cottage - 17736LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,676 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 486 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 26' 8"
  • Depth: 61' 8"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Captivating Country Cottage

  • 1,676

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,150
  • CAD - Single-Build $2,299
  • View all purchase option online

About This Plan

  • A metal roof with a shed dormer makes this Country cottage home plan a standout.
  • Designed for a narrow lot, the home is less than 28' wide.
  • The wide foyer leads back to the main living area that is all open concept.
  • Built-ins are on either side of the big fireplace that can be seen from the kitchen.
  • The vaulted ceiling extends into the outdoor covered terrace in back.
  • A first floor master suite is joined by two additional bedrooms on the second floor.
  • The jack and jill bathroom has two sinks to keep things moving in the morning.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,676 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 486 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 26' 8"
  • Depth: 61' 8"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 17736LV
View this and more for this plan by visiting www.architechtecturaldesigns.com/17736LV
|
Need Help? 800-854-7852
|
Plan 17736LV
