Plan 68577VR

Carriage House with 3-Bay Garage

Pageloader

Carriage House with 3-Bay Garage

Plan 68577VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Stories

  • 3

    Cars

  • Horizontal siding and an open gable roof come together to create this traditional 3-bay detached garage plan. The third bay could serve as a workshop area, if preferred.

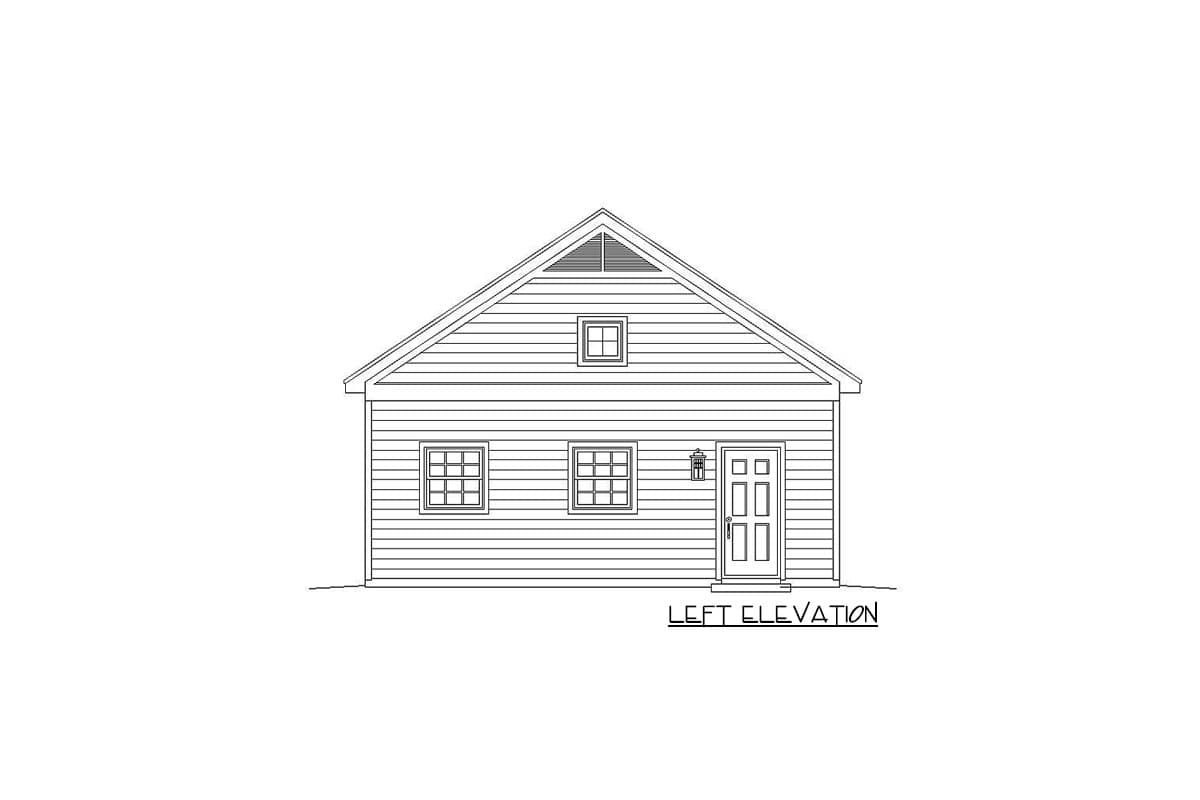

  • The vaulted ceiling provides a feeling of spaciousness within, and a door on the side allows for easy access.

Cover Page

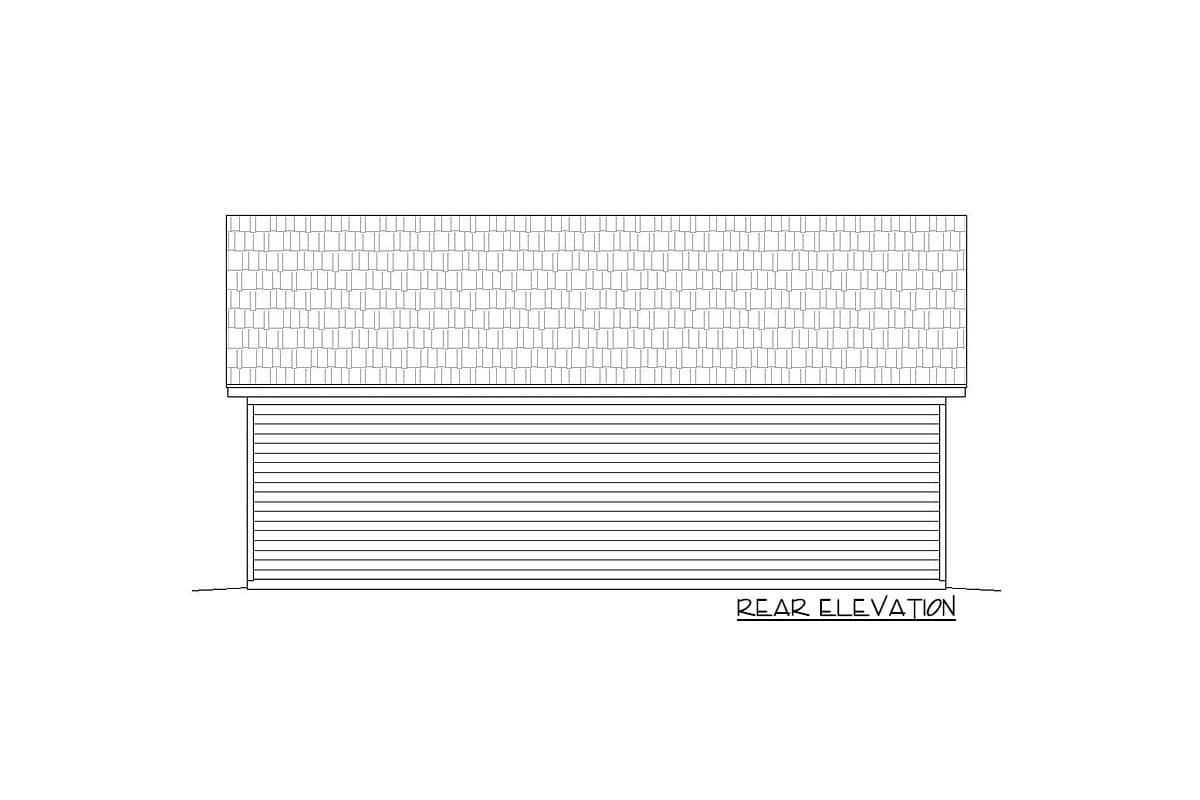

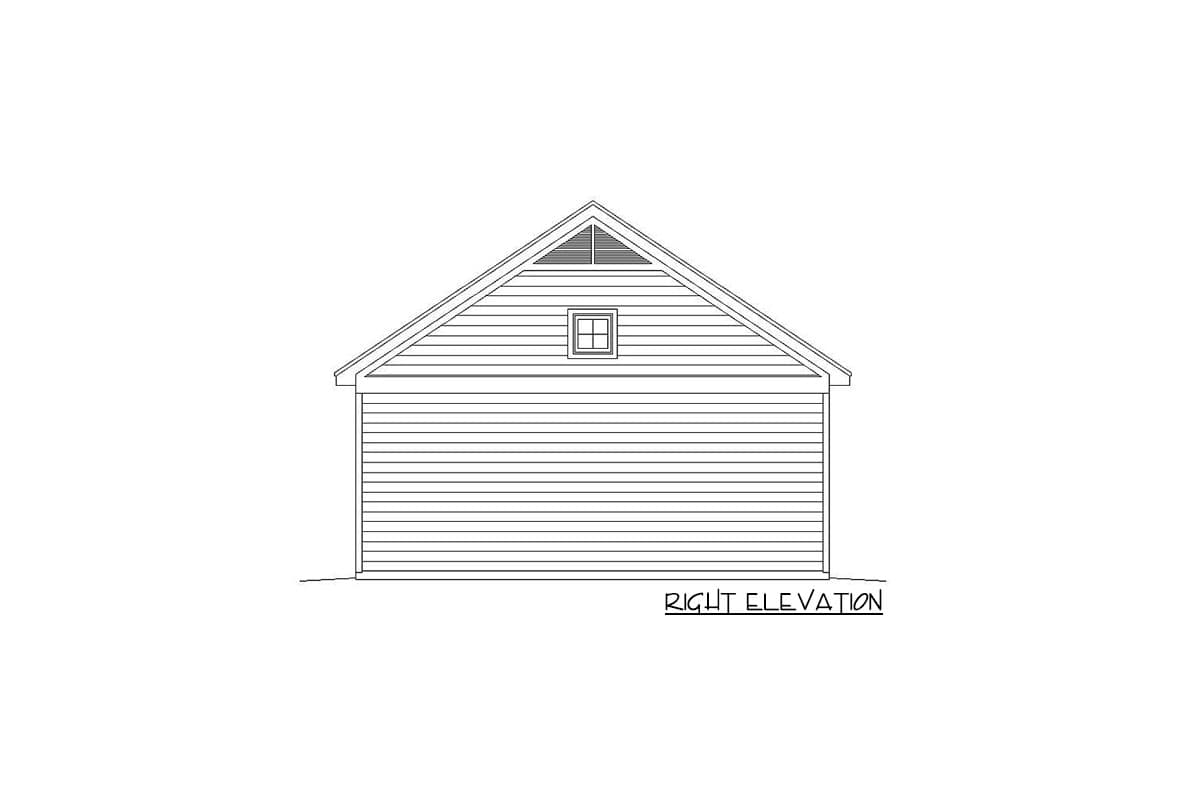

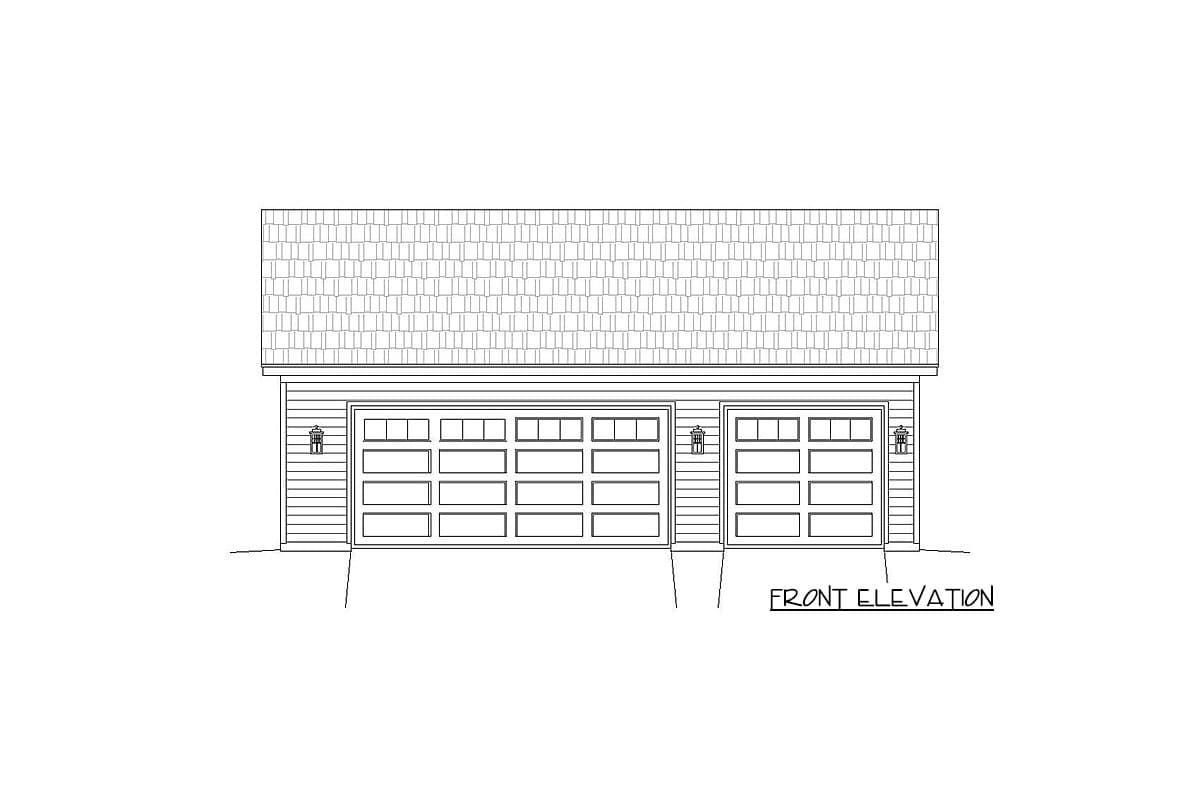

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

Floor Plan

Plan details

Special features



Carriage House with 3-Bay Garage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $375
  • PDF - single-use $475
  • 5 Sets $500
  • CAD $775
  • View all purchase option online

About This Plan

  • Horizontal siding and an open gable roof come together to create this traditional 3-bay detached garage plan. The third bay could serve as a workshop area, if preferred.
  • The vaulted ceiling provides a feeling of spaciousness within, and a door on the side allows for easy access.

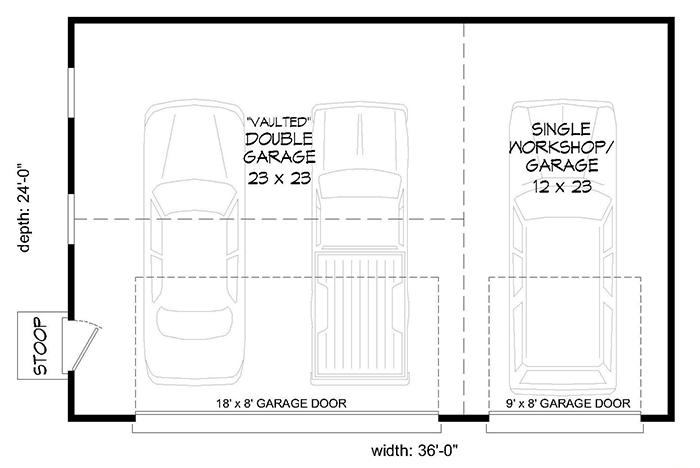

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 300 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 24' 0"
  • Max ridge height: 18' 8"

Garage

  • Type: Detached
  • Area: 564 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
