Plan 48357FM
Cathedral Ceilings
Heated S.F.
2,248
Beds
3-4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details

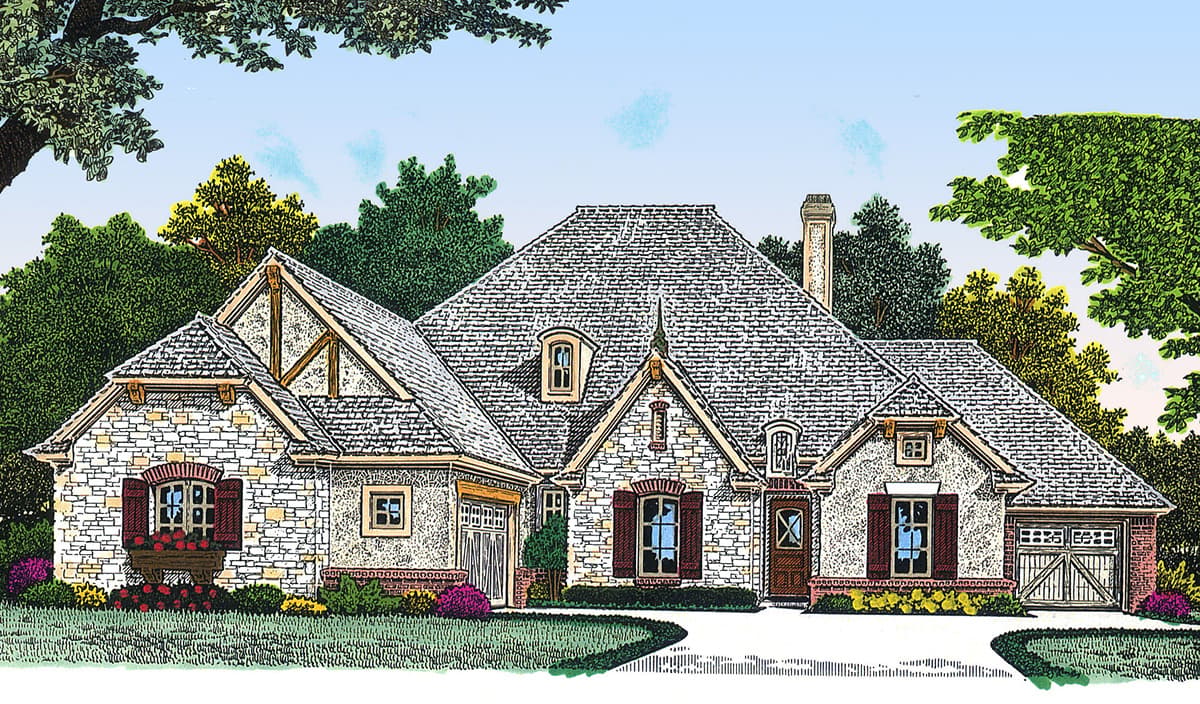

  • Both the study with built-in bookshelves and the great room with fireplace boast cathedral ceilings in this attractive European home plan.
  • In the great room, the ceiling rises from 10' to 14'6" and the study rises from 9' to 11'6".
  • A wonderful open floor plan unites the kitchen, dining room and great room, all of which open up to the rear covered porch.
  • Two family bedrooms on the right share a Jack and Jill bath while the guest suite has its own private bath.
  • Double doors open to the deluxe master suite with tray ceiling and walk-in shower in the spa bath.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

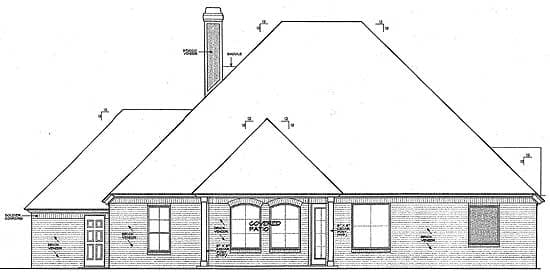

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cathedral Ceilings

  • 2,248

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

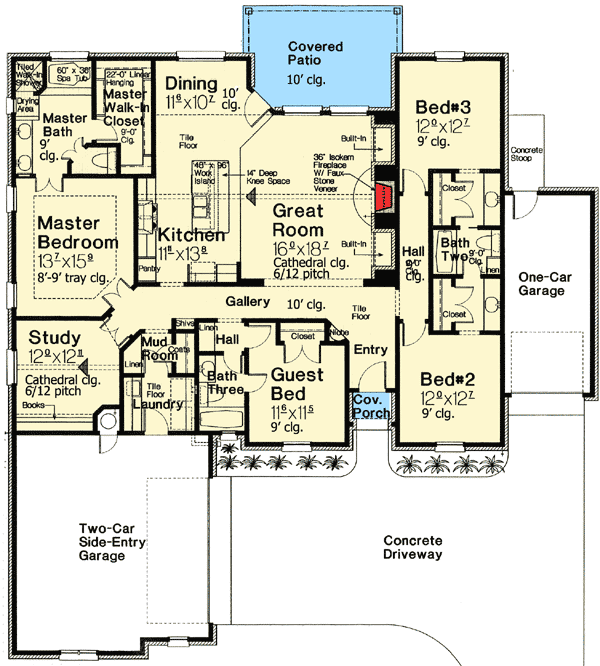

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,248 sq. ft.
  • 1st Floor: 2,248 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 72' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 807 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
