Plan 59248ND
Cedar Shake Split Bedroom House Plan
Heated S.F.
2,354
Beds
4
Baths
2.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • Cedar shake and a cozy porch with round columns introduce this split bedroom house plan. This attractive house plan is elegant enough for the elite and conservative at the same time.
  • Once inside the foyer, a ten foot ceiling continues through to the great room for a grand effect.
  • The dining room has a column entry and opening to the kitchen enhanced with an eleven foot boxed ceiling and open bar seating.
  • The kitchen and breakfast room both with ten foot ceilings, enjoy an outside view looking through a large covered grilling porch.
  • An elegant master suite includes a large walk-in closet, whirlpool tub, shower, and separate toilet room.
  • A large laundry room and half bathroom lead to a courtyard entry garage. An upstairs bonus room is available if desired.
  • Optional basement foundation available. Note the upper bonus will be lost with the basement foundation.
  • , 59799ND and 59413ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cedar Shake Split Bedroom House Plan

  • 2,354

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

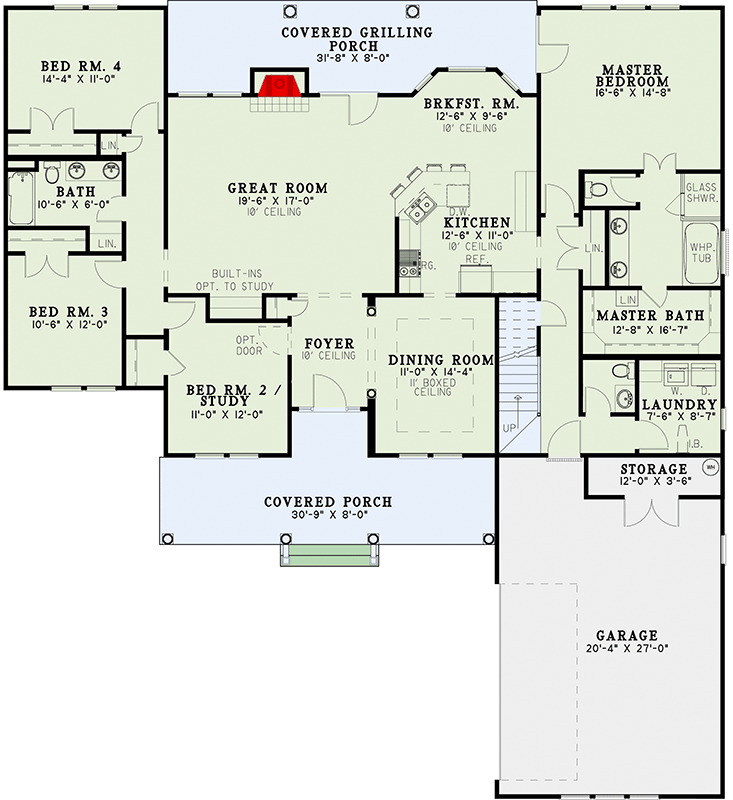

Floor Plan

  • Main Level

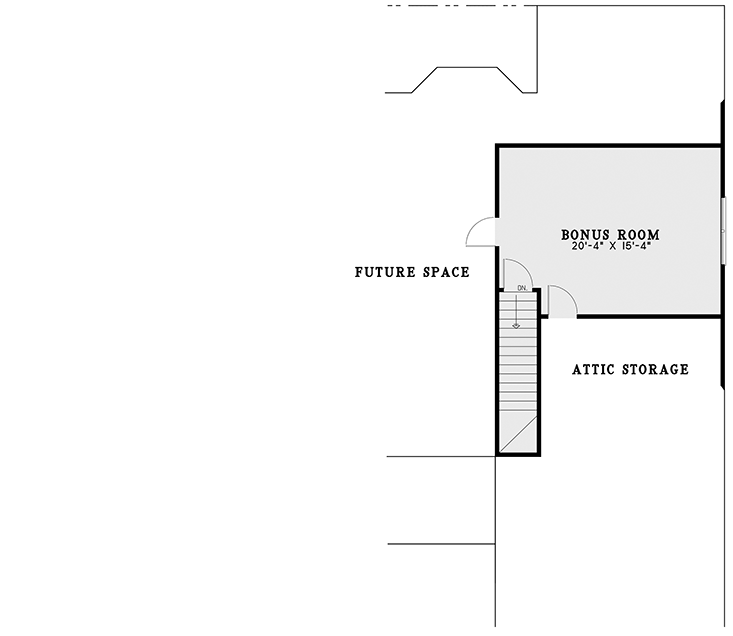

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,354 sq. ft.
  • 1st Floor: 2,354 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 72' 7"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 656 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
