Plan 59506ND

Centralized Great Room Plan

Heated S.F.
1,344
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59506ND

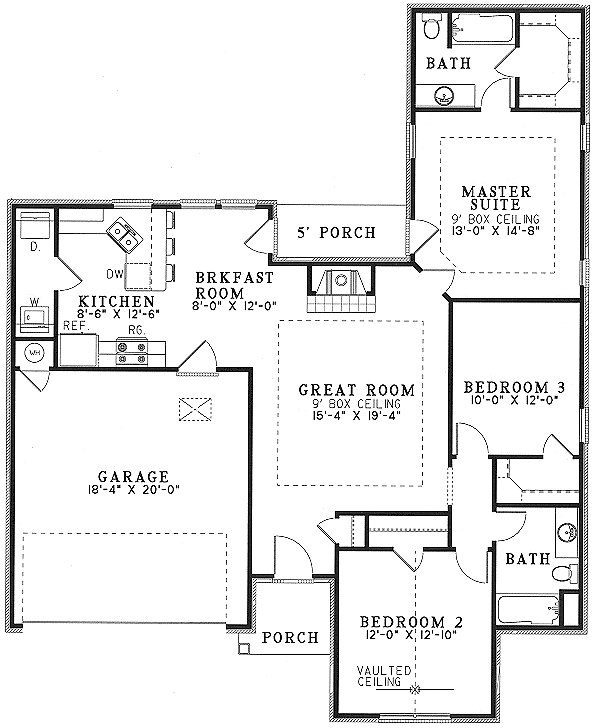

Main Level
Main Level

Plan 59506ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59506ND: Centralized Great Room Plan - Floor Plan - Main Level - Traditional

Plan Details

  • This home plan has been given a traditional design that focuses on today's active lifestyles. The plan is designed around a centralized great room that provides easy access to all sections of the home plan, including living and bedroom areas.
  • A breakfast room more practical for quick family meals replaces the formal dining room for those occasions when time is at a premium.
  • A secondary bedroom features a vaulted ceiling and a large, arched window.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

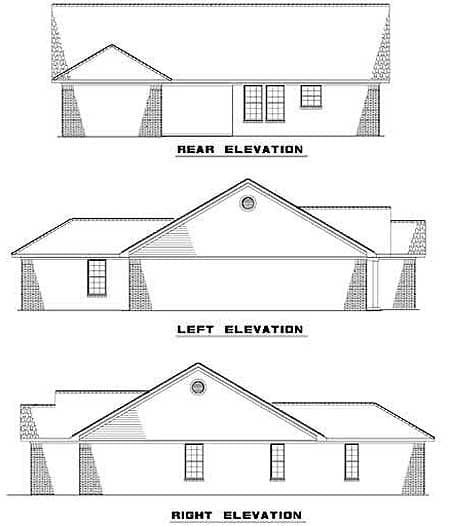

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,344 sq. ft.

1st Floor

1,344 sq. ft.

Porch, Combined

111 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

56' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

367 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,344 sq. ft.

1st Floor

1,344 sq. ft.

Porch, Combined

111 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

56' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

367 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Master Suite - 1st Floor
