Plan 52441WM

Charming 2-Bed Cottage with Open Living and Vaulted Ceilings

Heated S.F.
660
Beds
2
Baths
2
Stories
1

Floor Plan

Plan 52441WM

Main Level
Main Level

Plan 52441WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

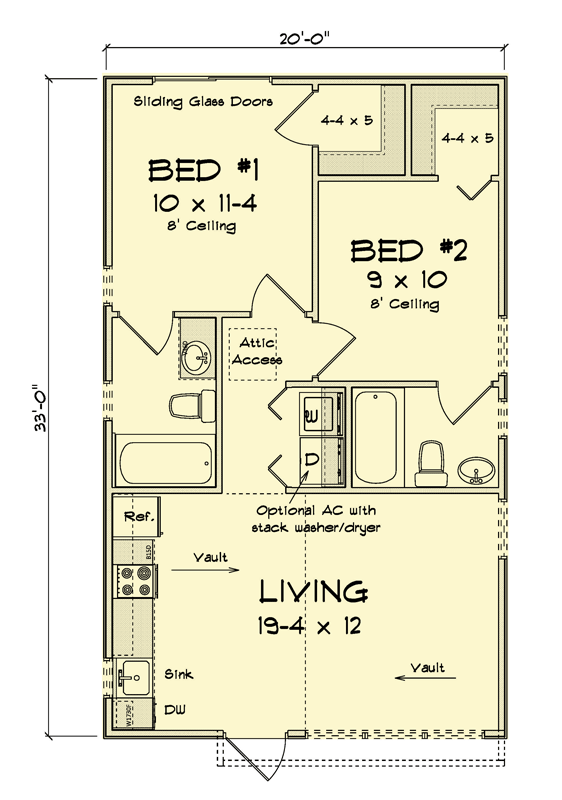

Plan 52441WM: Charming 2-Bed Cottage with Open Living and Vaulted Ceilings - Floor Plan - Main Level

Plan Details

  • This compact and cozy 660 sq. ft. one-story cottage features 2 bedrooms, 2 full baths, and a classic front-entry layout with charming curb appeal.
  • Step through the front door into a vaulted open-concept living area that seamlessly combines kitchen, dining, and lounging zones, all under 8’ ceilings that open upward for added spaciousness.
  • The efficient kitchen features a full appliance wall with sink and dishwasher, with easy access to the adjacent living area, making entertaining effortless in this thoughtfully designed space.

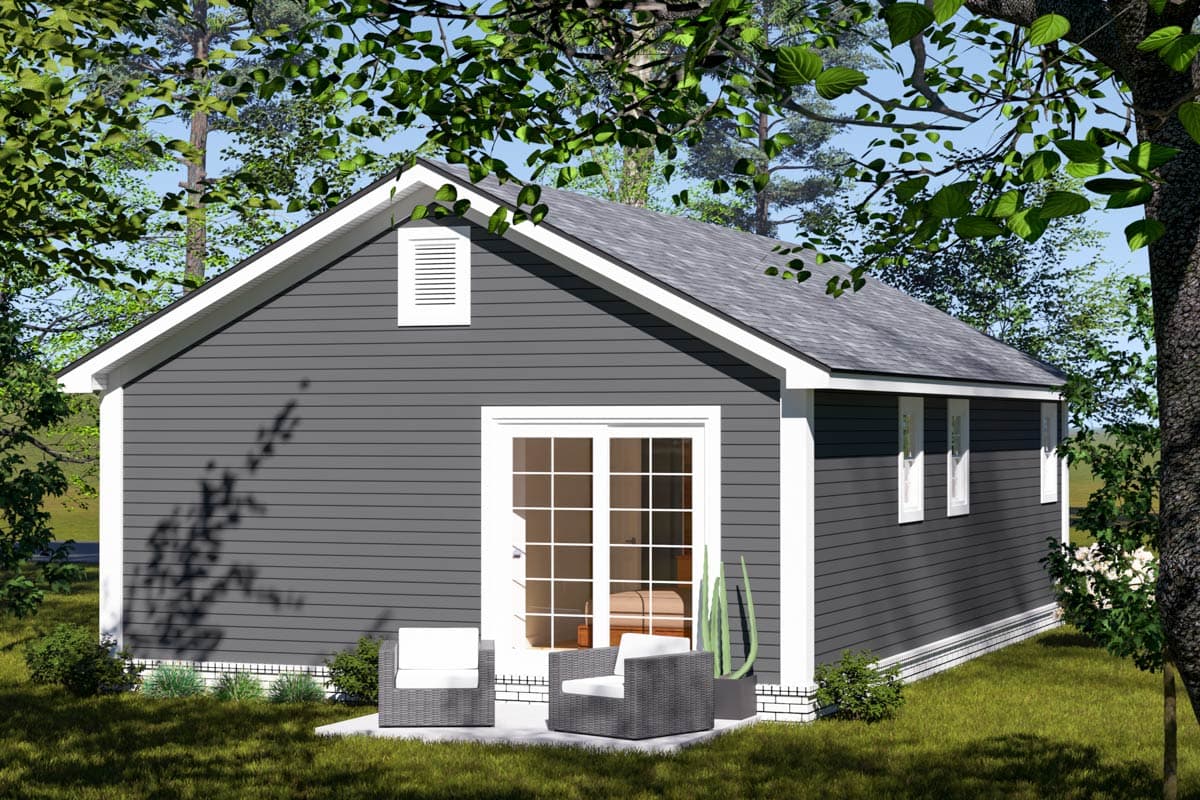

  • Both bedrooms are placed in the rear of the home for quiet privacy, with Bedroom 1 offering direct access to the outdoors via sliding glass doors and both rooms sharing a full bath conveniently located in the center of the plan.

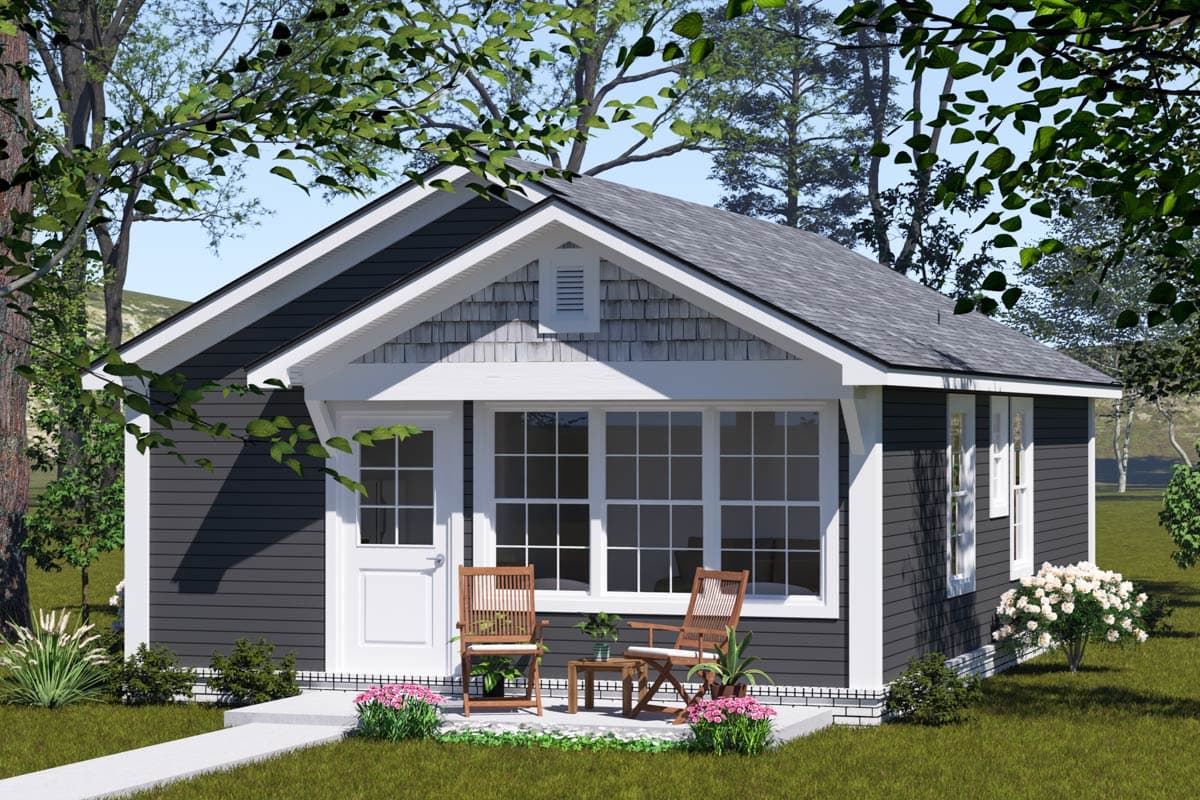

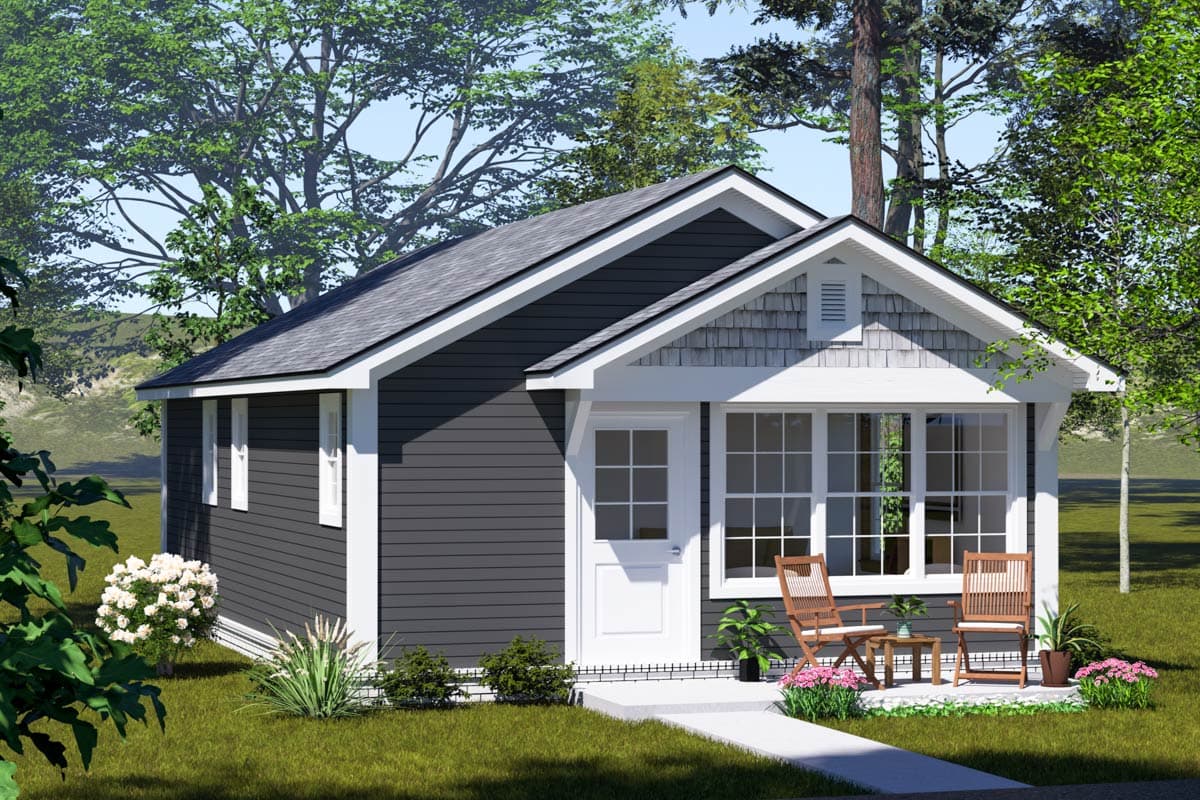

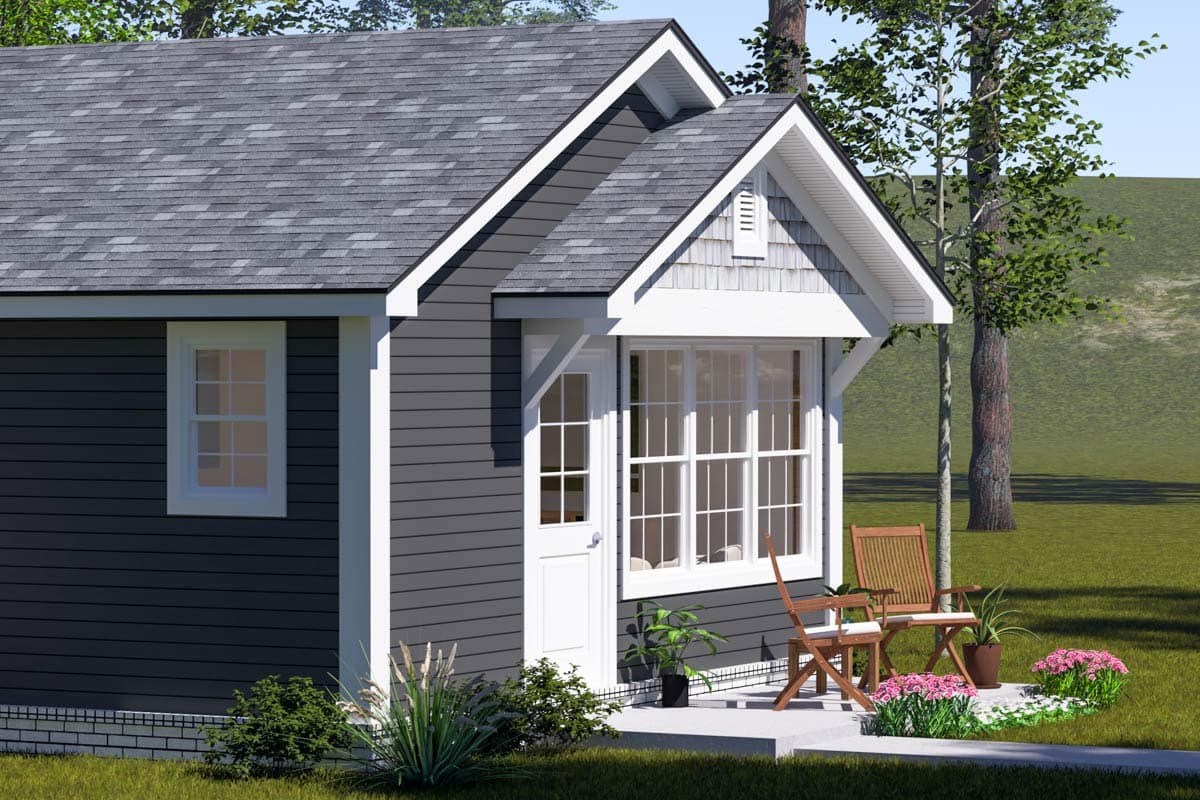

  • Enjoy the outdoors from the inviting front patio, ideal for morning coffee or evening relaxation, framed by flower beds and set beneath a wide gabled roof.
  • The plan is designed with efficiency in mind and includes attic access and a stacked washer/dryer space, maximizing livability in a compact footprint.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

660 sq. ft.

1st Floor

660 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

33' 0"

Roof Details

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

660 sq. ft.

1st Floor

660 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

33' 0"

Roof Details

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
