Plan 52498WM

Charming 3-Bedroom Craftsman Cottage House Plan with Main-Level Master

Heated S.F.
1,288
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 52498WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52498WM

M-F 9am-5pm EST |

1-203-761-8500

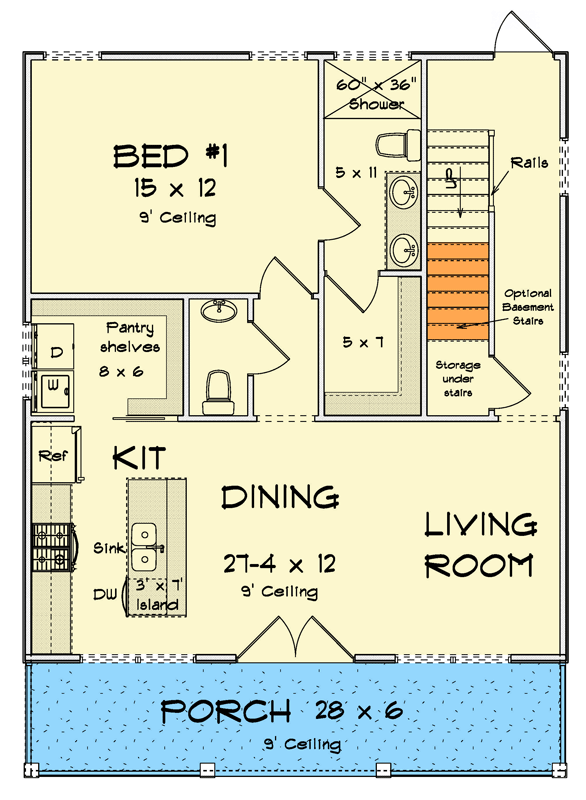

Main Level

Plan 52498WM: Charming 3-Bedroom Craftsman Cottage House Plan with Main-Level Master - Floor Plan - Main Level - Bungalow, Cottage, Craftsman

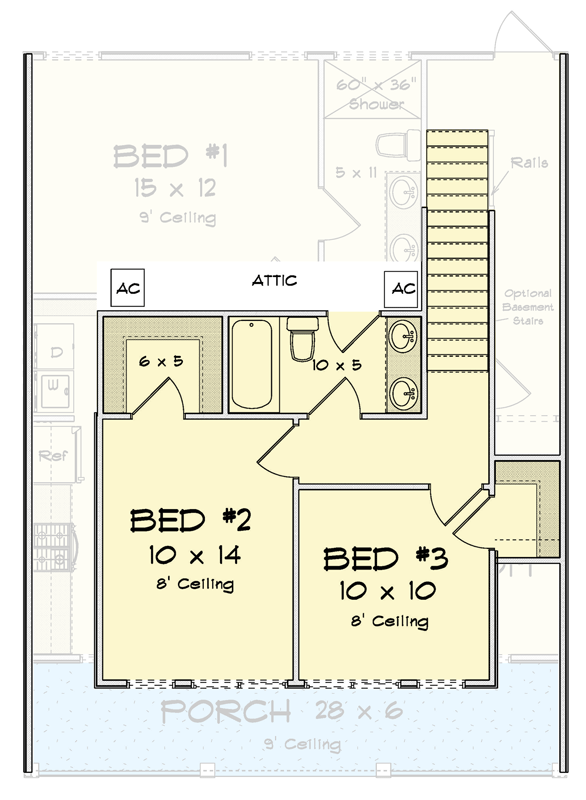

2nd Floor

Plan 52498WM: Charming 3-Bedroom Craftsman Cottage House Plan with Main-Level Master - Floor Plan - 2nd Floor - Bungalow, Cottage, Craftsman

Plan Details

  • This charming 1,288 sq. ft. Craftsman Cottage house plan features 3 bedrooms, 2 full bathrooms, and 1 half bathroom, presenting a timeless aesthetic with inviting curb appeal.

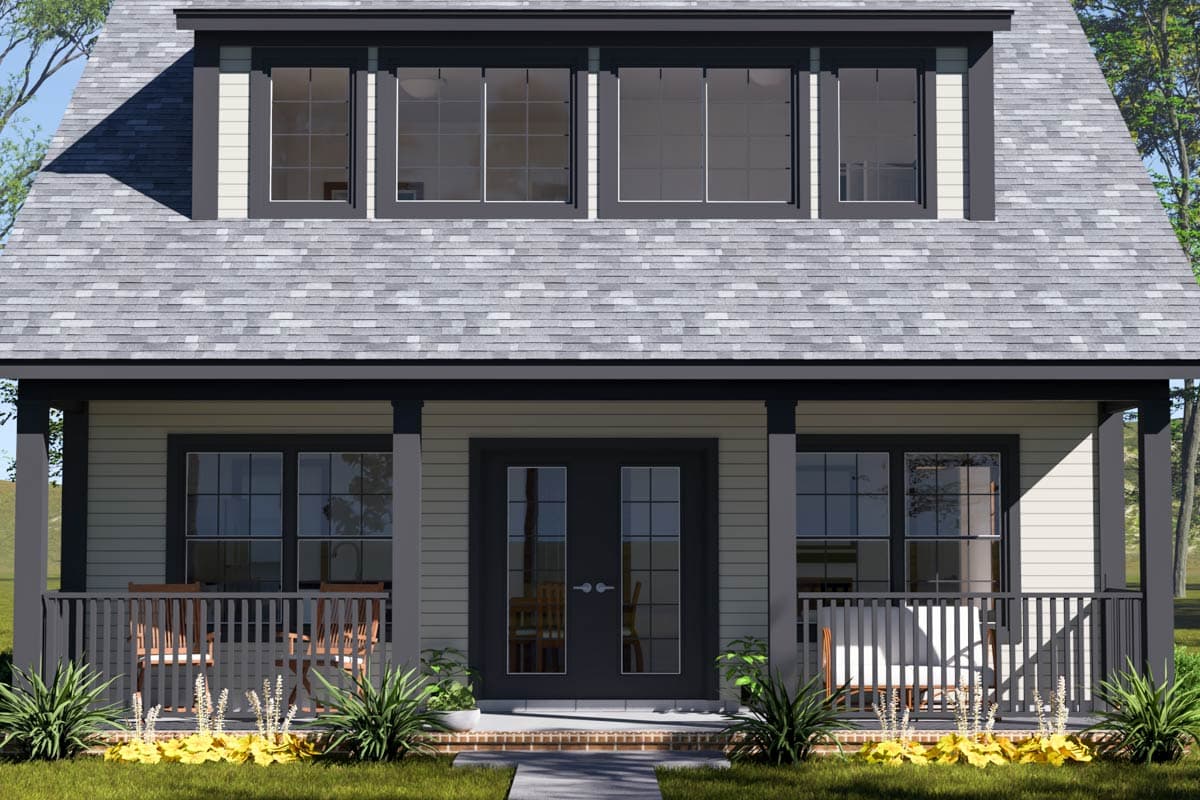

  • Step through the inviting double front doors into a thoughtfully designed interior, where a convenient main-level laundry and a spacious butler walk-in pantry enhance daily living.

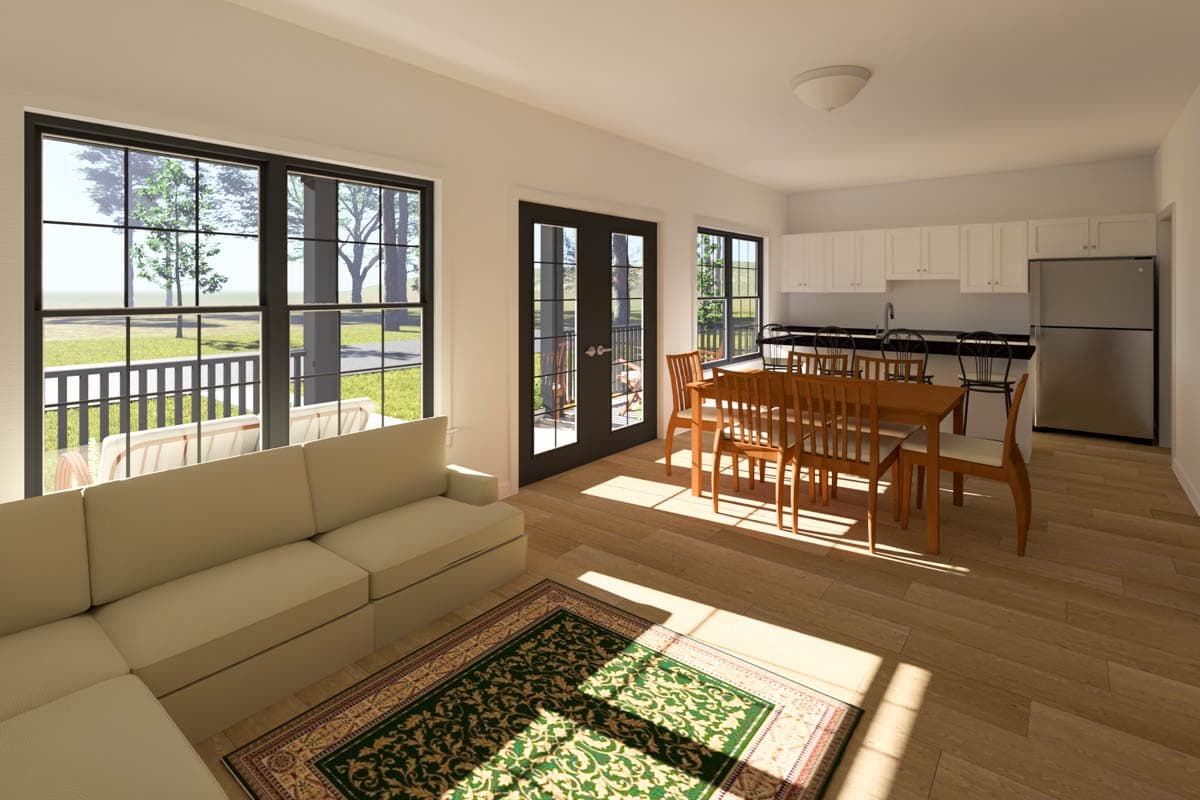

  • The main living areas flow seamlessly, featuring a well-appointed kitchen with a dedicated breakfast nook, perfect for casual meals, and the impressive butler walk-in pantry provides ample storage and functional elegance.
  • Retreat to the luxurious main-level master suite, offering a private sanctuary, while the split bedroom layout ensures comfort and privacy for secondary bedrooms located on the upper floor.

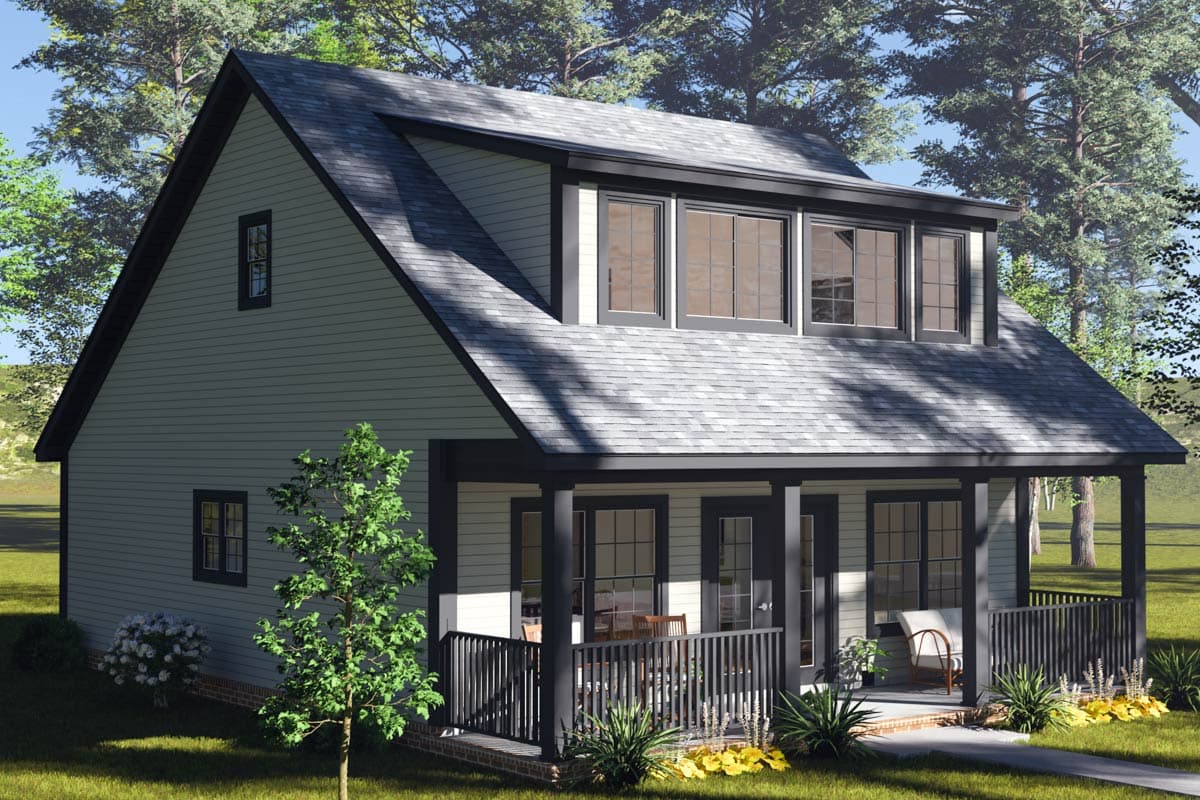

  • A generous 168 sq. ft. covered front porch extends a warm welcome, providing an idyllic setting for enjoying morning coffee or evening sunsets in comfort.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

877 sq. ft.

2nd Floor

411 sq. ft.

Porch, Front

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

37' 4"

Max Ridge Height

23' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

877 sq. ft.

2nd Floor

411 sq. ft.

Porch, Front

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

37' 4"

Max Ridge Height

23' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
