Plan 970022VC

Charming 3 or 4 Bed Vacation Home with Large Screen Porch

Heated S.F.
2,454
Beds
3 - 4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 970022VC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 970022VC

M-F 9am-5pm EST |

1-203-761-8500

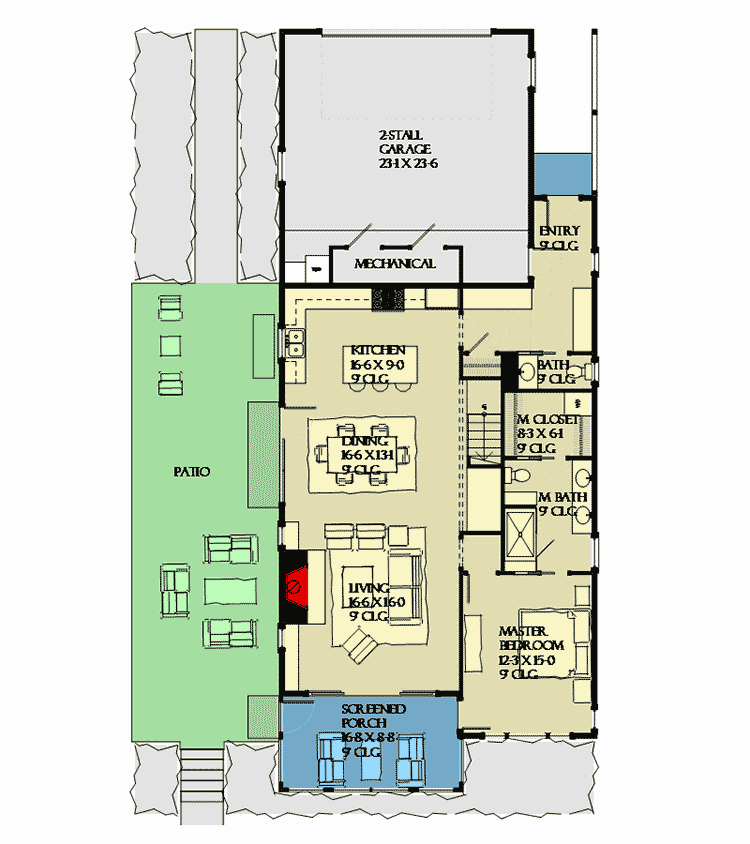

Main Level

Plan 970022VC: Charming 3 or 4 Bed Vacation Home with Large Screen Porch - Floor Plan - Main Level - Coastal, Cottage, Vacation

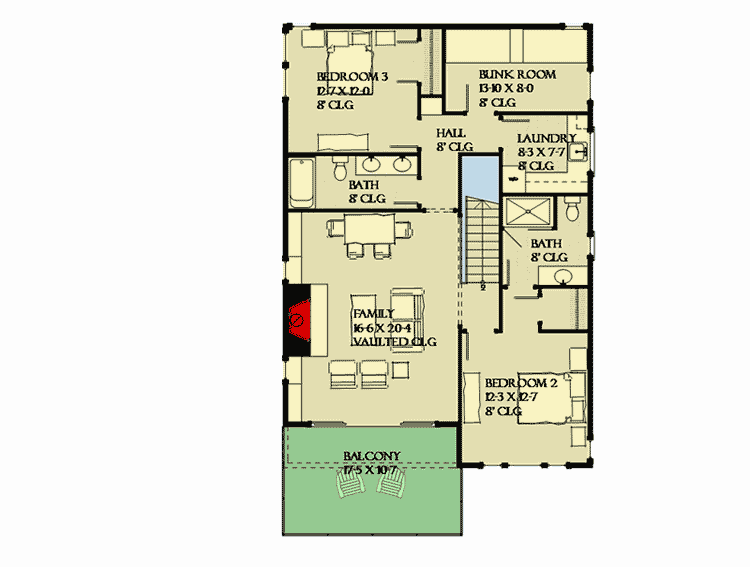

2nd Floor

Plan 970022VC: Charming 3 or 4 Bed Vacation Home with Large Screen Porch - Floor Plan - 2nd Floor - Coastal, Cottage, Vacation

Plan Details

  • This coastal favorite is perfect for a narrow lot vacation home.
  • The simple detailing and indoor-outdoor living lend itself well to many climates.
  • An open and spacious living, dining, and kitchen are great for entertaining. Direct access to the front or rear porch, grilling patio, and potential pool is a breeze. Also on the main floor is the master suite complete with his and hers sinks, walk-in shower, and stackable laundry.
  • The second floor consists of a dedicated guest suite, additional bedroom, and full bunk room.
  • A complete laundry room and additional family game room are perfect for weekend visitors.

What's Included

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

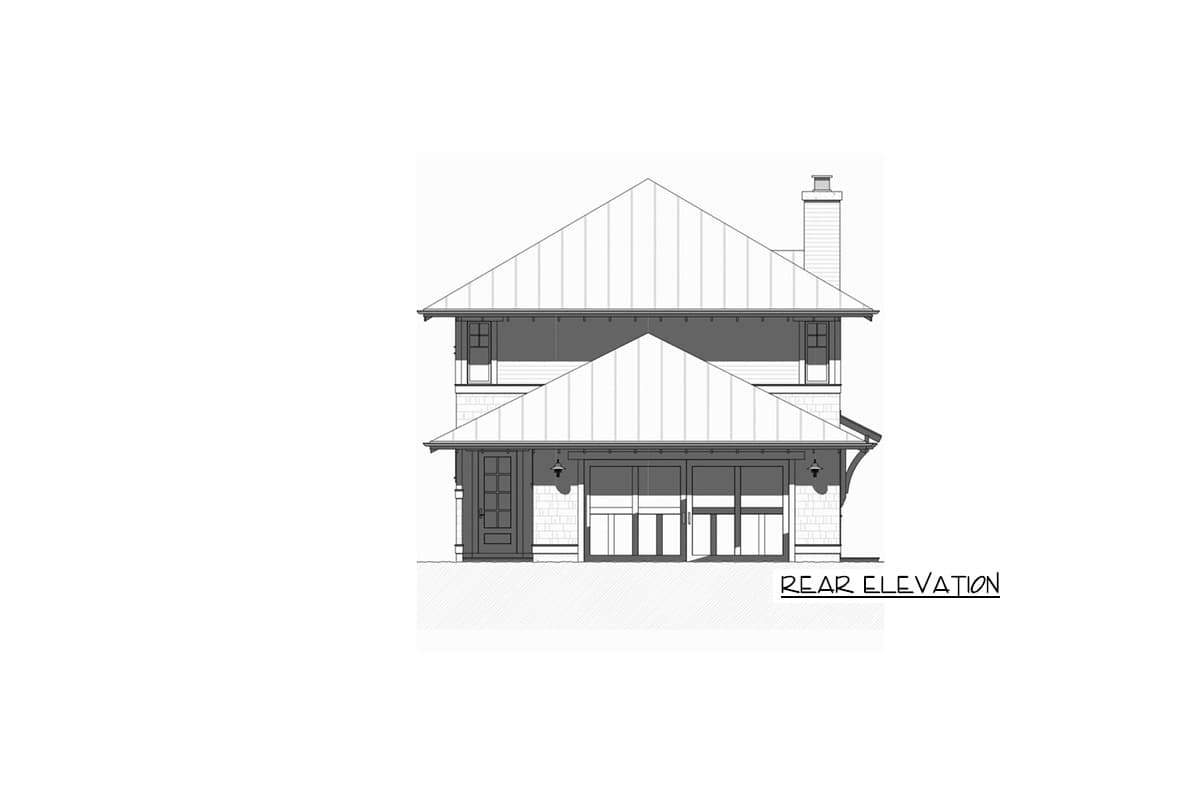

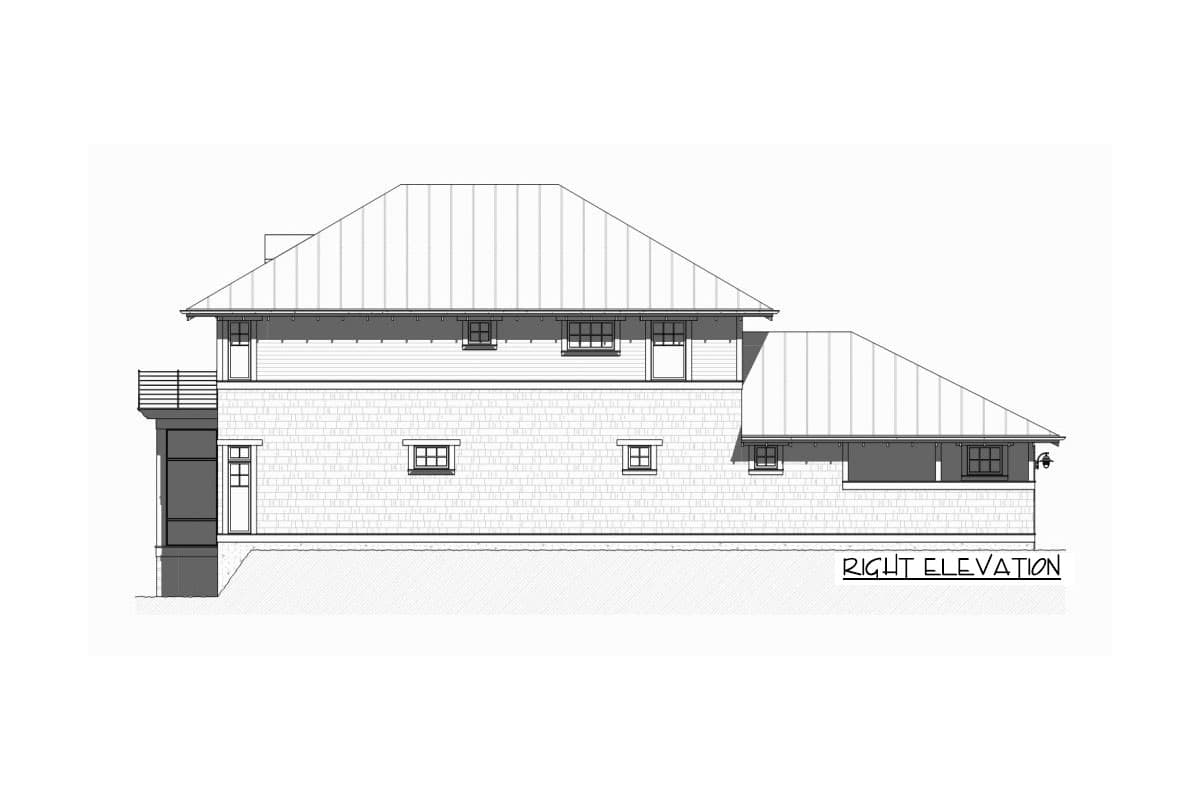

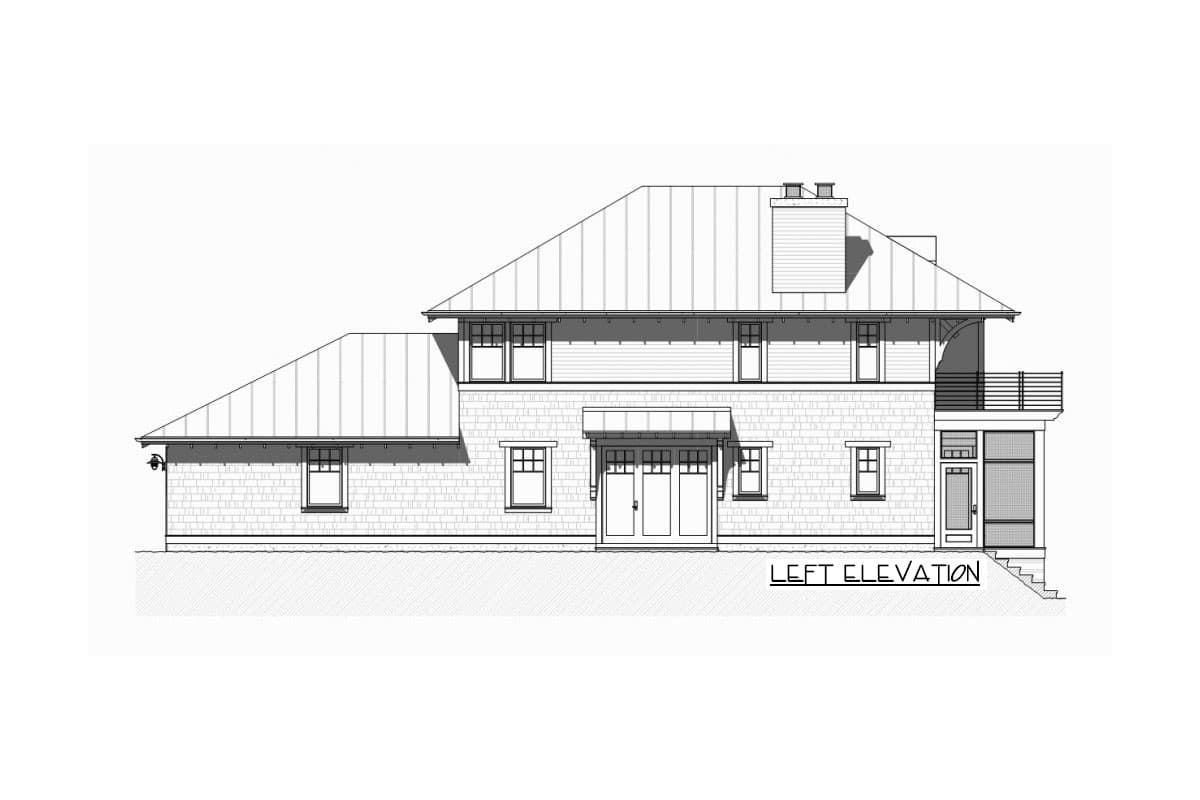

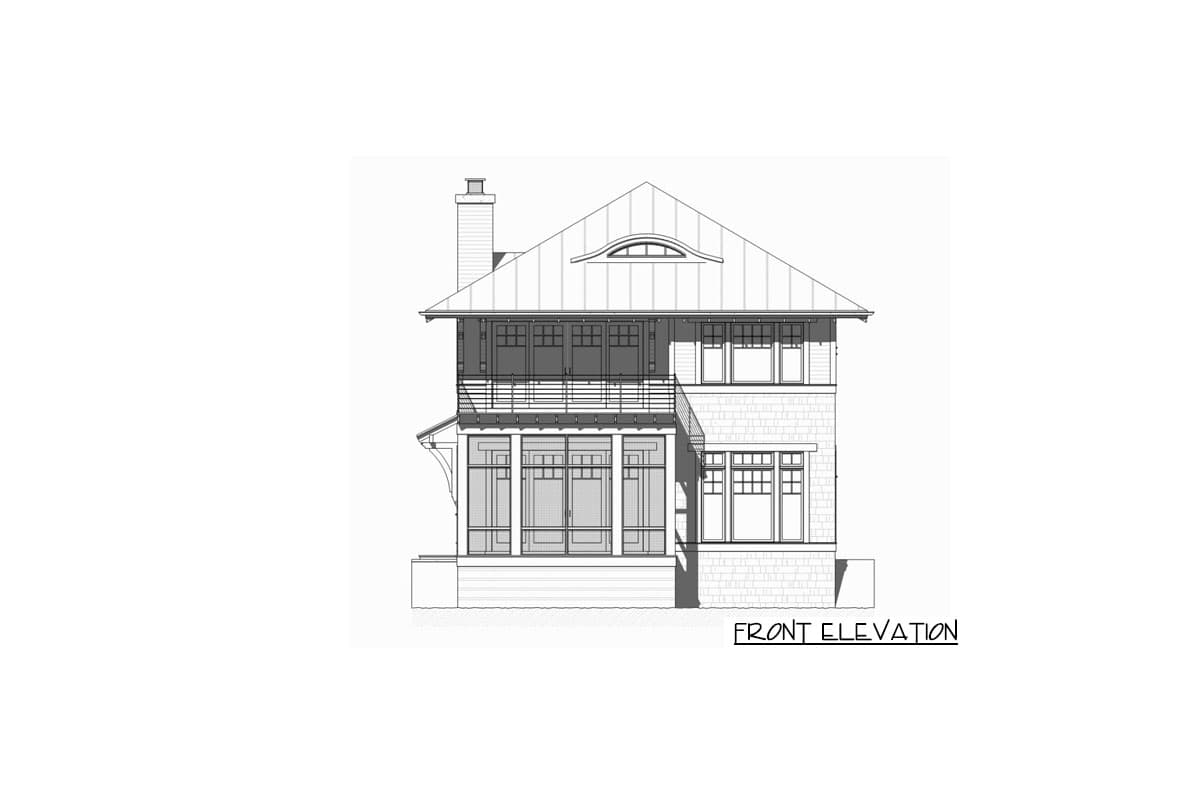

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,454 sq. ft.

1st Floor

1,276 sq. ft.

2nd Floor

1,178 sq. ft.

Screened Porch

145 sq. ft.

Balcony / Veranda

185 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

72' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Coastal

Cottage

Vacation

Special Features

Bunk Room

Game/Rec Room

Laundry - Upstairs

Master Suite - 1st Floor
