Charming 4 Bed Craftsman Cottage Plan with Main Level Master

Heated S.F.
1,624
Beds
4
Baths
3
Stories
2

Floor Plan

Plan 52473WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52473WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

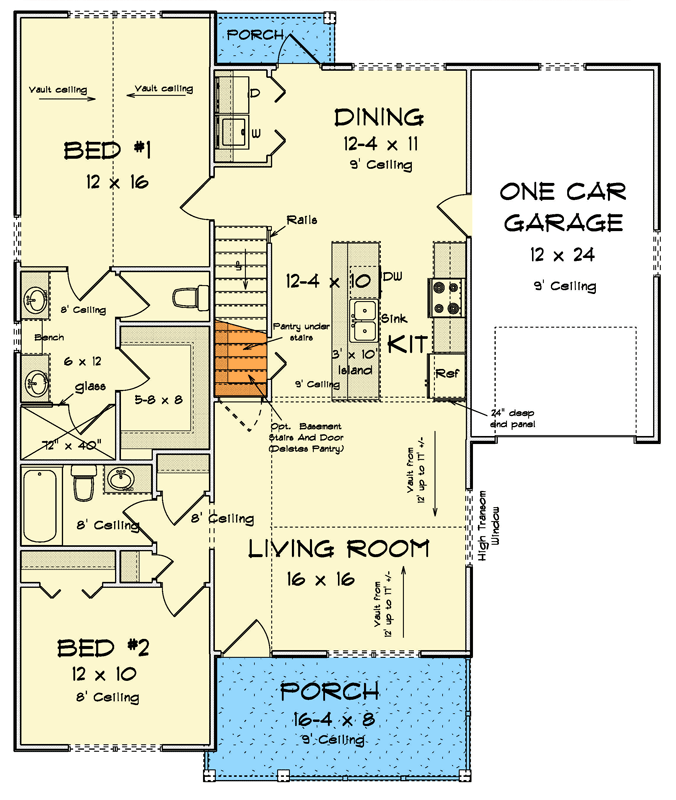

Plan 52473WM: Charming 4 Bed Craftsman Cottage Plan with Main Level Master - Floor Plan - Main Level - Cottage, Craftsman, Traditional

2nd Floor

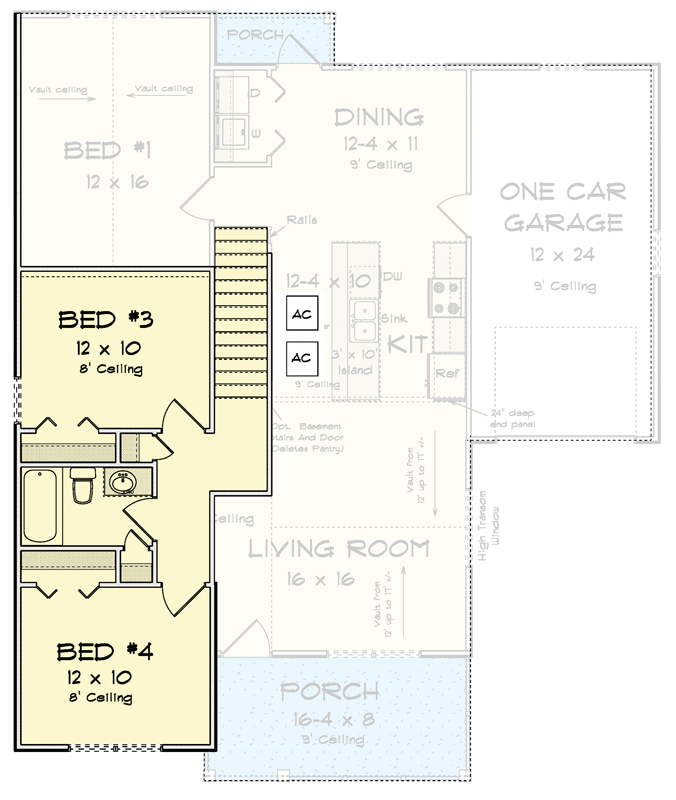

Plan 52473WM: Charming 4 Bed Craftsman Cottage Plan with Main Level Master - Floor Plan - 2nd Floor - Cottage, Craftsman, Traditional

Plan Details

  • This charming 1,624 sq. ft. Craftsman Cottage house plan features 4 bedrooms, 3 full bathrooms, and an integrated 12' x 24' one-car garage, presenting a welcoming facade with classic architectural details.
  • Step inside from the inviting 132 sq. ft. front porch into an airy, open-concept living space, where the living room, featuring a vaulted ceiling, seamlessly connects to the dining area and kitchen, perfect for everyday living and informal gatherings.
  • The well-appointed kitchen boasts a 3' x 10' island and a convenient butler's walk-in pantry, providing ample storage and prep space, while the adjacent dining area opens to a cozy 26 sq. ft. rear porch for morning coffee or evening relaxation.
  • Designed with a thoughtful split-bedroom layout, the main floor features a private master suite with a vaulted ceiling, offering a serene retreat, while a second bedroom on this level provides flexibility. Two additional bedrooms upstairs share a full bath, ideal for family or guests.
  • Enjoy outdoor moments on both the welcoming 132 sq. ft. front porch, perfect for greeting guests, and the more secluded 26 sq. ft. rear porch, offering a quiet spot for relaxation.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,624 sq. ft.

1st Floor

1,211 sq. ft.

2nd Floor

413 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

26 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,624 sq. ft.

1st Floor

1,211 sq. ft.

2nd Floor

413 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

26 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
