Plan 59706ND

Charming 4 Bedrooms

2,007 4 2 1 2
print
Pageloader

Charming 4 Bedrooms

Plan 59706ND

  • 2,007

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

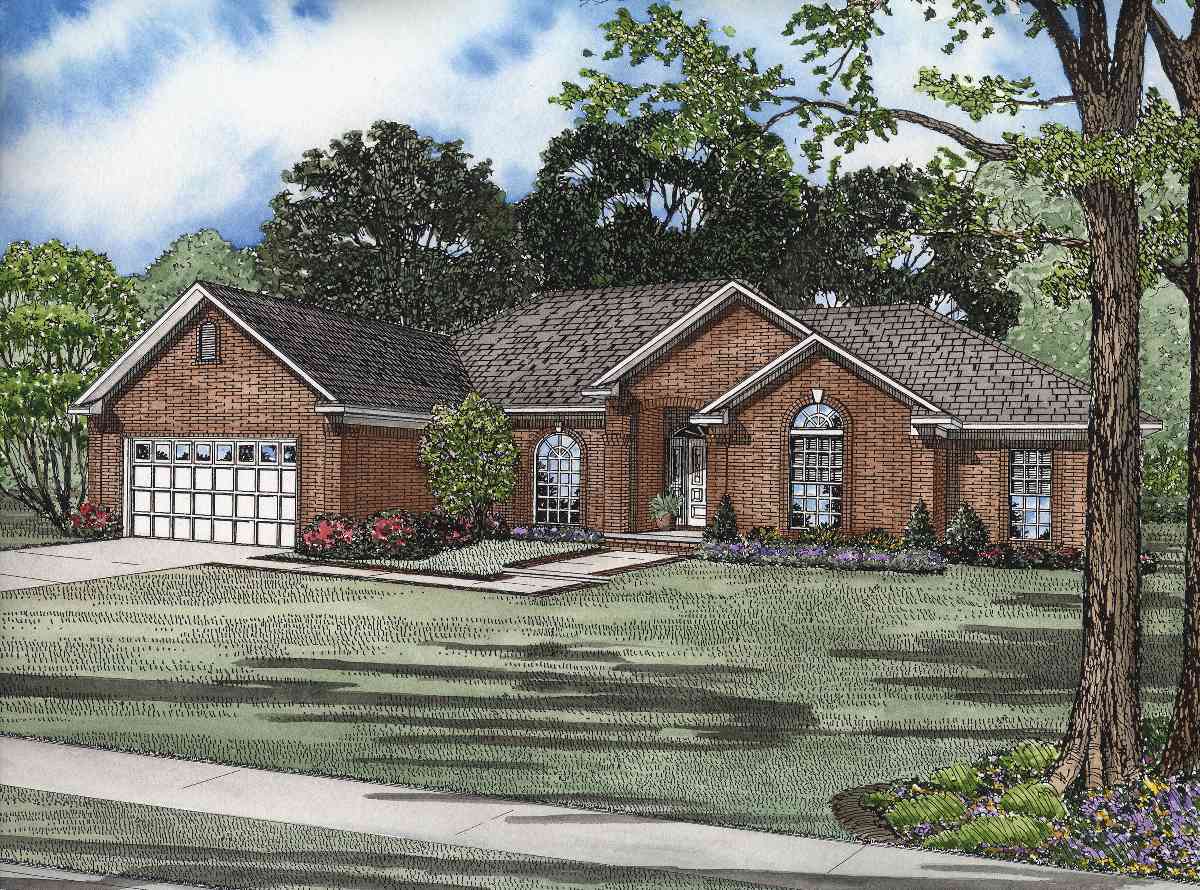

  • The charming exterior of this 4 bedroom home plan has an attractive brick exterior.
  • Entertain your guests in the great room with fireplace, or the dining room on more formal occasions.
  • The well-planned kitchen with all its amenities will definitely impress the family chef, and the rear grilling porch lends outdoor options.
  • This clever split floor plan design allows for privacy and comfort in the impressive master suite while the kids or guests stay on the other side of this home.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

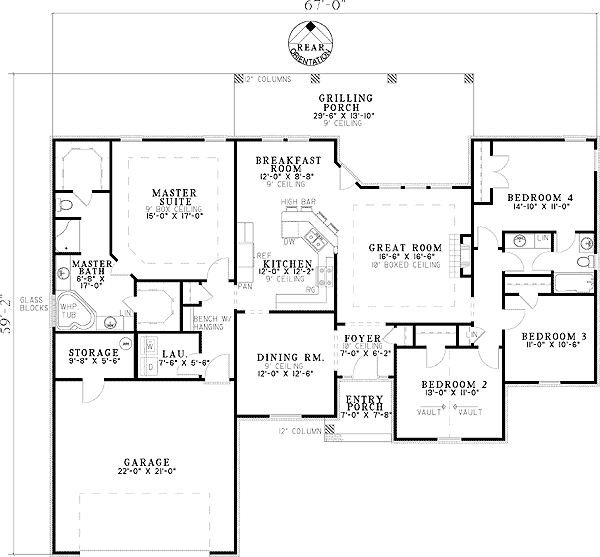

Charming 4 Bedrooms - 59706ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,007 sq. ft.
  • 1st Floor: 2,007 sq. ft.
  • Porch, Combined: 377 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 59' 2"
  • Max ridge height: 21' 2"

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Charming 4 Bedrooms

  • 2,007

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $610
  • 5 Sets $680
  • 8 Sets $795
  • Reproducible Set $1,225
  • PDF - single-use $1,225
  • CAD $1,885
  • View all purchase option online

About This Plan

  • The charming exterior of this 4 bedroom home plan has an attractive brick exterior.
  • Entertain your guests in the great room with fireplace, or the dining room on more formal occasions.
  • The well-planned kitchen with all its amenities will definitely impress the family chef, and the rear grilling porch lends outdoor options.
  • This clever split floor plan design allows for privacy and comfort in the impressive master suite while the kids or guests stay on the other side of this home.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,007 sq. ft.
  • 1st Floor: 2,007 sq. ft.
  • Porch, Combined: 377 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 59' 2"
  • Max ridge height: 21' 2"

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Plan 59706ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59706ND
|
