Plan 59877ND Charming and Comfortable Narrow Lot

1,370 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Charming and Comfortable Narrow Lot

Plan 59877ND

  • 1,370

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Charming and comfortable describe this narrow lot home plan. An eight-foot porch leads into a foyer open to the great room detailed with a ten foot boxed ceiling and cozy fireplace.
  • The kitchen has a bar counter adjoining the dining room spacious enough for a large family gathering.
  • Privacy will be appreciated in the elegant Master suite also enhanced with a boxed ceiling and complete with a large walk-in closet, corner whirlpool tub, separate shower and double vanity.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

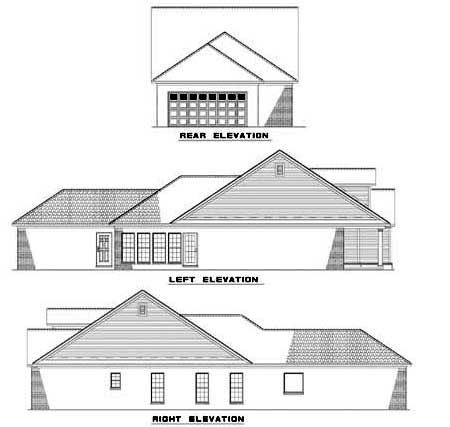

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

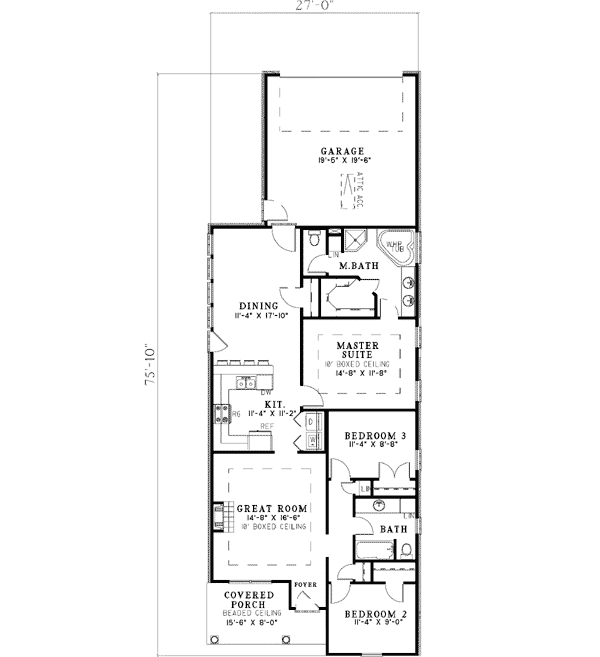

Charming and Comfortable Narrow Lot - 59877ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,370 sq. ft.
  • 1st Floor: 1,370 sq. ft.
  • Porch, Front: 133 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 75' 10"
  • Max ridge height: 23' 3"

Garage

  • Type: Attached
  • Area: 344 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Charming and Comfortable Narrow Lot

  • 1,370

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • 5 Sets $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single Build $1,400
  • View all purchase option online

About This Plan

  • Charming and comfortable describe this narrow lot home plan. An eight-foot porch leads into a foyer open to the great room detailed with a ten foot boxed ceiling and cozy fireplace.
  • The kitchen has a bar counter adjoining the dining room spacious enough for a large family gathering.
  • Privacy will be appreciated in the elegant Master suite also enhanced with a boxed ceiling and complete with a large walk-in closet, corner whirlpool tub, separate shower and double vanity.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,370 sq. ft.
  • 1st Floor: 1,370 sq. ft.
  • Porch, Front: 133 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 75' 10"
  • Max ridge height: 23' 3"

Garage

  • Type: Attached
  • Area: 344 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
Plan 59877ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59877ND
|
