Plan 52059HZ

Charming Barndominium House Plan Featuring Three Bedrooms and Wraparound Porch

Heated S.F.
1,700
Beds
3
Baths
2
Stories
1
Cars
4

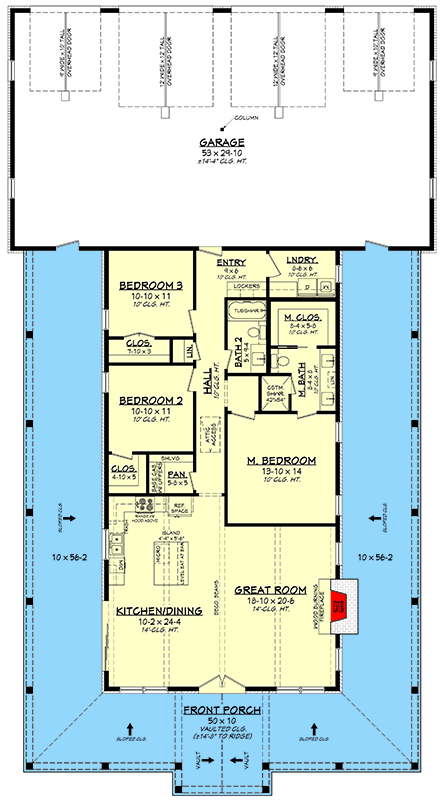

Floor Plan

Plan 52059HZ

Floor Plan 1

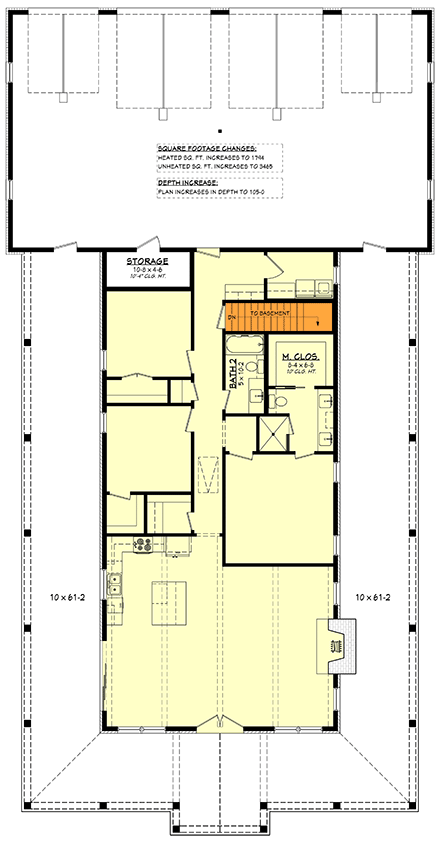

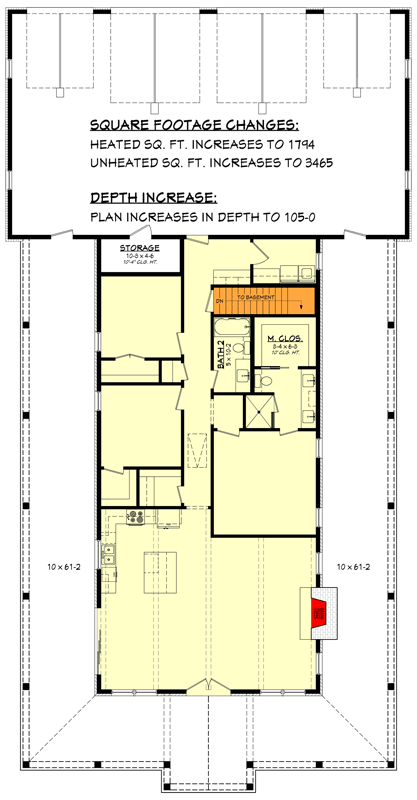

Basement Stairs Location
Basement Stairs Location

Plan 52059HZ

M-F 9am-5pm EST |

1-203-761-8500

Plan 52059HZ: Charming Barndominium House Plan Featuring Three Bedrooms and Wraparound Porch - Floor Plan - - Barndominium, Country, Farmhouse, Southern

Basement Stairs Location

Plan 52059HZ: Charming Barndominium House Plan Featuring Three Bedrooms and Wraparound Porch - Floor Plan - Basement Stairs Location - Barndominium, Country, Farmhouse, Southern

Plan Details

  • This 1,700 square foot Barndominium-style house plan offers three bedrooms, two bathrooms, and an expansive 1,650 square foot attached four-car garage.
  • The home welcomes you through an inviting, expansive wraparound porch that transitions into a sophisticated, light-filled interior.
  • The open-concept floor plan centers around a dramatic great room with soaring ceilings, flowing seamlessly into a kitchen equipped with a large island and a convenient walk-in pantry.
  • The private primary bedroom suite is situated for tranquility and includes a spacious walk-in closet and dedicated bathroom, while two additional bedrooms are clustered nearby for family or guests.
  • A functional mudroom and dedicated laundry area are positioned near the rear entry, providing a seamless transition from the massive garage space into the main living areas.
  • The classic exterior aesthetic is enhanced by stone accents and metal roofing, perfectly complemented by the generous outdoor living space provided by the covered wraparound porch.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

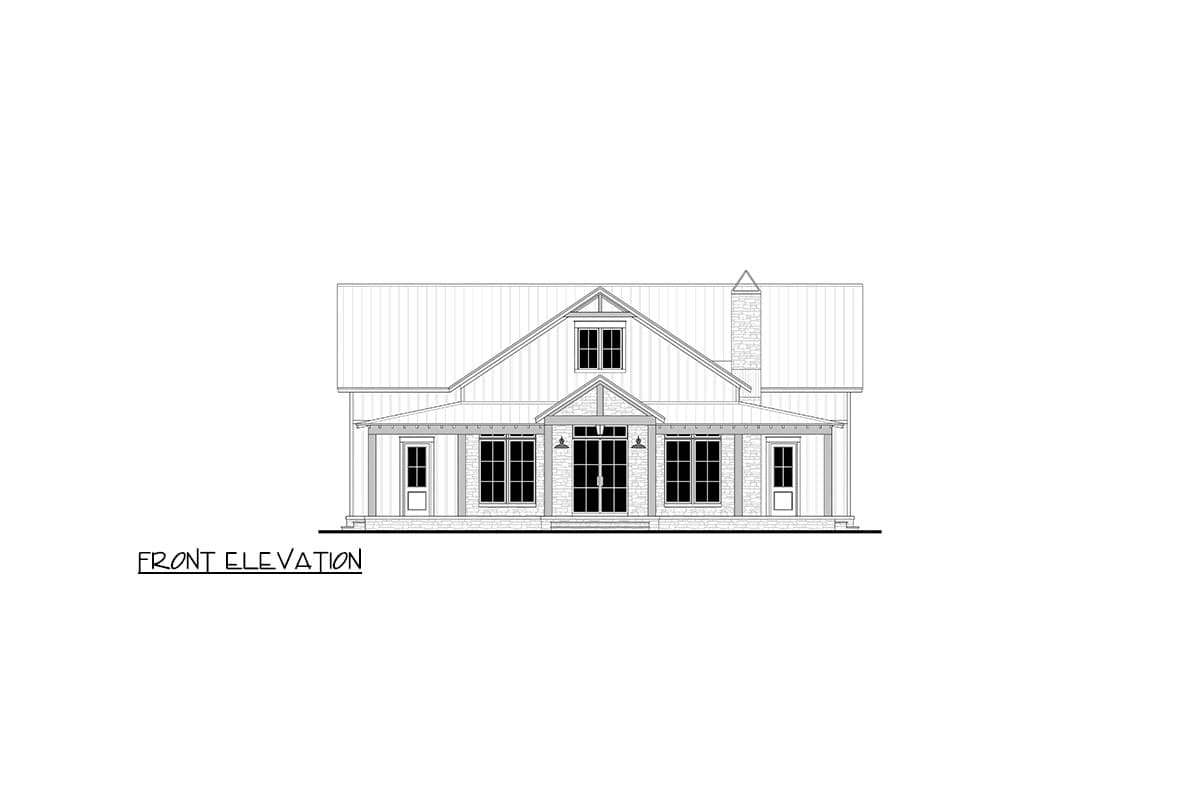

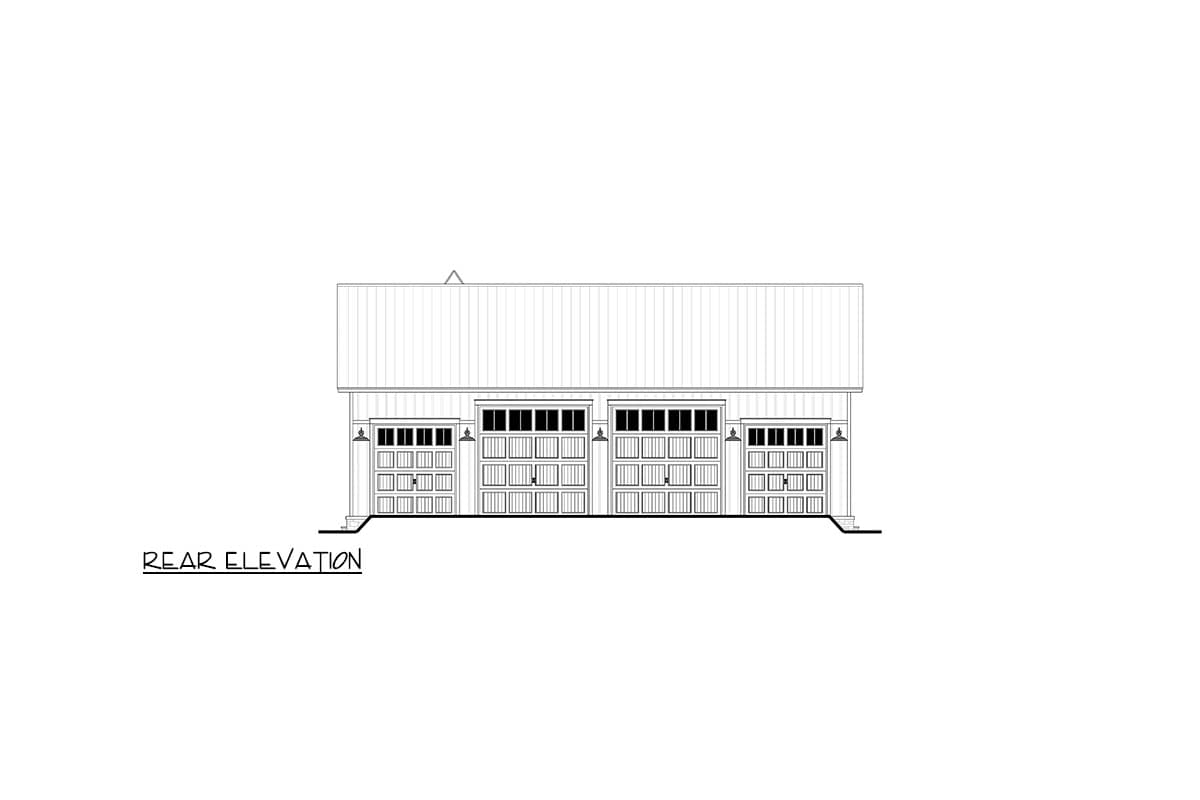

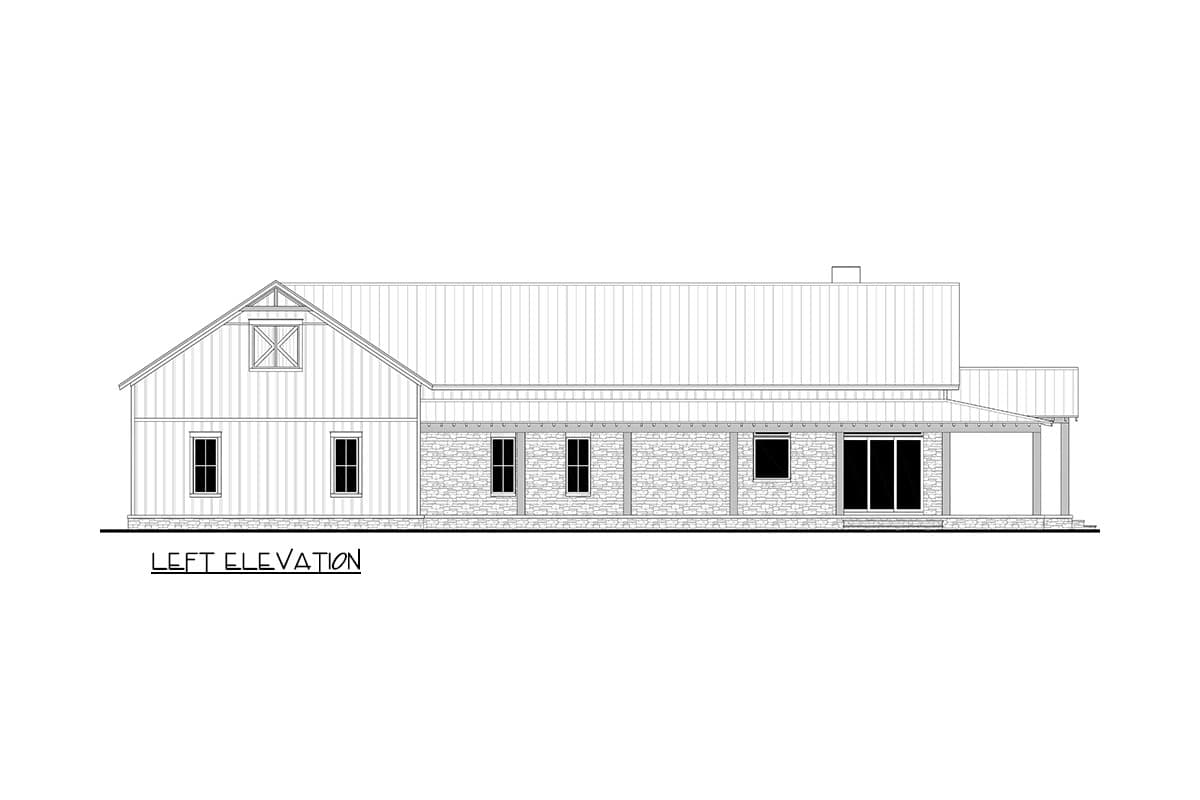

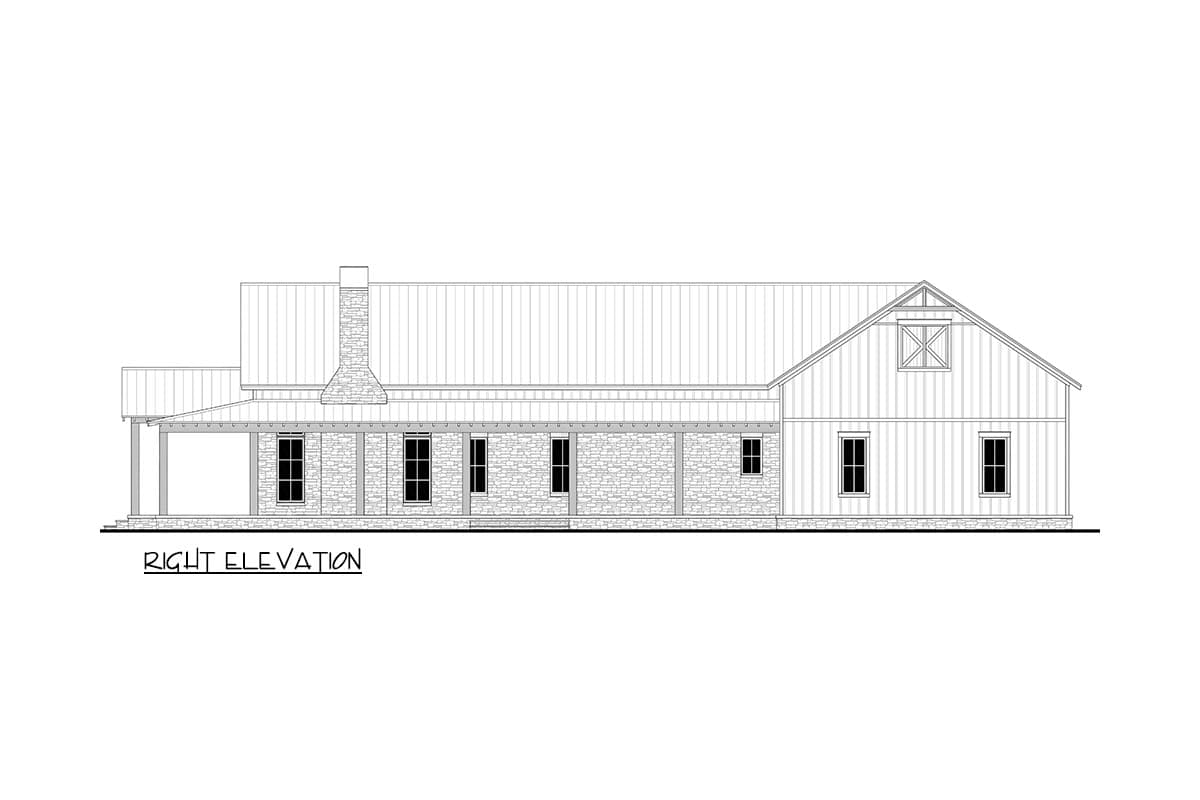

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,700 sq. ft.

1st Floor

1,700 sq. ft.

Porch, Front

1,659 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

100' 0"

Max Ridge Height

25' 0"

Garage

Type

Standard, Attached

Area

1650 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2.5 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Farmhouse

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections
