Plan 59062ND

Charming Cottage Design

Heated S.F.
1,265
Beds
2 - 3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 59062ND

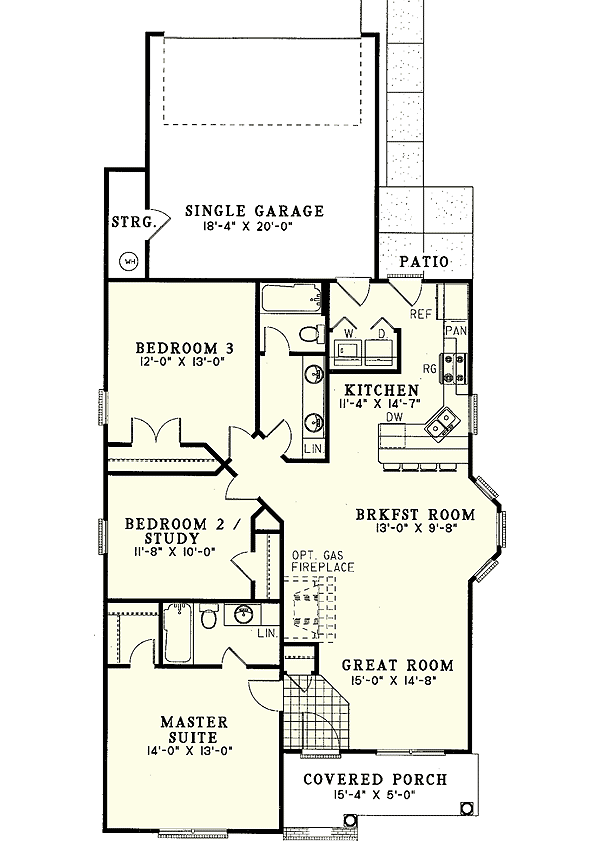

Main Level
Main Level

Plan 59062ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59062ND: Charming Cottage Design - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • This charming home has an adorable front porch to welcome your family and friends for an evening of entertainment.
  • The tiled entry opens to the great room with optional fireplace to remove the chill from winter evenings.
  • Breakfast traditions begin in the kitchen with a bright bay window for those sunny mornings.
  • The master suite has a walk in closet and private bath.
  • One bedroom can serve as an optional office.
  • Related Plan: Get an alternate version with house plan 70835MK.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,265 sq. ft.

1st Floor

1,265 sq. ft.

Porch, Front

77 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 4"

Depth

65' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

367 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
