Charming Cottage House Plan with Compact Layout and Bright Living

Name: Plan 52545WM: Charming Cottage House Plan with Compact Layout and Bright Living
Brand: Architectural Designs
SKU: 52545WM
Price: 871.25 USD
Availability: InStock

Heated S.F.

490

Beds

Baths

Stories

Floor Plan

Main Level

Plan Details

This one-bedroom, one-bathroom cottage offers 490 sq. ft. of heated living space all on the first floor, wrapped in a cozy shingle and country-inspired exterior.
A covered stoop welcomes you right to the front door, where you're greeted by big windows, airy nine-foot ceilings, and a sun-filled, open flow from front to back.
The kitchen sits at the heart of the home, blending seamlessly with the living area to create a comfortable gathering spot, complete with a center island for prep or casual dining.
The private bedroom wing sits just off the main living space, offering restful separation for the primary suite and convenient access to the bathroom.
A smartly positioned laundry area and built-in drop zone near the entry keep daily essentials tidy and organized without wasting any floor space.
Step outside to a rear outdoor patio, extending your living space into the backyard and inviting you to enjoy fresh air, morning coffee, or easy outdoor dining.

What's Included

Front elevation and construction notes
Rear and side elevations

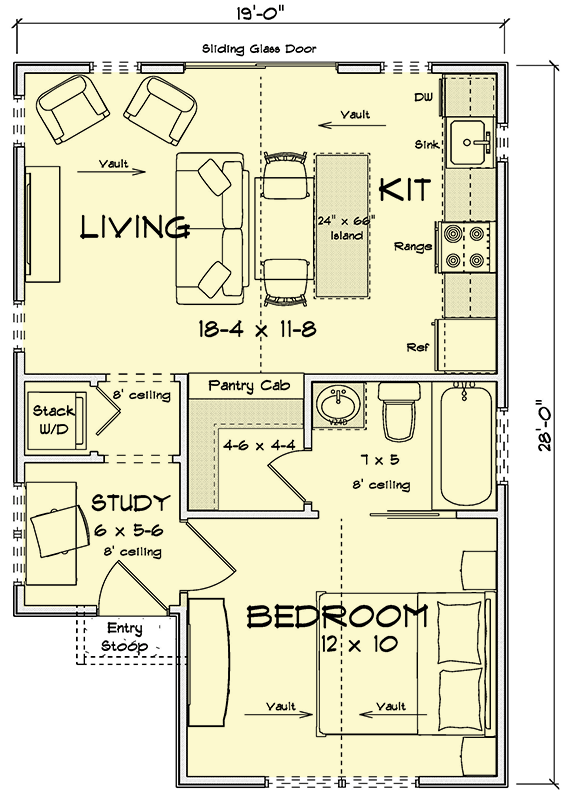

Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
