Plan 710327BTZ

Charming Cottage House Plan with Upstairs Bonus with Bath

Charming Cottage House Plan with Upstairs Bonus with Bath

Plan 710327BTZ

  • 2,148

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Beautiful in any season, this charming Cape Cod design features twin dormers, an inviting porch and countless engaging amenities inside.
  • A 12' ceiling in the foyer continues to the vaulted grand room; a warming fireplace invites gatherings.
  • A well-planned kitchen is a chef's delight, with dual ovens and serving bar to effortlessly cater to the bayed breakfast nook or columned dining room.
  • Nearby, two bedrooms (one with a darling window seat) enjoy private vanities and a shared bath.
  • The master suite is situated for privacy, hosting a sitting bay, vaulted bath and prominent walk-in closet.
  • Optional space is available upstairs and includes a bonus room, optional bath and extra storage space.

The plans include the following:

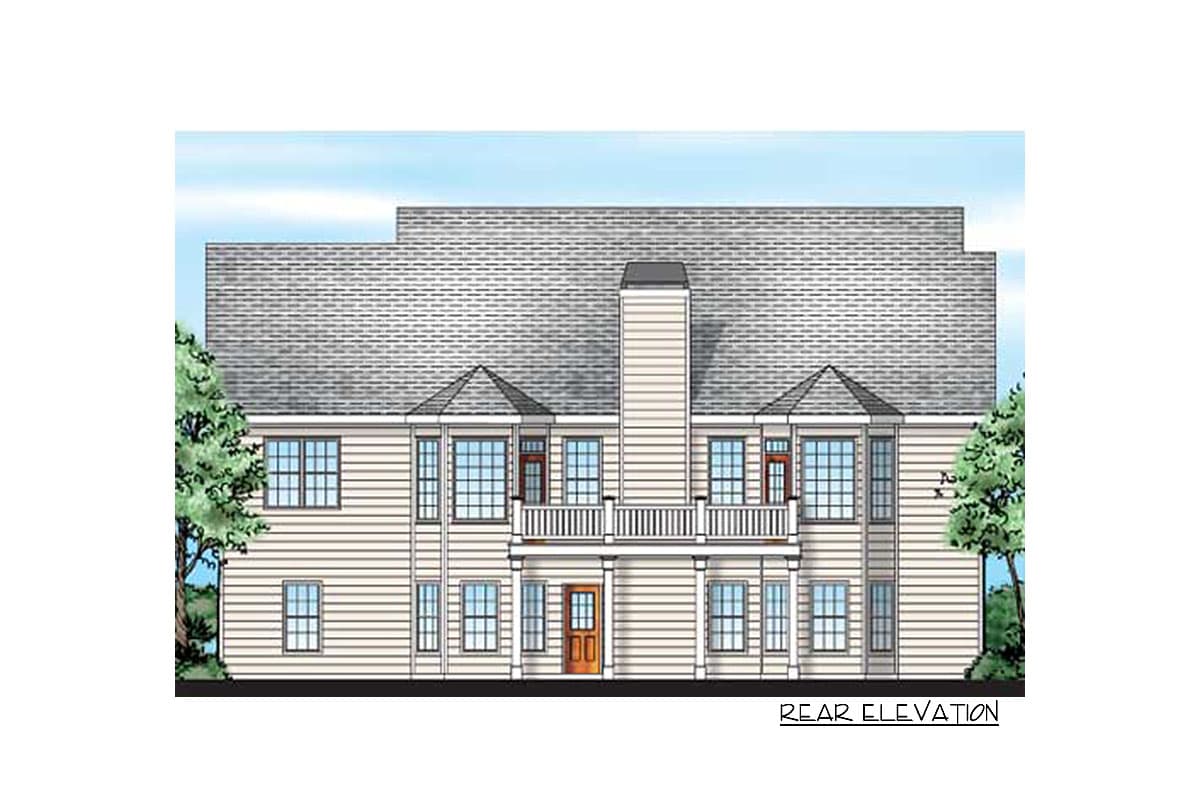

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Plan details



Charming Cottage House Plan with Upstairs Bonus with Bath

  • 2,148

    Heated s.f.

  • 3

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,235
  • 8 Sets $1,290
  • PDF - multi-use $1,380
  • Reproducible Set $1,445
  • CAD - multi-use $2,630
  • View all purchase option online

About This Plan

  • Beautiful in any season, this charming Cape Cod design features twin dormers, an inviting porch and countless engaging amenities inside.
  • A 12' ceiling in the foyer continues to the vaulted grand room; a warming fireplace invites gatherings.
  • A well-planned kitchen is a chef's delight, with dual ovens and serving bar to effortlessly cater to the bayed breakfast nook or columned dining room.
  • Nearby, two bedrooms (one with a darling window seat) enjoy private vanities and a shared bath.
  • The master suite is situated for privacy, hosting a sitting bay, vaulted bath and prominent walk-in closet.
  • Optional space is available upstairs and includes a bonus room, optional bath and extra storage space.

Floor Plans

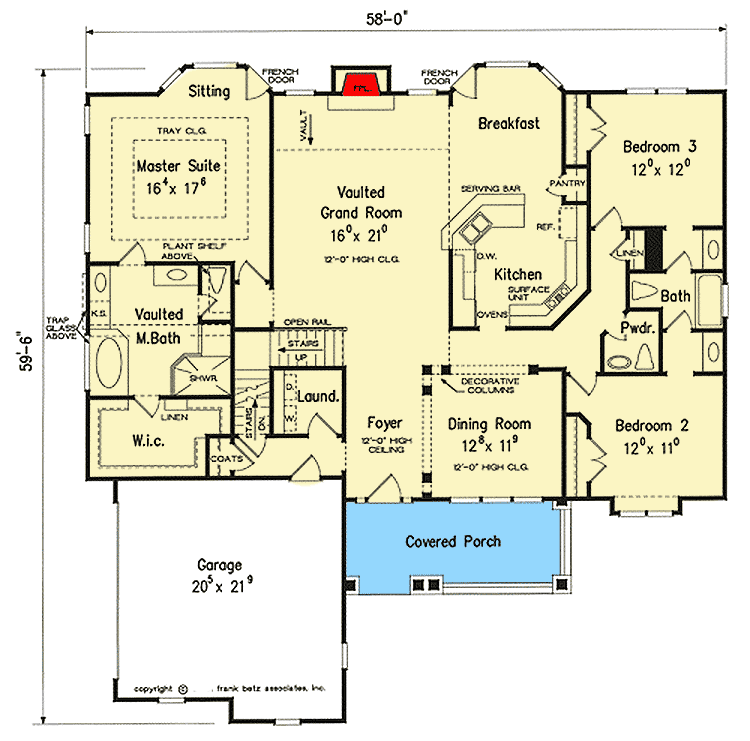

  • Main Level

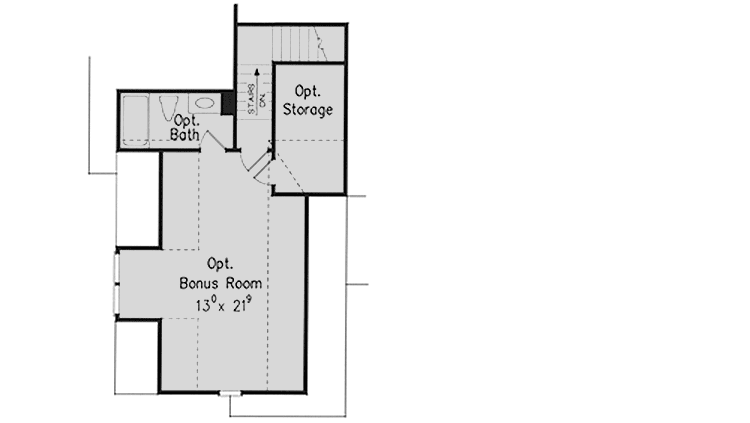

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,148 sq. ft.
  • 1st Floor: 2,148 sq. ft.
  • Bonus: 467 sq. ft.
  • Basement Unfinished: 2,148 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 0"
  • Depth: 59' 6"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Framing Type: Stick
