Plan 17677LV
Charming Craftsman Cottage
Heated S.F.
2,029
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • All the appeal of a charming cottage greets you as you walk up the path to the covered porch.
  • Only 40' wide, this cottage would fit well on a narrow lot.
  • All the bedrooms lie on the left side of the house with the master suite being placed in the rear for quiet.
  • The main living area of the home combines the kitchen, dining and family room for spectacular views.
  • A second floor bonus space can be finished to suit your needs.

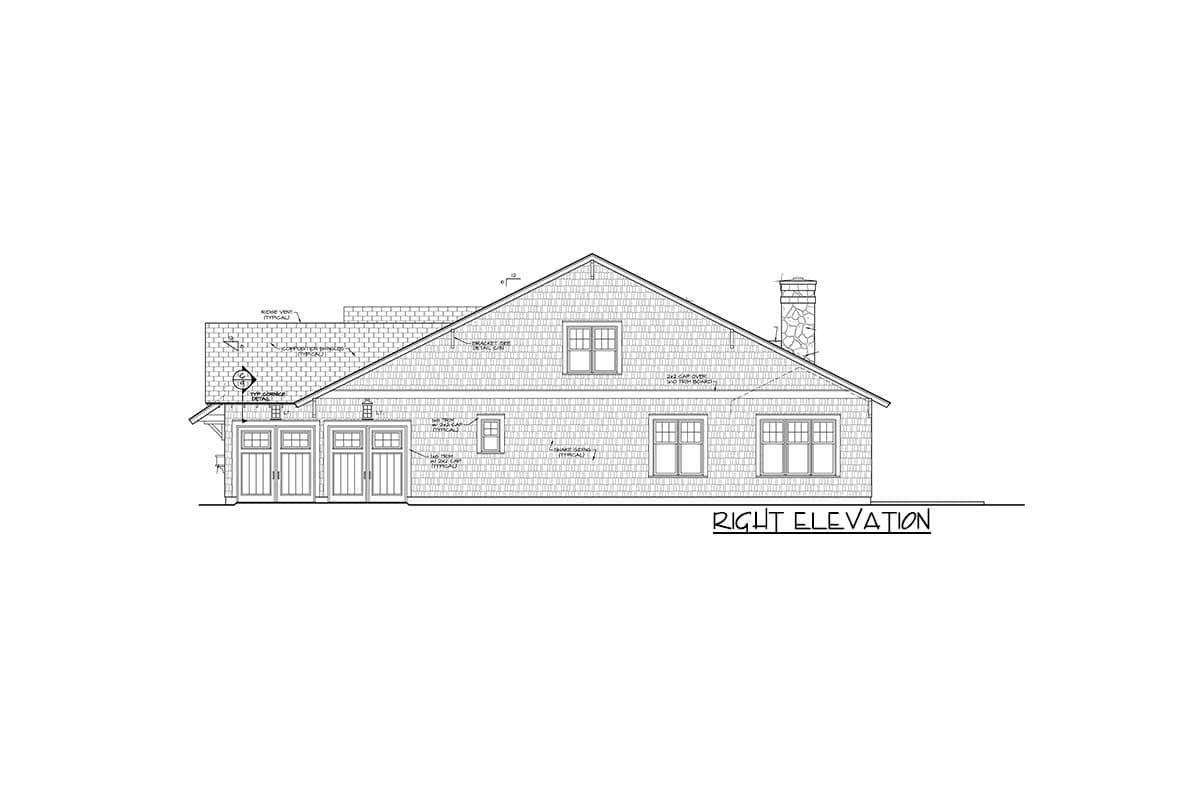

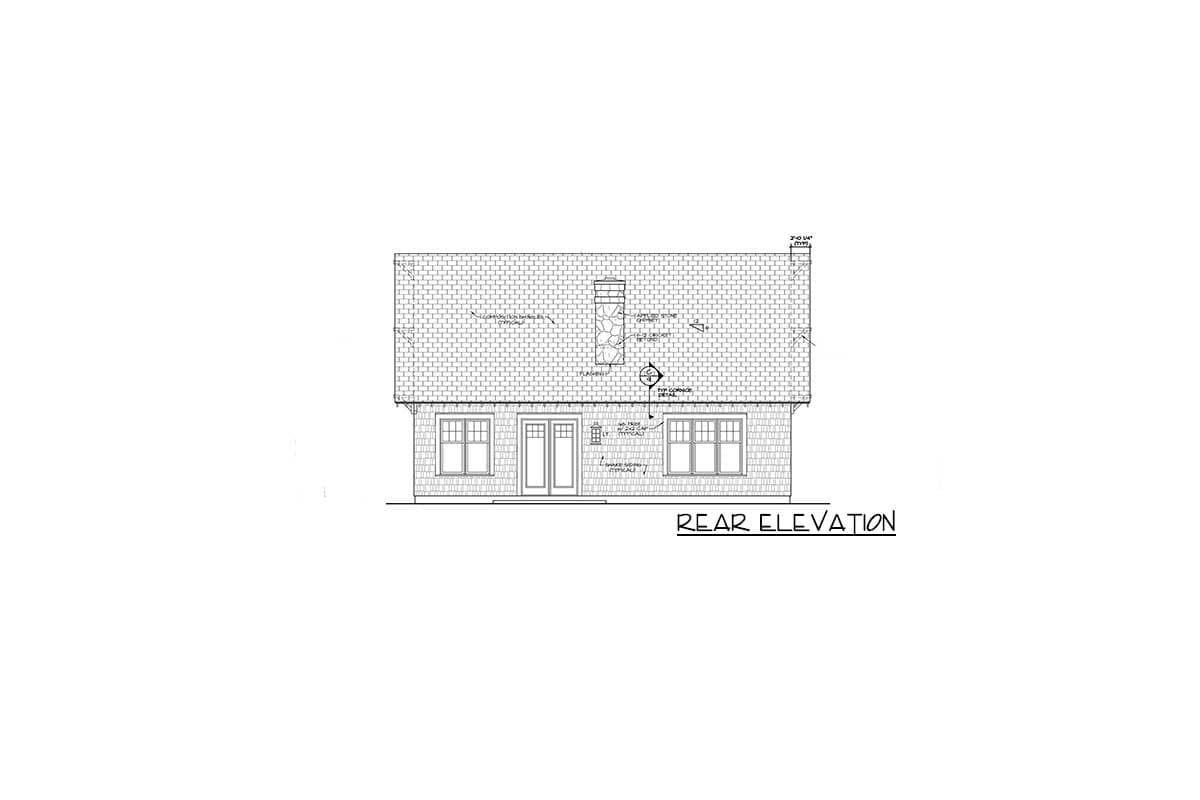

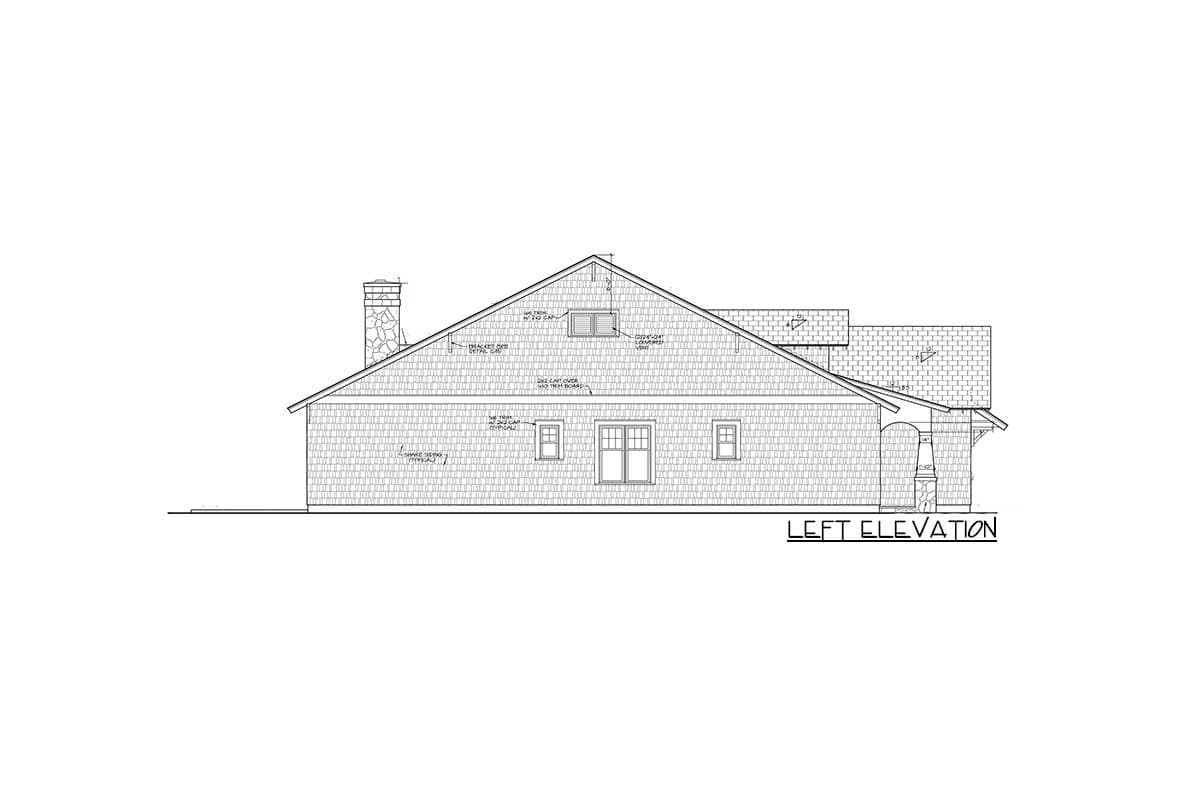

  • Related Plan: Get a side-entry garage with house plan 17705LV.
What's Included
Each plan set includes the following:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Craftsman Cottage

  • 2,029

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

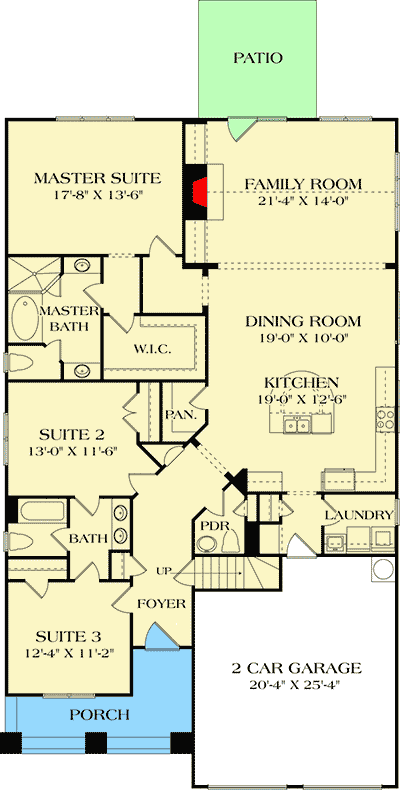

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,029 sq. ft.
  • 1st Floor: 2,029 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 68' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 491 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
