Plan 52499WM

Charming Craftsman Cottage House Plan with Main Level Master Suite

Heated S.F.
1,288
Beds
3
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 52499WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52499WM

M-F 9am-5pm EST |

1-203-761-8500

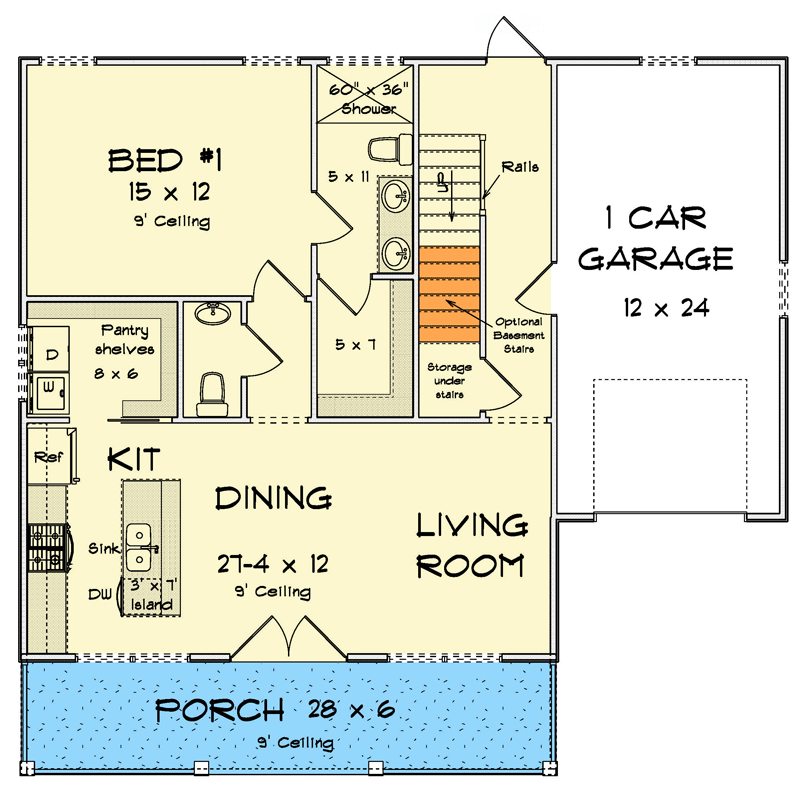

Main Level

Plan 52499WM: Charming Craftsman Cottage House Plan with Main Level Master Suite - Floor Plan - Main Level - Cottage, Craftsman, Traditional

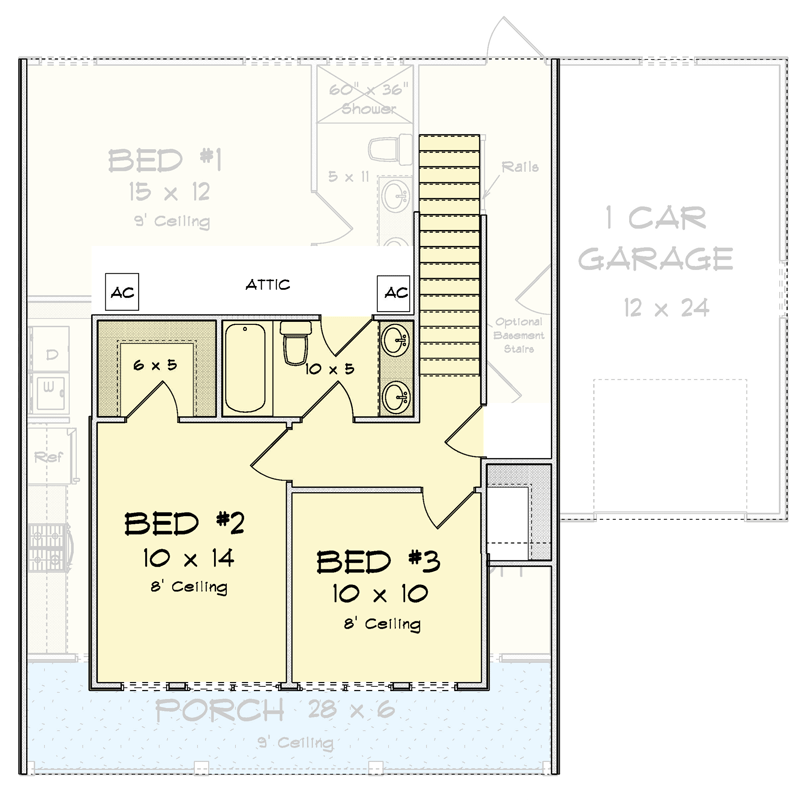

2nd Floor

Plan 52499WM: Charming Craftsman Cottage House Plan with Main Level Master Suite - Floor Plan - 2nd Floor - Cottage, Craftsman, Traditional

Plan Details

  • This inviting 1,288 sq. ft. Craftsman Cottage house plan features 3 bedrooms, 2.5 bathrooms, and an attached 288 sq. ft. 1-car garage, presenting a welcoming facade with its shake siding, dormer windows, and an expansive covered porch.
  • Step inside from the generous covered front porch into a thoughtfully designed interior, where the main level immediately reveals an open-concept flow, ideal for relaxed living and effortless connection.
  • The heart of the home seamlessly connects the living area to a well-appointed kitchen, which boasts a breakfast nook for casual meals and a butler walk-in pantry, ensuring both convenience and sophisticated storage solutions.
  • The luxurious master suite is conveniently located on the first floor, offering a private retreat away from the secondary bedrooms, which are thoughtfully situated on the second level to maintain privacy and comfort for all residents.
  • Enjoy tranquil mornings or evening relaxation on the generous 168 sq. ft. covered front porch, an idyllic spot to engage with the neighborhood or simply unwind amidst the fresh air.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

877 sq. ft.

2nd Floor

411 sq. ft.

Porch, Front

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

37' 4"

Max Ridge Height

23' 6"

Garage

Type

Standard, Attached

Area

288 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

877 sq. ft.

2nd Floor

411 sq. ft.

Porch, Front

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

37' 4"

Max Ridge Height

23' 6"

Garage

Type

Standard, Attached

Area

288 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
