Plan 420192WNT

Exclusive

Charming Craftsman Cottage House Plan with Vaulted Living Room Under 1200 Sq Ft

Heated S.F.
1,106
Beds
1 - 2
Baths
2
Stories
1

Floor Plan

Plan 420192WNT

Floor Plan 1

Plan 420192WNT

M-F 9am-5pm EST |

1-203-761-8500

Plan 420192WNT: Charming Craftsman Cottage House Plan with Vaulted Living Room Under 1200 Sq Ft - Floor Plan - - Cottage, Craftsman, New American

Plan Details

  • This charming New American cottage offers 1,106 square feet of living space, featuring one to two bedrooms and two full bathrooms.
  • The inviting front porch, defined by sturdy stone-based columns and wood accents, welcomes you into a bright and airy interior.
  • Inside, the living room impresses with a vaulted ceiling reaching twelve feet, creating an expansive sense of volume throughout the main common area.
  • The thoughtfully designed floor plan includes a flexible room that easily transitions between a formal dining space or a second bedroom to suit your lifestyle needs.
  • A well-appointed master suite serves as a peaceful retreat on the main level, providing comfort and convenience with direct access to modern bath facilities.
  • With high ten-foot ceilings throughout the first floor and classic architectural details, this home balances cozy cottage character with functional, modern living.
  • DELIVERY NOTE: Please allow 3 to 5 business days for delivery.

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

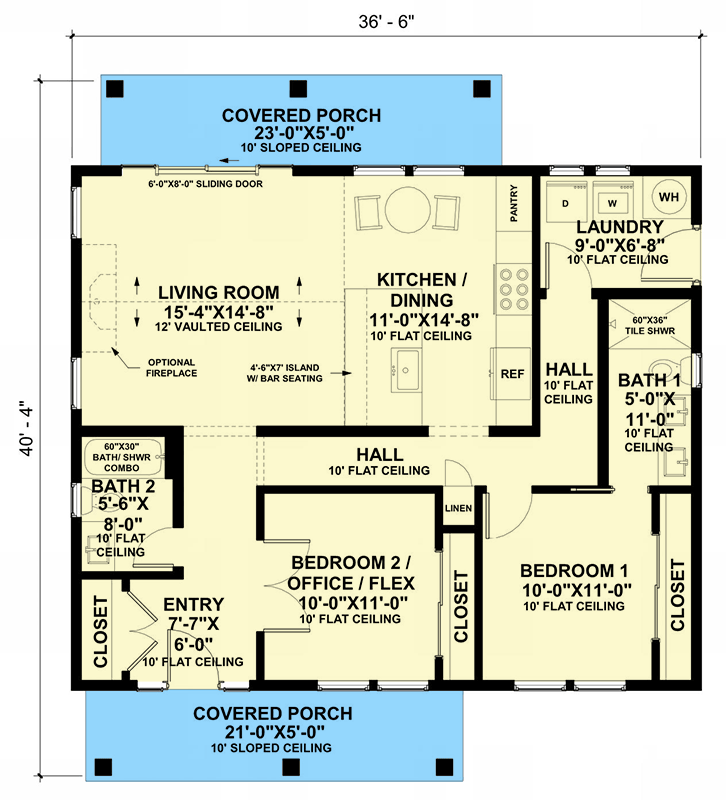

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

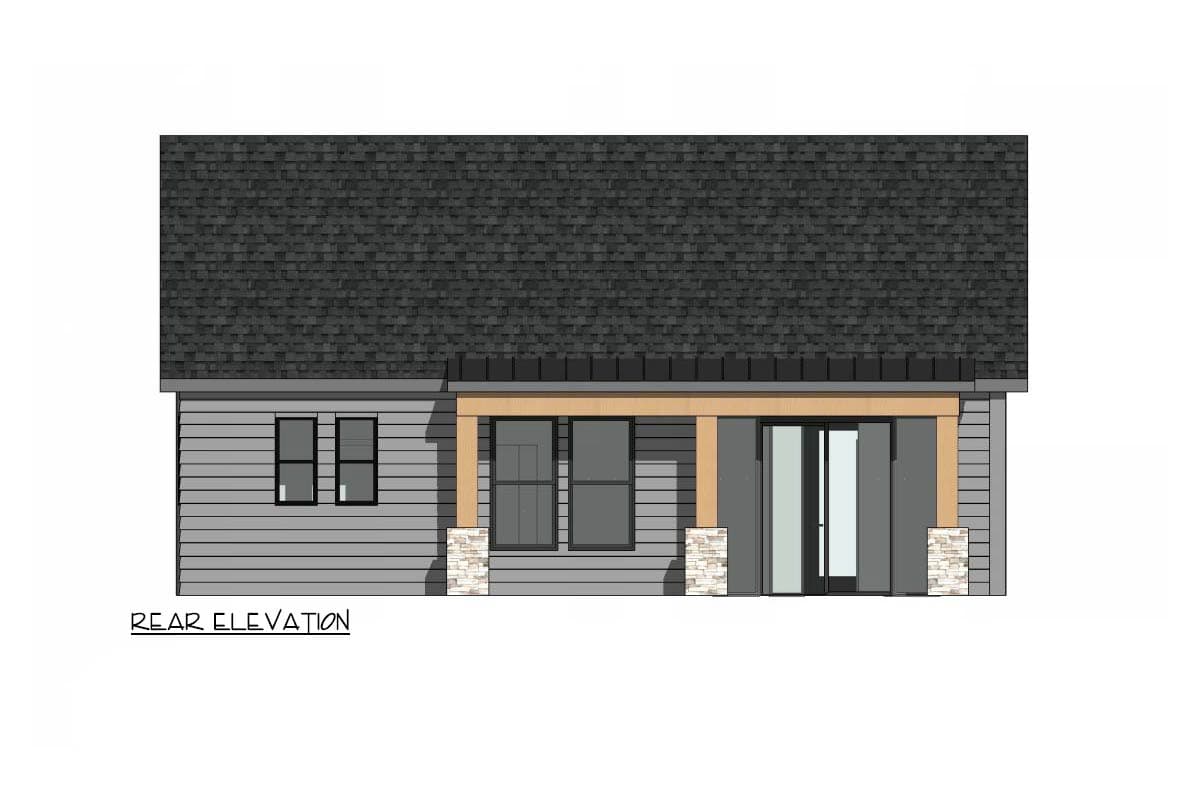

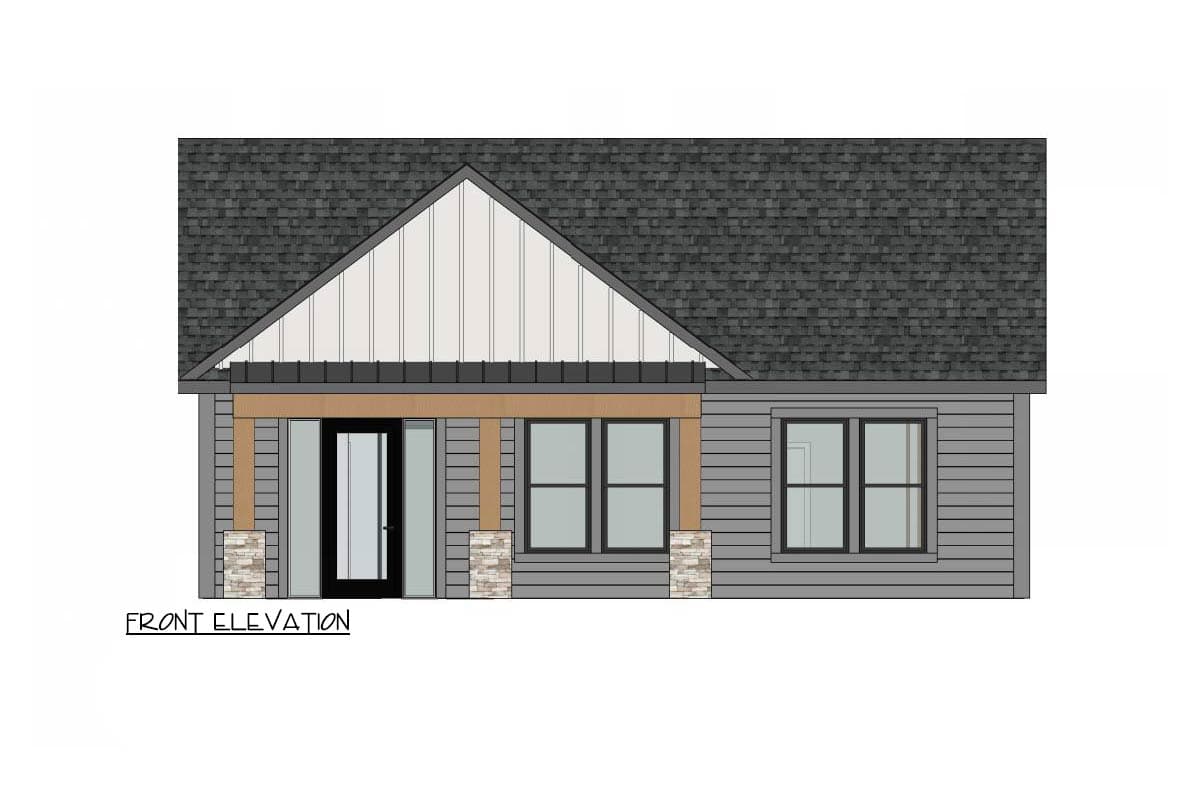

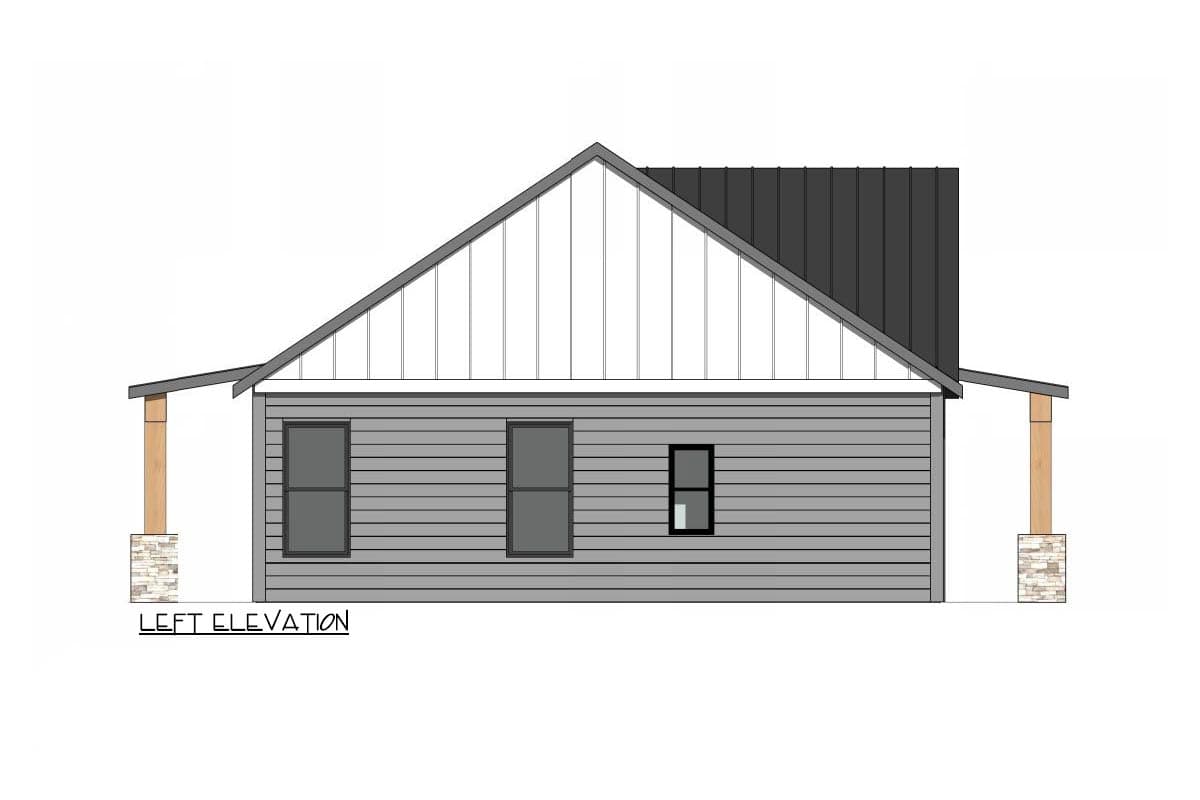

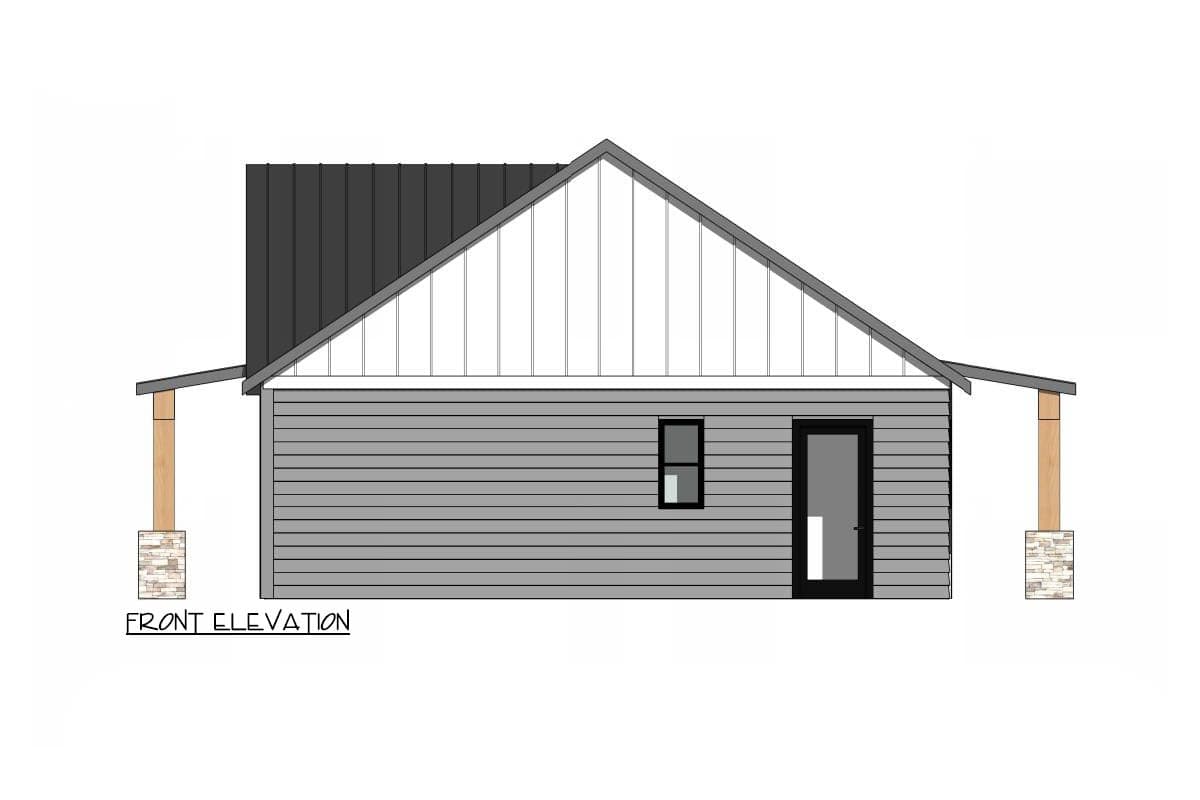

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,106 sq. ft.

1st Floor

1,106 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

40' 4"

Max Ridge Height

20' 6"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

12' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Craftsman

New American

Special Features

Bedrooms - Clustered

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,106 sq. ft.

1st Floor

1,106 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

40' 4"

Max Ridge Height

20' 6"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

12' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Craftsman

New American

Special Features

Bedrooms - Clustered

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
