Plan 60669ND

Charming Craftsman House Plan

Heated S.F.
1,917
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 60669ND

Main Level
Main Level

Plan 60669ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

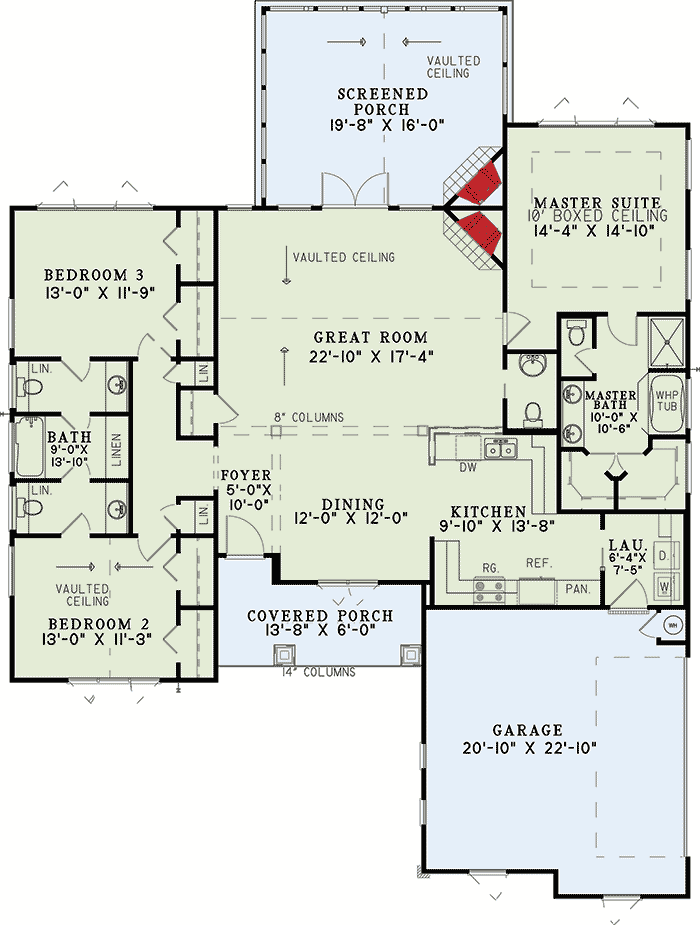

Plan 60669ND: Charming Craftsman House Plan - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • Just the right size for a vacation getaway, this Craftsman house plan is loaded with charming details inside and out.
  • Board and battan siding, shakes and decorative wood trim up the curb appeal of the home.
  • Once inside, the main living area opens right into view, with few walls to block views.
  • A vaulted ceiling makes the great room feel even larger and interior columns add a nice touch.
  • Both the great room and the screened porch have corner fireplaces to keep your family warm.
  • The split bedroom layout is designed to give privacy to all the bedrooms.
  • The stick framed roof has a 10:12 pitch.



What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,917 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

107 sq. ft.

Screened Porch

316 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 6"

Depth

71' 6"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,917 sq. ft.

1st Floor

1,917 sq. ft.

Porch, Front

107 sq. ft.

Screened Porch

316 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 6"

Depth

71' 6"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
