Plan 51236MM

Charming Craftsman House Plan with Spacious Living

Heated S.F.
2,002
Beds
3
Baths
2
Stories
1
Cars
2- 3

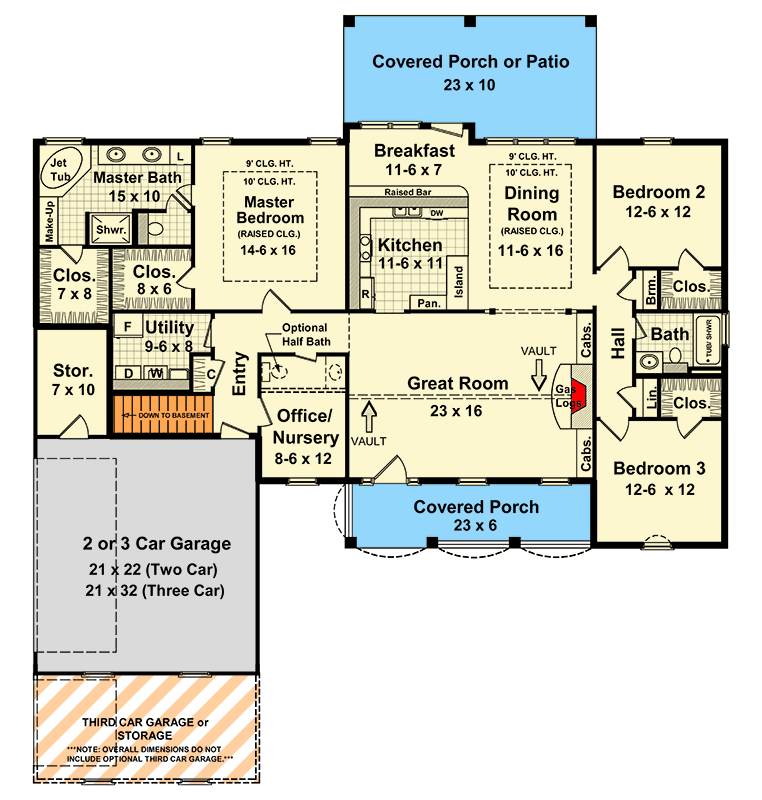

Floor Plan

Plan 51236MM

Main Level
Main Level

Plan 51236MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51236MM: Charming Craftsman House Plan with Spacious Living - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Modern Farmhouse

Plan Details

  • This 2,002 sq. ft. house plan is thoughtfully designed living space with 3 bedrooms and 2 bathrooms. Includes a 460 sq. ft. attached 2-car garage.
  • Inviting entry opens to a versatile office/nursery, flanked by the convenience of a half bath and comprehensive utility area, leading into a bright, open great room.
  • Seamless flow from the great room to kitchen and dining areas, enhanced by high ceilings and a central raised bar—perfect for daily living and entertaining.
  • Generous master suite features a raised ceiling with a luxury en-suite bath including a jet tub. Positioned for privacy, it complements the two secondary bedrooms located on the opposite wing.
  • Expansive outdoor spaces with a front covered porch and a rear covered patio, ideal for relaxing or hosting gatherings.**

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,002 sq. ft.

1st Floor

2,002 sq. ft.

Basement Unfinished

2,073 sq. ft.

Porch, Front

137 sq. ft.

Porch, Rear

252 sq. ft.

Storage

71 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

61' 4"

Max Ridge Height

22' 9"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
