Plan 42485DB

Charming Craftsman House Plan with Sunroom and Wrap-Around Porch

Heated S.F.
1,511
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 42485DB

Main Level
Main Level
Main Floor - Optional Attached Sunroom
Main Floor - Optional Attached Sunroom

Plan 42485DB

M-F 9am-5pm EST |

1-203-761-8500

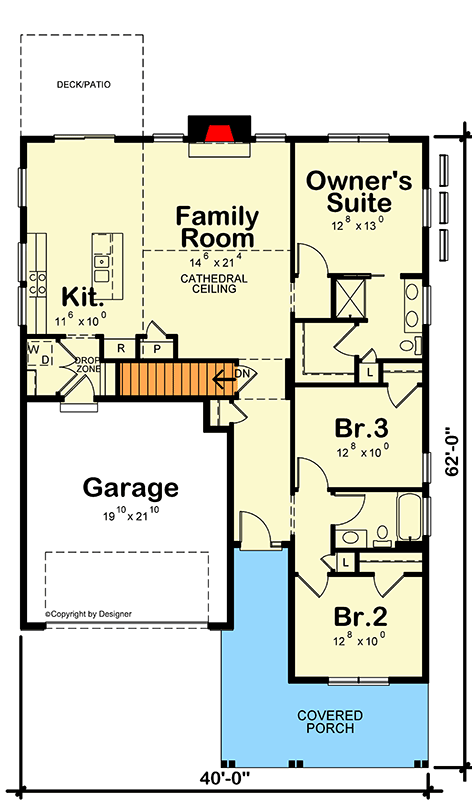

Main Level

Plan 42485DB: Charming Craftsman House Plan with Sunroom and Wrap-Around Porch - Floor Plan - Main Level - Craftsman, Traditional

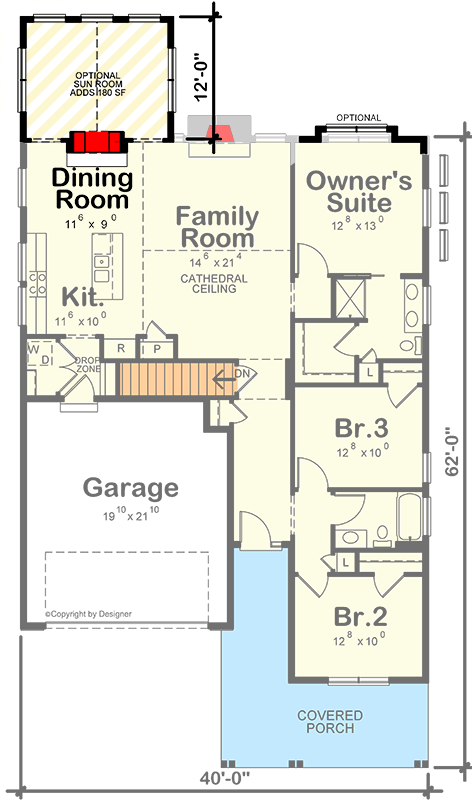

Main Floor - Optional Attached Sunroom

Plan 42485DB: Charming Craftsman House Plan with Sunroom and Wrap-Around Porch - Floor Plan - Main Floor - Optional Attached Sunroom - Craftsman, Traditional

Plan Details

  • This inviting 1,511 sq. ft. Craftsman-style house plan features 3 bedrooms, 2 full bathrooms, and an attached 2-car garage spanning 451 sq. ft., exuding timeless curb appeal.
  • Step inside to discover a thoughtfully designed layout with 9-foot ceilings, where an immediate sense of warmth and spaciousness greets you.
  • The heart of the home centers around a fluid connection between the living, dining, and kitchen spaces, designed for effortless interaction. A dedicated mudroom provides practical entry from the garage, keeping daily essentials organized.
  • The serene master suite is conveniently located on the first floor, offering a private retreat. All three bedrooms are thoughtfully clustered, providing a cohesive and functional sleeping wing for family or guests.
  • An expansive 180 sq. ft. sunroom offers a bright, tranquil space for morning coffee, reading, or simply enjoying the natural light throughout the seasons.
  • Embrace outdoor living on the welcoming wrap-around porch, perfect for enjoying gentle breezes and creating memorable moments with loved ones.

What's Included

  • General Notes

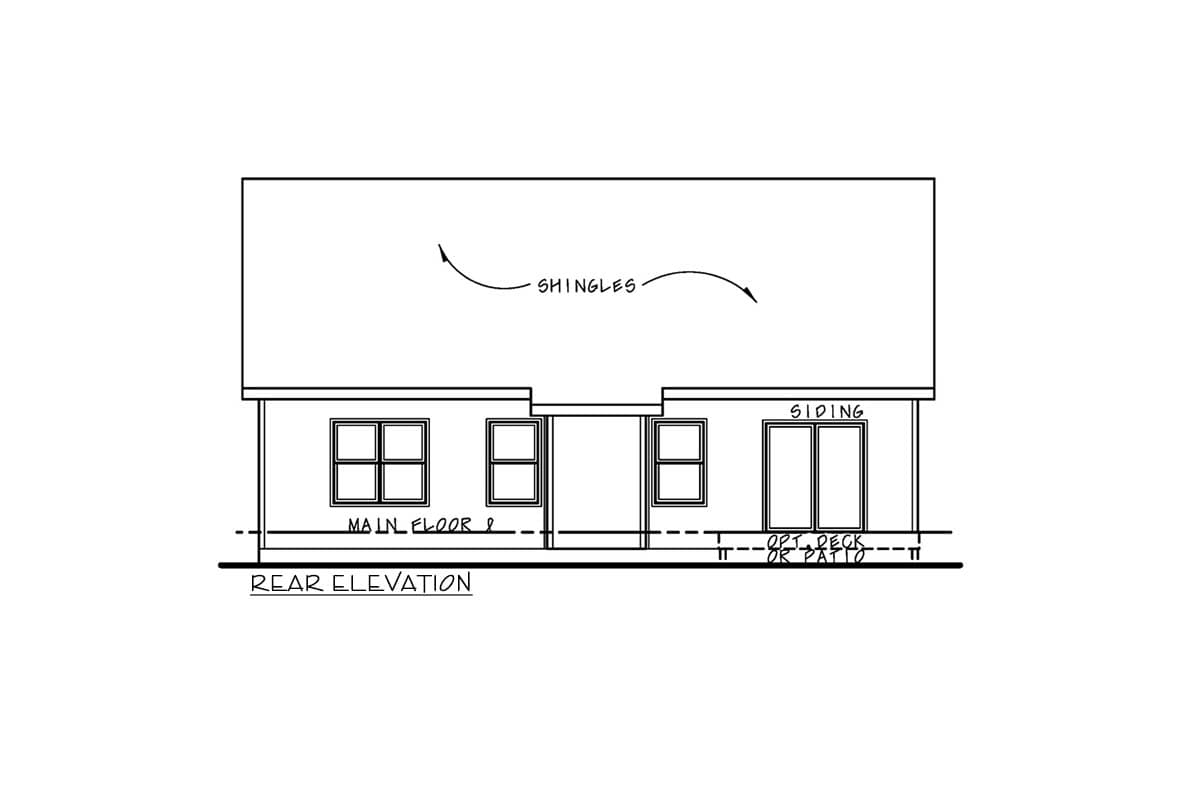

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,511 sq. ft.

1st Floor

1,511 sq. ft.

Sunroom

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

62' 0"

Max Ridge Height

23' 7"

Garage

Type

Standard, Attached

Area

451 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sunroom

Wraparound Porch
