Plan 970012VC
Charming Craftsman with Two-Story Den
Heated S.F.
2,609
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • This home design includes a very private main floor master suite with full bath, walk-in shower and spacious walk-in closet.
  • A 1½ story dormer shines light into the foyer and office; kitchen, dining and living rooms are open for easy, casual entertaining.
  • Three bedrooms and two full upstairs baths give everyone their own space
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

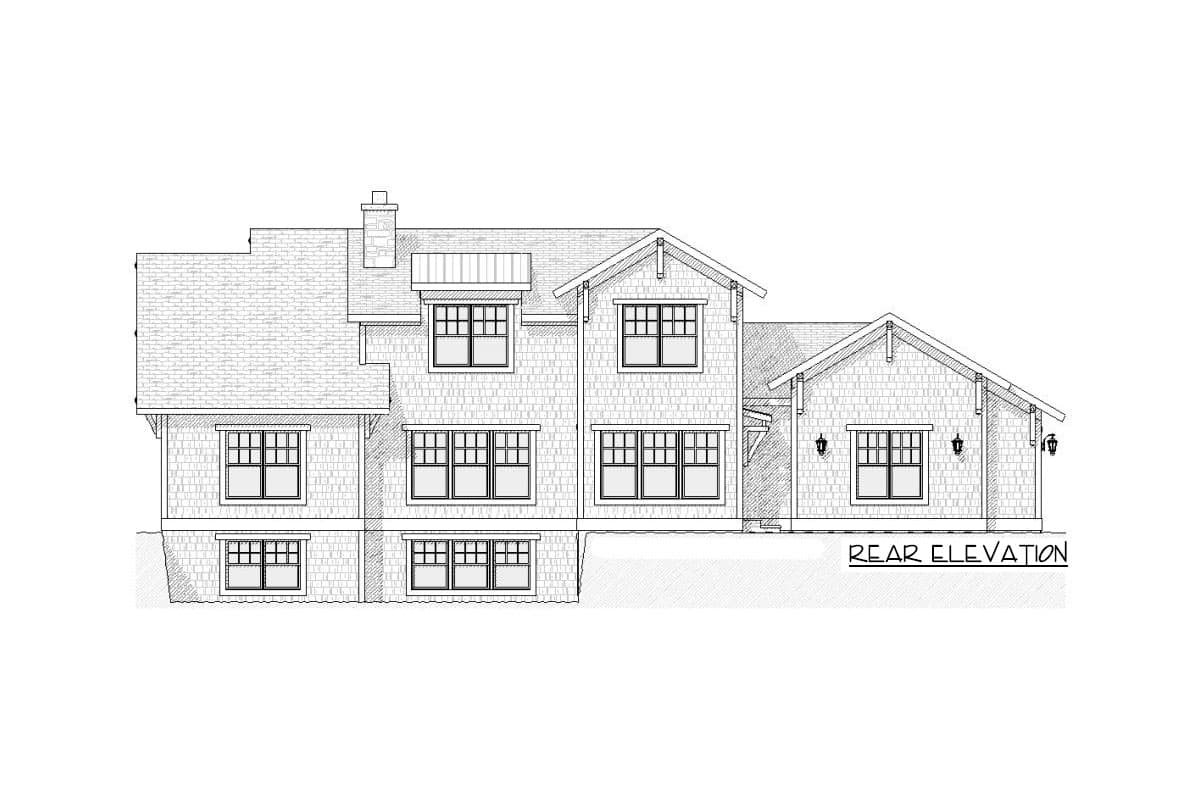

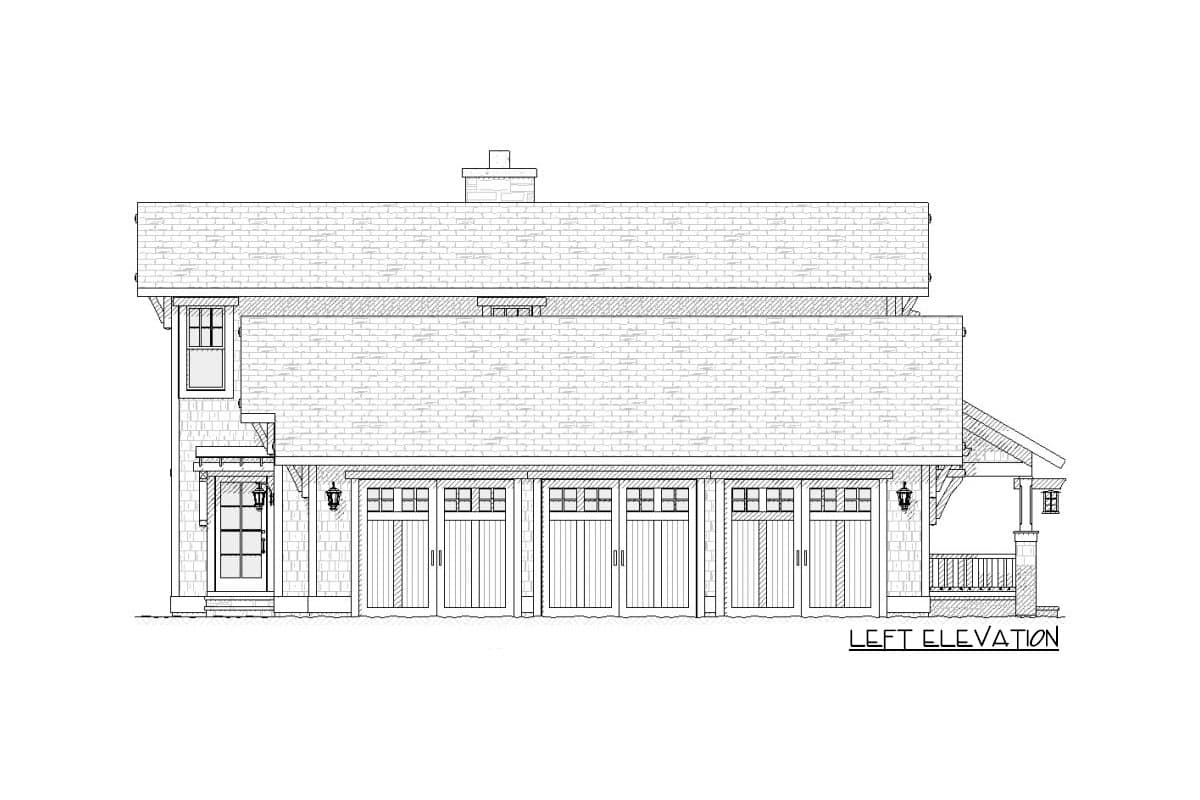

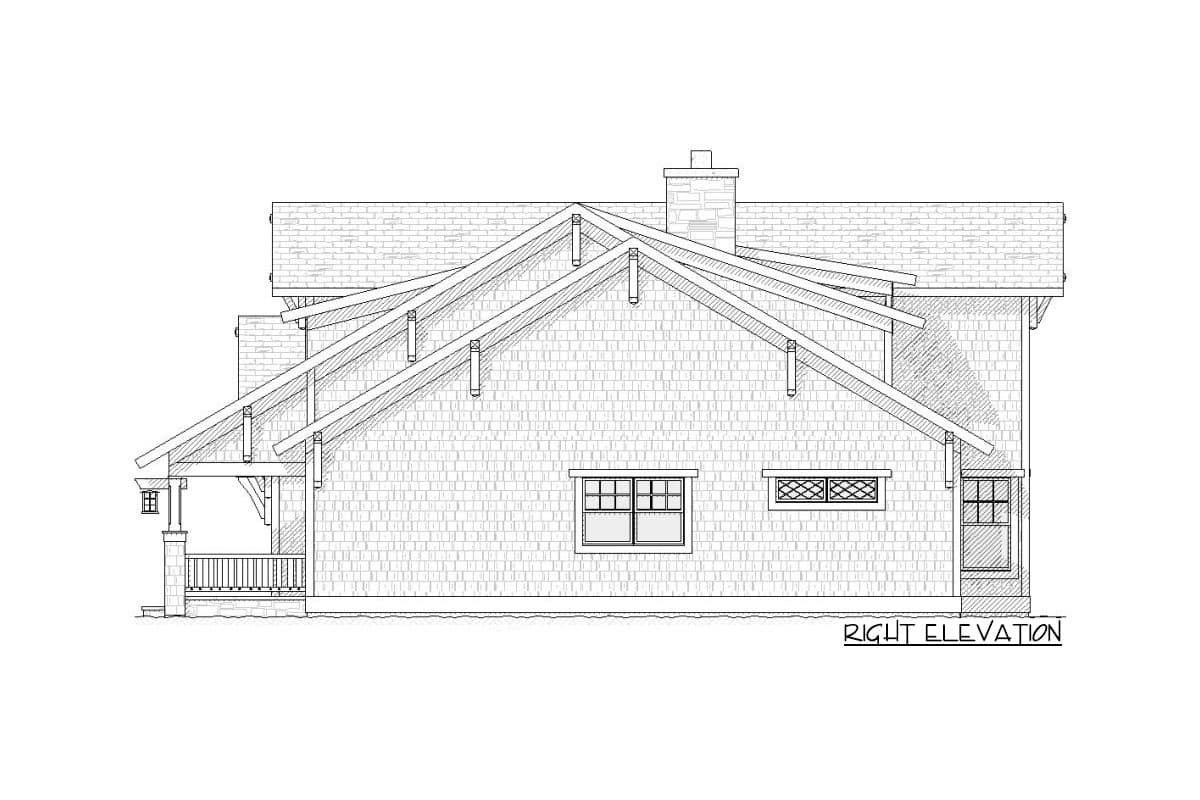

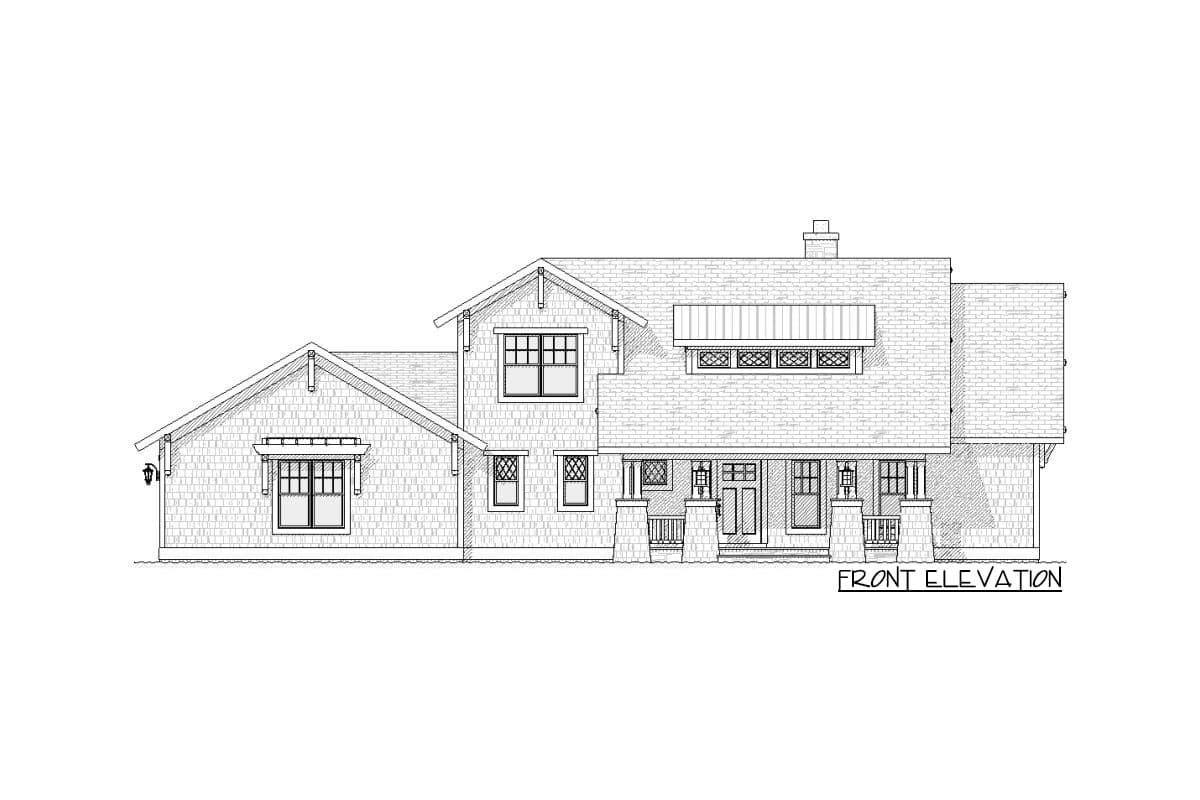

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Craftsman with Two-Story Den

  • 2,609

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

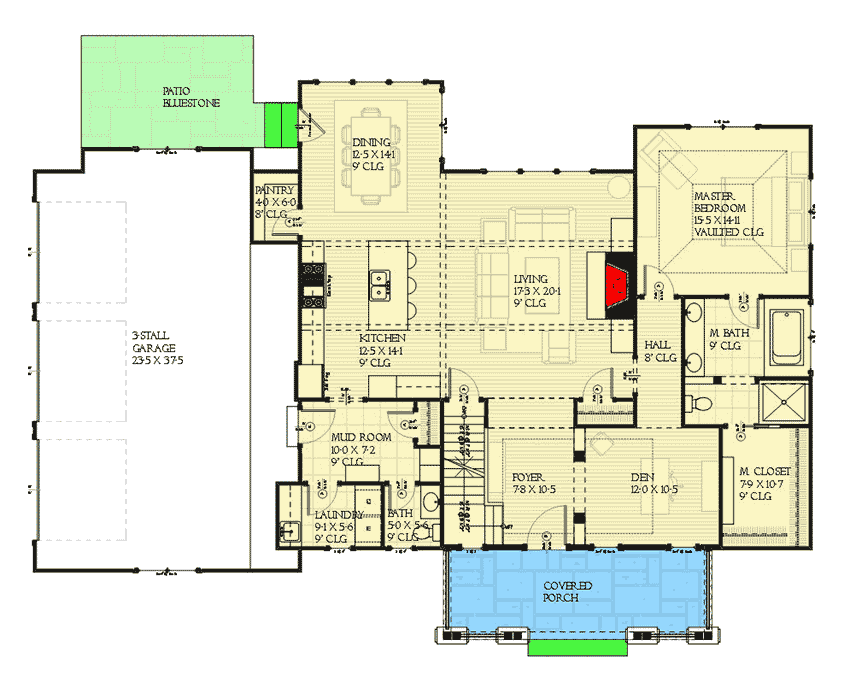

  • Main Level

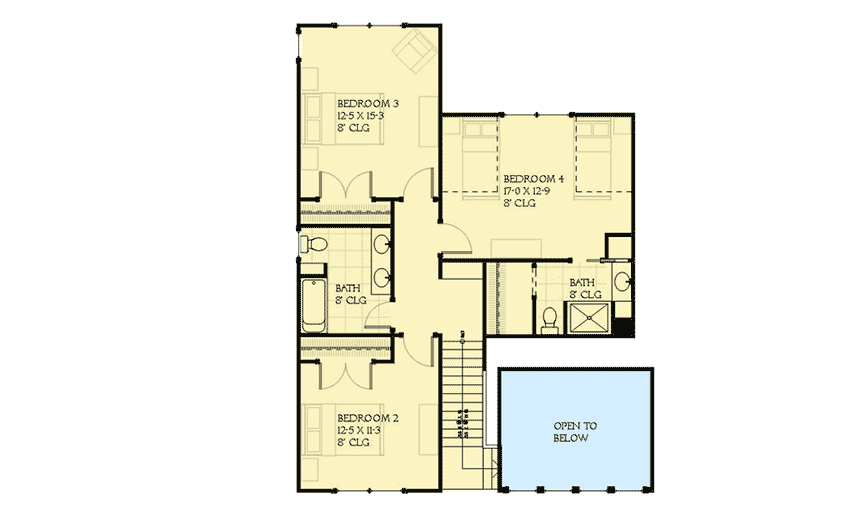

  • 2nd Floor

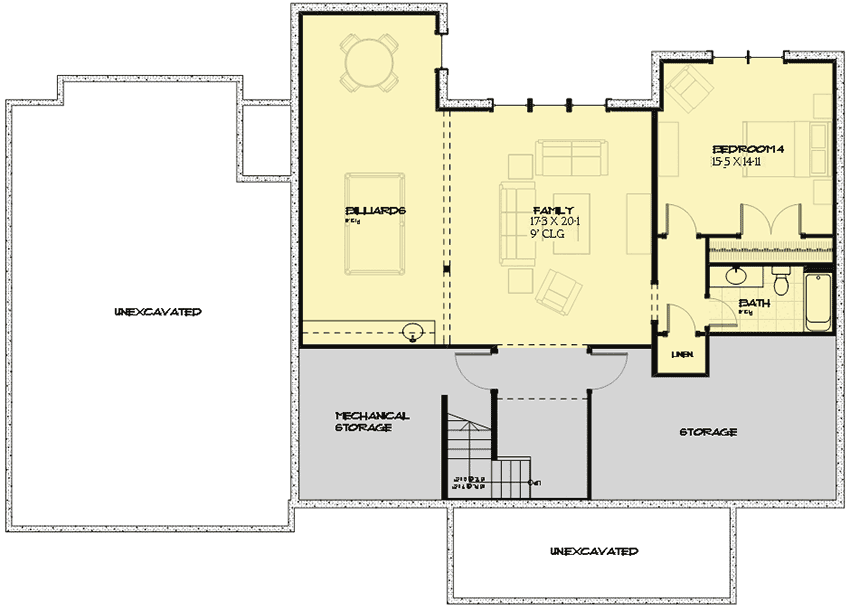

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,609 sq. ft.
  • 1st Floor: 1,773 sq. ft.
  • 2nd Floor: 836 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 50' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 876 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
