Plan 55204BR
Charming European Cottage Plan with the Ultimate Owner's Suite and Gourmet Kitchen
Heated S.F.
2,086
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Designed as the ultimate owner’s suite, the master bedroom boast cathedral ceilings and plenty of space for a sitting area.
  • The owner’s suite bath features include his and hers vanities, king sized walk-in closet, spa tub and a separate shower.
  • The two secondary bedrooms have gracious amounts of closet space and share a jack and Jill bath.
  • A half bath is tucked into a private part of the home and ideal for guest accommodations.
  • The living area, dining and kitchen have 12’ volume ceilings with grand paladin style windows.
  • The kitchen is gourmet sized and features a large pantry plus all of the usual appointments.
  • A spacious utility room is positioned to serve as a stop and drop area and it features abundant storage cubicles and storage closets.
  • Notice the door between the utility room and the master bedroom closet that allows you to take a shortcut to save steps and time.
  • A rear porch has a glass ceiling for allowing solar gain into the living room and a large adjacent patio is ideal for outdoor entertaining.
  • You will be pleased with the oversized garage which includes storage cabinets and a storage room.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming European Cottage Plan with the Ultimate Owner's Suite and Gourmet Kitchen

  • 2,086

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

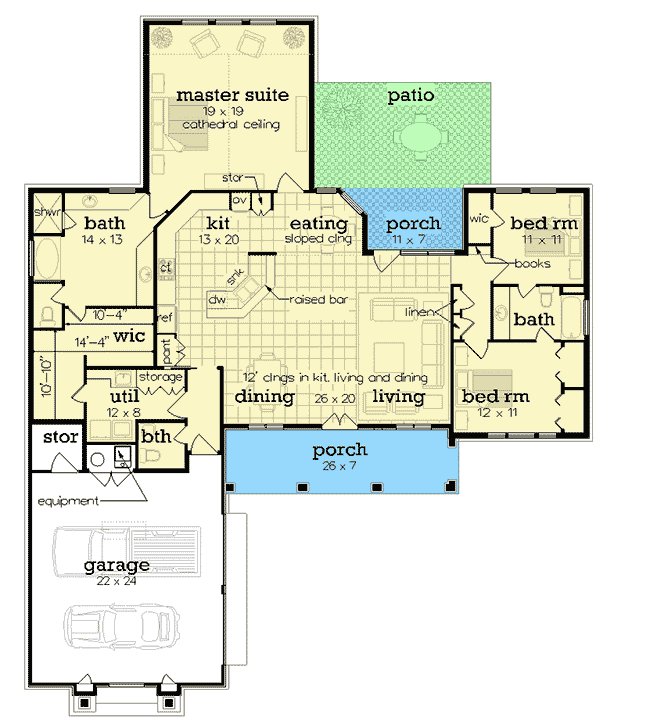

Floor Plan
