Charming Ranch House Plan with 3-Car Garage

Heated S.F.
1,838
Beds
3 - 4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 52521WM

Main Level
Main Level

Plan 52521WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

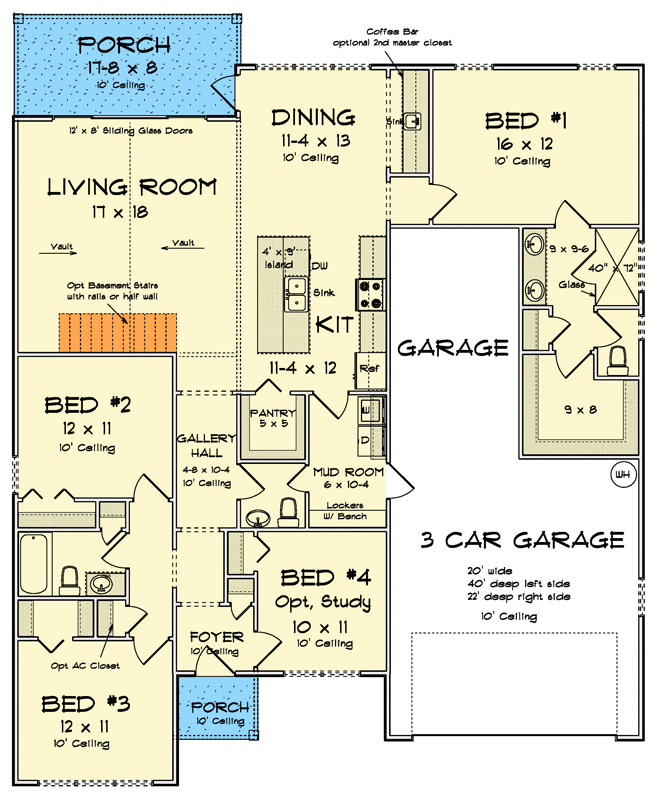

Plan 52521WM: Charming Ranch House Plan with 3-Car Garage - Floor Plan - Main Level - Cottage, Craftsman, Transitional

Plan Details

  • This captivating 1,838-square-foot home with 3 to 4 bedrooms and 2.5 bathrooms, showcases a delightful blend of the Craftsman style. The plan includes a 3-car garage, offering ample space for vehicles and storage.
  • Upon entry, a welcoming foyer leads to a thoughtfully designed layout. To the right, the dining area and Bedroom #1 offer a private retreat. The home also features a convenient office or study space, ideal for remote work or creative pursuits.
  • The heart of the home unfolds with an open-concept design that seamlessly connects the kitchen and living room. A kitchen island adds both functionality and style. Sliding glass doors in the living room open onto the outdoor porch for seamless indoor-outdoor living.
  • The primary bedroom suite is a sanctuary, offering a private retreat with an en-suite bathroom. Secondary bedrooms are designed for privacy.
  • The outdoor spaces are designed for relaxation, including a covered front porch and a back porch off the living room, ideal for enjoying the outdoors.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,838 sq. ft.

1st Floor

1,838 sq. ft.

Porch, Front

32 sq. ft.

Porch, Rear

140 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

24' 5"

Garage

Type

Standard

Area

628 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Craftsman

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

1,838 sq. ft.

1st Floor

1,838 sq. ft.

Porch, Front

32 sq. ft.

Porch, Rear

140 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

24' 5"

Garage

Type

Standard

Area

628 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Craftsman

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar
